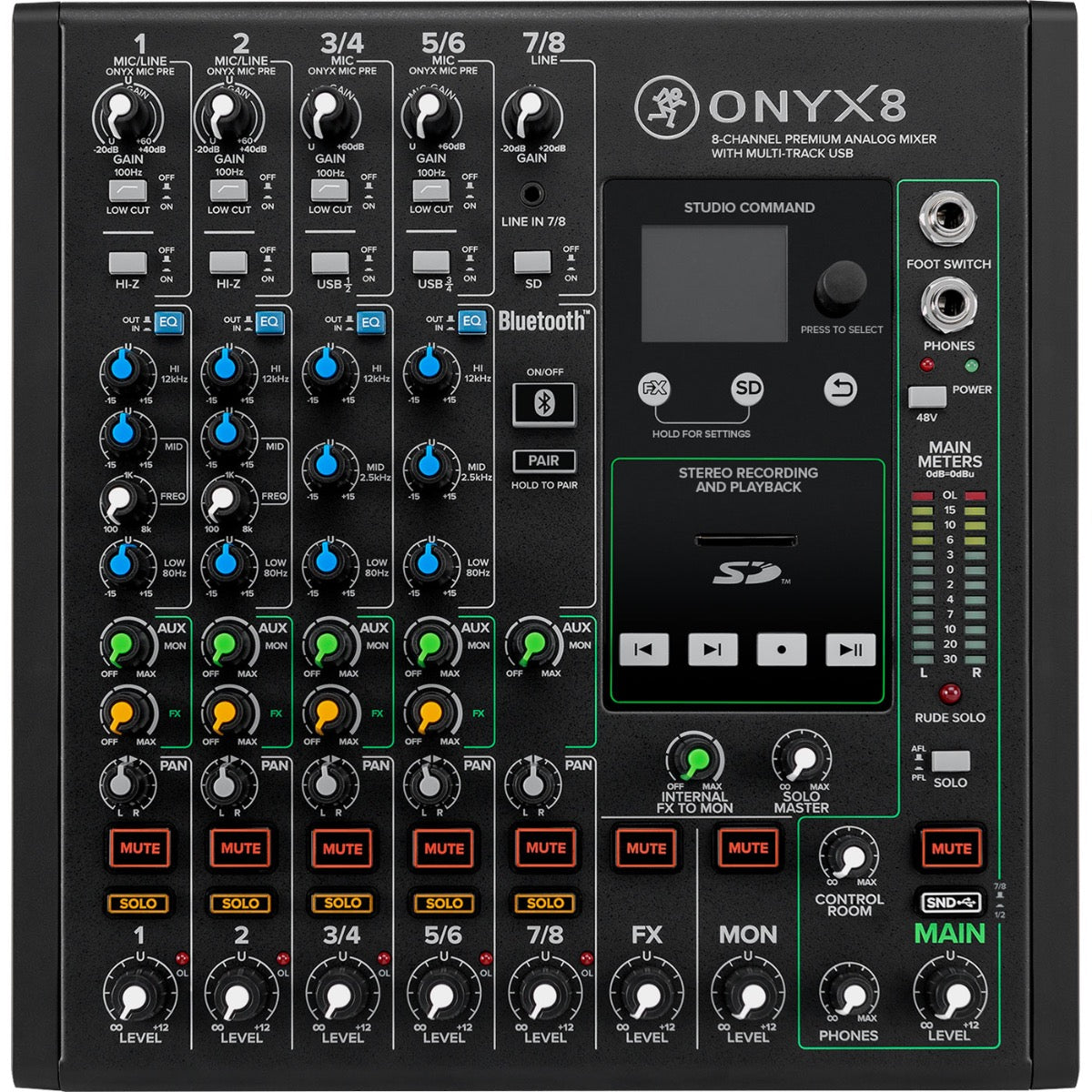

Mackie Onyx8 is the ultimate compact solution for live audio, home recording and content creation. 24-bit/96kHz multitrack recording, award-winning, high-gain Onyx mic preamps and an end-to-end ultra-low-noise design deliver the sound quality professionals demand. Packed with features including powerful DSP effects, British-style Perkins EQ, full-color display and integrated recording and playback from an SD card, Onyx8 gives you the power you need to capture your best performance with pristine fidelity at home or on the go.
- 4 award-winning Onyx mic preamps provide up to 60dB of gain
- Premium analog circuitry delivers studio-quality sound and keeps noise to a minimum
- Analog/USB channel strips with flexible routing
- Legendary Perkins 'British style' EQ with sweepable midrange offers classic sounds of the 60s and 70s
- Robust digital effect engine, including user-customizable reverbs, delays and more with a dedicated FX EQ
- Software bundle with Waveform OEM and DAW Essentials Collection
Record and playback via SD card or USB
- High-resolution 96kHz/24-bit multi-track recording to Mac/PC via USB
- Direct-to-SD card stereo recording and playback
- Channel-assignable 4-track USB return (2 stereo pairs)
- Send your main mix to USB via a dedicated switch
Studio Command: powerful and intuitive full-color display and single-knob interface
- Easy navigation of FX parameters, onboard SD recording and playback
- Visually browse files on the SD card via the built-in display
- Dedicated physical buttons for previous, next, record and play/pause
- Store up to 6 user FX presets for easy recall
Professional high-resolution FX processor
- Utilize built-in effects for live performances, streams and beyond
- Reverb, delay, chorus and more
- Dial in the perfect sound with adjustable parameters and dedicated EQ
- Built-in effects presets provide that finishing touch out of the box
Bluetooth streaming – go wireless
- Pair your Bluetooth-enabled device and stream audio directly to a channel on the mixer
- Streamed audio can be routed to aux sends and the main mix
Powerful mixing toolkit
- 3-band Perkins EQ with on/off hard bypass switch on all channels
- Hi-Z switches allow direct connection of guitars, basses and other instruments
- 12-segment stereo meters
- Overload indicators on all channels
- 100Hz low-cut filter and 48V phantom power on all mic channels
- PFL/AFL channel solo
Connections
- Stereo 1/8" input and Bluetooth streaming
- Stereo line inputs
- Aux/monitor outputs with dedicated per-channel send control
- Dedicated control room outputs
- Headphone output with dedicated level control
- Footswitch input for FX mute (footswitch sold separately)
Hit the ground running with powerful software and plug-ins
- Waveform OEM recording software and plug-in bundle
- DAW Essentials Bundle for Waveform OEM with 16 powerful plug-ins like Equaliser, Compressor, Reverber8 and Limiter
Rugged chassis and professional design
- Backlit mute and solo buttons provide a positive tactile feel and clear visual feedback
- Sealed rotary encoder resists dust and grime
- 'Built like a tank' heavy steel chassis
- High-visibility, high-contrast controls
- Rugged QuickGrip side cheeks offer convenient mobility and protection
| SKU | MAC-ONYX8CK |
| MPN | Onyx8 |
| Vendor | Mackie |
| Bluetooth | Audio Receiving |
| Connectivity | USB |
| Included From Manufacturer |
Power Cable Waveform OEM DAW Essentials Collection |
| Mic Preamps | 4 |
| Mixer Channel Filterable | 8 |
| Mixer Type | Analog |
| Mpn | 2051990-00 |
| Product Unique Features |
Legendary Perkins 'British style' EQ with sweepable midrange Studio Command full-color display and single-knob interface Hi-Z switches allow direct connection of guitars, basses and other instruments 100Hz low-cut filter on all mic channels Pro Tools | First recording software and plug-in bundle Sealed rotary encoders Backlit mute and solo buttons |
| Simultaneous Inputs | 5 |
| Aux/Effect Sends | 1/4" FX send output |
| Busses/Groups |
Aux send per channel FX send per channel |
| Channel EQ | 3-band Perkins EQ with on/off hard bypass switch on all channels |
| Channel Inserts | 2 × 1/4" channel inserts (channels 1 and 2) |
| Effects | Reverb, delay, chorus and more |
| Number of Faders |
Channel level rotary potentiometers Main level rotary potentiometer |
| Audio Inputs |
2 × XLR / 1/4" combo inputs 3 × dual stereo 1/4" inputs 2 × 1/4" channel inserts Bluetooth stereo streaming input 4-track USB return (2 stereo pairs) |
| Audio Outputs |
Dual stereo XLR main output Dual stereo 1/4" main output Dual stereo 1/4" control room output 1/4" FX send output 1/4" monitor output 1/4" stereo headphone output Multitrack USB recording |
| Phantom Power | 48V phantom power on all mic channels |
| Product Weight | 7.1 lb |
| Storage Type | SD Card |
| Width | 10.5" |
| Depth | 11" |
| Height | 4.5" |
