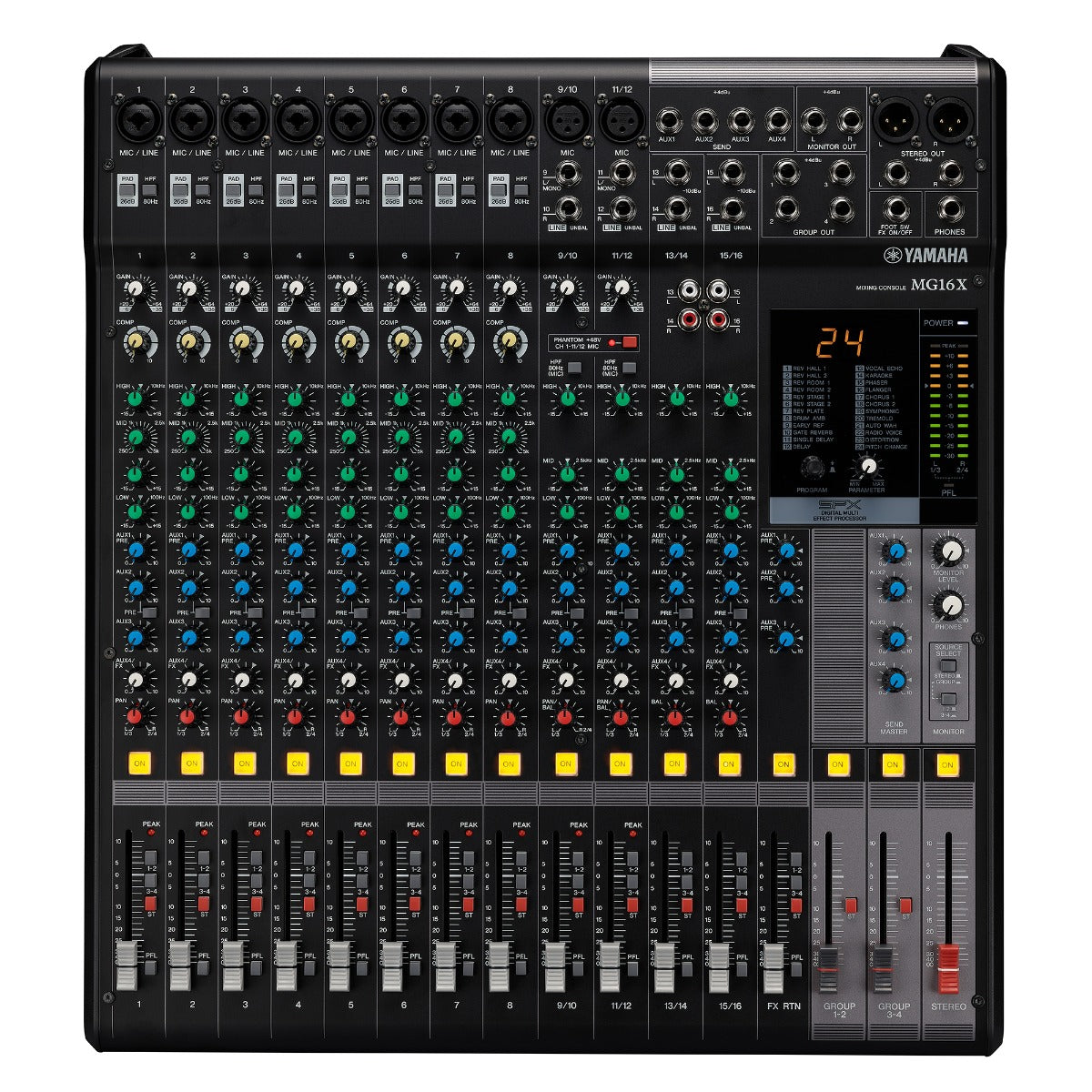

Housed in a rugged steel chassis, the MG16X can accommodate up to 16 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and three more are available. Eight channels of single-knob compression are available. The MG16X can accept XLR, ¼” Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG16X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG16X can be rack mounted (12RU) with the included rack ears.
| SKU | YAM-MG16XCVPP |
| Vendor | Yamaha |
| Included From Manufacturer |
PA-10 power adapter Rack ears |
| Mic Preamps | 4 |
| Mixer Channel Filterable | 16 |
| Mixer Type | Analog |
| MPN | MG16X CV |
| Simultaneous Inputs | 16 |
| Aux/Effect Sends | 4 Aux Sends |
| Busses/Groups | 4 |
| Channel EQ | High, Mid, Low |
| Effects | 24 effect programs |
| Number of Faders | 16 |
| Audio Inputs | 8 x 1/4" / XLR Combo 2 x XLR 4 x Stereo 1/4" (L+R) |
| Audio Outputs | Stereo Balanced XLR 2 x Stereo 1/4" 1/4" Headphones 4 x 1/4" Group Out |
| Phantom Power | Switchable +48V (channel 1-11/12) |
| Product Weight | 15.0 lbs. |
| Rackmountable | Yes |
| Width | 17.5" |
| Depth | 19.7" |
| Height | 5.1” |
