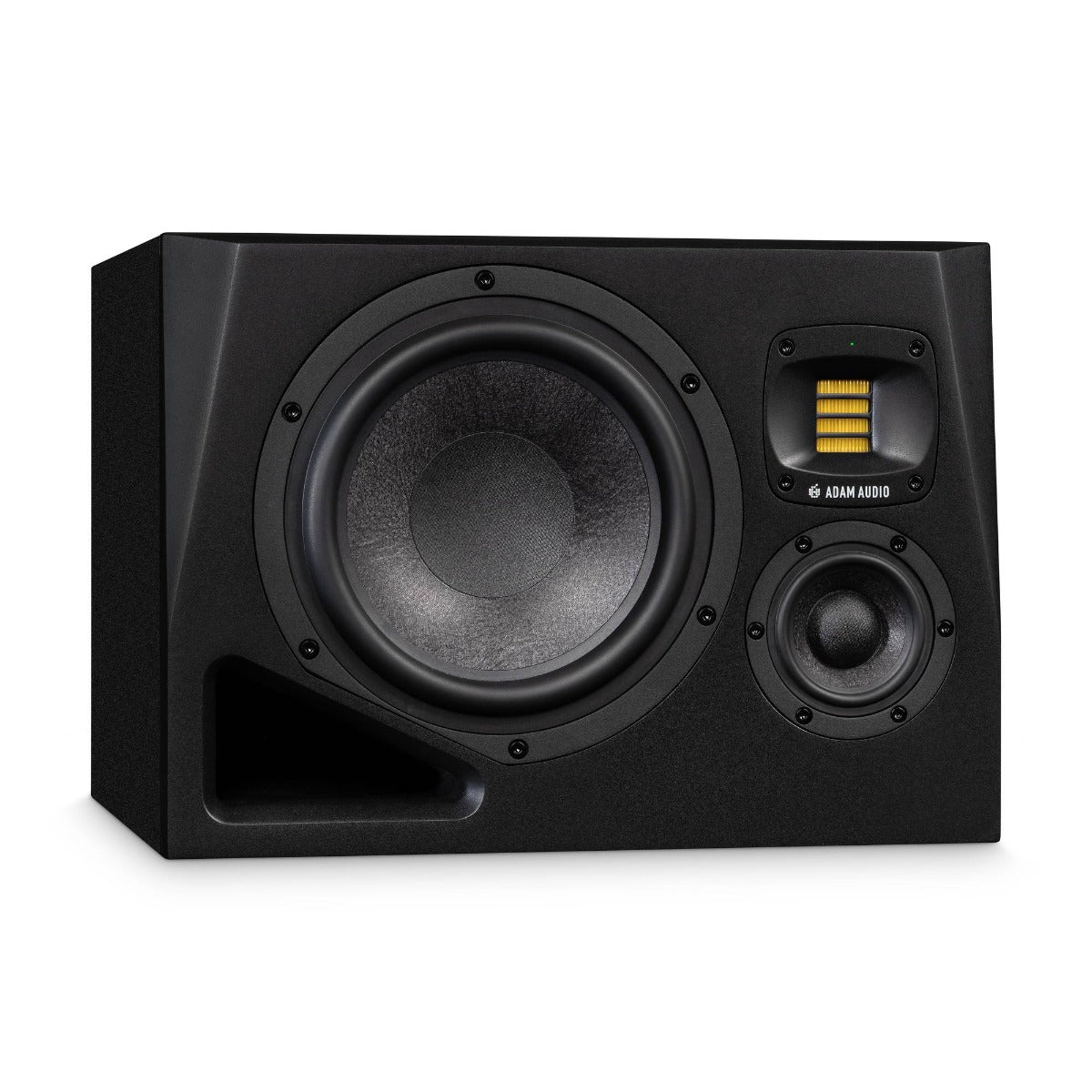

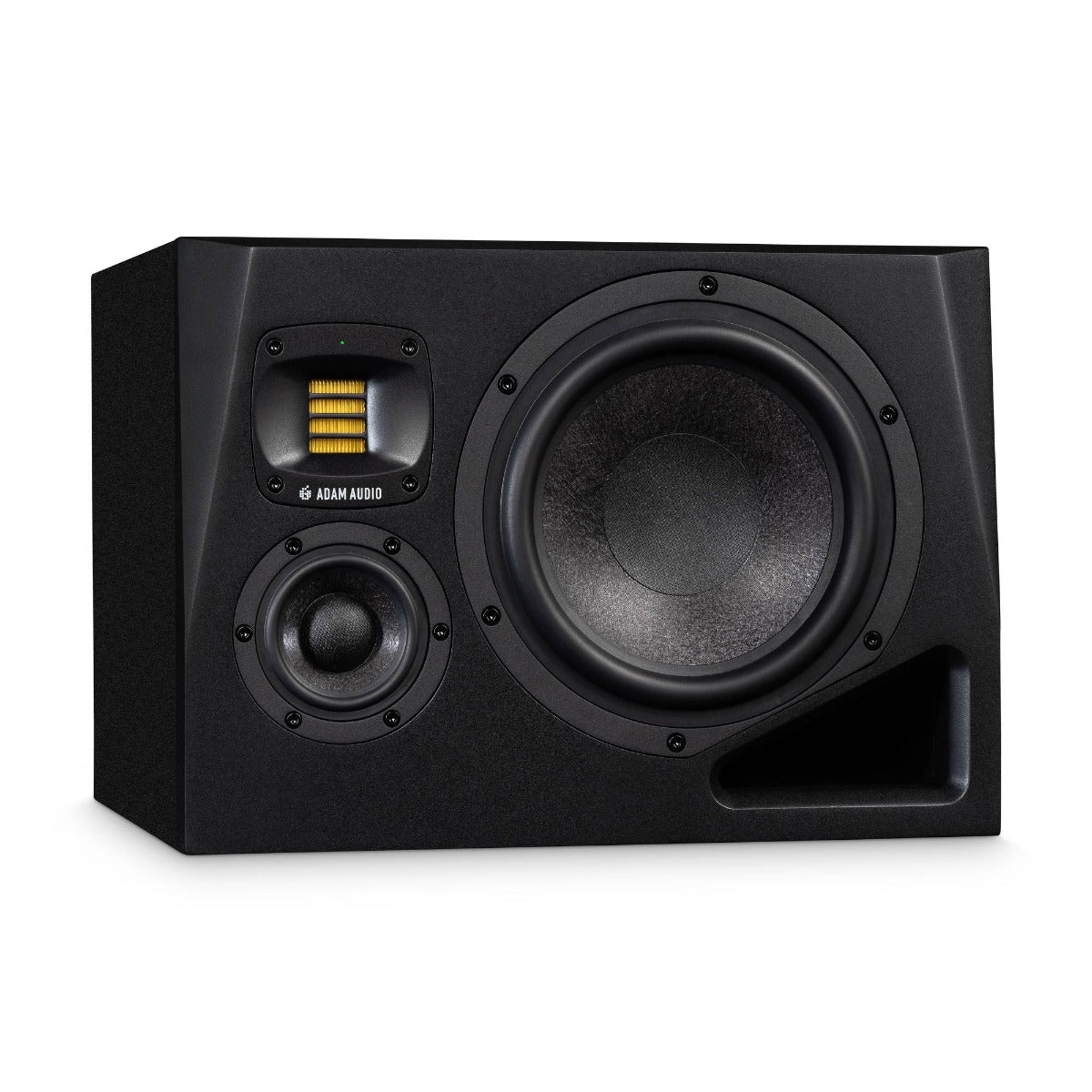

The pinnacle of the A Series, the A8H is a three-way speaker that delivers the extremely accurate and analytical sound required for critical-listening environments. The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fiber woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response. Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you’re looking for the most detailed representation of your audio.
- Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
- Midrange Driver: 3.5” MLM midrange driver
- Midrange Voice Coil Ø: 33 mm / 1.3”
- Woofer: 1x 8" MLM mid-woofer
- Woofer Voice Coil Ø: 38 mm / 1.5”
- AD convertor: 24-bit
- Internal sample rate: 96 kHz
- Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
- Crossover frequency: 400Hz – 3.0 kHz
- Power rating: 500 W max
- Analog Inputs (balanced): 1x XLR
- Analog Inputs (unbalanced): 1x RCA
A Solution for Every Space
With five models of varying dimensions and specifications to choose from, finding the right speaker is simply a matter of taste and understanding the acoustic requirements of your space. For added flexibility when it comes to speaker positioning, the rotatable HPS waveguide means each speaker can be used in a horizontal or vertical position with minimal compromise in sound quality. Room adaptation options directly on the backplate of the monitor help address common speaker placement issues such as bass overrepresentation caused by nearby walls and surfaces.
Superior Audio Performance
Every aspect of the A Series’ design, material, and components contributes toward exceptional sound quality and improved output when comparing similar models of the preceding AX Series.
The combination of Class D amplifiers used in A Series woofers, and the Class AB amplifiers found in the tweeters deliver impressive SPL across the range and an ultra-low frequency response. The use of digital signal processing enables the more advanced features found in the A Series.
All A Series speakers come equipped with an X-ART tweeter enclosed in a tailor made HPS waveguide. The high quality of the tweeter materials, folded by hand in Berlin, combined with the precise propagation control of the waveguide, results in superior dispersion of high frequencies over short and long listening distances.
A Series woofers are constructed from multiple layers of mineral stone fibers baked together to create a lightweight but highly stable material that helps eliminate partial vibrations and other sonic impurities. By combining that material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean sound for low-end material.
The elegant design of A Series cabinets also contributes toward superior audio performance. Specifically, the cabinets have deeper beveling to minimize diffraction, and thicker baffle walls that reduce vibrations within the enclosure. In addition, a flared-port design reduces port noise compared with AX Series speakers by optimizing airflow.
Superior Midrange
The A Series features two models with dedicated midrange drivers. The A77H and A8H boast the most detailed sound of the A Series thanks to the innovative midrange driver, which descends from the flagship S Series range. The addition of a midrange driver also helps clarify lows and highs by eliminating the need for woofers to reproduce midrange frequencies.
Truthful Mixing
The A Series features 2 selectable voicing options found directly on the back panel of the monitors. “Pure” is a highly accurate and neutral sounding option. This is a super flat setting, offering an honest representation from your speakers and making it ideal for mixing, mastering and critical listening applications.
Characterful Sound
The A Series also offers the characterful and present sound you would expect from ADAM Audio. “UNR” or “Uniform Natural Response™” is a dynamic, natural-sounding voicing that is selectable on the back panel of the monitors. Its design stems from a variety of iconic ADAM Audio legacy products, including the preceding AX Series. It lends itself to production, composition and song writing as its engaging sound can give you more room for creativity and flow. It is also a great option whenever you want to use your speakers simply to enjoy some good music.
SKU | ADAM-A8HLRSB |
Vendor | ADAM Audio |
Active Passive | Active |
Battery Powered | No Battery Power |
Included From Manufacturer |
1 x Speaker 1 x Power cable 1 x Quick start guide |
MPN | 12107100 |
Speaker Application | Full-Range |
Speaker Size Filterable | 8 |
Connectors | 1x XLR 1x RCA |
Flyable | No |
Pole Mount | No |
Power | 500 W max |
Product Weight | 30 lbs |
Tweeter/Horn | Rotatable X- ART Tweeter + HPS Waveguide |
Width | 15" |
Depth | 13" |
Height | 9 3/4" |
Woofer/Low Frequency | 1x 8" MLM mid-woofer |
ADAM Audio speakers are covered by ADAM Audio's limited 2 year warranty. You have the possibility to extend the warranty period of all your ADAM products by up to three years to a total of five years. You can set this up in a few seconds in the MyADAM section of the website. The decisive factor is the date of the invoice. Products that are no longer in the regular current ADAM Audio product portfolio are not covered by the warranty. Information about the current ADAM Audio product portfolio can be found at www.adam-audio.com.
