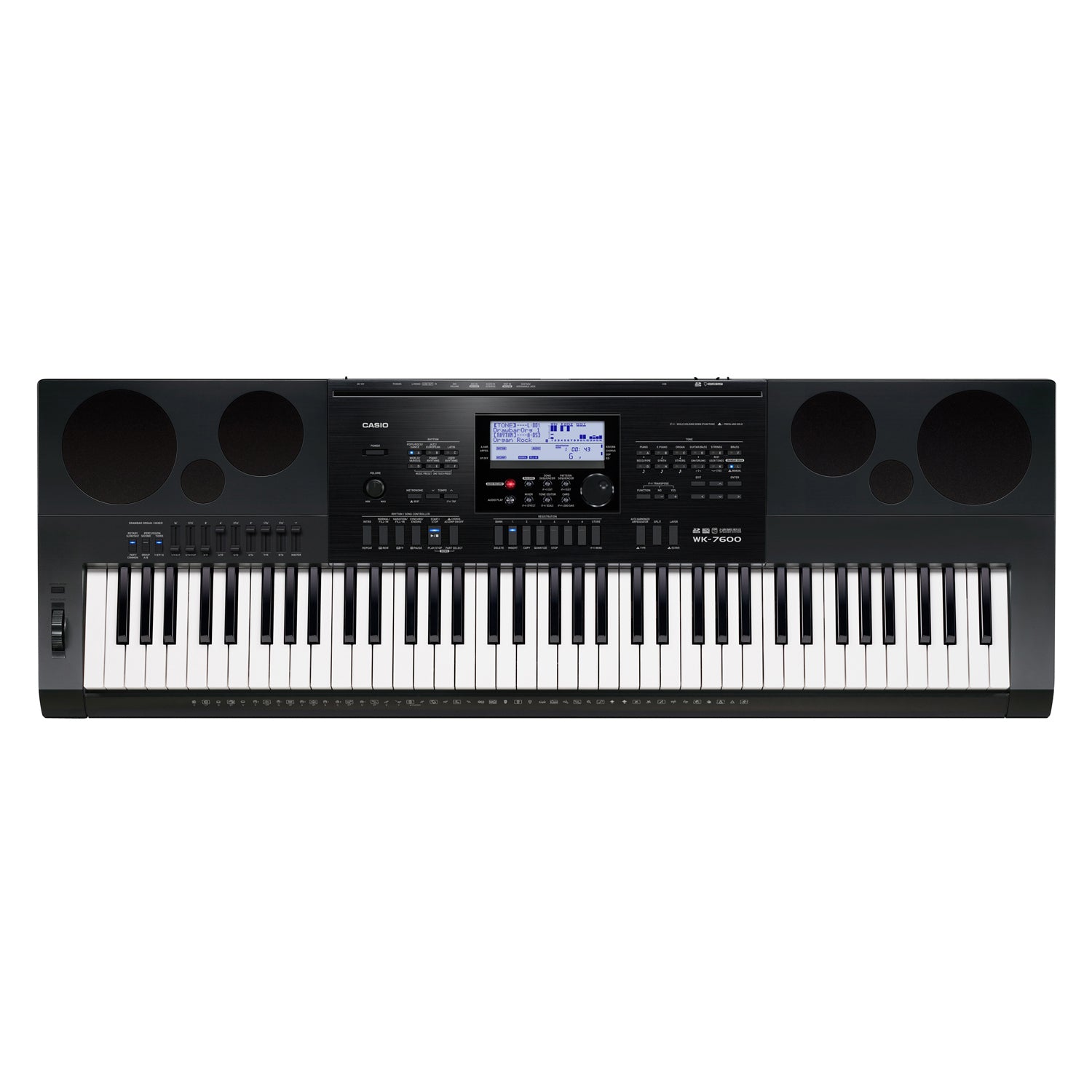

Casio WK-7600 offers powerful and extensive features at a price that is unheard of in the portable keyboard market. It offers 820 tones, 260 preset rhythms, a 17-track sequencer and a 32-channel mixer, as well as audio recording capabilities. Any piece of music you create can be recorded as an audio file on an SDHC card. 9 sliders extend your versatility and provide an impressive 50 draw bar organ tones. Whether you are an amateur or professional musician, WK-7600 will allow you to create, edit and play your compositions at home, in the studio or on the stage.
Drawbar organ function
The keyboard comes with 50 specially selected built-in drawbar organ tones. Nine sliders can be used to change harmonic overtone level settings and add percussion and click sounds for real-time sound creation as you play. A rotary speaker simulated using a built-in DSP provides the distinctive acoustic effect of drawbar organ speakers. Parameters can be edited to create original 'user drawbar organ tones,' 50 of which can be stored in memory for later recall.
Tone Editor
The attack time, release time, cutoff, vibrato, reverb/chorus, DSP and other parameters of a built-in tone can be adjusted and edited. You can save the result as your own unique user tone that will be available for instant recall whenever you need it during live performances. A Tone Editor button provides instant access to the editing mode.
Multiple digital effects
Built-in effects include reverb (10 types), chorus (5 types) and DSP (100 preset DSPs). By adjusting the parameters of the DSP effect types you can create original effects and store up to 100 original types in memory for later recall. (DSP and chorus cannot be used simultaneously.)
Equalizer
Incorporates five selectable frequency characteristics, including 'Bright' for a lively sound emphasizing the treble range and 'Powerful' with a stress on volume.
Registration
A simple operation saves the current setup, including tone, rhythm and other settings for instant recall when you need them. You even can save tones to which effector effects are being applied. Recalling a registration instantly changes the digital keyboard's setup, making this a great tool for live stage performances.
Arpeggiator
With the arpeggiator you can play various arpeggios and other phrases automatically by simply pressing keys on the keyboard. You can select from 150 different arpeggio types, including playing arpeggios from a fingered chord, guitar phrases and more.
Song sequencer
The 17-track song sequencer (16 tracks + 1 system track) acts as a multi-track recorder, so you can use it for real-time recording of your keyboard play. 17 tracks mean that you can perform multitrack recording to layer bass, guitar, piano and other instruments onto a drum part and build to a final song. Both realtime and step recording are supported. Completed recordings can be converted to SMF format and stored to an SD memory card.
32-channel mixer
Nine sliders, one for each channel, can be used for individual simultaneous adjustment of volume, pan, reverb send and other parameters. Sound input from an external source via the MIC IN terminal and INST IN terminal can also be adjusted as desired.
Pattern sequencer
Up to eight tracks (drum, percussion, bass, chord 1 through chord 5) can be edited to create original accompaniment patterns (INTRO, NORMAL, NORMAL FILL-IN, VARIATION, VARIATION FILL-IN). In addition to recording over each individual accompaniment part of an existing rhythm, an event editing function gives you total control over each aspect of recorded data, an easy edit function lets you combine accompaniment from multiple built-in rhythms to create original rhythms, and mixer capabilities give you control over the tones, volume levels, reverb and other parameters of each part.
A full selection of editing tools include event insert, event delete, event copy, quantize, and more. Memory is provided for storage of up to 100 different user rhythms, which can be recalled with the touch of a key.
Audio recording
Normal keyboard play, auto-accompaniment, song sequencer play, INST IN terminal input, MIC IN terminal input and other audio can be recorded to an SD memory card as digital audio data. While playing back a song you created with the song sequencer, you can play along with on a guitar or other instrument or input vocal with a microphone.
Saved audio files can also be transferred to a computer connected via USB for long-term storage. Special downloadable Data Manager 6.1 application software can be used to convert data to WAV format, which can be played back on a computer. All of this greatly simplifies the task of creating original demo recordings.
SD memory card slot
Song sequencer, pattern sequencer, tone editor and other data can be saved to an SD or SDHC memory card. An audio record function can be used to record digital audio data. SMF data stored on an SD or SDHC memory card can be played back on the digital keyboard.
Input/output terminals
Different input/output terminals are provided to meet a variety of different needs: line out terminals (L/MONO, R) for connection of the mixer of a stage PA system or other devices, an INST IN terminal and a MIC IN terminal for connection of a musical instrument or microphone, an audio in terminal (AUDIO IN) for audio device input that can be output through the speakers and more.
USB port
The USB port provides easy computer and MIDI send/receive connection. It also enables quick and simple transfer of song sequencer, pattern sequencer, tone editor and other data, as well as audio data recorded to an SD memory card from an audio device between the digital keyboard and a computer.
AHL sound source
The sound source is pre-programmed with digital samples of acoustic musical instruments recorded using the most advanced digital technology. Thanks to Casio original sound technology, the AHL sound source is capable of reproducing all of the natural smoothness of the original waveform.
820 built-in tones and 100 user tones
The AHL sound source delivers a lineup of 820 different built-in tones. You also can store up to 100 of your own original tones for instant recall whenever you need them.
260 preset rhythms and auto-accompaniment
A total of 260 preset rhythms cover a wide range of musical genres, from rock and pops to jazz, Latin, piano pieces and more. Simply select the built-in rhythm you want and auto-accompaniment provides you with backup that is the next best thing to having a professional band at your disposal.
Sliders and large dial
Nine sliders are provided for drawbar organ settings and mixer operations. A large operation dial really comes in handy during music creation using sequencer functions and mixer functions.
Display
The display shows the currently selected tone name and rhythm name along with a wealth of other information. On the sequencer screen, for example, you can check the current status and volume level of each of the 16 tracks and other setting information at a glance.
Piano-style keyboard and touch response
The keyboard is designed and engineered to provide a realistic piano experience. Just like a grand piano keyboard, touch response causes sound that is output to change in accordance with the amount of pressure applied to the keys.
High-output 2-way bass reflex speakers
A 7W+7W high-output bass reflex 2-way 4-speaker system delivers rich sound from low range to high. The speakers can be used as high-quality monitoring speakers during performances and music creation sessions.
Pitch bend wheel and modulation button
The pitch bender wheel makes it easy to add realistic sounding guitar choking, sax bending and other effects to keyboard play. This in combination with the modulation button for applying vibrato and other effects puts a wide range of playing versatility at your fingertips.
Music presets
Music presets provide one-touch access to auto-accompaniment, tone, reverb and other settings that are configured in accordance with representative chord progressions. A total of 305 presets let you easily configure the keyboard for a wide variety of different musical styles. In addition to built-in presets, you can create your own original user presets and store them in memory for later recall.
SKU | CAS-WK7600PP |
Vendor | Casio |
Built In Speakers | Yes |
Connectivity | USB |
Included From Manufacturer |
Music Rest Power Supply |
Keys Weighted | No |
Key Cover | No |
Number of Keys | 76 |
MPN | WK7600 |
Piano Cabinet Style | Portable |
Product Unique Features | Drawbar organ: 9 drawbars/50 built-in tones/50 user tones |
Accompaniments | Yes |
Duet Mode | No |
Finish | Black |
Half-Damper Support | No |
Audio Inputs | Mic in - Inst in - Audio in |
Audio Outputs | Headphones (standard stereo jack) - Line output (L/MONO, R) |
Key Action | Synth with Touch Response |
Layer Feature | Yes |
Metronome | Yes |
Pedals | Optional - Standard jack (sustain, soft, sostenuto, start/stop) |
Product Weight | 18.5 lbs |
Rhythm Patterns | 260 built-in rhythms (100 user rhythms) |
Song Recorder | Audio & MIDI |
Number of Songs | 5 |
Number of Sounds | 820 built-in tones including 50 drawbar organ tones (100 user tones) |
Speaker Power | 2 x 7 Watts |
Speaker Size | (2) 4.72" (2) 1.18" |
Split Feature | Yes |
Storage Type | Internal;SD Card |
Transpose Feature | Yes |
Voices of Polyphony | 64 |
Width | 45.7 in |
Depth | 15.16 in |
Height | 5.8 in |
Casio products are covered by Casio’s one (1) year limited warranty. This product is warranted by Casio to the original purchaser to be free from defects in material and workmanship under normal use for a period of one (1) year from the date of purchase. More details can be found on the Casio America, Inc. U.S. web site.
