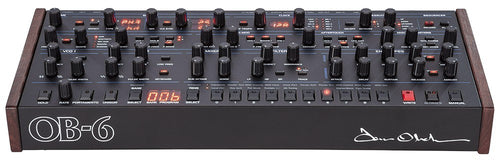

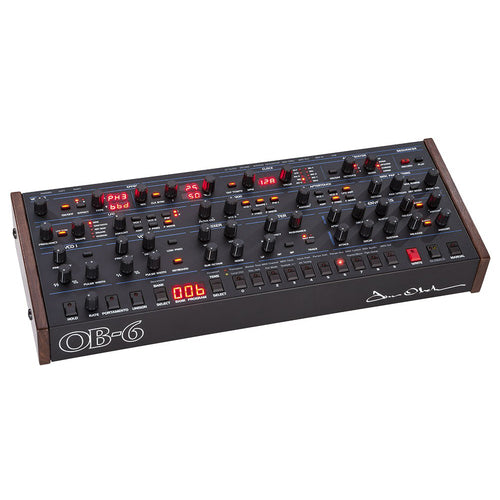

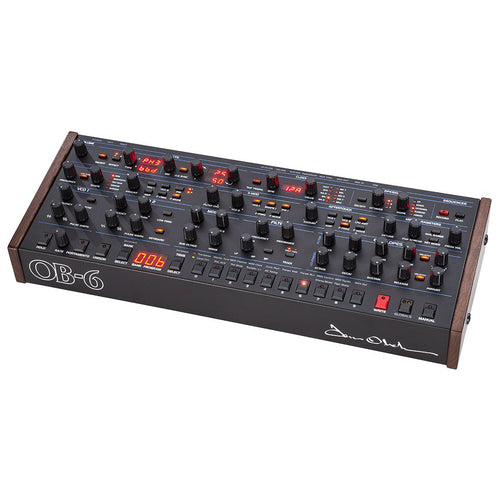

Dave Smith Instruments OB-6M desktop module is just as powerful and easy to use as its counterpart, the OB-6 keyboard. The module has all of the same controls as the keyboard version and provides the same immediacy and ease of use. As with the OB-6 keyboard, all parameters are at your fingertips, with full-size knobs and switches and a comfortable, intuitive layout.
How does it sound? Massive, just like the keyboard, because on the inside it's exactly the same: the same analog signal path with discrete VCOs and VCFs, the same high-quality digital effects, the same classic Oberheim sound that has been earning raves from musicians around the world.
Dave Smith Instruments has also added a poly chain feature so that any two OB-6s can be paired for twelve-voice polyphony!
Two legends, one instrument
Both the OB-6 desktop module and the OB-6 keyboard are a once-in-a-lifetime collaboration between the two most influential designers in polysynth history: Dave Smith and Tom Oberheim. OB-6 takes the classic bold Tom Oberheim sound, with its true voltage-controlled oscillators, 2-pole filter, and amplifiers, and adds modern enhancements such as studio-quality effects, a polyphonic step sequencer, an arpeggiator and more. No other modern analog polysynth can boast such a pedigree or such a massive, in-your-face sonic signature.
Vintage SEM tone
The OB-6 sound engine is inspired by Tom's original SEM, the core of his acclaimed 4- and 8- voice synthesizers. It features two discrete voltage-controlled oscillators (plus sub-oscillator) per voice with continuously variable waveshapes (sawtooth and variable-width pulse, plus a triangle wave on oscillator 2). The classic Oberheim-inspired 2-pole, state-variable, resonant filter provides low pass, high pass, band pass, and notch functionality. Voltage-controlled amplifiers complete the all-analog signal path.
Dual effects
The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus, flangers and faithful recreations of Tom's original phase shifter and ring modulator. While the effects themselves are digital, with 24-bit, 48 kHz resolution, a true bypass maintains an all-analog signal path.
X-mod and poly step sequencing
Also present is X-Mod, which expands the tonal palette and makes it easy to create dramatic and unconventional sounds. Modulation sources are the filter envelope and oscillator 2, both with bi-polar control. Destinations include oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, filter cutoff and filter mode. The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create sequences polyphonically, with rests, and sync to an external MIDI clock. The full-featured arpeggiator can be synced to external MIDI clock, as well. Unison mode features a configurable voice count (1-6 voices), chord memory and key modes.
Easy to program

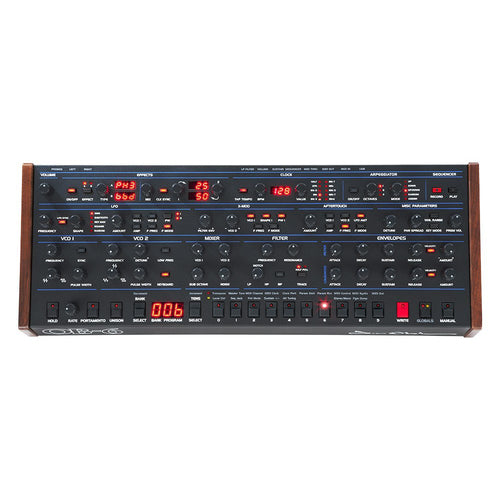

The knob-per-function front panel puts virtually all OB-6 functions at your fingertips. Included are 500 permanent factory programs and 500 rewritable user programs. Turning on the Manual button enables live panel mode, in which the sound of the OB-6 switches to its current front panel settings. In this state, what you see is what you hear.
Easy to play
This analog powerhouse is packed into a desktop module that's small enough to fit in a backpack. It's an ideal combination of portability and power for the project studio or the gigging musician.
MPE support
Support for MIDI Polyphonic Expression (MPE) enables OB-6 to respond to MPE-driven controllers such as LinnStrument, Expressive E Osmose, Roli Seaboard series and others.
Vintage mode
Vintage mode gives OB-6 a looser, more organic sound that emulates the behavior of vintage synthesizers where the behavior of individual oscillators, filters and envelopes vary from voice to voice.
| Specification | Value |
|---|---|
| SKU | DSI-OB6M |
| Vendor | Sequential |
| Analog Digital | Analog |
| Built In Speakers | No |
| Number of Keys | None |
| Midi | In, Out, and Thru |
| Mono Poly | Polyphonic |
| MPN | OB-6 |
| Product Unique Features |
Supports MIDI Polyphonic Expression (MPE) control messages Vintage mode for looser, more organic sound |
| Arpeggiator | Yes |
| Audio File Playback | No |
| Control Connections |
Footswitch: sequencer start/stop Footswitch: sustain Expression pedal: volume Expression pedal: filter |
| Effects |
Stereo Analog Distortion Delay Chorus Reverbs Flanger Phase Shifter Ring Modulator |
| Audio Inputs | None |
| Audio Outputs |
1/4" Stereo L/R 1/4" Headphones |
| Internal Storage Capacity | N/A |
| Key Action | N/A |
| Oscillators per Voice | 2 plus Sub |
| Product Weight | 13.0 lbs |
| Programs/Presets |
500 User Programs 500 Factory Programs |
| Sampling | N/A |
| Sequencer | 64-step Polyphonic |
| Speakers | N/A |
| USB Port (to Host) | MIDI;System Updates;Editor/Librarian/Patch Manager |
| Voices of Polyphony | 6 |
| Width | 20.75" |
| Depth | 7.8" |
| Height | 4.4" |
