Dave Smith Instruments Sequential Prophet-6 Module
The Sequential Prophet-6 desktop module is every bit as powerful and easy to use as its counterpart, the Prophet-6 keyboard. The module has all of the same controls as the keyboard version and provides the same immediacy and easy of use with absolutely no menu diving. As with the Prophet-6 keyboard all parameters are at your fingertips, with full-size knobs and switches and a comfortable, intuitive layout.
How does it sound? Awesome, just like the keyboard, because on the inside it's exactly the same: the same analog signal path with discrete VCOs and VCFs, the same high-quality digital effects, the same classic sound that has been earning raves from customers and reviewers alike.
Vintage with a modern twist
Sequential Prophet-6 is Dave Smith's tribute to the polysynth that started it all: Sequential Circuits Prophet-5. But it's not simply a reissue of a classic; rather, as Dave puts it, 'It's the result of our effort to build the most awesome-sounding, modern analog polysynth possible.' Prophet-6 takes the best qualities of the original Prophet-5 — true voltage-controlled oscillators, filters and amplifiers — and adds enhancements such as studio-quality effects, a polyphonic step sequencer, an arpeggiator and more. The result is pure, unadulterated analog tone with the stability and reliability of a state-of-the-art modern synth.
Classic tone, classic vibe
Central to the warm, punchy sound of Prophet-6 are its two newly-designed, discrete voltage-controlled oscillators (plus sub-oscillator) per voice. Continuously variable waveshapes provide the tonal palette with triangle, sawtooth and variable-width pulse waves. There are two discrete filters per voice: a four-pole resonant low pass inspired by the original Prophet-5 filter and a two-pole resonant high pass filter. Voltage-controlled amplifiers complete the all-analog signal path.
The dual effects section provides studio-quality reverbs, delays (standard and BBD), chorus and phase shifter. While the effects themselves are digital, with 24-bit, 48 kHz resolution, a true bypass maintains a full analog signal path. There's also an independent stereo distortion effect, which is 100% analog.
Poly mod and poly step sequencing
Also present from its classic predecessor is a poly mod section, with enhancements. True to the original, modulation sources are filter envelope and oscillator 2 (both with bi-polar control). Destinations include oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, low-pass filter cutoff, and high-pass filter cutoff. Another welcome reprise is unison mode, which features configurable voice count (1-6 voices) and key modes. The polyphonic step sequencer allows up to 64 steps and up to 6 notes per step. You can create sequences polyphonically, with rests, and sync to an external MIDI clock. The full-featured arpeggiator can be synced to external MIDI clock as well.
Support for MIDI Polyphonic Expression (MPE) enables Prophet-6 to respond to MPE-driven controllers such as LinnStrument, Expressive E Osmose, Roli Seaboard series and others.
Vintage mode gives Prophet-6 a looser, more organic sound that emulates the behavior of vintage synthesizers where the behavior of individual oscillators, filters and envelopes vary from voice to voice.
Easy to program

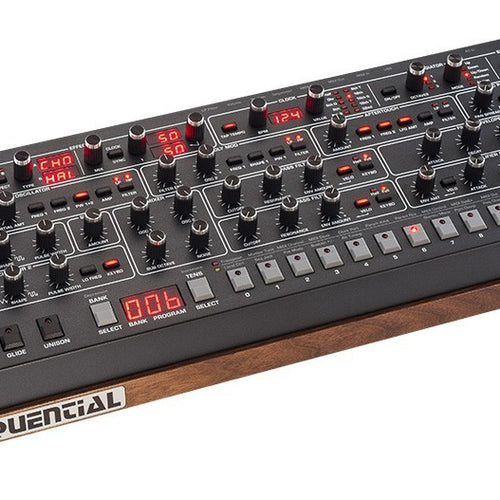

The knob-per-function front panel offers instant access to virtually all Prophet-6 functions. Included are 500 permanent factory programs in 10 banks of 100 programs. In addition to these, you can create and save up to 500 user programs of your own. Toggling off the preset button enables live panel mode, in which the sound of the Prophet-6 switches to the current settings of its knobs and switches. In this state, what you see is what you hear.
Easy to play
All of this awe-inspiring sound is packed into a desktop module that's small enough to fit in a backpack. It's an ideal combination of portability and power for the project studio or the gigging musician.
Poly chain for more polyphony
Any combination of two Prophet-6 modules or keyboards can be put into poly chain mode for 12-voice polyphony.
|Built In Speakers||No|
|Midi||In, Out, Thru, and USB|
|Product Unique Features||
Support for MIDI Polyphonic Expression (MPE) control messages
Vintage mode for looser, more organic sound
|Audio File Playback||No|

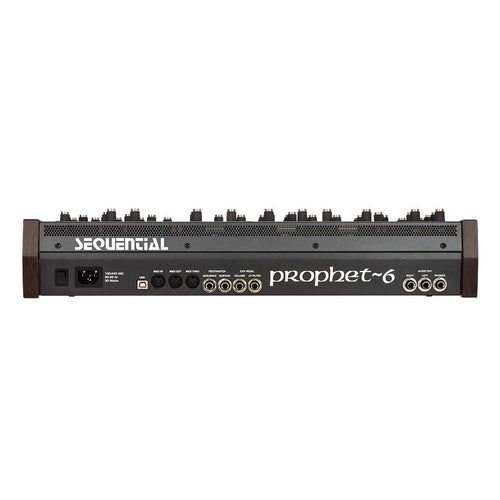

Low-pass filter cutoff expression pedal input
Volume expression pedal input
Sustain footswitch input
Sequencer start/stop footswitch input
Stereo analog distortion
Left/mono and right audio outputs (2 x 1/4” phone jack)
Headphone output (stereo, 1/4” phone jack)
|Oscillators per Voice||2 plus Sub|
|Product Weight||13 lbs.|
|Programs/Presets||6 voices / 500 user and 500 factory programs in 10 banks of 100 programs each|
|Sequencer||Polyphonic step sequencer with up to 64 steps and rests|
|USB Port (to Host)||MIDI;System Updates;Editor/Librarian/Patch Manager|
|Voices of Polyphony||6|
