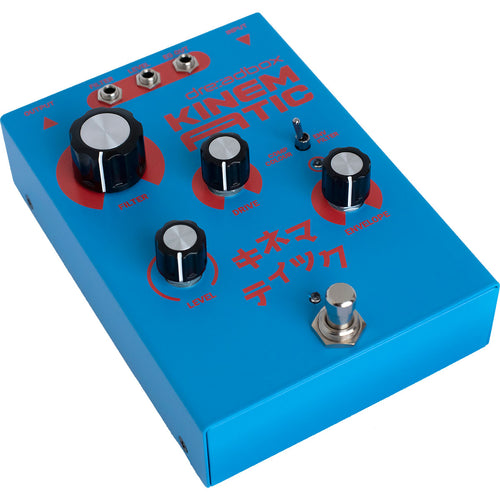

Dreadbox Kinematic Compressor and Envelope Filter Effects Pedal
Dreadbox Kinematic is a VCA-based compressor and envelope filter effect pedal suitable for fretted instruments and synthesizers with a post-diode overdrive circuit and eurorack compatibility.
- Full analog VCA-based compressor and true 'tone maker'
- Band boost filter
- Extreme compression ratio
- Envelope filter
- Low pass filter
- Slow envelope curve
- Post-diode overdrive circuit
- Level boost up to +18dB
- 3 patch points for eurorack modular or other CV-capable synthesizers

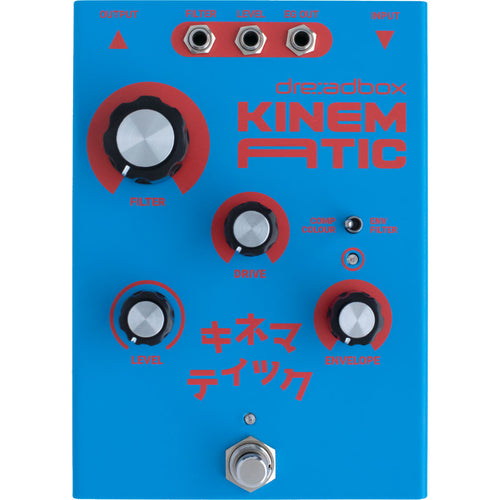

Mode switch: choose between two main pedal modes
COMP COLOUR position: the pedal acts as a compressor and frequency booster
ENV FILTER position: the pedal acts a 12dB low pass filter with auto-wah
FILTER knob
In COMP COLOUR mode: set level of frequency boost
In ENV FILTER mode: set low pass filter cutoff frequency
DRIVE knob: set drive amount for post-diode overdrive circuit
LEVEL knob: set the output level of the effect
ENVELOPE knob
In COMP COLOUR mode: set compression ratio
In ENV FILTER mode: set auto-wah amount
FILTER CV input: set filter cutoff frequency
LEVEL CV input: set the output level of the effect
EG OUT CV output: control voltage output from auto-wah envelope filter level
| SKU | DRE-KINEMATIC |
| Vendor | Dreadbox |
| Effect Type | Compressor |
| MPN | DBX-KMTC |
| Product Unique Features |
Extreme compression ratio Level boost up to +18dB 3 patch points for eurorack modular or other CV-capable synthesizers |
| Control Connections | FILTER 1/8" CV input: set filter cutoff frequency LEVEL 1/4" CV input: set the output level of the effect EG OUT 1/8" CV output: control voltage output from auto-wah envelope filter level |
| Effects | VCA compressor and frequency booster Envelope filter: low pass filter with auto-wah Post-diode overdrive circuit |

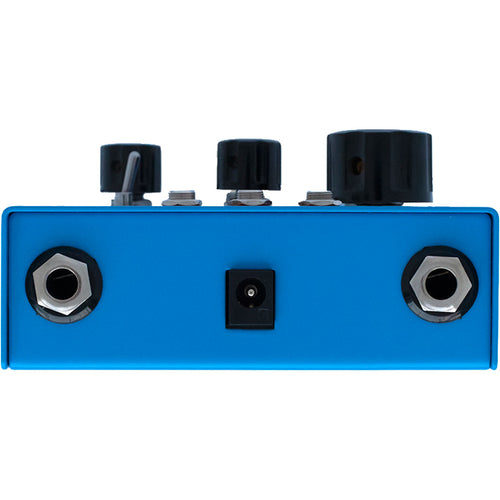

| Audio Inputs | 1/4" mono input |
| Audio Outputs | 1/4" mono output |
| Number of Pedal Switches | CMOS bypass on/off soft-touch stomp switch |
| Power Adaptor | 9VDC Boss style center pin negative 2.1mm (sold separately) |
| Product Weight | 1.16 lb |
| Width | 3.94" |
| Depth | 5.51" |
| Height | 1.97" |
Dreadbox Limited Warranty
Dreadbox products come with a one (1) year limited warranty.
A proof of purchase is necessary when the warranty claim is made. Malfunctions resulting from improper power supply voltages, backward or faulty cable connection, abuse of the product or any other causes determined by Dreadbox to be the fault of the user, are not covered by warranty (normal service rates will be applied). All defective products will be replaced or repaired at the discretion of Dreadbox. Products must be returned directly to Dreadbox with the customer paying the shipping costs. Dreadbox implies and accepts no responsibility for harm to a person or apparatus through the operation of this product.
