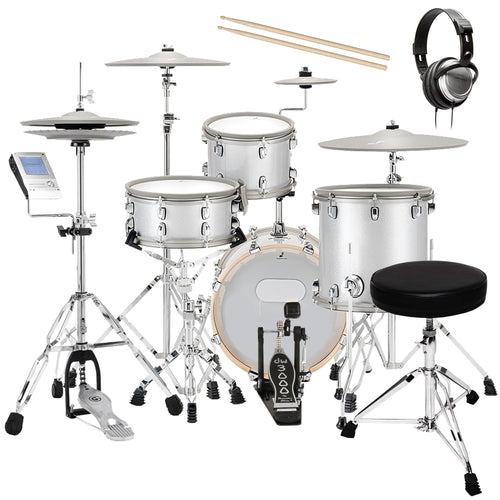

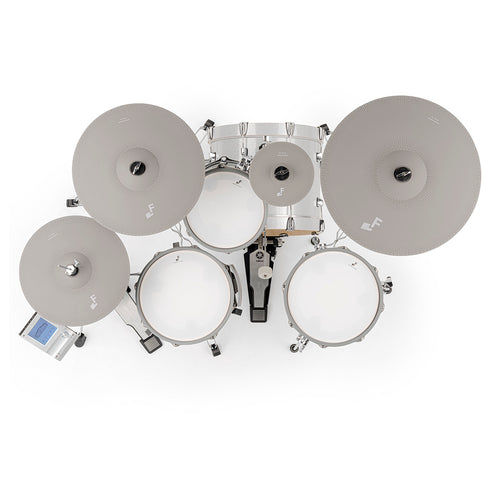

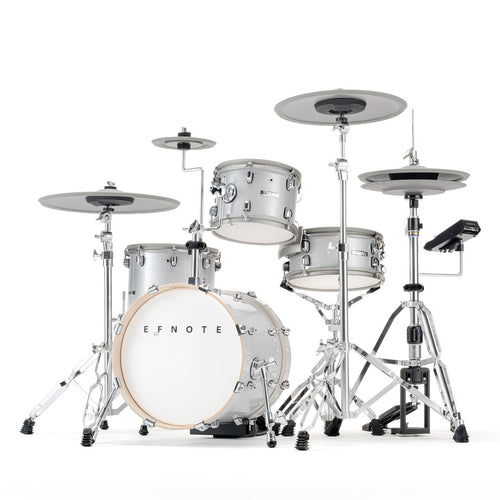

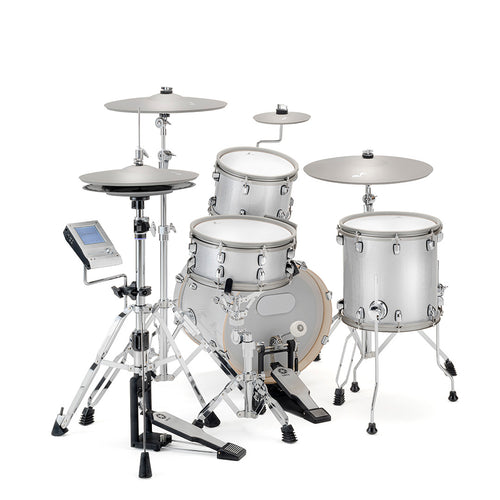

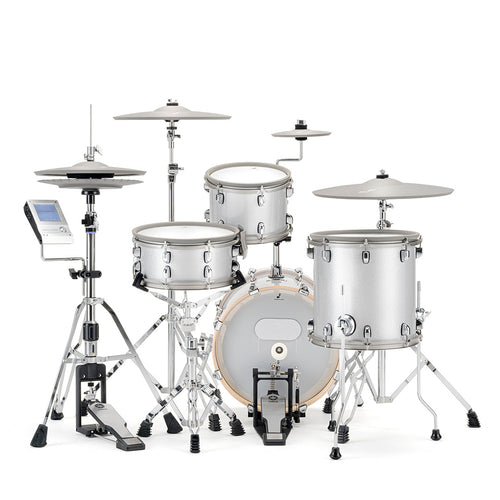

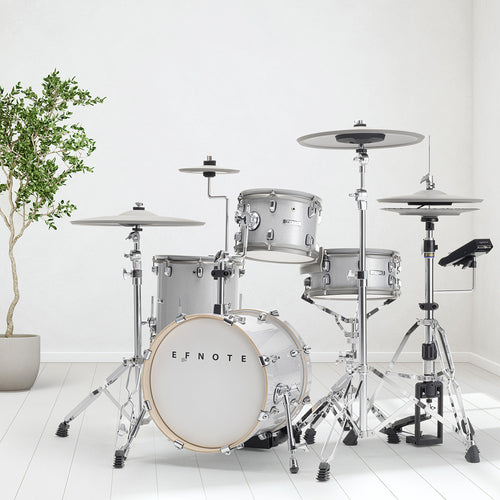

The EFNOTE 5 electronic drum set offers a true playing experience with realistic acoustic drum sounds, an elegant finish and well-proportioned real birch 6-ply shells. All drum/cymbal/hi-hat pads come with multi-sensors which provides consistent and accurate triggering. Capturing drummer's intentions from every and each stroke. Amazing sounds and a striking appearance make it a great kit for the stage or studio.
- 3-Zone Snare Drum and 2-Zone Toms
- Snare Side-Rim Triggering
- Solid and Stable Kick
- 3-Zone Crash / Ride Cymbals
- The Finest Hi-Hat Cymbals
- Ultra-Compact Sound Module
- Variety of Training Features
- 8" Splash Cymbal
- Snare Drum Stand
- Cymbal Stands
- Flexible Audio Routing
- Bluetooth Audio-in
- Bluetooth MIDI
Kick pedal and hi-hat stand are not included from the manufacturer but may be included in a bundle.

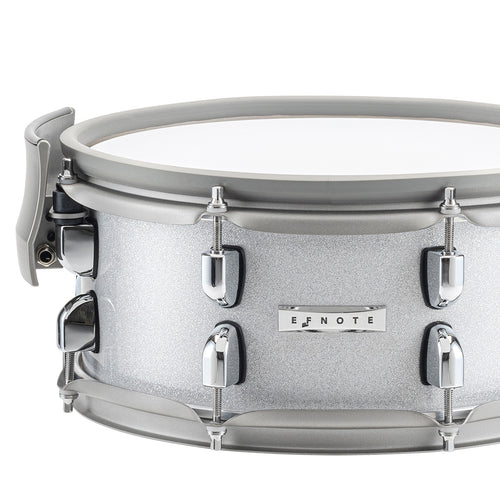

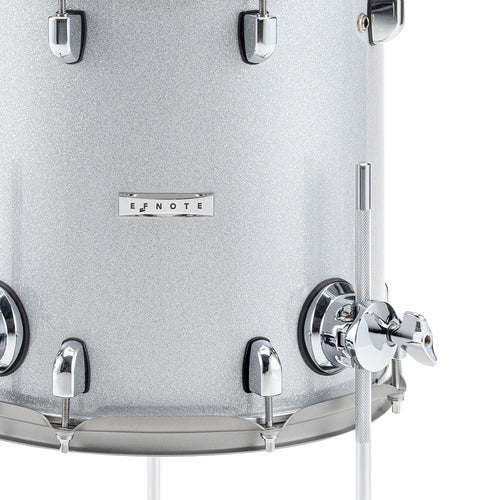

3-Zone Snare Drum and 2-Zone Toms
- 3-zone snare drum (head/rim/side-rim) and 2-zone toms (head/rim)
- Hot-spot-less sensing with multi-sensor
- Double-layered mesh drum head
- Durable "warm-gray" colored hoop rubber
- Birch 6-ply wood shell
- 12x5" Snare, 10x7" Rack tom, 12x12" Floor tom
Snare Side-Rim
- Easy to play side-sticks
- Accurate sensing
- Low acoustic noise
- No need to switch function between rim-shot and side-sticks
Solid and Stable Kick
- Voluminous shell with mesh drum head to catch powerful kicks
- Dual-sensor stable sensing for single/double beater(s)
- Storable and sturdy spars with rubber/spike tips
- 16x12" birch 6-ply wood shell
- Real wood hoops

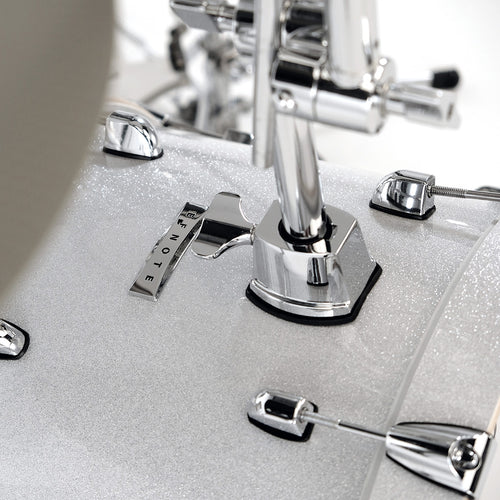

- Metal tom mount
3-Zone Crash / Ride Cymbals
- Elegant "warm-gray" colored cymbals
- Fine engraved surface
- Weight simulation with thin edge for appropriate striking feel
- 360° flat sensing with multi-sensor
- 360° choke supported
- Full 3-zone Crash/Ride cymbals (bow/edge/cup)
- 18" Ride, 16" Crash
The Finest Hi-Hat Cymbals
- The freely swinging top and bottom cymbals have changed the concept of electronic hi-hat cymbals
- The multiple optical sensing precisely responds to drummer's high-speed footwork
- Smooth continuity from tight-closed to full-open sound
- 14" top/bottom cymbals
- General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used

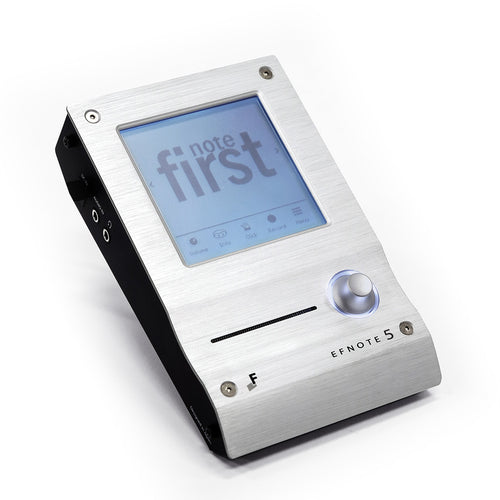

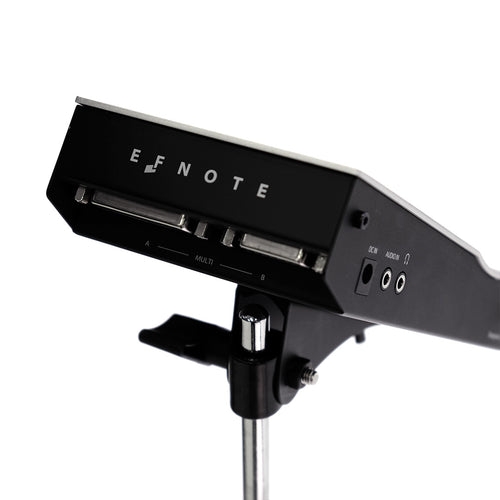

Ultra-Compact Sound Module
- Ultra-small form factor with uncompromised features
- Metal chassis and aluminum finish
- High quality DAC and audio circuit
- Touch screen intuitive user interface
Full-Scale Acoustic Sound
- Tru-Aco sound technology provides so real drum/cymbal sound
- Stereo samples with wide dynamic range for all acoustic instruments
- Minimum pre-processed, uncompressed waveforms for maximum fidelity
- Natural and smooth continuity roll sounds
For Training
- Multi-function metronome with beat LED indicator
- Built-in metronome speaker for daily training without headphones
- On-board recording function (15 songs)
- Stroke Analyzer
- Rhythm Box feature provides over 90 basic drum beats
For Recording
- USB 8-ch individual audio outputs with Mac / Windows (ASIO)
- USB 2-ch audio inputs for playback
- Analog 4-ch audio outputs
- USB MIDI in/out with individual MIDI channels
- MIDI output (5-pin DIN)
- On-board drum recording (15 songs)
Sound Editing
- Tuning, Muffling, 2-band EQs for each pad
- Pad layer function can overlay two sounds
- User Inst Library enables you to store 128 customized instruments
- On-board reverb
- Dedicated level control screen
Flexible Audio Routing
- 10-ch output buses
- Flexible output routing for each pad
- Output assignable click
- Output: 4-ch analog / 8-ch USB
- Input: Analog / Bluetooth / 2-ch USB
SKU | EFN-EFD5WSDE |
Vendor | EFNOTE |
Connectivity | USB, MIDI, and Bluetooth |
Included From Manufacturer |
Sound Module Kick: 16x12" Snare: 12x5" Floor Tom: 12x12" Tom: 10x7" Ride: 18" Crash: 16" Splash: 8" Hi Hat: 14" Cables Mounting Hardware Snare Drum Stand Cymbal Stands |
MPN | EFD5-BOX1,2,3-WS |
Number of Cymbal Zones | Crash, Ride: 3 Zones Splash: 2 Zones |
Number of Drum Kits | 17 User Drum Kits: 83 |
Hi-Hat Stand Included | Stand Included In Bundle |
Audio Inputs | 1/8" Stereo Mini |
Audio Outputs | Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced) Headphone Out: 1/8" Stereo Mini |
Kick Pad Surface | Double-layered mesh with beater patch |
Kick Pedal Included | Kick Pedal Included In Bundle |
Metronome | Yes |
Number of Pads | 8 |
Sequencer/Recording | Yes |
Snare Pad Zones/Surface | 3 Zones, Double-layered mesh |
Snare Stand Included | Yes |
Number of Songs/Patterns | 15 songs 90 basic drum beats |
Storage Type | Internal |
Throne Included | Throne Included In Bundle |
Tom Pad Zones/Surface | 2 Zone, Double-layered mesh |
This product, except the exterior cosmetic parts, has a limited warranty to the original purchaser to be free from defects in material and workmanship under normal use for a period of one year from the date of purchase. Artesia Pro will repair or replace, at their discretion, any components that have developed operational issues through normal usage. In the event repairs are needed, the original purchaser should contact Artesia Pro at 1-619-244-0006 or by emailing support@artesia-pro.com.
