EFNOTE PRO 506 Progressive Electronic Drum Kit
EFNOTE PRO is a state-of-the-art electronic drum system that offers superior sound quality and consistent performance. Connect up to 12 XLR outputs to the stage box and digitize your drum riser. The EFNOTE PRO module comes loaded with the highest quality drum sounds available on the market. Kits are available in many different configurations, and easily customizable. With EFNOTE PRO, you can create the perfect kit, achieve perfect isolation, and enjoy crisp and clear drum sounds without any interference.
- Contains Legendary Drums Sets
- Diverse Cymbal Collection
- Instrument Expansion
- High-Powered Headphone Amp
- Innovative Two-Piece Design

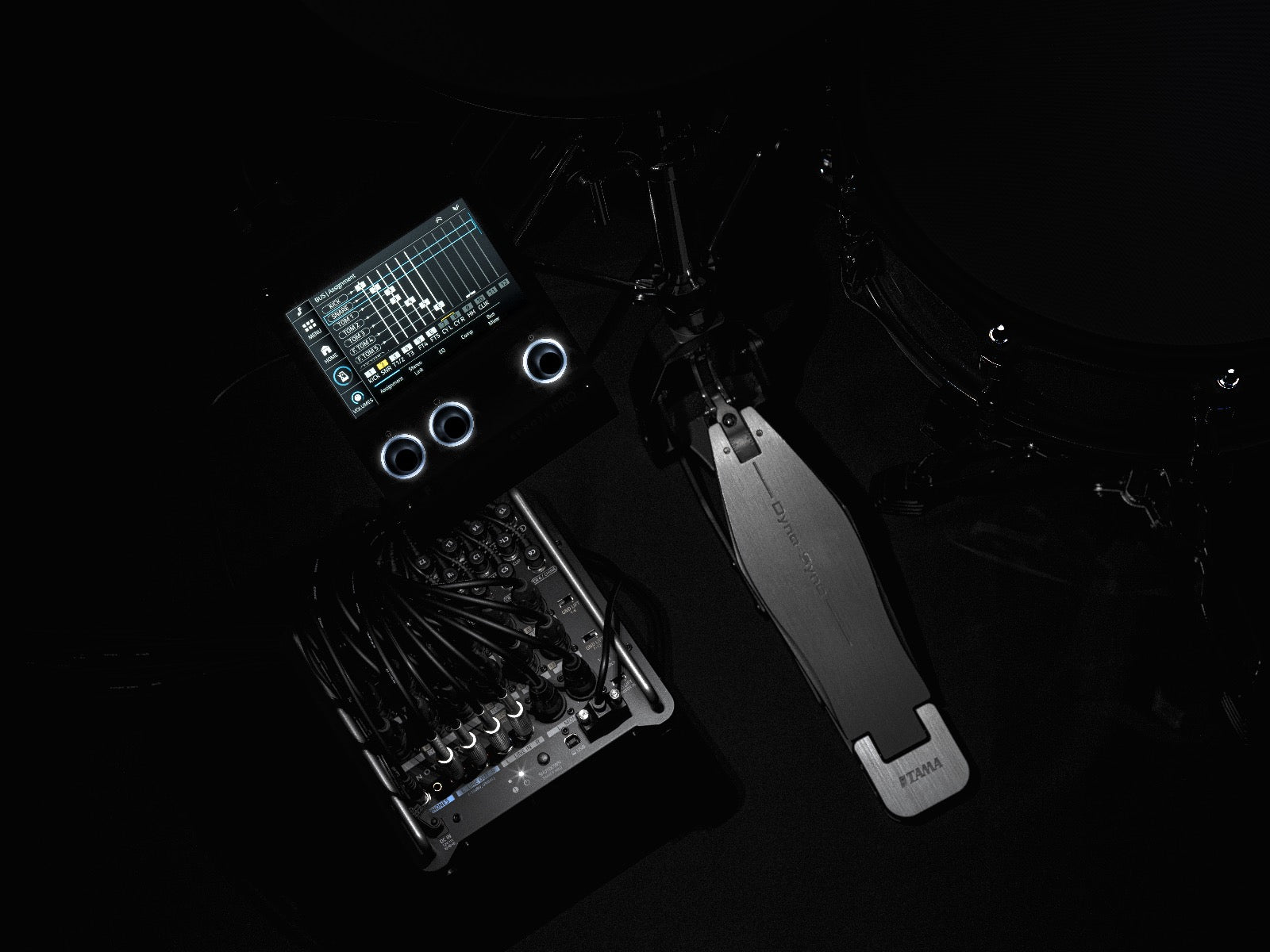

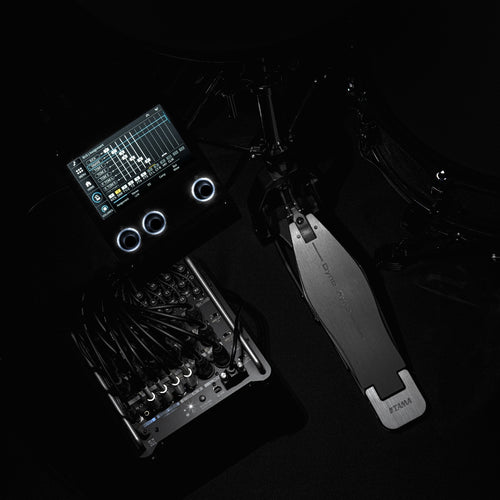

- Foot Light for Your Feet
- Can support up to 7 Shells and 8 Cymbals
- ELISE Sensing Processor 2.0
- Full Drum Pad Lineup
- 12-ch Buses to the Console
- XLR Inputs from the Console
- USB 12-ch Multi-Track Recording
- Bluetooth

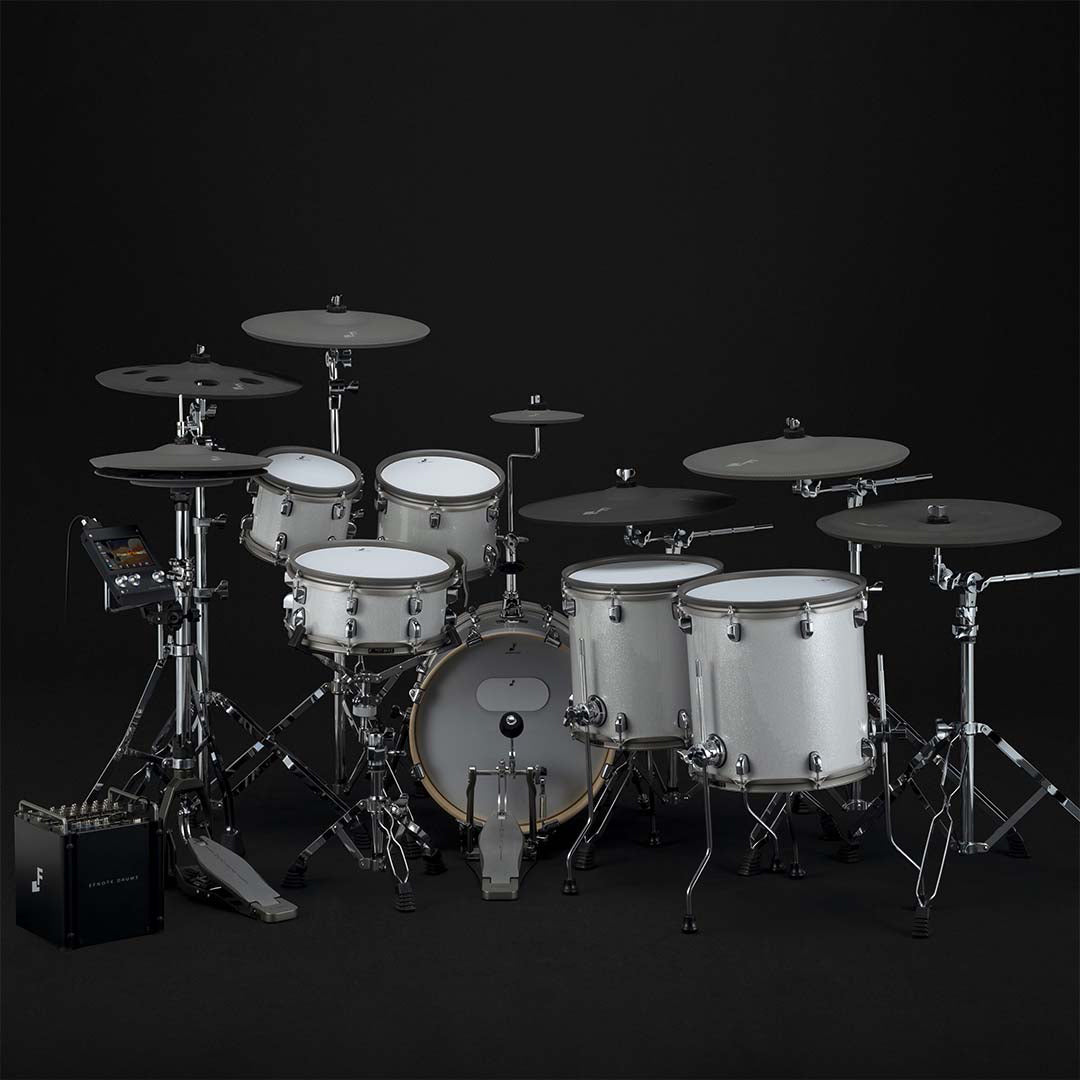

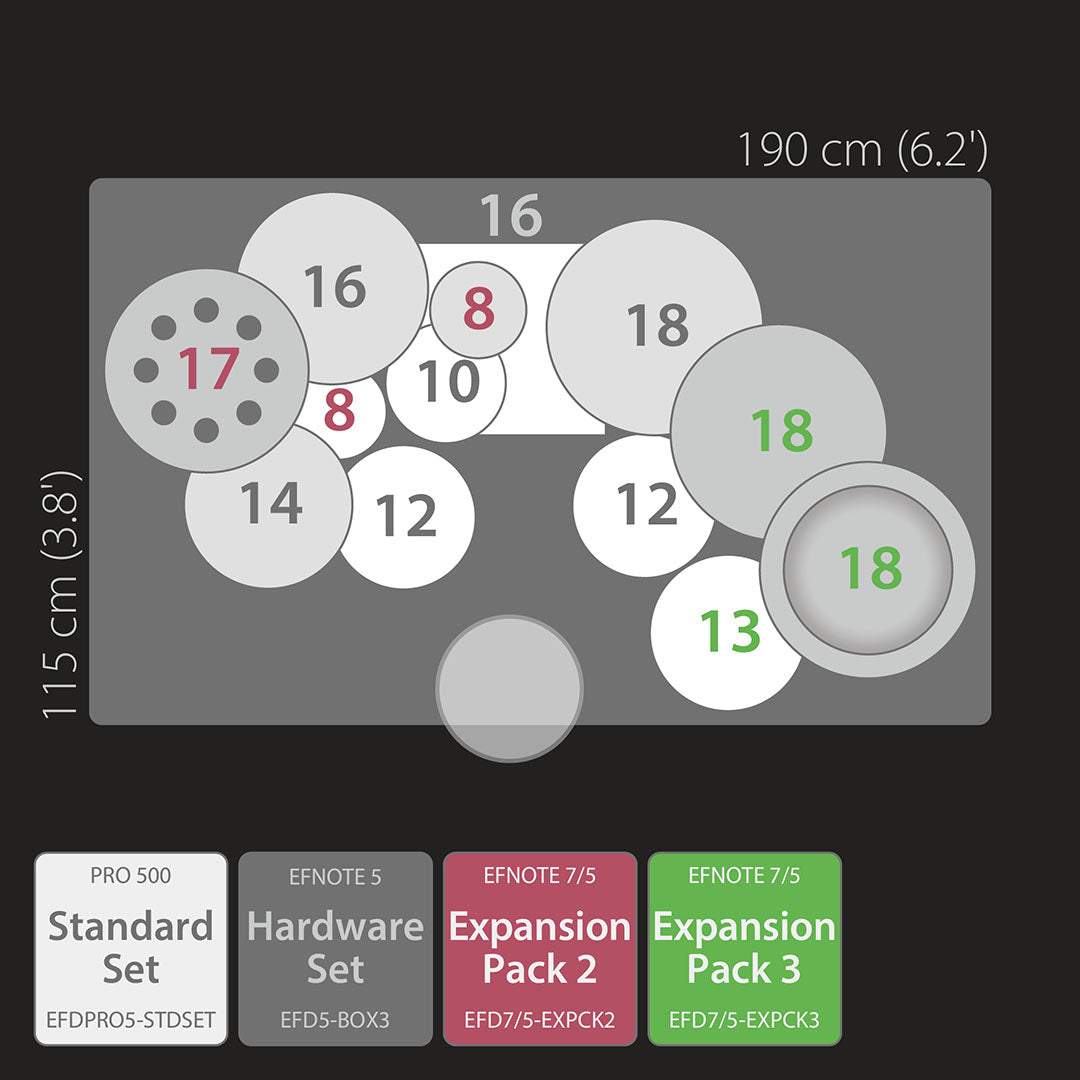

The 506 Progressive set includes 6 shells and 7 cymbals
- 14" High hats Cymbals
- 8" Splash Cymbal
- 16" Crash Cymbal
- 18" Crash Cymbal - Dark
- 17" Effect Cymbal
- 18" Ride Cymbal
- 18" China Cymbal
- 12" Snare
- 8" Tom
- 10" Tom
- 12" Floor Tom
- 13" Floor Tom
- 16" Kick Drum
Bass drum pedal, hi-hat stand, and drum throne are not included.

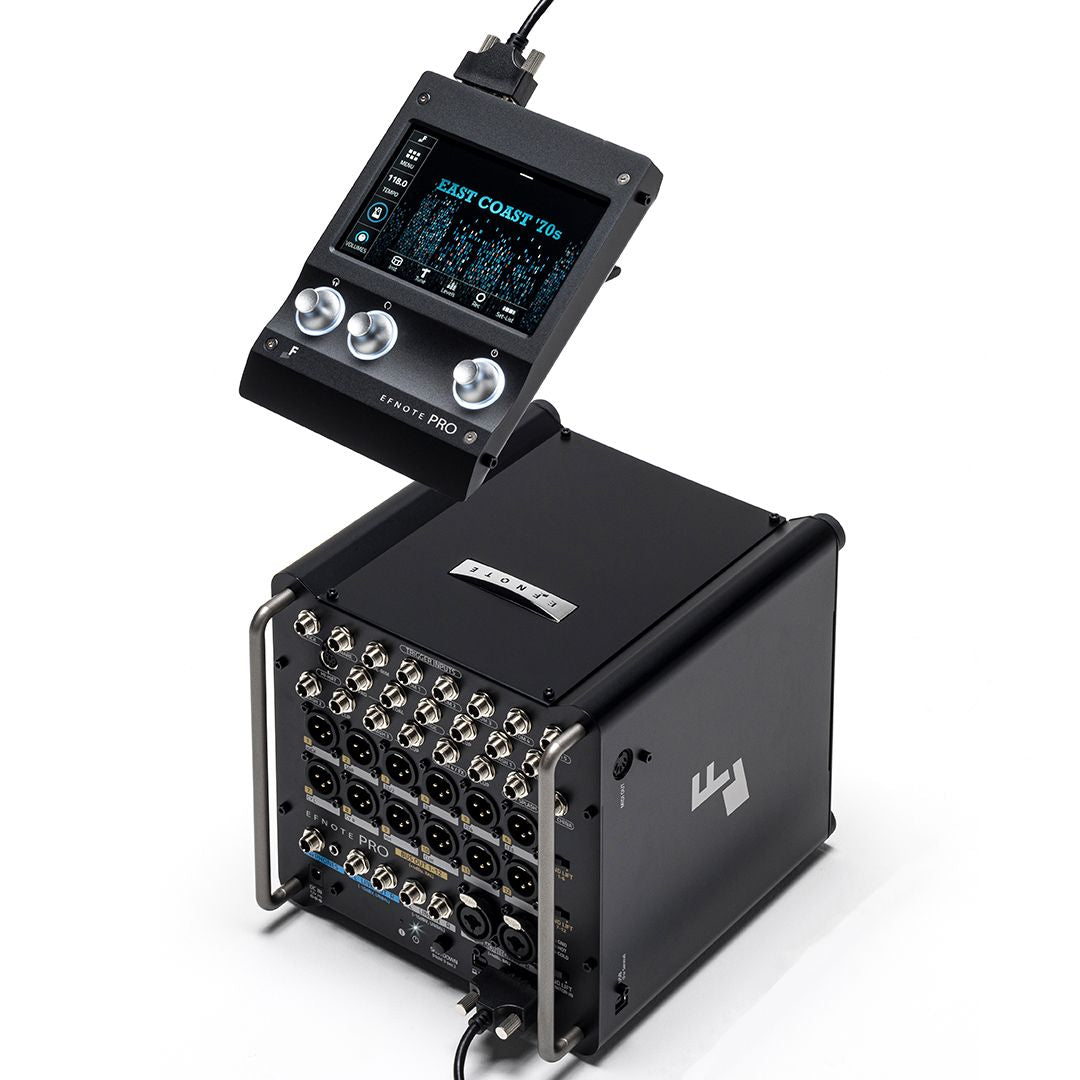

Innovative Two-Piece Design
- The two-piece sound module provides both operability and expandability required by professionals

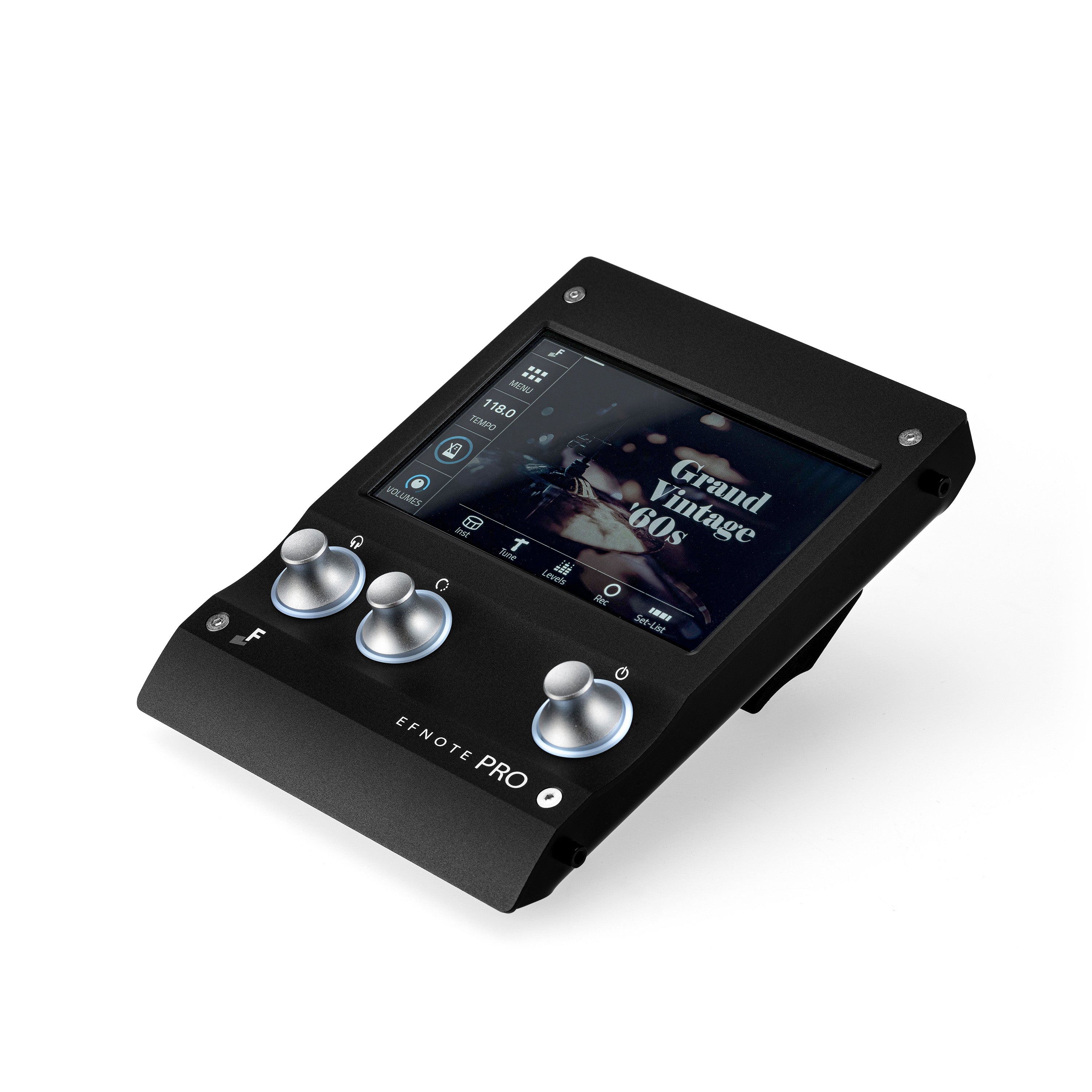

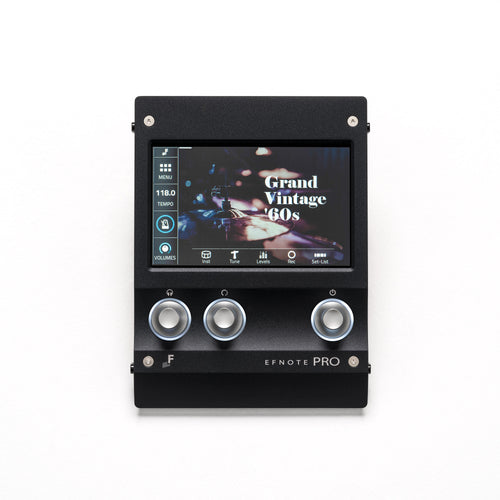

- Low-profile and compact control surface with touch-screen full-color LCD

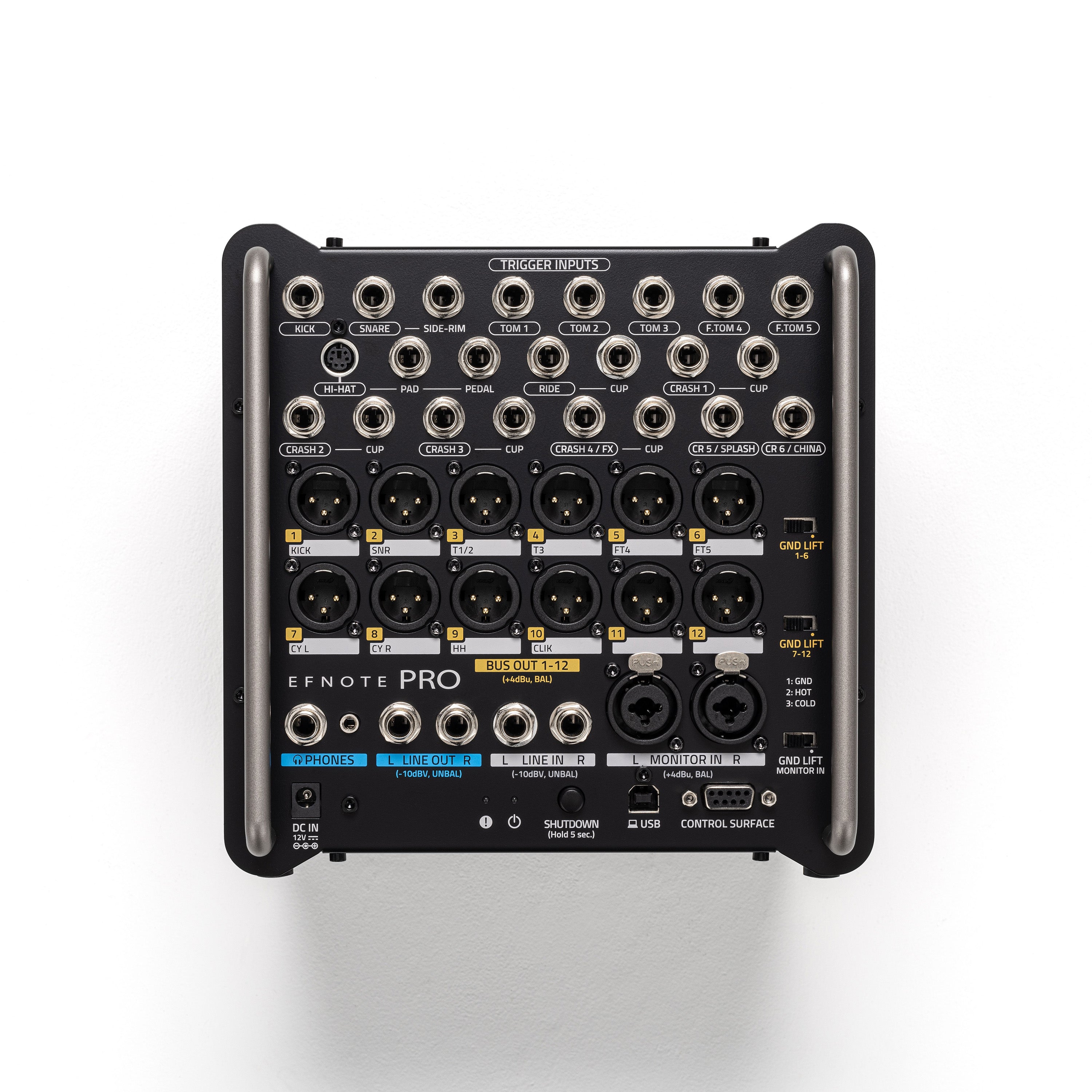

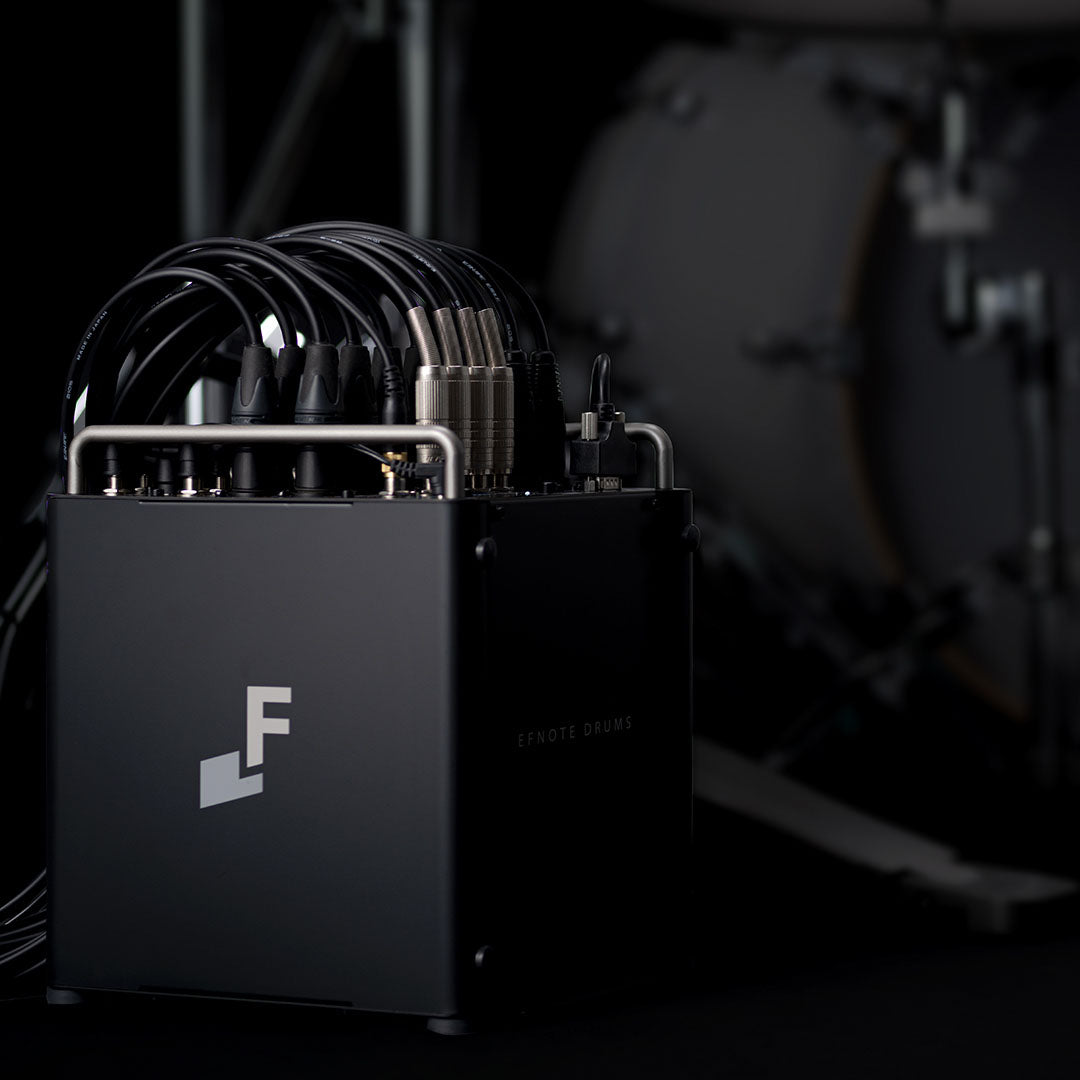

- Floor-standing base unit with robust enclosure and reliable cable connections

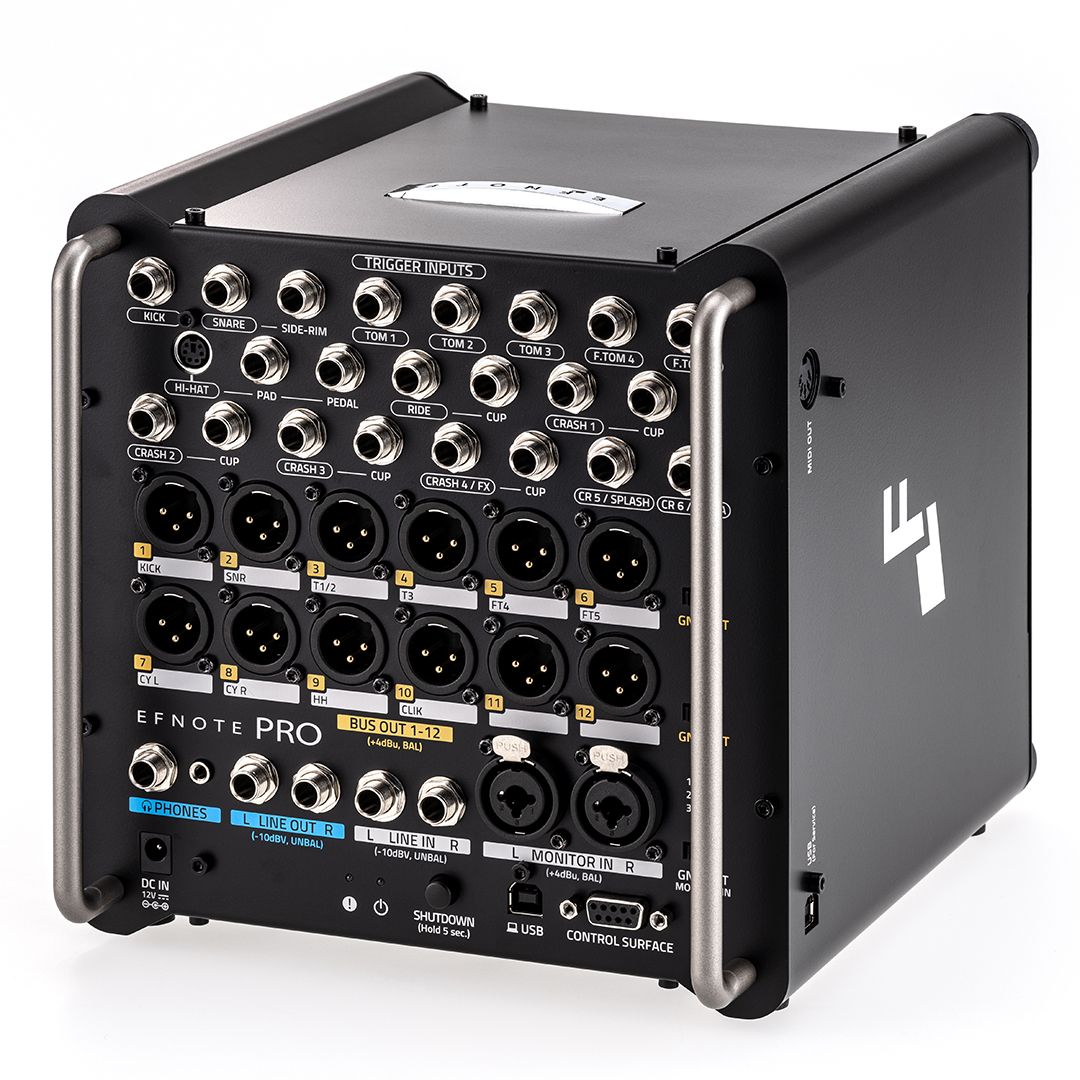

Stage-Box Reliability
EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show. Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad. Each channel in equipped with HPF, 2-band EQ, compressor (Bus 1-6) and ground lift switches.
Remote Control
The EFNOTE TOOLS app provides faster and more reliable rehearsals. The FOH engineer can change the settings of the output sent to the console without affecting the drummer’s monitor sound. The drummer can also adjust the front sound while playing back the recorded data.
Contains Legendary Drum Sets
- The delicate resonance of aged shells are newly captured, recorded by EFNOTE
- Raw and organic, NOT synthetic and electronic
- Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound
Diverse Cymbal Collection
- Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
- Contains modern trash/effect/stacked cymbal sounds
IX (Instrument Expansion)
A collection of add-on drum instruments that can be loaded into the EFNOTE PRO continuously published on the IX page! From good old sounds to the latest trending sounds, we continuously provide "authentic" and "usable" sounds that support professional work in a variety of scenes. All the instrument sounds are recorded and mastered by EFNOTE at our best. Find your favorite instrument packages for stage performances or studio works.
USB 12-ch Multi-Track Recording
- Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
- Confirmed with major DAWs
- 5-pin D
- IN MIDI Out
Bluetooth®
- Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
- Bluetooth MIDI

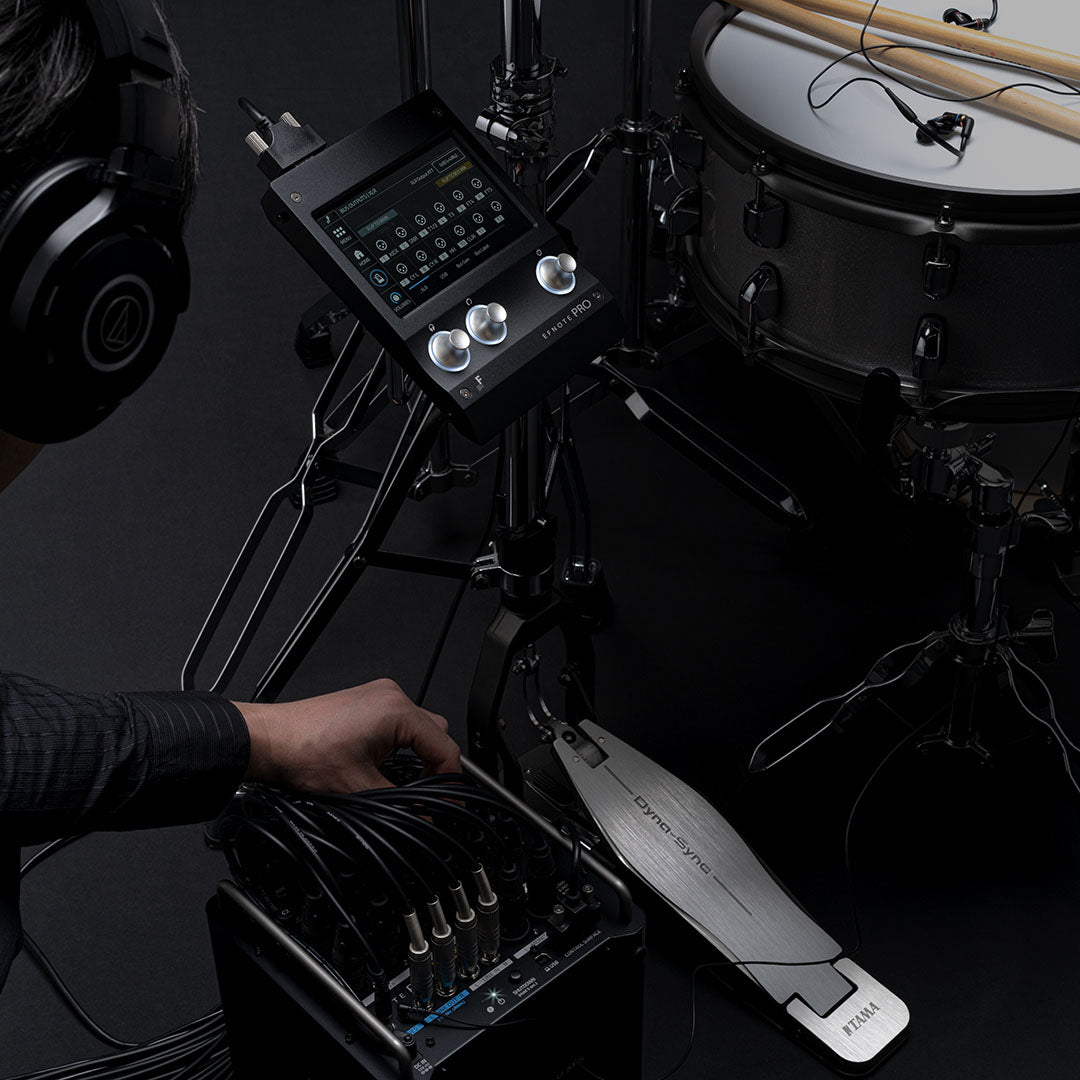

High-Powered Headphone Amp
- 1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously)
- Dedicated 2x headphone amp circuit for enough loudness
- High quality DAC and audio circuit
SKU | EFN-EFDPRO506 |
Vendor | EFNOTE |
Connectivity | USB and Bluetooth |
MPN | EFDPRO506 |
Number of Drum Kits | 123 |
Audio Inputs | 2x 1/4” TS Phone, 2x XLR(F) + 1/4” TRS Combo |
Audio Outputs | 12x XLR(M), 2x 1/4” TS Phone, MIDI out |
Metronome | Yes |
Number of Pads | 13 |
Sequencer/Recording | Yes |
Snare Pad Zones/Surface | 3 |
Number of Songs/Patterns | 15 |
Tom Pad Zones/Surface | 2 |
Trigger Inputs | 12 Channels |
Width | 8.11" |
Depth | 8.26" |
Height | 9.37" |
This product, except the exterior cosmetic parts, has a limited warranty to the original purchaser to be free from defects in material and workmanship under normal use for a period of one year from the date of purchase. Artesia Pro will repair or replace, at their discretion, any components that have developed operational issues through normal usage. In the event repairs are needed, the original purchaser should contact Artesia Pro at 1-619-244-0006 or by emailing support@artesia-pro.com.
