EFNOTE PRO 704 Technical Electronic Drum Kit

EFNOTE PRO is a state-of-the-art electronic drum system that offers superior sound quality and consistent performance. Connect up to 12 XLR outputs to the stage box and digitize your drum riser. The EFNOTE PRO module comes loaded with the highest quality drum sounds available on the market. Kits are available in many different configurations, and easily customizable. With EFNOTE PRO, you can create the perfect kit, achieve perfect isolation, and enjoy crisp and clear drum sounds without any interference.

• Contains Legendary Drums Sets
• Diverse Cymbal Collection
• Instrument Expansion
• High-Powered Headphone Amp
• Innovative Two-Piece Design
• Foot Light for Your Feet
• Can support up to 7 Shells and 8 Cymbals
• ELISE Sensing Processor 2.0
• Full Drum Pad Lineup
• 12-ch Buses to the Console
• XLR Inputs from the Console
• USB 12-ch Multi-Track Recording
• Bluetooth

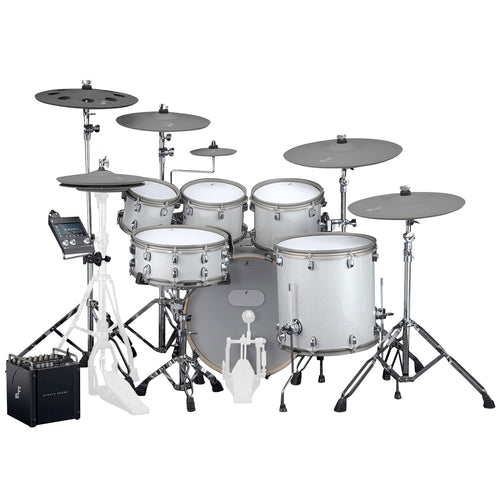

The 704 Technical set includes 6 shells and 6 cymbals

• 14" Hi-hat Cymbals
• 8" Splash Cymbal
• 16" Crash Cymbal
• 17" Effect Cymbal
• 18" Crash Cymbal
• 20" Ride Cymbal
• 14" Snare
• 8" Tom
• 10" Tom
• 11" Tom
• 15" Floor Tom
• 20" Kick Drum

Bass drum pedal, hi-hat stand, and drum throne are not included.

IX (Instrument Expansion)

The IX Instrument Expansion for EFNOTE pro offers a curated collection of add-on drum instruments. From classic tones to the latest trending sounds, these authentic and versatile sounds elevate musical creativity in any setting. Each instrument is meticulously recorded and mastered by EFNOTE to ensure the highest quality, providing dynamic and expressive options for drummers of all styles.

These instrument packages offer a diverse range of sounds to inspire and enhance your music. With a focus on authenticity and usability, the IX collection ensures that every drummer can find their ideal sonic palette. Discover the perfect sounds to elevate your musical journey.

No More Acrylic Panel

There is no need to isolate your drummer from the choir, acoustic instruments, the audience and congregation. Your drummer is now free to connect and engage with everyone! EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity and balance.

Stage-Box Reliability

EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show. Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad. Each channel in equipped with HPF, 2-band EQ, compressor (Bus 1-6) and ground lift switches.

Flexibility for All Music

EFNOTE PRO supports 7 shells and 8 cymbals, and all pads are individually wired, so players can adapt to any musical environment. All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time. With a full 12-ch of multitrack USB Audio and 16-ch USB MIDI simultaneously, allowing a drummer, producer or mixer access to quick editing, in order to meet artist’s budget requirements.

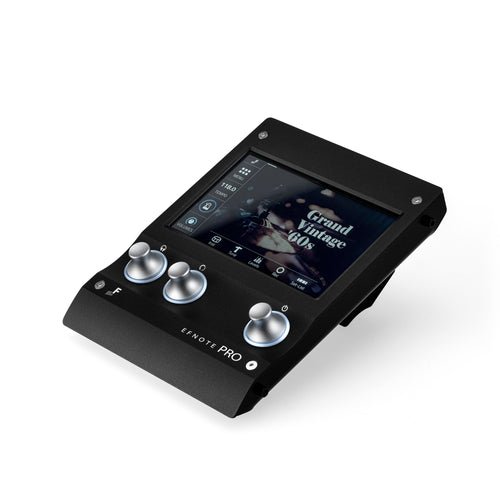

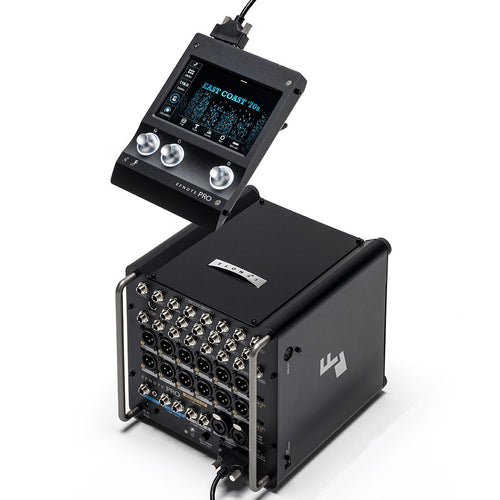

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals

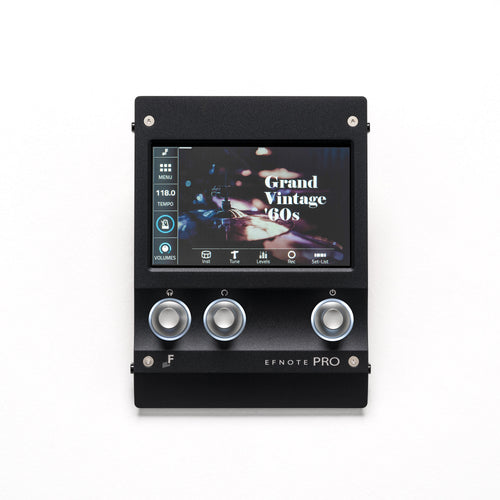

• Low-profile and compact control surface with touch-screen full-color LCD

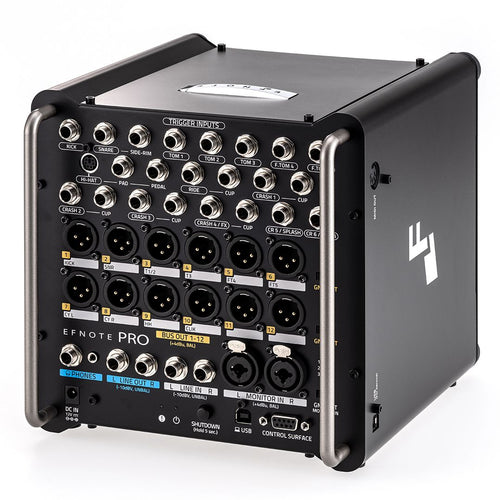

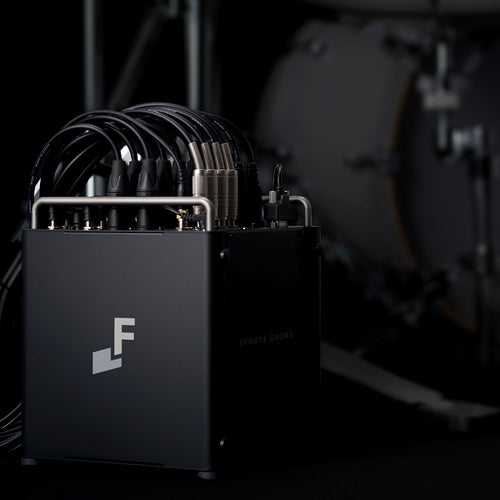

• Floor-standing base unit with robust enclosure and reliable cable connections

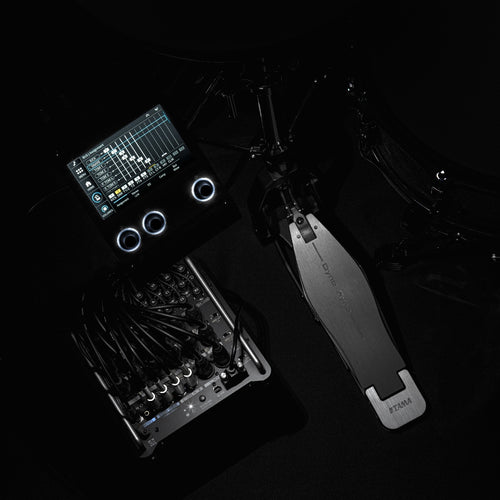

Foot Light for Your Feet

A foot light is equipped on the bottom of the surface controller to help setting up. Can be turned on and off as needed.

Contains Legendary Drums Sets

The delicate resonance of aged shells are newly captured, recorded by EFNOTE Raw and organic, NOT synthetic and electronic. Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Diverse Cymbal Collection

Efnote's mint selection, from bright and crisp modern sounds to dark and soft vintage sounds. Contains modern trash/effect/stacked cymbal sounds

Instrument Expansion

New sounds (drum sounds only) will be published on the Inst Library web page and will be loadable

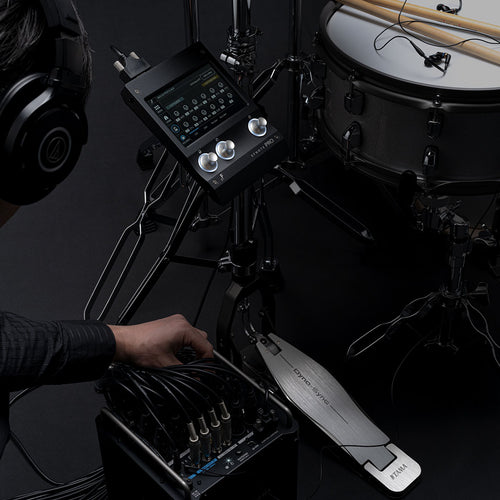

High-Powered Headphone Amp

• 1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously)
• Dedicated 2x headphone amp circuit for enough loudness
• High quality DAC and audio circuit

ELISE Sensing Processor 2.0

Efnote has evolved, delivering improved sensitivity for capturing your most delicate touch. The new algorithm for even more natural dynamics

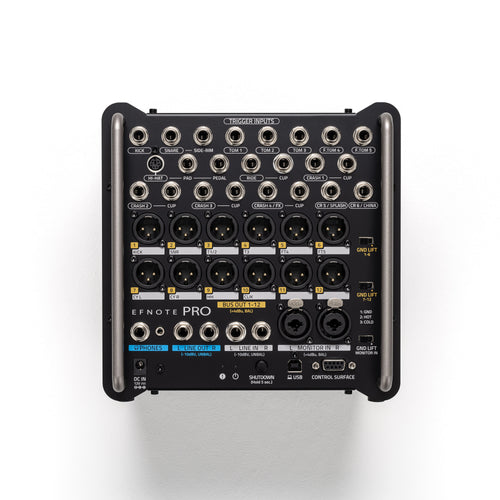

12-ch Buses to the Console

• 12-ch buses, and 12x XLR balanced bus output
• Dedicated bus compression for Bus 1 to 6
• HPF and 2-band EQs for Bus 1 to 12
• Stereo-Link for two adjacent buses
• Ground lift switches

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
• Ground lift switch for Monitor In
