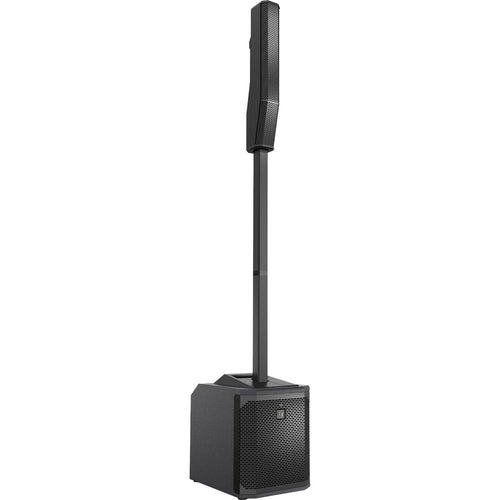

Electro-Voice Evolve 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It is equipped with the most complete feature set in its class, including an eight-channel digital mixer, studio-quality onboard effects and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application. High-resolution, low-latency Bluetooth streaming ensures excellent results for music playback or accompaniment.
Refined industrial design and professional-grade EV-engineered components

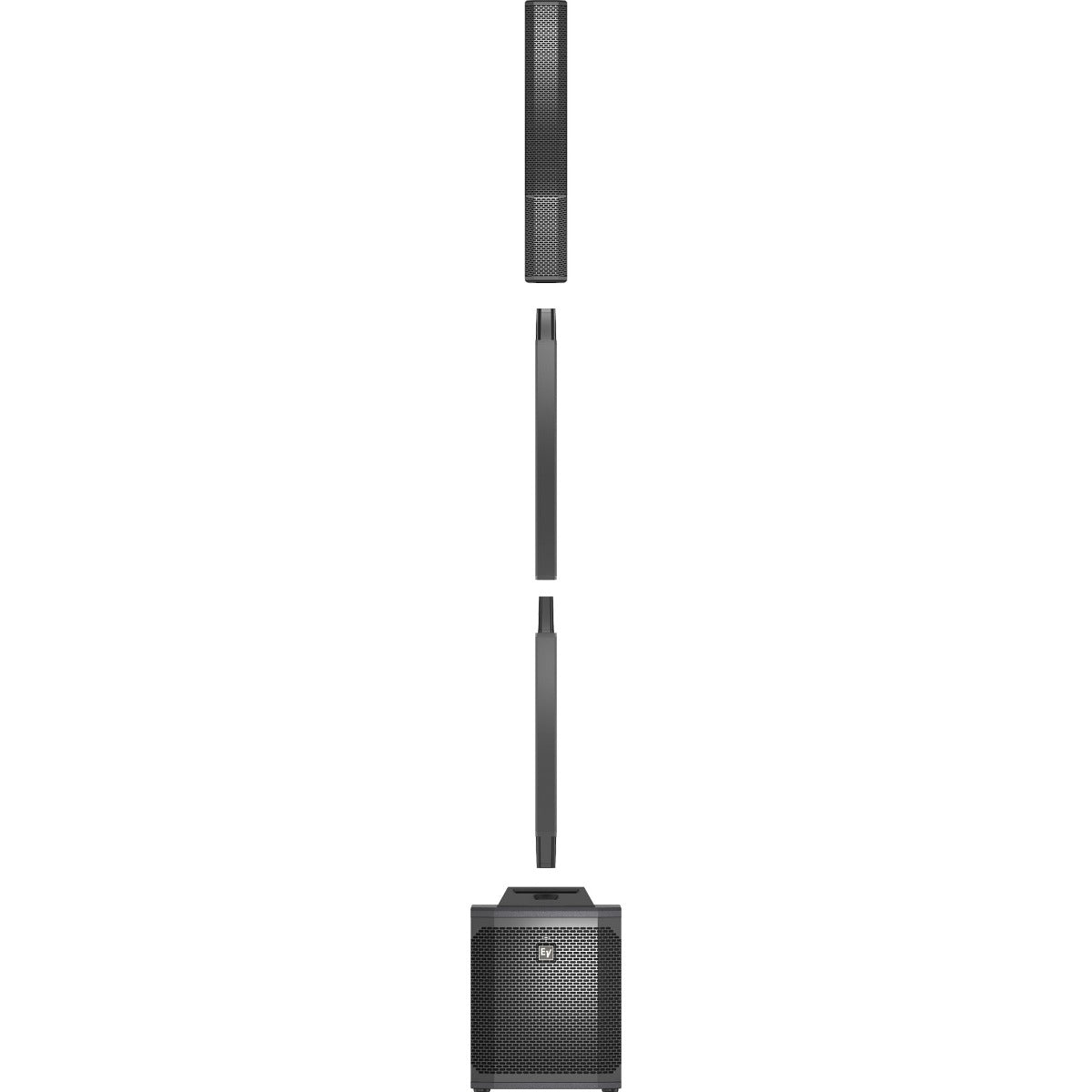

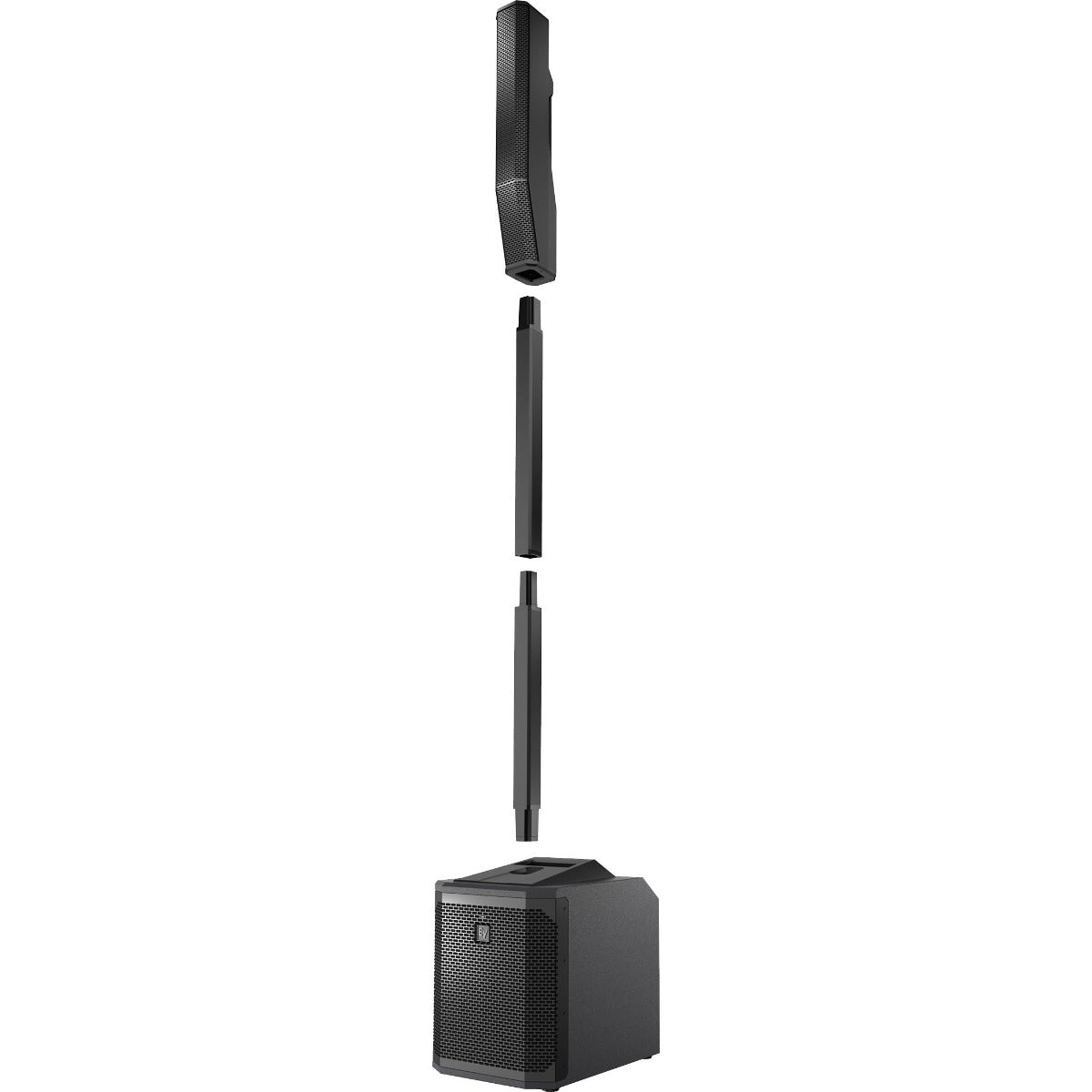

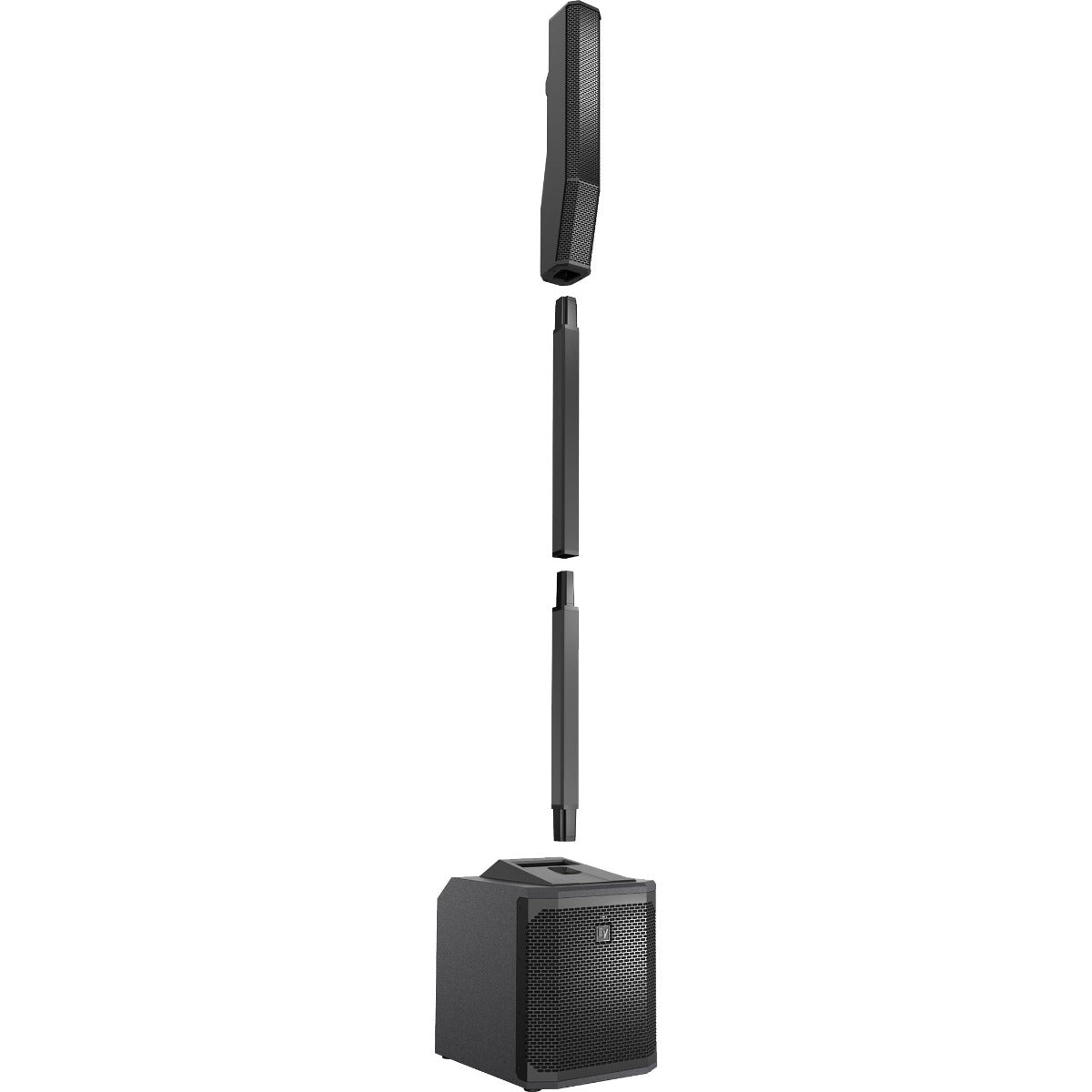

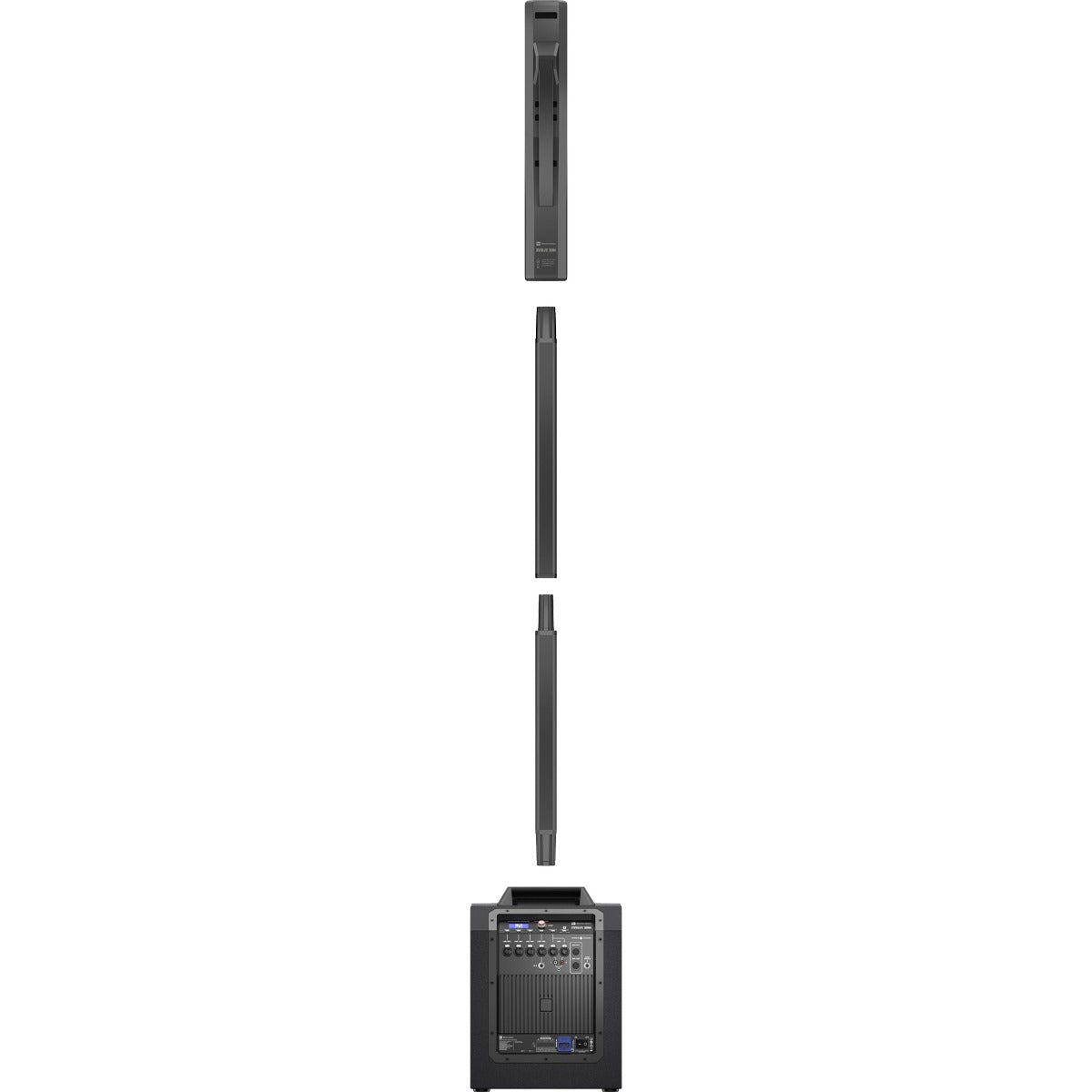

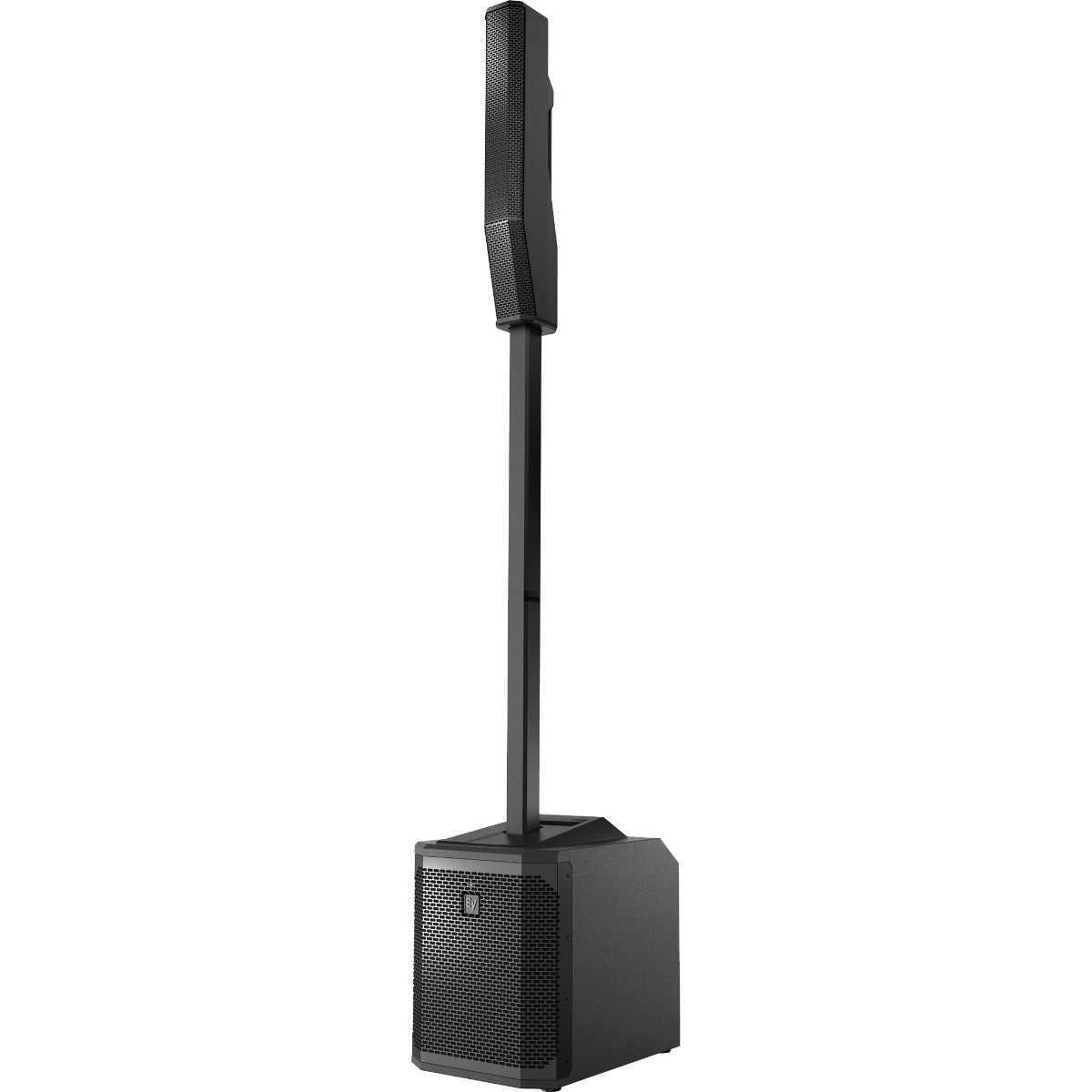

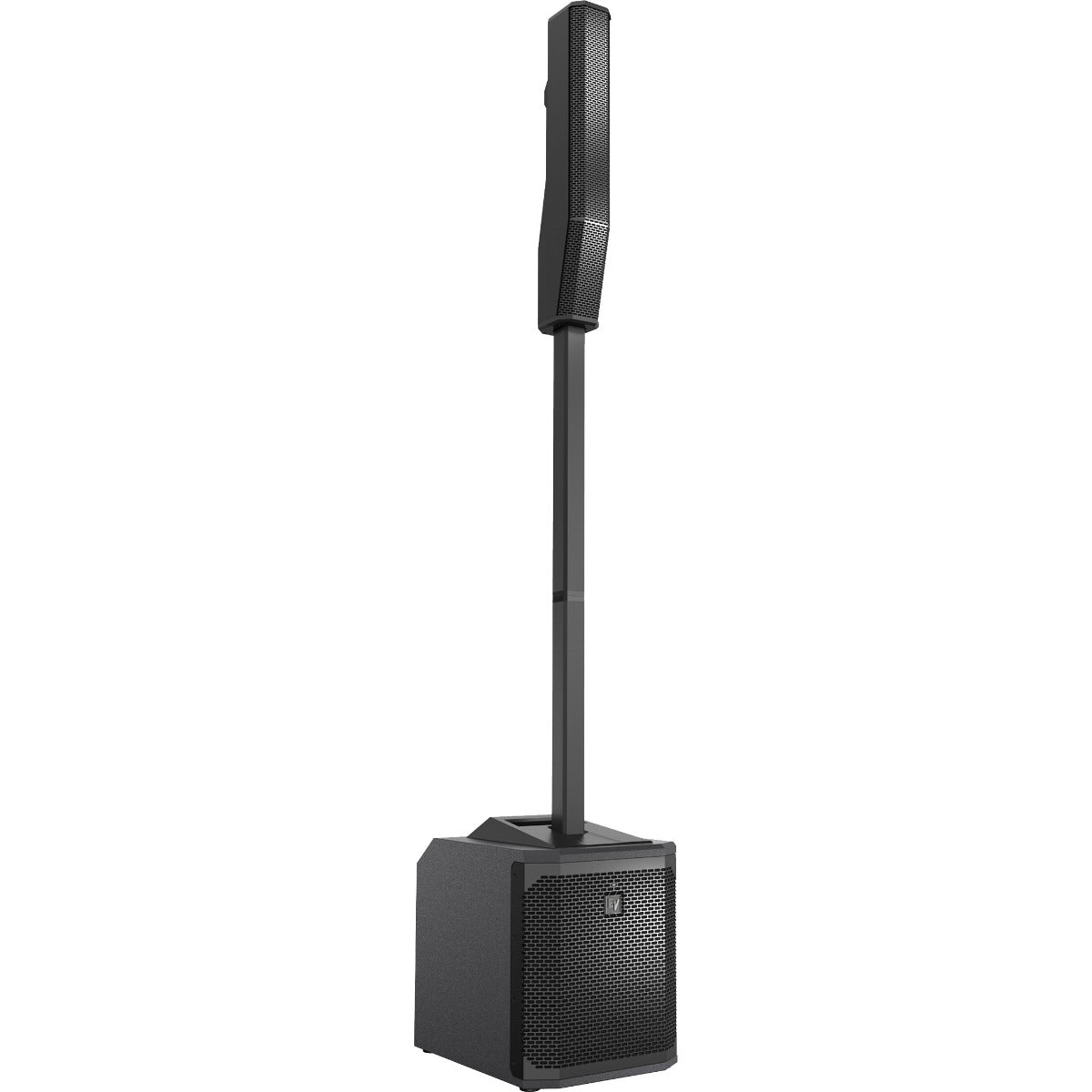

Evolve 30M sounds as good as it looks. The full-range column array and its six lightweight 2.8" neodymium drivers provide ultra-wide 120° coverage via proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. A 10" subwoofer is housed in a 15mm wood enclosure for enhanced rigidity and acoustical performance. A Class-D amplifier provides up to 1000 W of output power. The array and sub are connected via a two-piece symmetrical aluminum pole with internal wiring and magnetically assisted latching.
Industry-leading QuickSmart DSP
QuickSmart DSP allows navigation of system parameters via an LCD with single-knob control or via the app, as well as multiple options for signal routing and inputs. Functions include four presets – music, live, speech, club – three-band system EQ, seven-band graphic EQ in mixer mode, five user-programmable presets, phantom power, visual monitoring of limiter status, input level control and meters and a master volume control to optimize gain structure.
Onboard mixer gives you best-in-class connectivity and control
Developed in collaboration with Dynacord, the integrated fully featured, fully configurable digital mixer has multiple inputs with professional-grade preamps and mix functions. The mixer can be controlled via the QuickSmart Mobile app or via the LCD/single-knob interface.
Finesse your sound with musician-friendly features
Independent channel aux sends and Hi-Z and footswitch inputs are included for flexible system configuration, and a range of onboard studio-quality effects (30 presets including chorus, delay, flange and reverb via two FX channels) add myriad options for musicians to fine-tune their tone and reduce the amount of gear they need to bring to the gig. The onboard effects can be controlled via the QuickSmart Mobile app or via the LCD/single-knob interface.
|No Battery Power
|Audio Receiving and App Connectivity

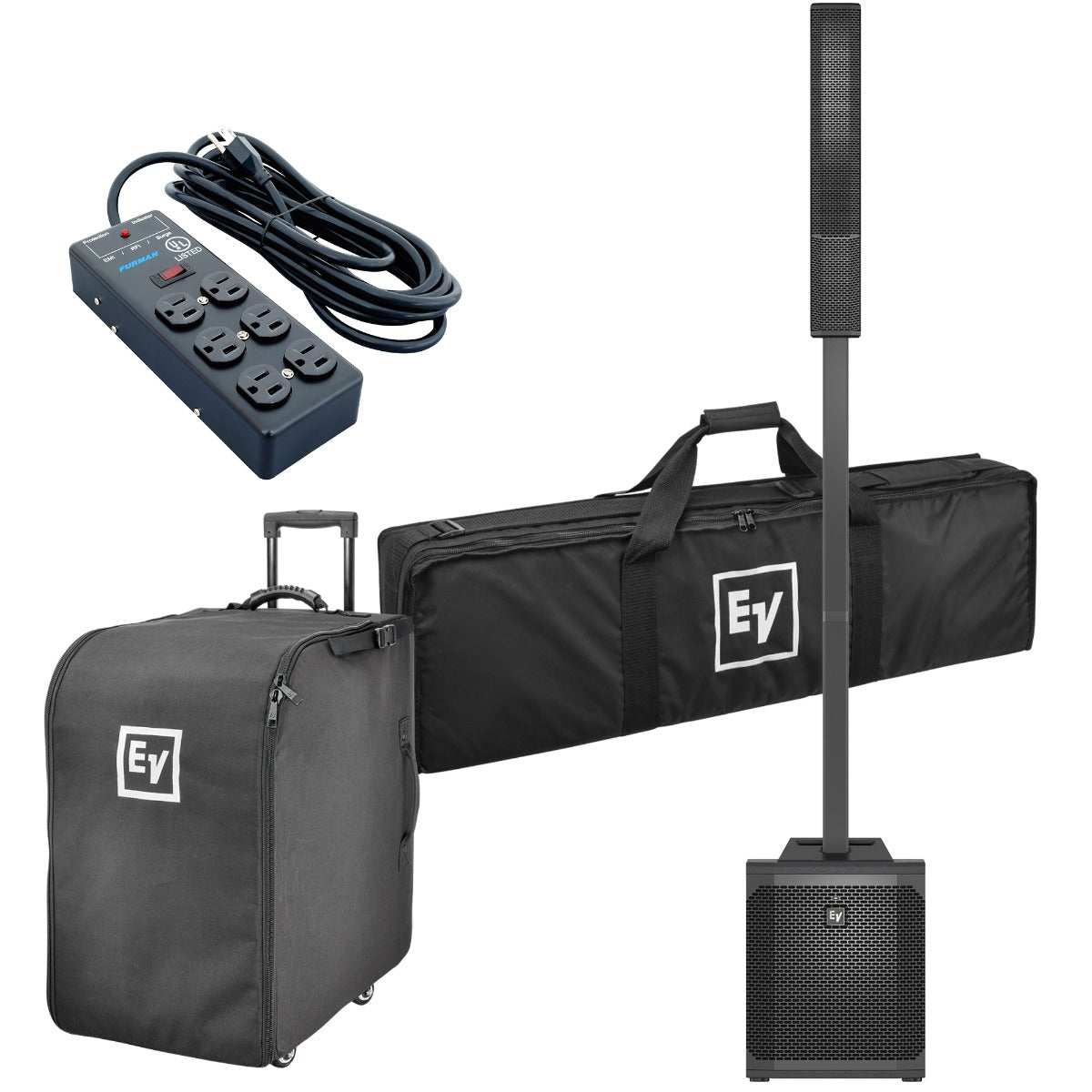

|Included From Manufacturer
Sub pole (2 sections)
Carry bag for column and pole
|Mixer Channel Filterable
|Product Unique Features
Remote control via free QuickSmart Mobile app for iOS or Android
QuickSmart DSP allows navigation of system parameters via LCD with single-knob control or via QuickSmart Mobile app

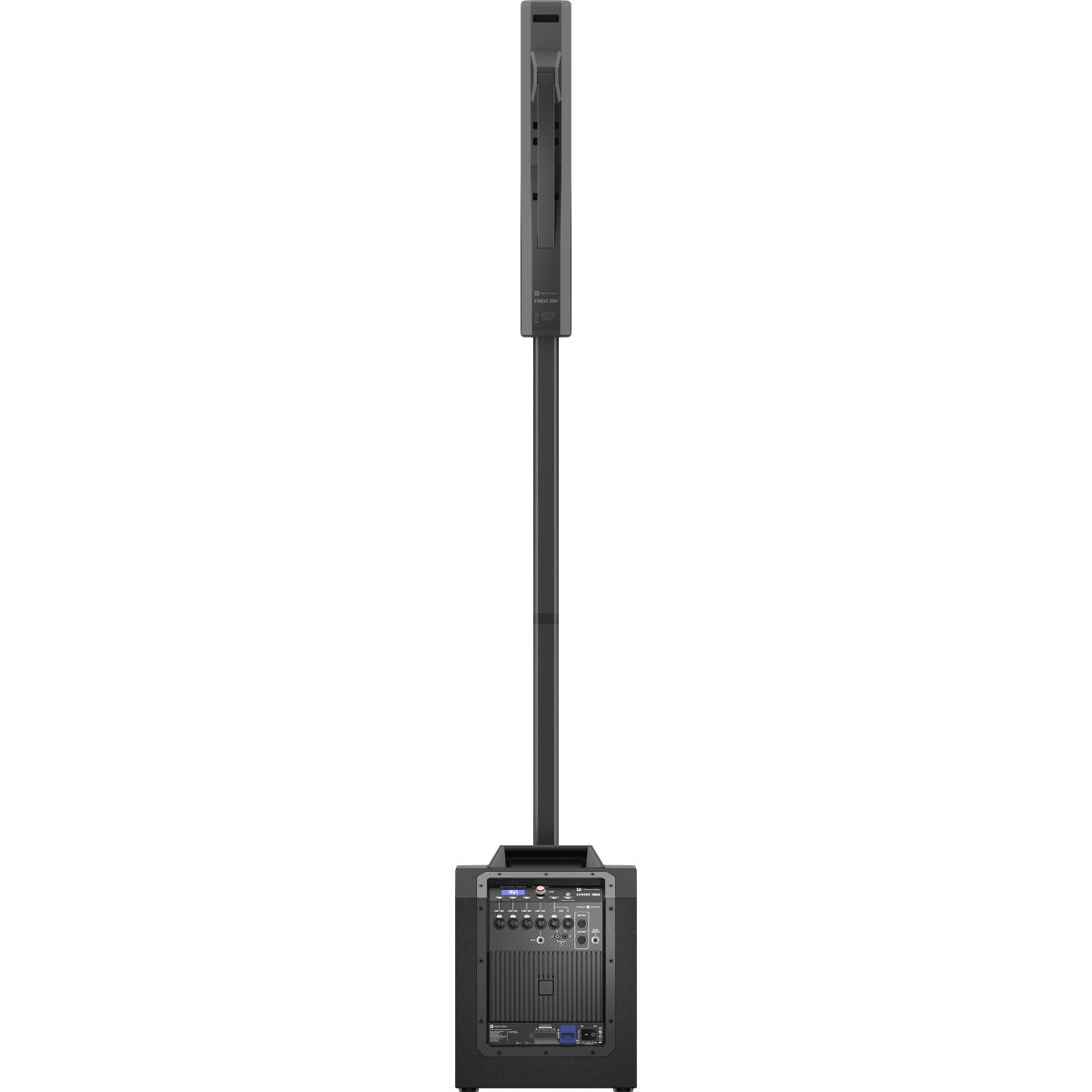

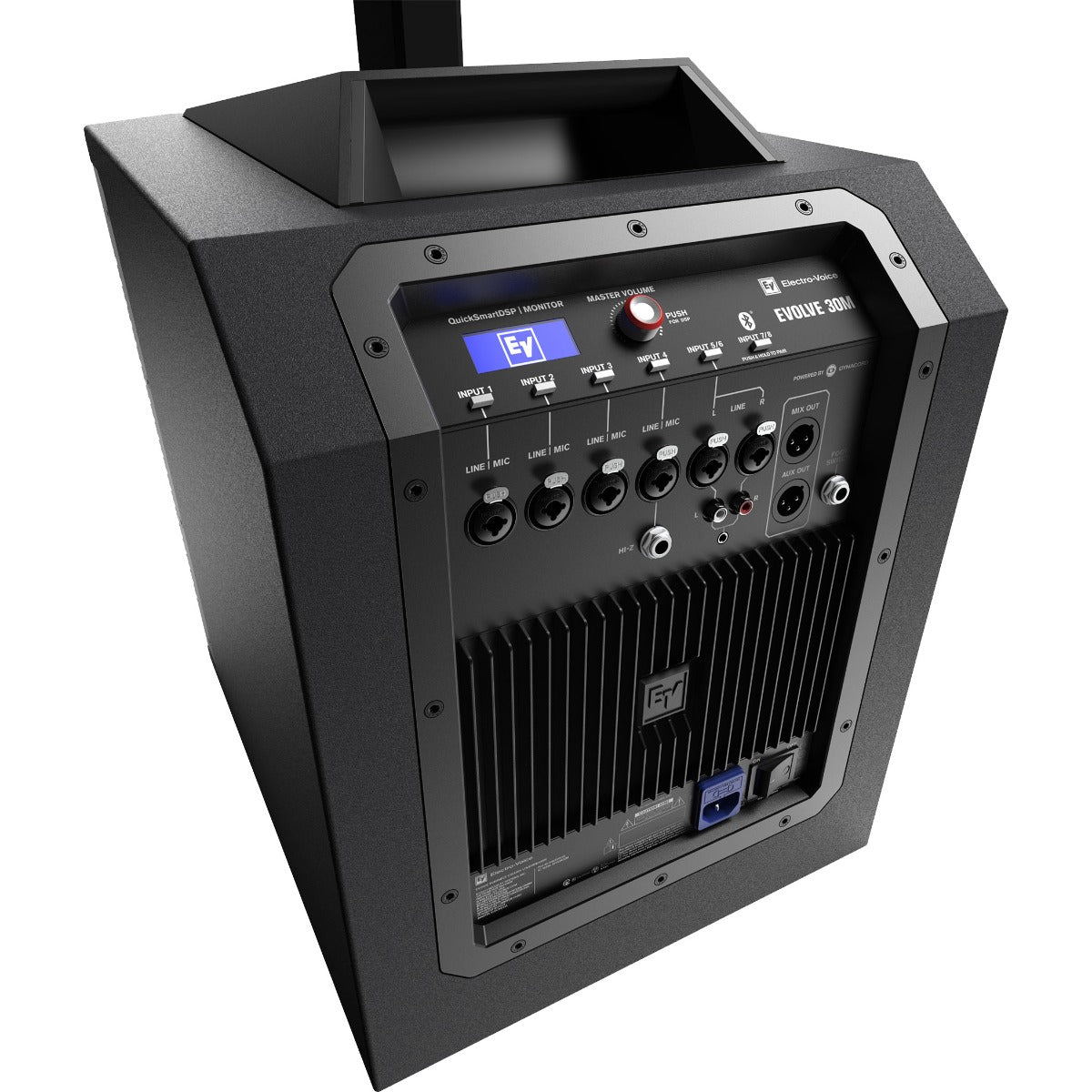

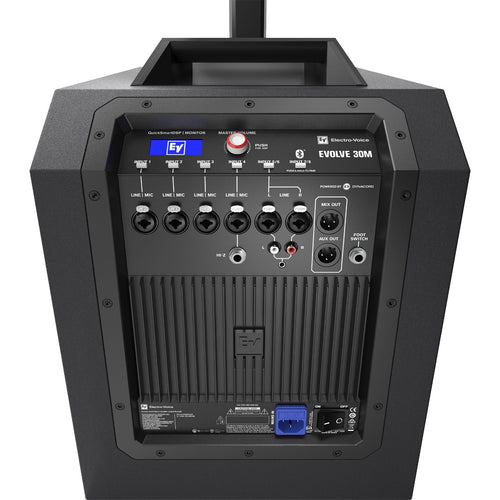

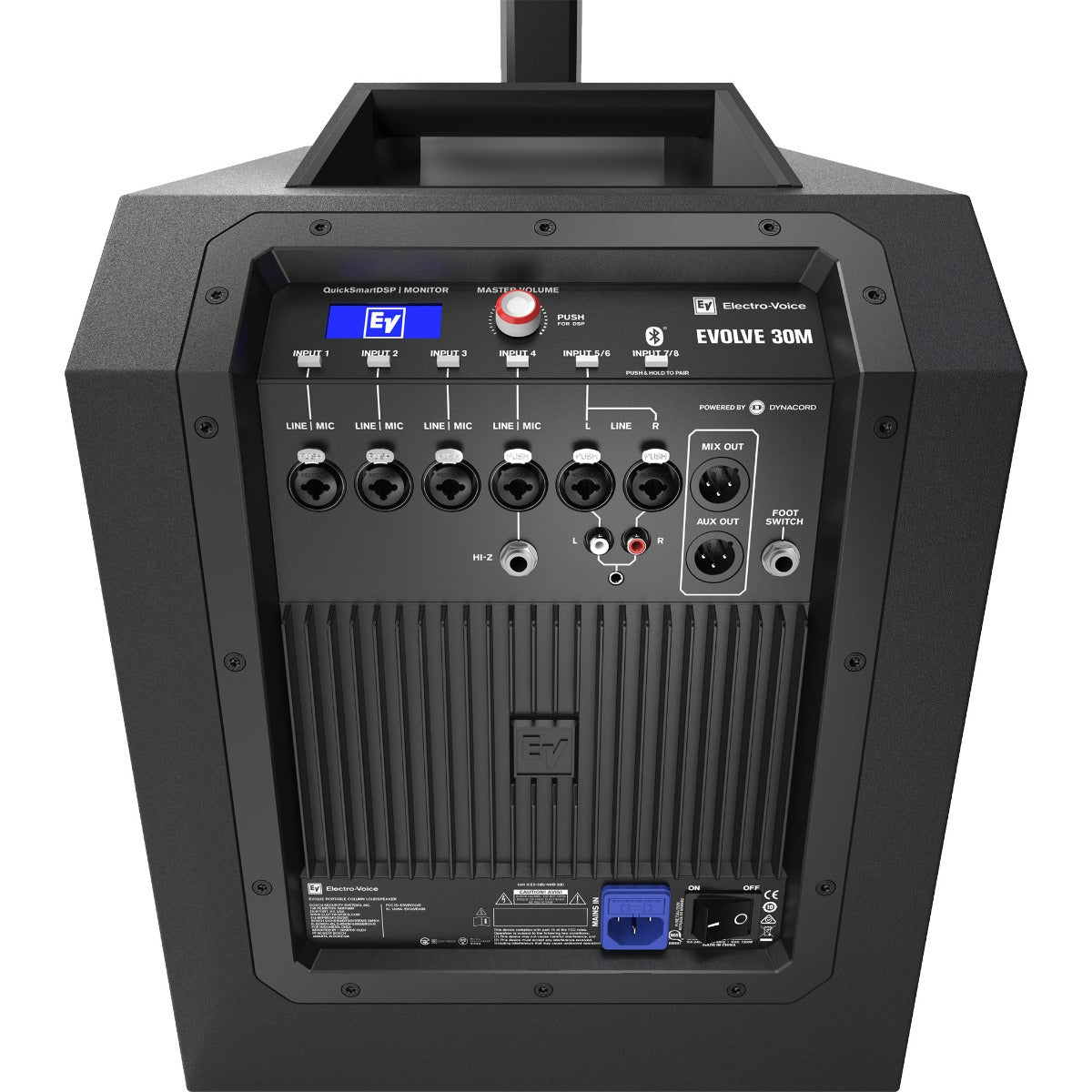

| 4 × XLR / 1/4" combo inputs
Dual stereo XLR / 1/4" combo inputs
Stereo RCA input
1/4" Hi-Z input
Bluetooth streaming input
| XLR mix output
XLR aux output
|+48V on inputs 1-4 on XLR connectors only
| Sub 34.9 lb
Column 6 lb
Pole 3.1 lb
|Column array with 6 × 2.8" neodymium drivers
| Sub 13.1"
| Sub 17"
| Sub 17.6"
Electro-Voice Limited Warranty
Bosch Building Technologies (in the following “warranty provider”) provides a warranty to the final customer (consumer) under the conditions stated herein that the products are free of defects in material and workmanship. The warranty period for Electro-Voice products is as follows and from the invoice date:
- Three years for powered loudspeakers
- Five years for non-powered loudspeakers
- One year for loudspeaker accessories & hardware
- Two years for R300 wireless microphones
- Three years for RE3 wireless microphones
- Three years for all other products
The product warranty applies exclusively to Electro-Voice products of Bosch Building Technologies.
