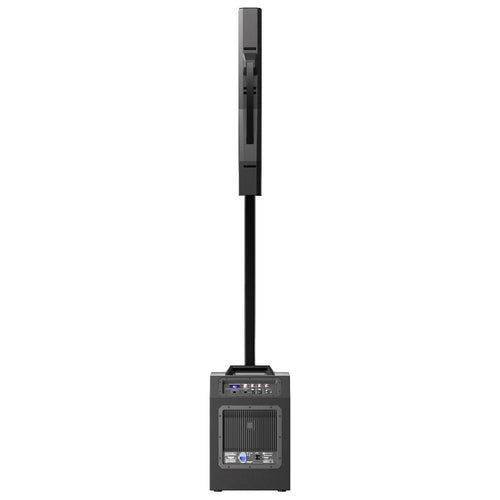

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.
- Lightweight and portable
- 1000 W Class-D amplifier
- Eight 3.5‑inch full‑range neodymium drivers
- 12‑inch subwoofer
- Five user‑programmable presets
- 3-band EQ
- Phantom power
- Bluetooth app-control and audio streaming
- Available white or black
Clean, Compact Design — Built to Blend in
Pure, accurate Electro‑Voice audio performance in a sleek new form factor. The perfect choice for DJs, mobile entertainers, bands, singer/songwriters and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. Acoustically powerful, aesthetically discreet: column sound evolves to the next level.
Easy Transport & Setup

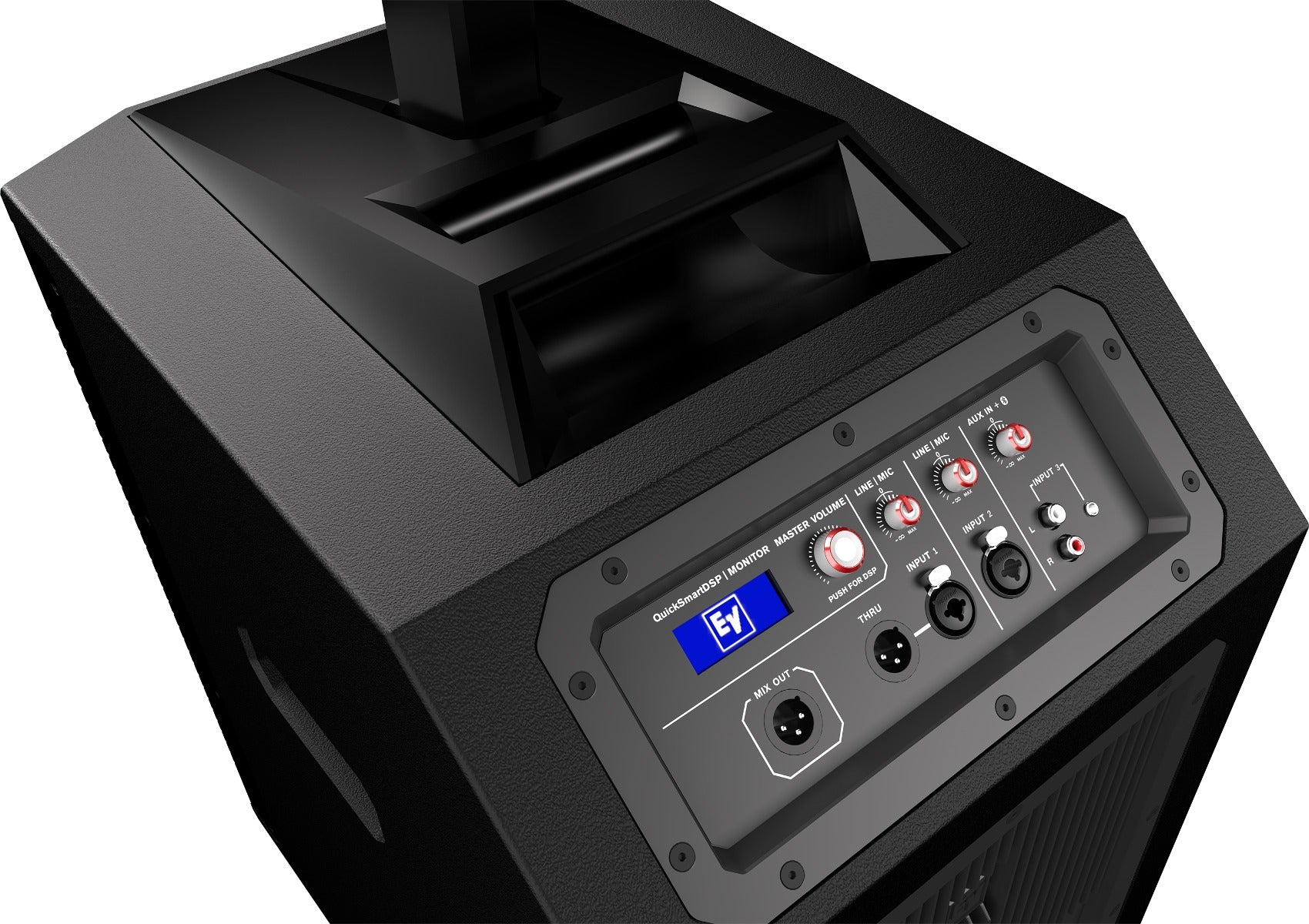

Ergonomically designed handles on both the array and the sub enhance portability. Integrated speaker wires allow quick, clean connection. Angled interface gives user easy access to make adjustments and connections on input panel.
Professional PA Performance

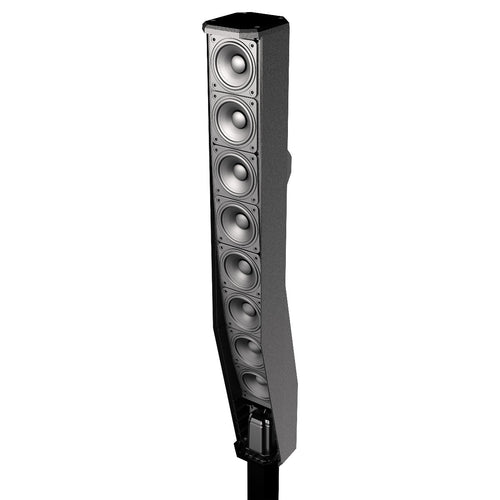

Legendary EV audio quality via eight 3.5‑inch full‑range neodymium drivers and a 12‑inch subwoofer, powered by a three‑channel amp for high output. Cutting‑edge components and tuning provide full‑sized sound in a super‑streamlined, plug‑and‑play format.
Wide, Even Coverage
Fill the room. Proprietary waveguides provide ultra‑wide 120° horizontal coverage and array‑formed 40° asymmetrical vertical pattern control. No energy is wasted — exceptional audience coverage and clarity from front to back.
Quicksmart DSP
Best‑in‑class processing via EV’s signature single‑knob user interface with LCD. Easy operation via four presets (Music, Live, Speech, Club), threeband EQ, five user‑programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.
Wireless Control & Monitoring
New Bluetooth QuickSmart Mobile makes it easy to dial‑in settings in real‑time from in front of the system. Quickly configure, control and monitor of up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.
High‑quality Bluetooth Audio
For convenient streaming of background music or musical accompaniment direct from any mobile device.
SKU | EV-EVOLVE50BSR |
Vendor | Electro-Voice |
Battery Powered | No Battery Power |
Bluetooth | Audio Receiving and App Connectivity |
Mic Preamps | 2 |
Mixer Channel Filterable | 3 |
MPN | Evolve 50 |
Simultaneous Inputs | 3 |
System Power | 1000 Watts |
Audio Inputs | 2 x XLR/TRS Combo Jack 1 x 1/8" Stereo 1 x RCA Wireless Bluetooth |
Audio Outputs | 1x XLR MIX OUT 1x XLR THRU |
Main EQ | 3-Band |
Phantom Power | +48V |
Pole Mount | No |
Product Weight | Sub: 44.66 lb Column: 10.34 lb Pole: 2.75 lb |
Tweeter/Horn | 8 x 3.5" neodymium drivers |
Width | Sub: 32.5" Column: 4.0" Pole: 1.9" |
Depth | Sub: 36.6" Column: 6.9" Pole: 2.2" |
Height | Sub: 20.9" Column: 32.5" Pole: 36.6" |
Woofer/Low Frequency | 12" |
Bosch Building Technologies(in the following “warranty provider”) provides a warranty to the final customer (consumer) under the conditions stated herein that the products are free of defects in material and workmanship. The warranty period for ELECTRO-VOICE products is as follows and from the invoice date:
- Three years for powered loudspeakers
- Five years for non-powered loudspeakers
- One year for loudspeaker accessories & hardware
- Two years for R300 wireless microphones
- Three years for RE3wireless microphones
- Three years for all other products
