Name: JoMoX ModBase 09 MkII Eurorack Bass Drum Module COLOR CABLE KIT
Brand: JoMoX
Price: 399.0 USD
Availability: Backorder

Back To Synthesizers

Bonus Item

Bundle collage image of JoMoX ModBase 09 MkII Eurorack Bass Drum Module COLOR CABLE KIT bundle

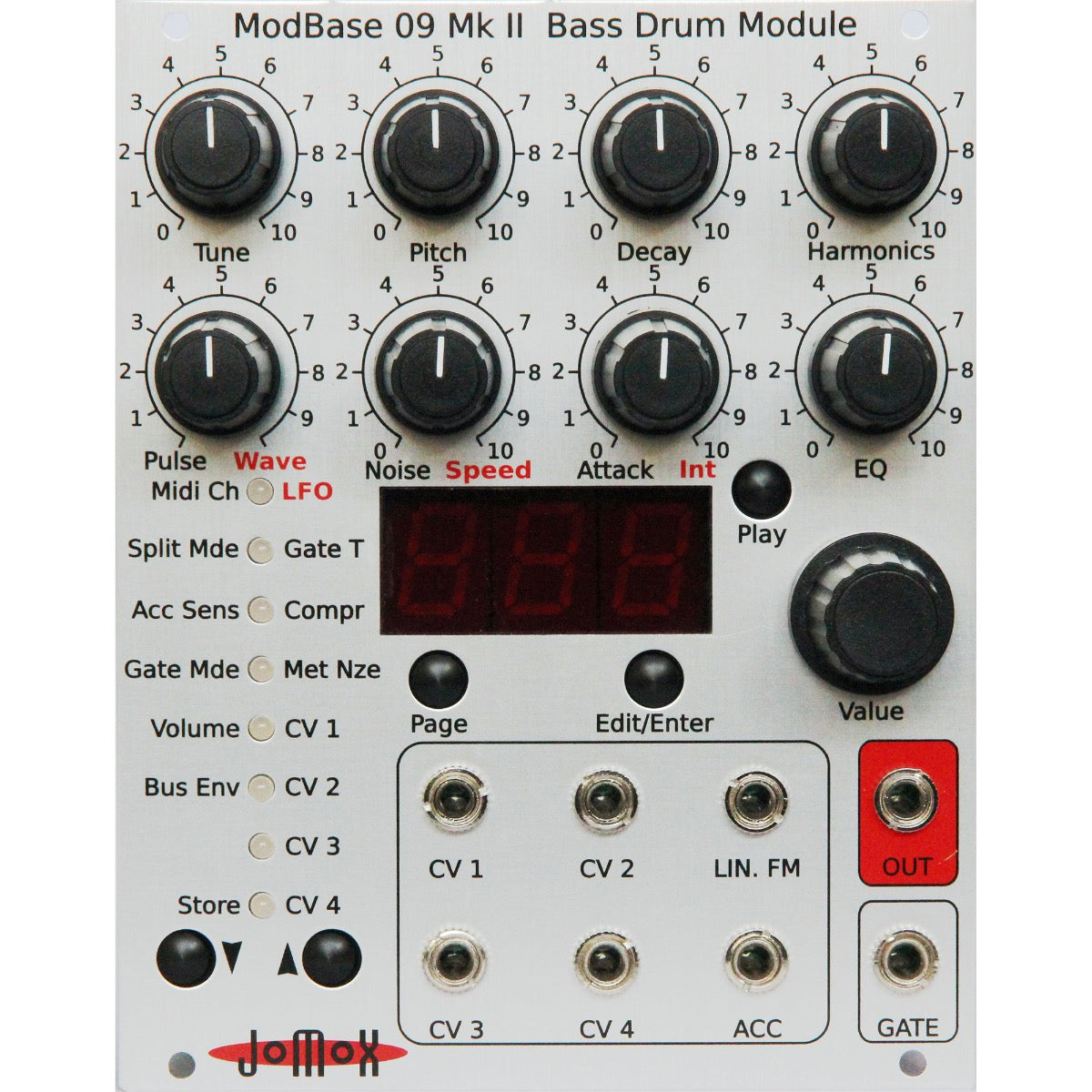

Front view of JoMoX ModBase 09 MkII Eurorack Bass Drum Module

Rear view of JoMoX ModBase 09 MkII Eurorack Bass Drum Module

Right side view of JoMoX ModBase 09 MkII Eurorack Bass Drum Module

5 items included

$399.00 ~~$406.80~~

You Save $7.80

BONUS ITEM

Free Synths of Summer T-shirt with purchase (Styles may vary)

JoMoX ModBase 09 MkII Eurorack Bass Drum Module COLOR CABLE KIT

Quantity

This item is out of stock - we'll contact you with the latest ETA

Authorized Dealer

This Kraft Music Bundle Includes

$399.00 ~~$406.80~~

You Save $7.80

Click on a product to view more details.

JoMoX ModBase 09 MkII is a dedicated kick drum eurorack module with real analog sound, a single-voice storeable analog synthesizer optimized to produce professional, club-compatible bass drum sounds. ModBase 09 MkII is fully controllable by analog control voltage and gate signals as well as via MIDI. All sound parameters can be remotely controlled by either the four CV inputs or via MIDI CC.

Module controls

Tune knob: vary the pitch envelope of the VCO
Pitch knob: tune basses as low as 10Hz or up to 175Hz
Decay knob: adjust kick drum decay time up to 2 sec
Harmonics knob: enrich harmonics of the VCO
Pulse knob: change the pure pulse part of the attack (gate time also affects this parameter)
Noise knob: change the pure noise part of the attack (gate time also affects this parameter)
Attack knob: mix the levels of pulse and attack
EQ knob: filter the bass drum with a low pass filter for soft and 808-ish kick drums
Gate T parameter (accessible via menu buttons and Value encoder): vary the gate time from 0.1ms to 16ms
Compr parameter (accessible via menu buttons and Value encoder): compress the decay envelope for slim and clicky kicks
MetNze parameter (accessible via menu buttons and Value encoder): adjust the level metalized noise, a complex digital multitone pattern of 499 different combinations

Patch points

CV1-CV4 inputs: route external 0-5V CV signals to any of the above parameters including LFOs (accepts negative values)
LIN. FM input: true analog dedicated CV FM modulation input for the bass drum VCO (only works linear-wise and does not offer musical semitones across the CV scale)
ACC input: CV input for the kick drum accent / velocity (may also trigger the kick drum dynamically if ACC trigger mode is enabled and the sequencer is able to generate dynamic pulses)
LFO input: ModBase 09 MkII has two LFOs (saw up, saw down, sine, triangle, rectangle) that affect the pitch of the bass drum and always start synchronous to the gate trigger
MIDI in/out (5-pin jacks mounted directly on circuit board): all parameters including LFOs can be remotely controlled by MIDI CCs via CC# assignments identical to JoMoX Alpha Base, XBASE999 and MBase11

Physical specifications

Size: 20hp
Module depth: 53mm
Power usage: 120mA-140mA @ +12V, 80mA @ -12V

SKU	JOM-MODBASE09MKIICCK
Vendor	JoMoX
Included From Manufacturer	Mounting screws Eurorack ribbon power cable
Module Type	Drum/Percussion
Module Width	20hp
MPN	ModBase 09 MKII
Module Power Usage	120mA-140mA @ +12V 80mA @ -12V
1U Module	No
+5V Required	No
Depth	53mm
