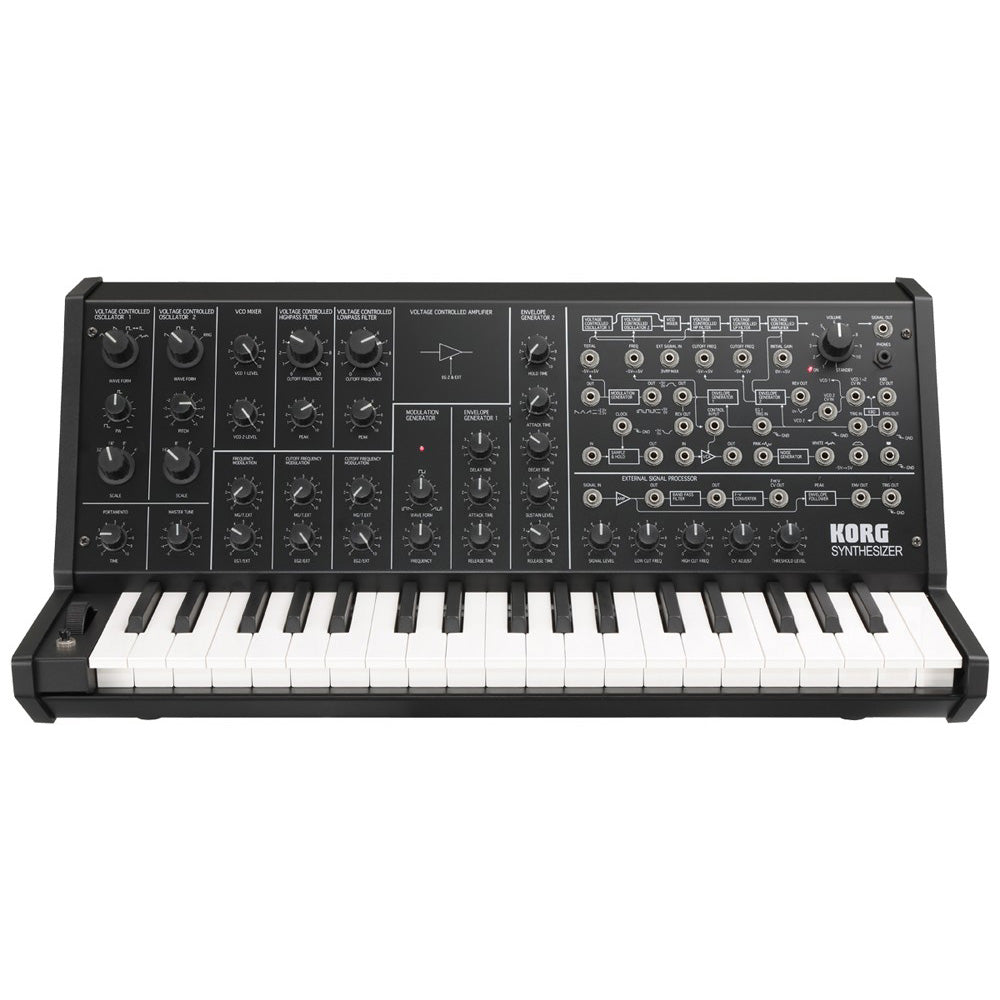

Korg MS-20 mini Monophonic Synthesizer

Korg's MS-20 monophonic synthesizer, first introduced in 1978, is still a coveted instrument to this day thanks to its thick, robust sound, its powerful, iconic analog filter and its versatile patching options. Over 300,000 people have enjoyed the distinct MS-20 sounds from the original, from Korg s MS-20 plug-in synth or iMS-20 iPad app.

Today, the sounds of the MS-20 have been reborn in hardware as MS-20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and fit it into a body that s been shrunk to 86% of the original size yet retains the distinctive look of the original.

The MS-20 Mini will amaze you with its absolutely authentic analog synth sound.

• Overseen by the engineers of the original MS-20, a complete replication of the original analog circuitry
• Self-oscillating high pass and low pass filters with distinctive distortion
• External signal processor via external audio input
• Extremely flexible patching system
• USB MIDI plus 5-pin MIDI in

A complete replication of the original analog circuitry
MS-20 Mini painstakingly replicates the original MS-20. A development team led by the original engineers themselves worked to recreate the original circuitry, and when it was necessary to substitute a part these engineers made the decisions based on careful listening in order to reproduce the original sound faithfully. In fact, the sound of the MS-20 Mini has a somewhat bright and extreme quality to it because its sound is that of an original MS-20 in mint condition at the time it went on sale, before any of the components aged.

2VCO / 2VCF / 2VCA / 2EG / 1LFO structure
MS-20 Mini reproduces the distinctive synthesis of the MS-20: two oscillators with ring modulation and envelope generators with hold and delay. The VCA maintains the basic design of the original, but it s been modified to produce less noise.

Self-oscillating high pass and low pass filters with distinctive distortion
One of the greatest characteristics of the MS-20 was its powerful filters, which provided resonance on both the high pass and the low pass. Maximizing the resonance would cause the filter to self-oscillate like an oscillator, producing a distinctive and dramatic tonal change that was acclaimed as inimitable and was later used on the Monotron and Monotribe. The filter circuit was changed mid-way through the production lifecycle of the MS-20; MS-20 Mini uses the earlier filter, which was felt to be superior due to its more radical sound.

External signal processor (ESP) for processing an external signal
The ESP carries on the experimental spirit of MS-20: it allows you to use the pitch or volume of an external audio source to control the synthesizer. For example, you can input an electric guitar and use MS-20 Mini as a guitar synthesizer or input a mic and use it as a vocal synthesizer.

Extremely flexible patching system

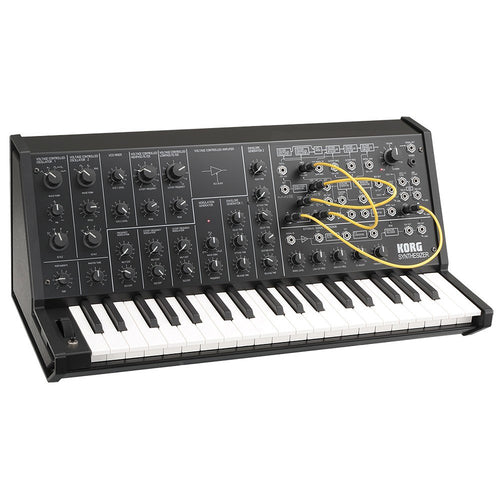

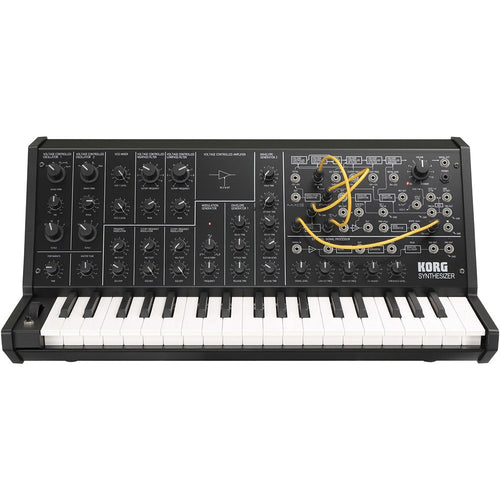

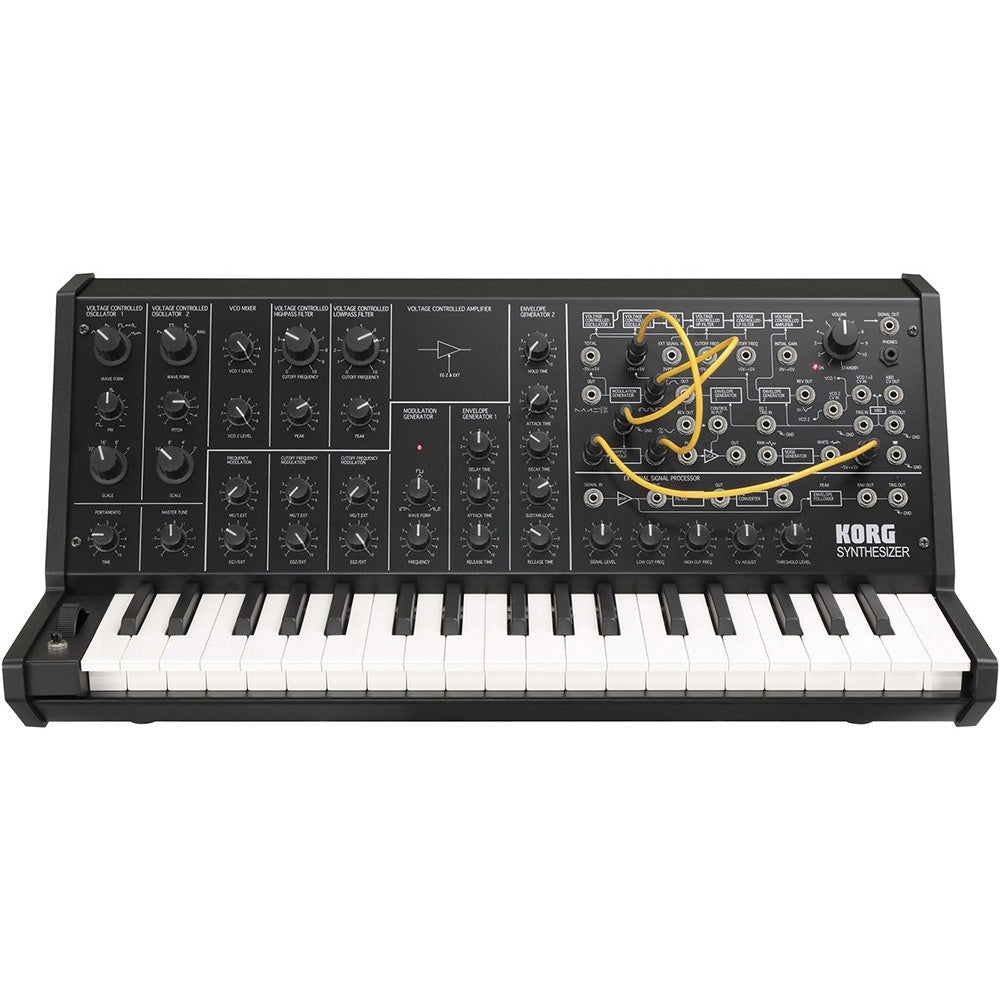

The patching system provided to the right of the panel lets you create complex sounds by plugging in cables to change the connections among the various units. The possibilities are limited only by the user's imagination; different combinations of the modulation input/output and trigger, sample and hold, and noise generator can produce an incredible variety of sounds. By patching according to the MS-20 flow chart that's printed on the panel, even the beginner can start taking advantage of these possibilities right away.

Miniature MS-20 that's 86% of the original size
MS-20's design concept started by borrowing from the vertical layout found on larger and more expensive modular synths of its time and then creating a more portable, inexpensive and easier-to-use version.

To make it even more approachable, MS-20 Mini has been shrunk to 86% of the size of the original MS-20. In spite of its smaller size, meticulous care has been taken to accurately reproduce the knob design and the printing. The patch cables have been changed from 1/4" to 1/8", and the slim-keys keyboard is also 86% of the original size.

Replicates every detail of the original
Korg's efforts to remain faithful to the original are not limited to the unit itself: even the package that contains the unit replicates the original as closely as possible! Also included are the original MS-20 owner's manual and settings chart explaining how to create sounds. Now you can experience the excitement of the MS-20, just like it was during its original release in 1978.

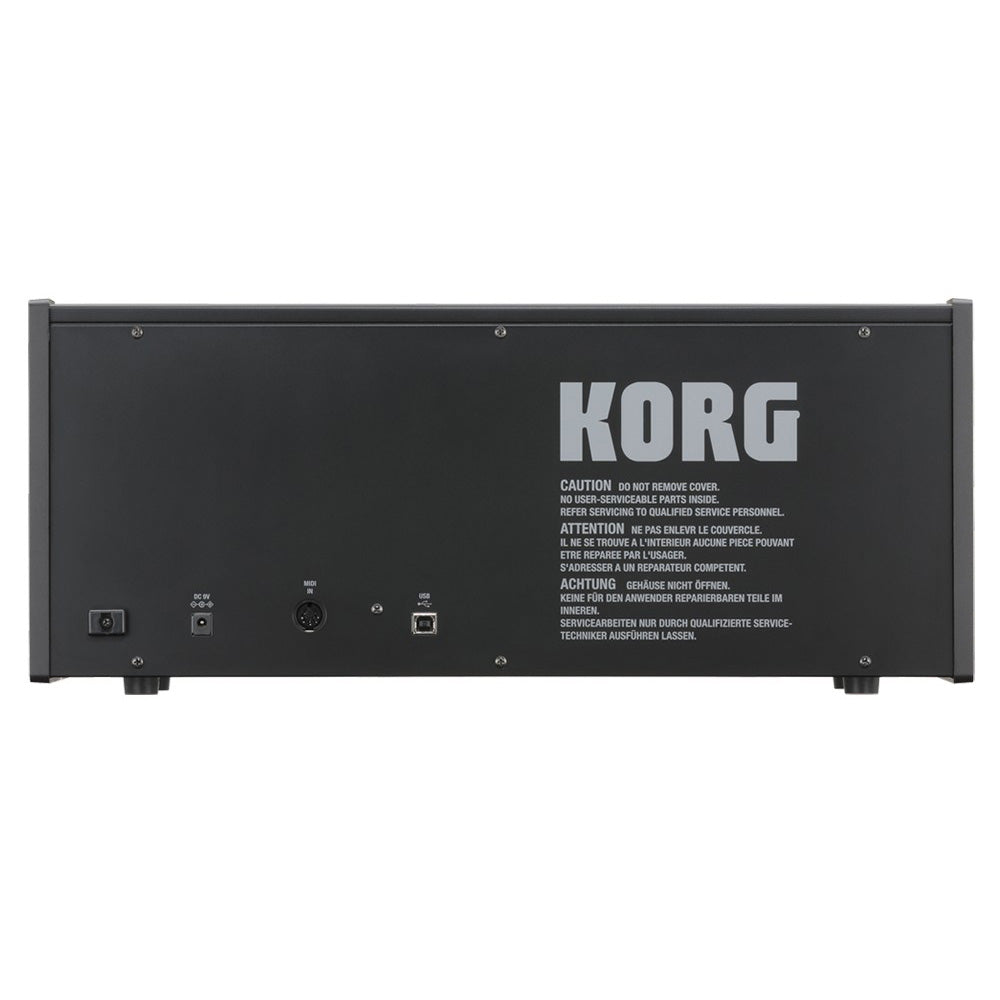

MIDI IN connector and USB connector
MS-20 Mini provides a MIDI in jack for receiving note messages and a USB-MIDI connector that can transmit and receive note messages. You can even connect MS-20 Mini to your computer and play it from a sequencer.
