Korg Opsix Mk II is a digital synth like no other. The Opsix operator mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

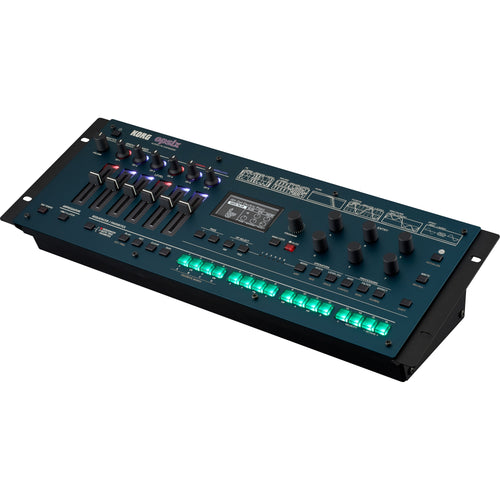

Now, Korg has created a new form of Opsix: the module. This model supports MIDI 2.0 property exchange and poly aftertouch and is fully compatible with the sounds of the original Opsix, Opsix Mk II, Opsix SE and Opsix Native software. The 19" rack-mountable enclosure has the same controls as the keyed models, yet is easily transportable and fits neatly into any studio or desktop production system.
MIDI 2.0 Property Exchange and polyphonic aftertouch support
With the latest software updates, all models of Opsix now support MIDI 2.0 Property Exchange. Hundreds of the original factory sounds have been updated to include polyphonic aftertouch modulation; channel aftertouch is supported as well.
Rackmount and desktop

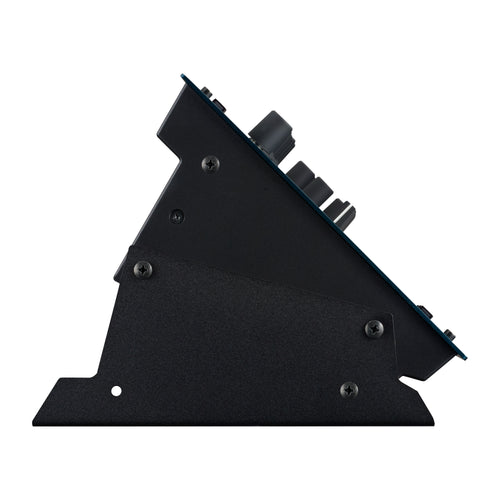

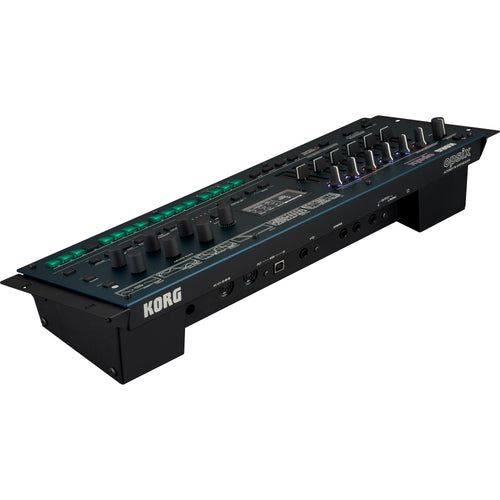

Opsix Module is cleverly designed for both desktop and rackmount use. The panel is redesigned to fit into a standard 19" rack width, and the rear jack panel is recessed to allow easy access to cables even with gear mounted directly above. With desktop setups, brackets offer a choice of panel angles: flatter for performing standing up or more upright for working while seated in your studio.
- 64-voice polyphony
- Get illuminated with the operator mixer
- Direct hands-on control
- Six-in-one synthesis
- Altered FM architecture delivers sounds across a vast spectrum
- Powerful effects processing
- Automatable 16-step sequencer
- Monster modulation matrix
- Randomize function to generate new, unique sounds
- Free librarian software
Evolved to an astounding 64 voices
Opsix Module has 64 voices, twice as many as the original, allowing users to enjoy tone editing without having to worry about the number of simultaneous voices. In addition, the operator mixer section, the most distinctive feature of this product, has been accented in green.

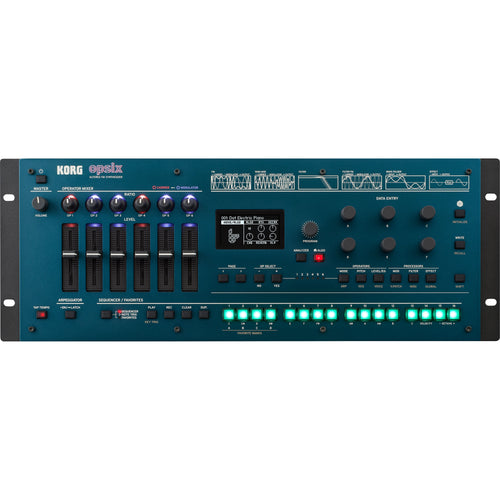

Get illuminated with the operator mixer
At the heart of every sound is Opsix Module's operator mixer, a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes Opsix Module so unique, just like the sounds it offers.
Direct hands-on control
Whether you're tweaking a preset or building a patch from the ground up, six data entry knobs give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving a clear, focused direction to your workflow. Select from a full range of analog-style filters, from the radical Korg MS-20 low pass / high pass filter to the powerful-yet-smooth Korg Polysix low pass filter that gives your sound a vintage feel. There are also two- or four-pole low pass, high pass, band pass and band reject filters with resonance. There's even a built-in spectrum analyzer and oscilloscope that gives you visual feedback via the screen.
Altered reality
What started as a legacy approach to synthesis has evolved into something completely different. Opsix Module is FM-based, but the similarities to classic FM synthesis end there. The 'altered FM' architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components: new waveforms, filters, shaping, effects, LFOs, envelopes, modulations and more, all translating to its broad assortment of sounds.
Powerful effects processing
Opsix Module provides three blocks containing 30 types of high-definition effects that you can use to enhance your sounds even further. There's everything from a great mix of standard effects like chorus, phaser, delay and compressor to some world-class shimmer reverbs that will elevate your sound to the next level.
Polyphonic motion sequencing
Opsix Module features an incredible step sequencer that rivals grooveboxes for flexibility and power. Press the PLAY button on any sound and experience the complexity of the sequences! Every program has its unique sequence stored with it; you can also create your own. You can record up to six notes per step and edit each note's velocity, gate time and playback timing. Create long phrases or make subtle shifts in timing to emulate strums or drum rolls, something that's not possible on a typical 16-step sequencer. The motion sequencer lets you record changes to up to six parameters, creating smooth motion changes in sound within a phrase or building rhythms that change dramatically with each step.
Monster modulation matrix
Opsix Module 's modulation possibilities are genuinely mind-blowing. With six operator modes and 40 preset algorithms, plus the ability to create your own, Opsix Module offers you dynamic sonic options. This synthesis is supercharged by the processors that come at the end of the signal chain. The MOD section works separately from the operators with three EGs, three LFOs and 12 virtual patches for a wide variety of routing possibilities. Use these features for a huge range of modulation to create swirling soundscapes or add rhythmic motion to your sounds.
Throw the dice
Use the randomize feature if you're in the mood for unexpected sonic discoveries. Press the button marked with the die icon to completely scramble the synth's parameters, generating a new, unique sound. You can use the randomize feature for all parameters or just for the operators, the algorithm or the sequences. You might strike gold with your roll, but if not just try again or use the result as a starting point for your next new sound.
Editor/librarian software
Opsix Sound Librarian lets you view and organize data on an Opsix Module connected to a computer via USB, and transfer sound data back and forth between Opsix Module and the computer.
Free bundle of music software
Modwave Module comes with a diverse collection of music software to help you take your music to the next level, including Izotope Ozone Elements for AI-powered mastering, Skoove for improving your keyboard playing skills and software synths from Korg and other brands.
Special crossgrade to Opsix Native software
Owners of a hardware Opsix are eligible for a crossgrade license to Opsix Native at a special price via a coupon code tied to the Modwave hardware's unique ID. Using the hardware and software versions together you can have the best of both worlds: a physical instrument that responds to your touch, and complete DAW integration.
Opsix Native
Opsix Native is the fully-compatible software counterpart to the hardware Opsix Module synthesizer. Modwave Native is available in VST3, AAX and standalone formats on both macOS and Windows, as well as AU on macOS. You can seamlessly exchange sounds between hardware and software. Produce in your DAW with Opsix Native, and then play the same sounds on stage using the Opsix Module hardware. Create sounds with the hardware's hands-on interface, and then share them with a computer-based collaborator.
| Specification | Value |
|---|---|
| SKU | KOR-OPSIXM |
| Model Name | Opsix Module |
| Vendor | Korg |
| Aftertouch | Yes |
| Analog Digital | Digital |
| Built In Speakers | No |
| Included From Manufacturer | Power supply |
| Number of Keys | None |
| Midi | In, Out, and USB |
| Mono Poly | Polyphonic |
| MPN | OPSIXM |
| Product Unique Features |
Supports polyphonic aftertouch and MIDI 2.0 Property Exchange Adjustable angle for desktop use with flat and upright options Optionally rackmountable with convenient recessed rear connectors |
| Arpeggiator | Yes |
| Control Connections | 1/4" damper input |
| Onboard Controllers |
Pitch bend wheel Mod wheel |
| Effects | chorus, unison ensemble, phaser, phaser (BPM), auto pan, auto pan (BPM), flanger, flanger (BPM), rotary speaker, auto wah, exciter, enhancer, LFO filter, 3-band EQ, distortion, guitar amp, decimator, grain shifter, master limiter, compressor, delay, delay (BPM), autopan delay, autopan delay (BPM), tape echo, tape echo (BPM), early reflection, reverb, shimmer reverb, spring reverb |
| Audio Outputs |
Dual balanced 1/4" stereo output 1/4" headphone output |
| Oscillators per Voice | Varies by Sound Engine |
| Product Weight | 3.75 lb |
| Programs/Presets |
250 preset programs 250 user programs 64 favorites (16 slots × 4 banks) |
| Sequencer |
Step sequencer with up to 16 steps and up to 6 notes per step Motion sequencer with up to 6 lanes |
| USB Port (to Host) | MIDI;System Updates;Editor/Librarian/Patch Manager |
| Voices of Polyphony | 64 voices (varies depending on settings) |
| Width | 19.02" |
| Depth | 6.77" |
| Height | 4.09" |
