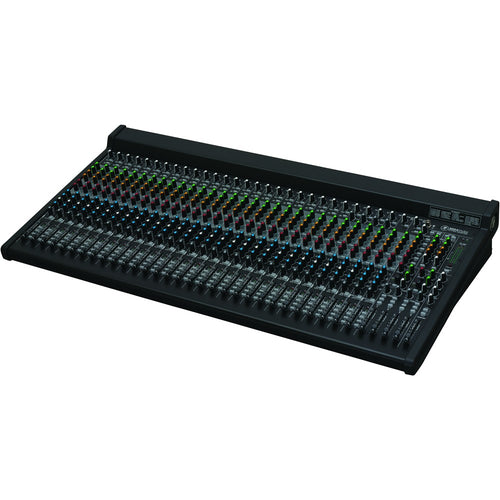

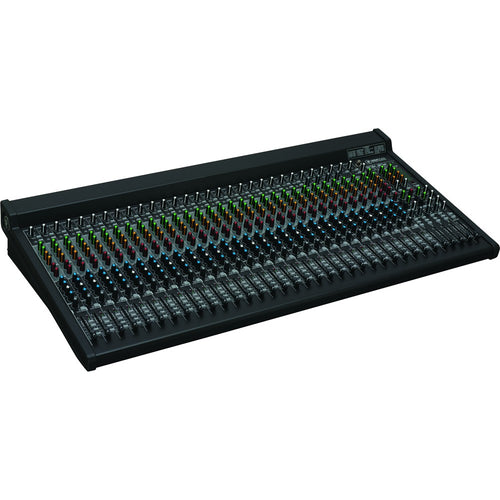

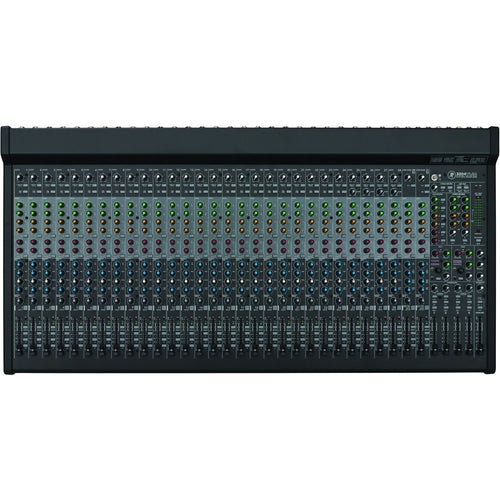

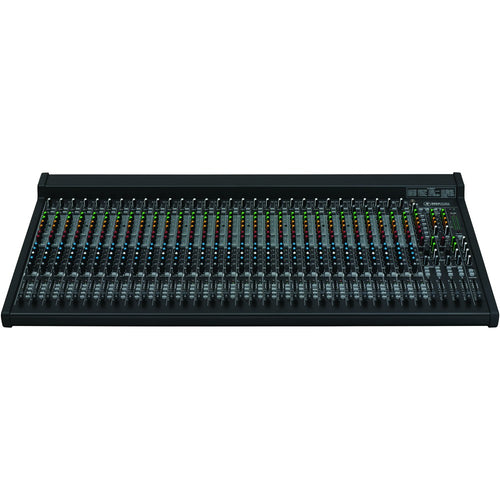

Mackie 3204VLZ4 32-Channel 4-Bus FX Mixer with USB
The 32-channel 3204VLZ4 features the proven performance of Mackie's Onyx mic preamps in a high-headroom/low-noise 4-bus design with a feature set perfect for live sound. The 3204VLZ4 features dual 32-bit RMFX+ effects processors each with 24 effects including tap delay. Plus, compression on dedicated channels and subgroups allows for simple, sweet dynamic control. There's even 4x2 USB connectivity for flexible recording of the show. And, of course, Mackie's legendary "Built-Like-A-Tank" construction delivers years of reliable use under the most strenuous conditions. The 3204VLZ4 is the premium compact FX mixer solution for anybody serious about performance in a design that's flexible, rugged and professional.
Onyx preamps
Now with Onyx mic preamps, VLZ4 provides proven performance that goes toe-to-toe with any boutique preamp on the market. Equipped with up to 28 Onyx preamps, means a VLZ4 4-bus mixer is the right choice for your professional audio application.
RMFX+ effects
Dual "Running Man" effects processors bring "Gig Ready" usable effects to your mixes, like a full rack of gear at your fingertips including reverbs, choruses, and an extremely useful tap delay.
In-line compressors
Add an increased presence and punch to vocals and instruments with the four dedicated channel compressors. Use the four additional sub-group compressors to smooth and balance signals for simple, sweet dynamic control with the single twist of a knob.
USB interface
Use the integrated USB interface to stream up to 4-tracks to your favorite DAW software for a recording of the show or stream music from your computer during intermission breaks. You can even return audio directly to a channel for full access to EQ and auxes.
Built-like-a-tank

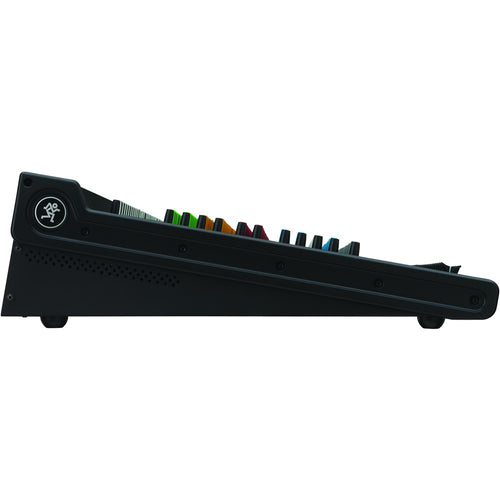

From beer spills to drops from moving vehicles, customers have proven time and again that VLZ mixers are truly "Built-Like-A-Tank." With a nearly indestructible steel wrap-around chassis and features like grime-resistant rotary sealed pots, they take the abuse that would simply destroy the competition.
SKU | MAC-3204VLZ4 |
Vendor | Mackie |
Audio Recording | Multitrack over USB |
Connectivity | USB |
Mic Preamps | 28 |
Mixer Channel Filterable | 32 |
Mixer Type | Analog |
MPN | 2040770-00 |
Product Unique Features |
Integrated 4x2 24-bit USB interface for recording, playback, or plug-ins Boutique-quality Onyx mic preamps Low-cut filter on mic input channels |
Simultaneous Inputs | 30 |
Aux/Effect Sends | (6) 1/4" Aux Sends (2) Stereo Returns (6) Aux Inserts (3) 1/4" Main Insert - L,R,Mono (4) Sub Inserts |
Busses/Groups | 4 |

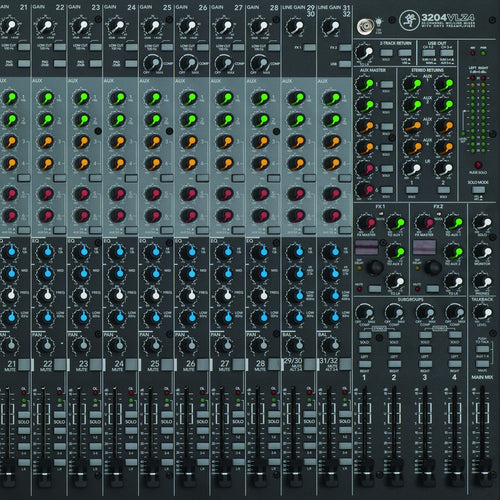

Channel EQ | 3-band w/ Sweepable Midrange (Ch. 1-28) 4-band (Ch. 29/30-31/32) |
Channel Inserts | Ch 1-28 |
Effects | Dual 32-bit RMFX+ Processors (4) Channel Compressors (Ch 25-28) (4) Inline Compressors (Subgroups) |
Number of Faders | 60mm Log-Taper Faders |

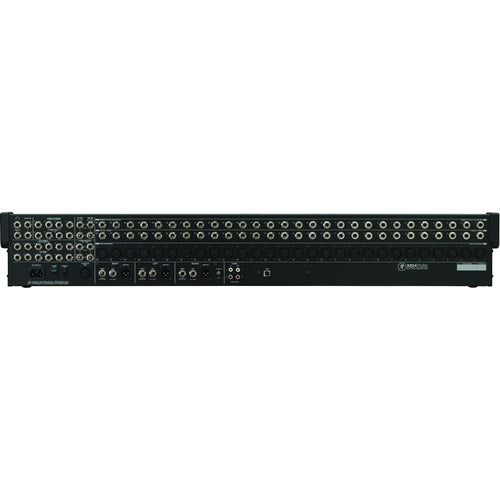

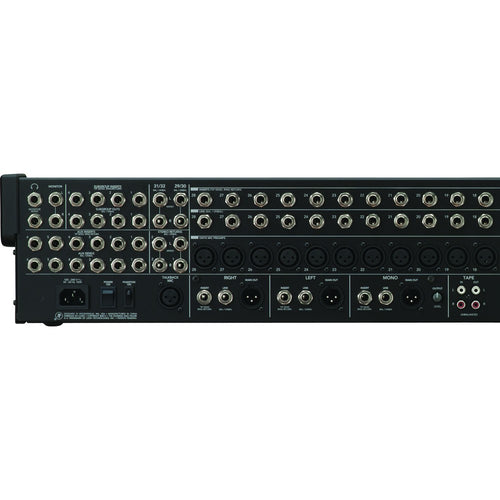

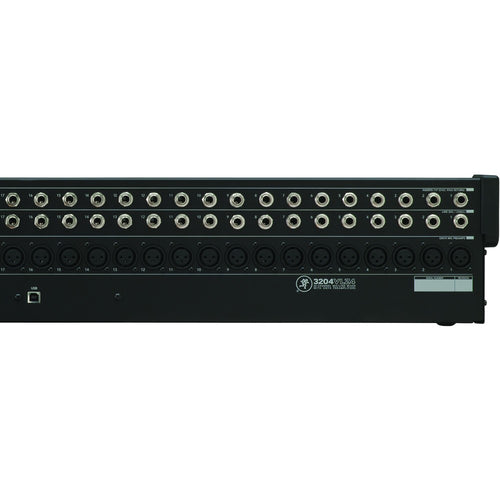

Audio Inputs | (28) XLR Mic (Ch. 1-28) (28) 1/4" Line (Ch. 1-28) (4) 1/4" Line - L,R (Ch. 29/30-31/32) (1) RCA Stereo - Tape In (1) XLR Talkback Mic |
Audio Outputs | (3) XLR Main Out - L,R,Mono (3) 1/4" Main Out - L,R,Mono (4) 1/4" Subgroup Outs (3) 1/4" Monitor Out - L,R,Mono (1) RCA Stereo - Tape Out (1) 1/4" Headphone |
Phantom Power | Channel 1-28 |
Product Weight | 39 lbs |
Rackmountable | No |
Width | 38" |
Depth | 19.1" |
Height | 1.8" (front) 6" (rear) |
This Limited Product Warranty is provided by Loud Technologies Inc. ('Loud') and is applicable to Products purchased in the United States or Canada through a Loud-authorized reseller or dealer. This product warranty together with the documentation, your invoice, receipt and the terms and conditions located at Mackie's website constitute the entire agreement, and supersedes any warranty terms contained in the operator manual. The Product Warranty will not extend to anyone other than the original purchaser of the product.
Please refer to the full warranty statement at Mackie's website or included with your product for all terms and conditions.
3-year inclusive of electronics, 2-year drivers (where applicable), nontransferable
All SRM, DLM, HD, iP and C Series Speakers, Reach, all PPM Mixers, all HRmk2 Studio Monitors
1-year all inclusive, nontransferable
Thump Series Speakers, FreePlay, all Onyx Mixers and Recording Interfaces, all DL, ProDX, VLZ4, ProFXv2 and Mix Mixers, all CR, MRmk3 and XR Studio Monitors, all Big Knobs, DC16, all MCU Pro Series Control Surfaces, SP260, all FRS Series Amplifiers, DL Series Expansion Cards, Mixer/ Loudspeaker / Reach/ FreePlay Bags / Covers / Hardware
90-day all inclusive, nontransferable
FreePlay Lithium Ion Battery
