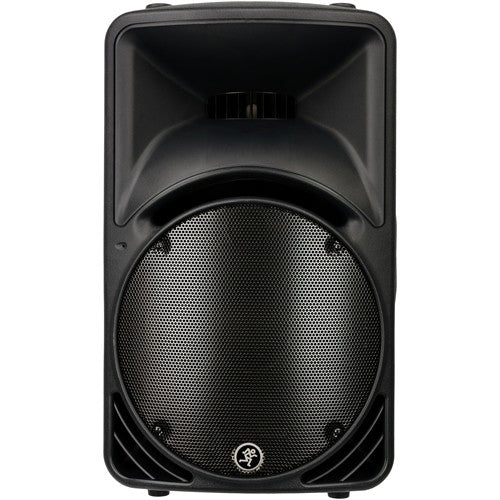

Mackie's lightweight C Series 2-way passive loudspeakers deliver optimum performance in portable PA, stage monitor, and permanent/flown applications.
Rugged, injection-molded composite chassis make them solid performers on the road. Plus their unique shape offers the acoustical benefit of preventing unwanted vibrations and standing waves from forming inside the cabinet, while making them perfect as side tilt-back stage monitors. Precision transducer components, unique Low-Impedance Compensated Crossover design and wide dispersion mean every audience member has a great seat.
Available in 2 models - the 12-inch, 500W C300z and the ultra-compact 10-inch, 600W C200 - the C Series allows for perfect integration with new and existing PA systems alike.
- Portable Precision Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer
- HF compression driver mounted on a multi-celled aperture, with a constant directivity horn for room-wide 90° x 45° dispersion
- Precise reproduction of critical upper mid-range and high frequencies
- Tough, impact-resistant enclosure with sturdy handles, pole-mount, and integrated rigging points
- Designed for optimum performance with Mackie powered mixers and power amplifiers
- 750W peak power handling
- Three setup configurations: pole mount, flyable and wedge
- Passive version of the best-selling SRM450
|Speaker Size Filterable||12|
|Connectors||Speakon-style NL4 jack 1/4-inch TS phone jack|
|Covering Material||Molded Composite|
|Enclosure Material||High-pressure injected polypropylene|
|Frequency Range||45 Hz-20 kHz|
|Frequency Response||55 Hz-18 kHz|
|Nominal Impedance||8 ohms|
|Power||750W / 300W RMS peak power handling at 8|
|Product Weight||46 lb / 20.9 kg|
|Sensitivity||Maximum SPL Long-term @ 1m: 123dB|
|Tweeter/Horn||12 in / 305 mm (W) x 7 in / 178 mm (H)|
|Width||16.0 in / 406 mm|
|Depth||14.8 in / 376 mm|
|Height||26.1 in / 663 mm|
|Woofer/Low Frequency||12 in / 300 mm|
Mackie Limited Product Warranty
This Limited Product Warranty is provided by Loud Technologies Inc. ('Loud') and is applicable to Products purchased in the United States or Canada through a Loud-authorized reseller or dealer. This product warranty together with the documentation, your invoice, receipt and the terms and conditions located at Mackie's website constitute the entire agreement, and supersedes any warranty terms contained in the operator manual. The Product Warranty will not extend to anyone other than the original purchaser of the product.
Please refer to the full warranty statement at Mackie's website or included with your product for all terms and conditions.
3-year inclusive of electronics, 2-year drivers (where applicable), nontransferable
All SRM, DLM, HD, iP and C Series Speakers, Reach, all PPM Mixers, all HRmk2 Studio Monitors
1-year all inclusive, nontransferable
Thump Series Speakers, FreePlay, all Onyx Mixers and Recording Interfaces, all DL, ProDX, VLZ4, ProFXv2 and Mix Mixers, all CR, MRmk3 and XR Studio Monitors, all Big Knobs, DC16, all MCU Pro Series Control Surfaces, SP260, all FRS Series Amplifiers, DL Series Expansion Cards, Mixer/ Loudspeaker / Reach/ FreePlay Bags / Covers / Hardware
90-day all inclusive, nontransferable
FreePlay Lithium Ion Battery
Loud warrants to Customer that the Product will be free from defects in materials and workmanship under normal use during the Warranty Period.
If the Product fails to conform to the warranty, then Loud or its authorized service representative will, at its option, either repair or replace any such nonconforming Product, provided that Customer gives notice of the noncompliance within the Warranty Period. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service.
