Price Drop

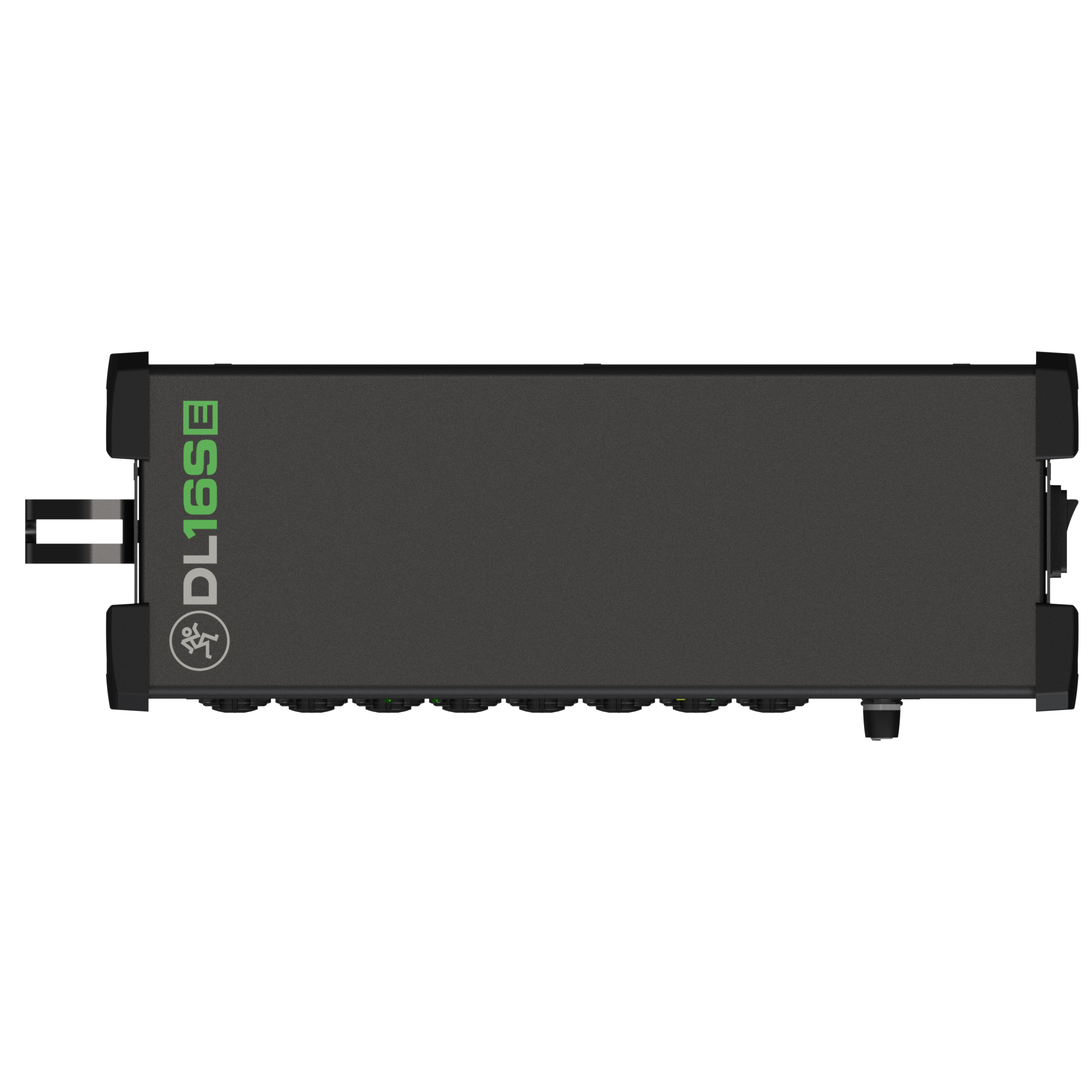

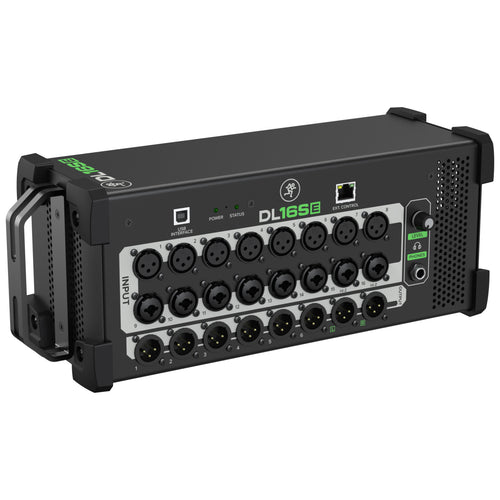

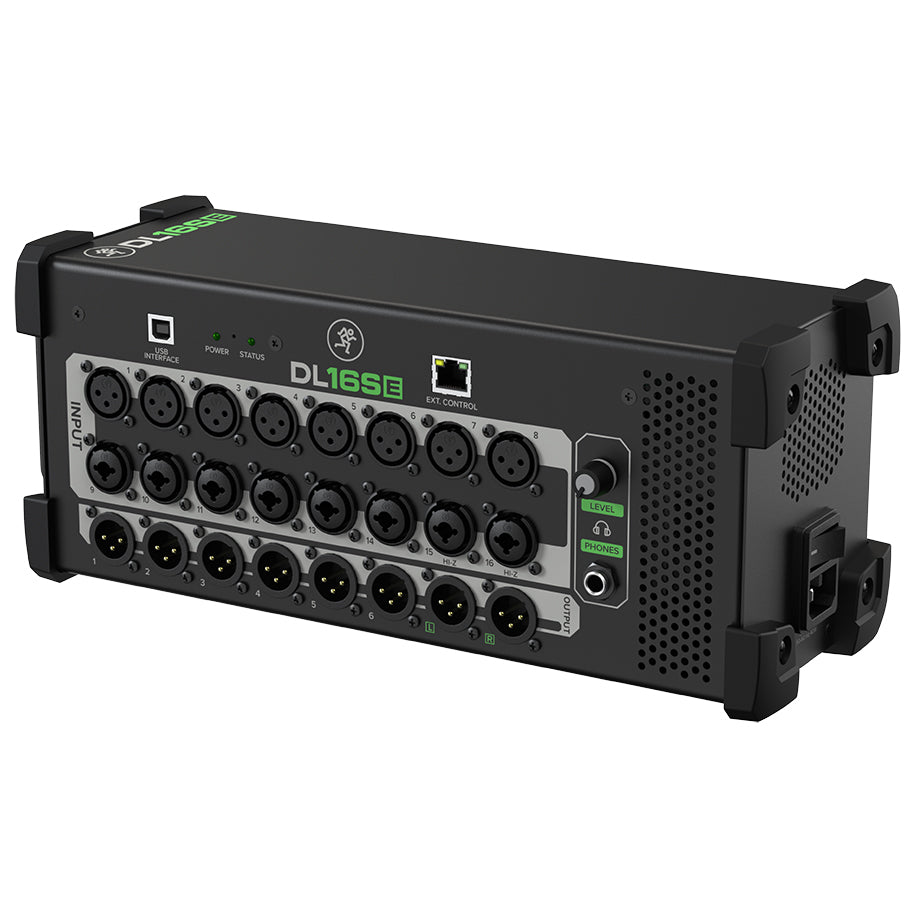

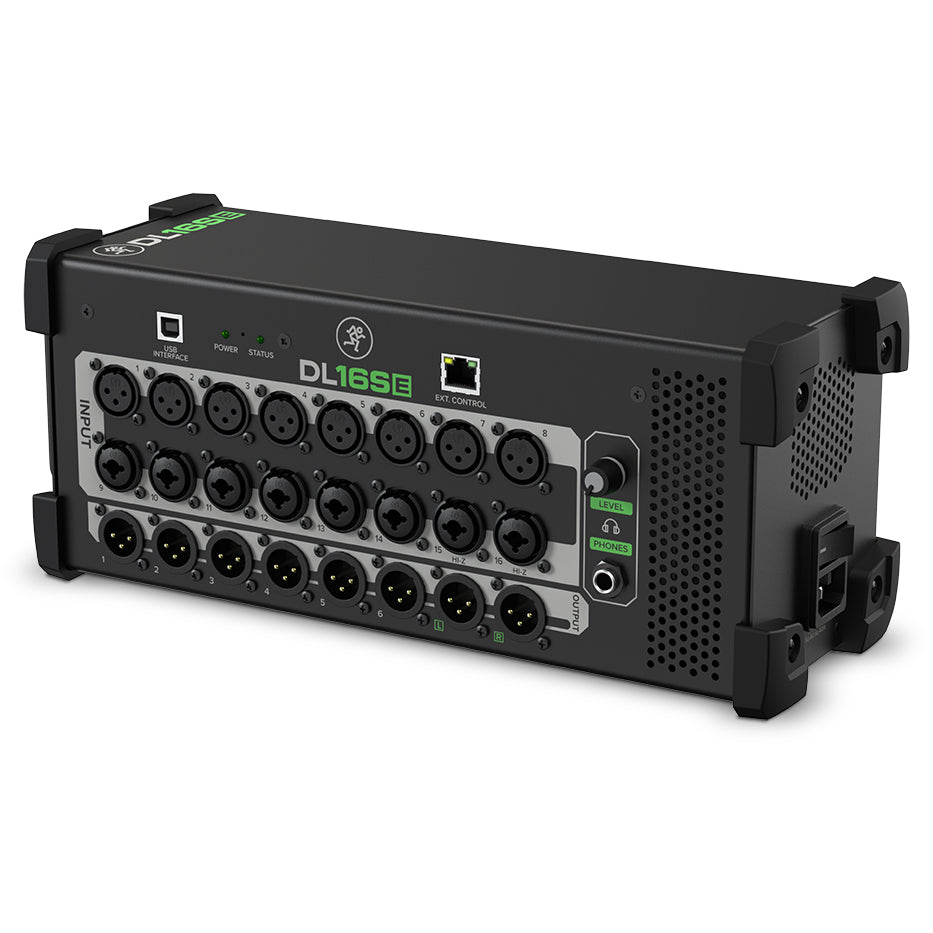

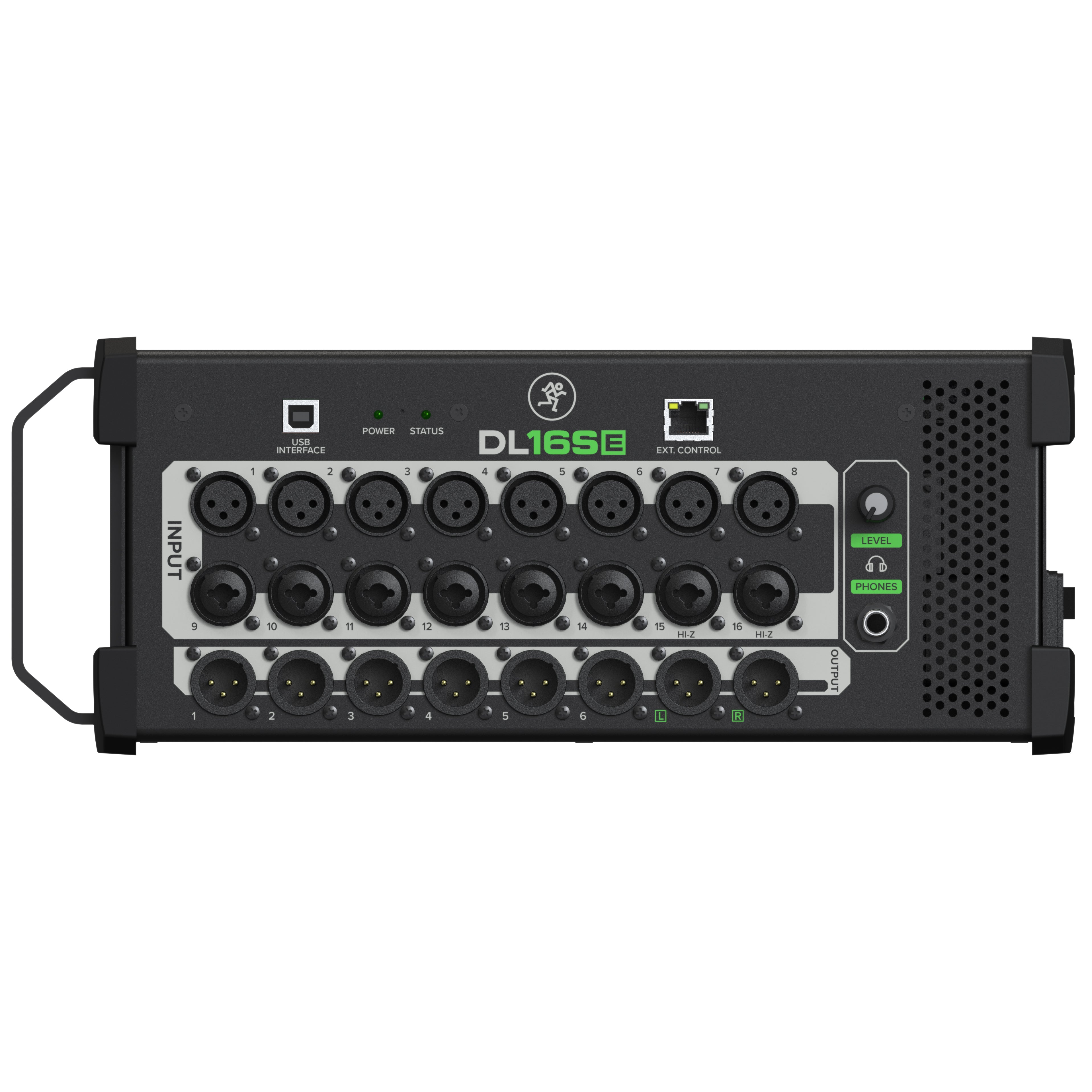

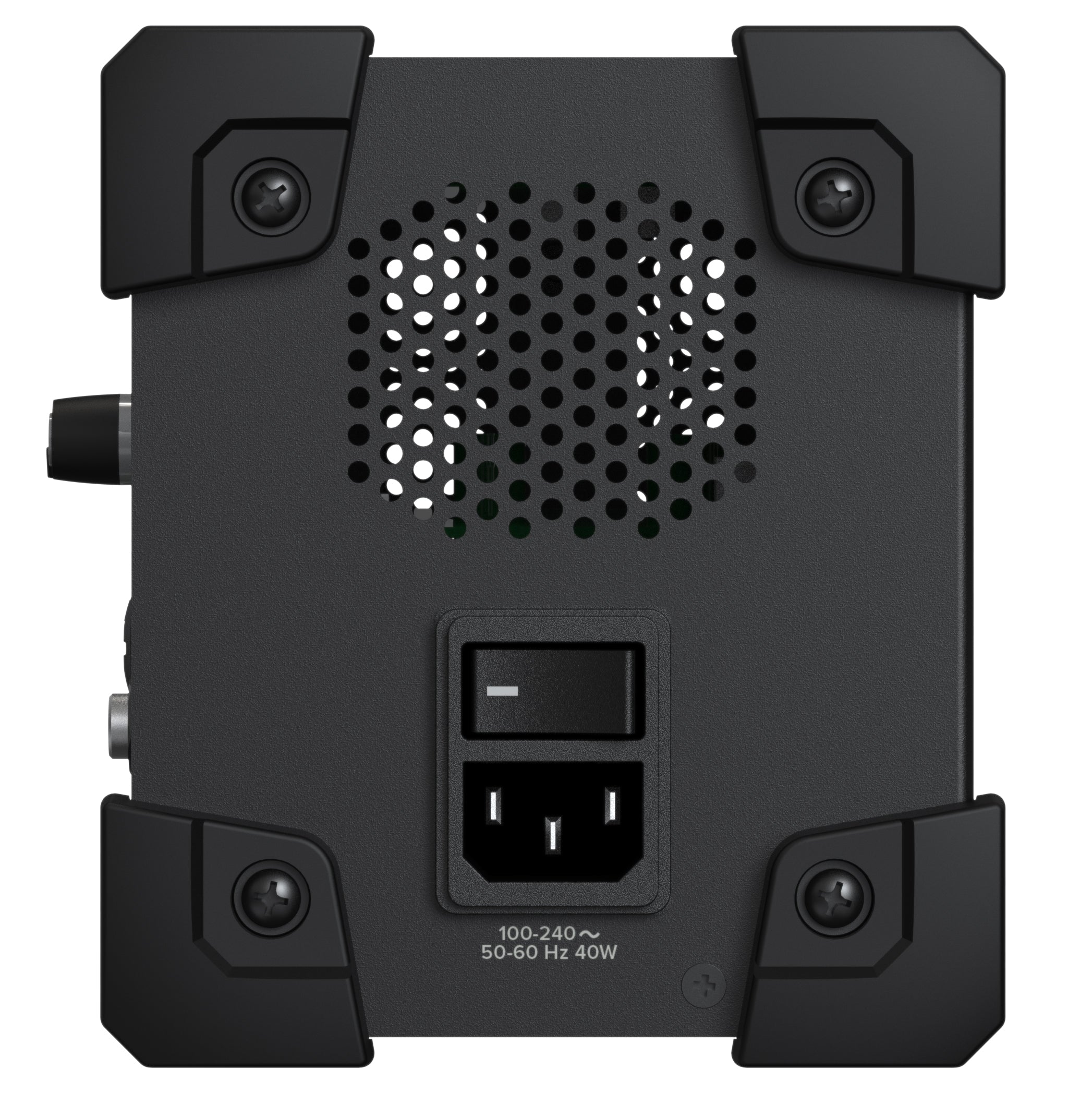

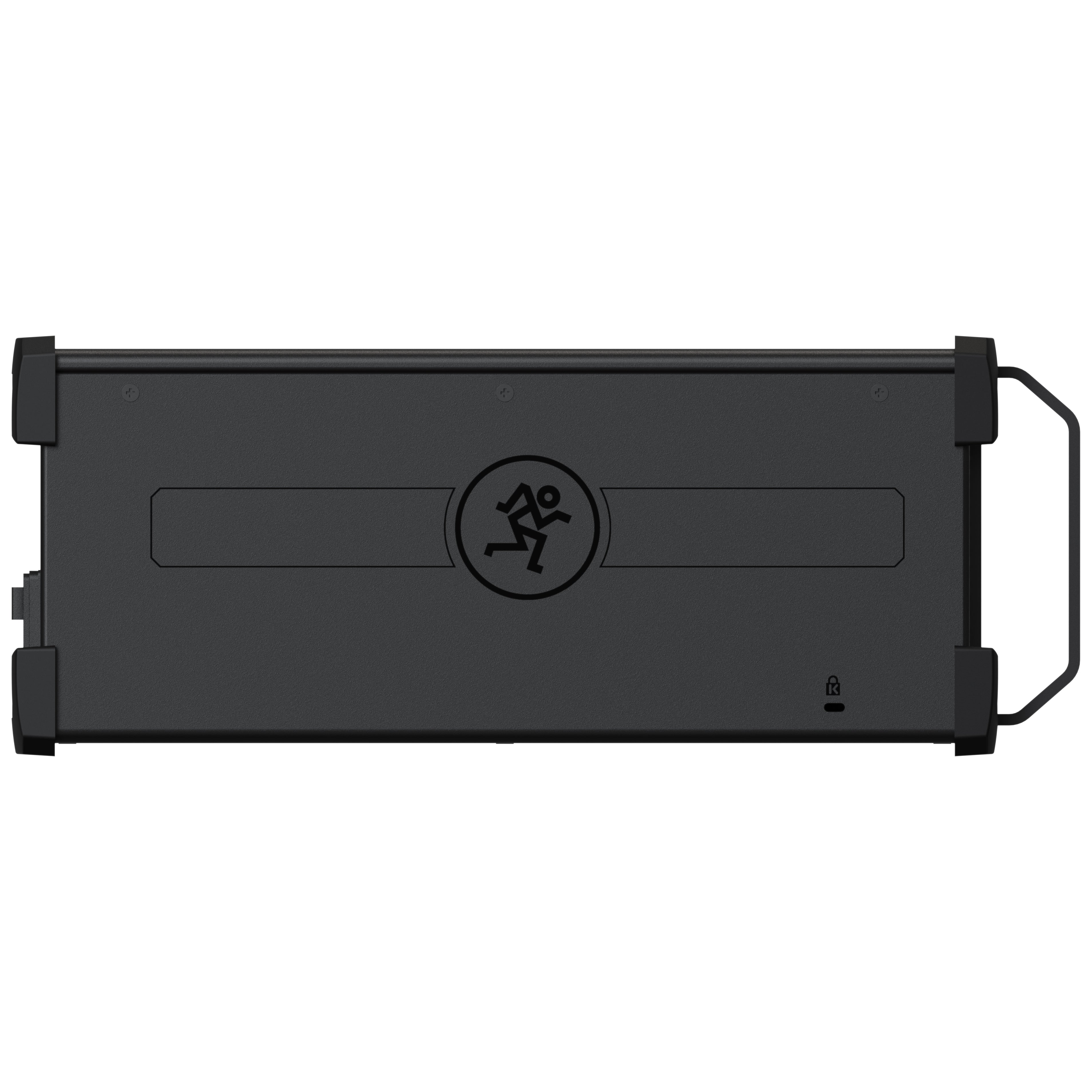

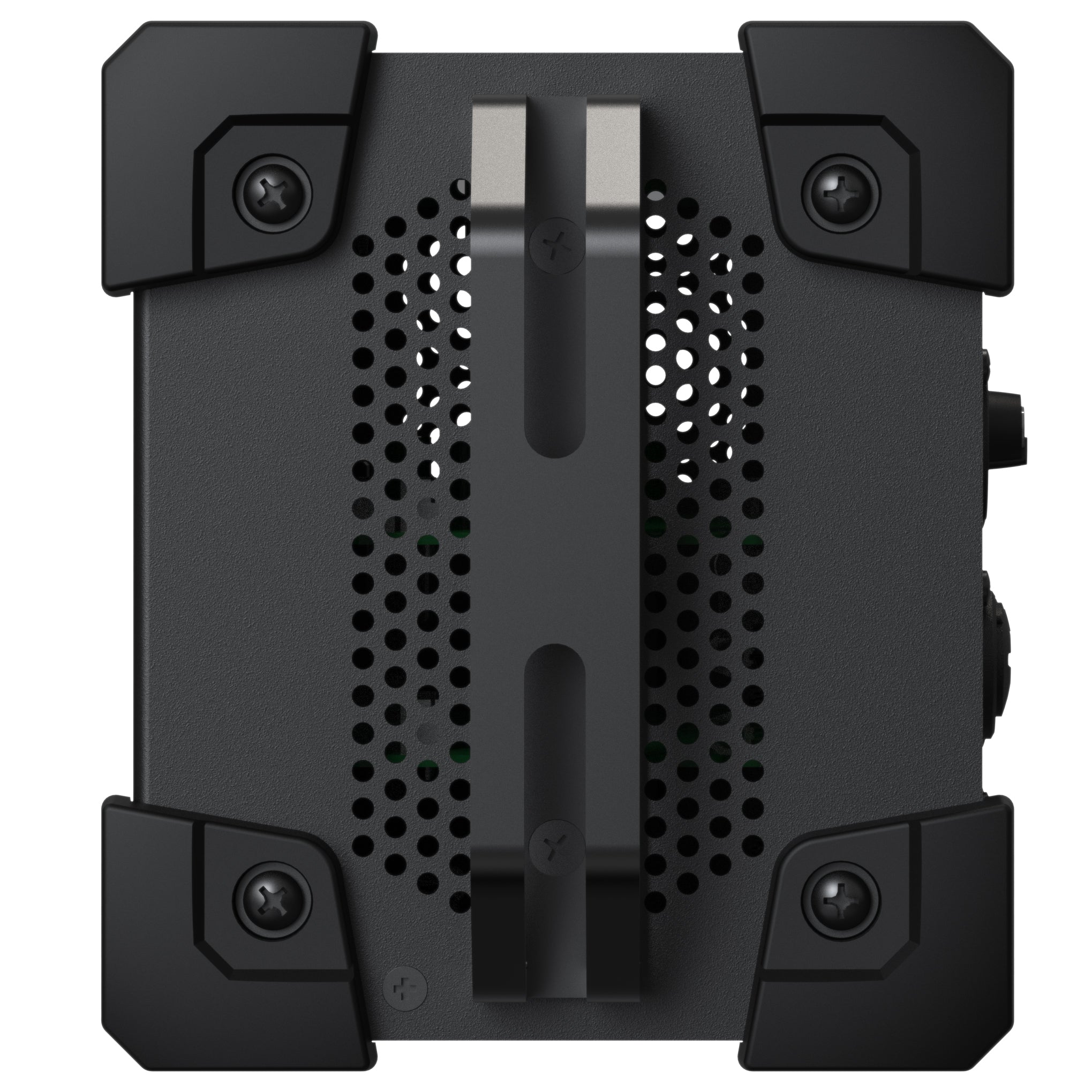

Mackie DL16SE 16-channel Digital Rack Mixer
The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design made to withstand real-world abuse. Connect to your wireless router and get mixing quickly with the industry-leading, multi-platform Master Fader SE app. Create stunning multitrack recordings and get playback for a virtual soundcheck via USB I/O. Loaded with per-channel and output DSP plus 4 FX processors, DL16SE gives you all the mixing power you need for proven professional sound.
- Convenient stagebox/rack design with built-in handle
- 16 input channels with Onyx+ preamps (8 XLR, 8 XLR/TRS combo with 2 Hi-Z)
- 8 fully assignable XLR outputs plus headphone output
- Connect to your wireless router and control with Master Fader SE app
- Per-channel EQ, filters, gate, compression and RTA/Spectrograph
- 4 stereo FX busses with studio-quality reverbs, delays, chorus and more
- Multitrack 16x16 USB audio interface for recording and playback
- Waveform OEM professional software and plugins included
- Stagebox design with included rack ears
- Control with Master Fader SE app
- Take complete control via iOS, Android, macOS or Windows devices
- No set FOH position — mix from anywhere
- Control from up to 20 separate devices at once
- Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
- Universal Ethernet connection supports your wireless router of choice
Rugged Stagebox Design
Musicians, engineers and venues need to get up and running quickly and sound great, while being mindful of space and cable clutter. DL16SE can fit anywhere on stage, or in 3U of rack space with the included rack ears. Steel construction, big rubber corners and a handle that wasn't an afterthought mean that you can count on DL16SE to deal with the not-so-delicate load in at gigs every night, even on the road.
Mix From Anywhere
Connect DL16SE to your wireless router of choice, then control the mixer wirelessly from the Master Fader SE app. Wireless control means you can check the mix from anywhere and tweak every parameter on the fly from your phone, tablet or laptop. When it’s showtime, you can mix with confidence, knowing the sound is great everywhere on the floor.
Powerful Processing
With the Mackie DL16SE digital mixer, you get powerful processing that replaces racks and racks of outboard gear with a single box that takes up way less space and is much more affordable.
- All input busses feature 4-band parametric EQ, gate, high-pass filter and compression, all with both vintage and modern versions, plus an RTA/Spectrograph
- All output busses feature 4-band parametric EQ, gate, filters and compression, all with both vintage and modern versions, plus a 31-band graphic EQ, alignment delay and RTA/Spectrograph
- 4 stereo FX processors feature great-sounding reverbs, delays, choruses, flangers and more, all with dedicated sends and returns
Master Fader SE
Master Fader SE is the main user interface for your DL16SE digital mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac or PC — up to 20 different devices simultaneously. The proven design of the Master Fader SE app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.
| Specification | Value |
|---|---|
| SKU | MAC-DL16SE |
| Model Name | DL16SE |
| Vendor | Mackie |
| Connectivity | USB to Host |
| Mic Preamps | 16 |
| Mixer Channel Filterable | 16 |
| Mixer Type | Digital |
| MPN | DL16SE |
| Simultaneous Inputs | 16 |
| Audio Inputs |
8 x XLR 8 x XLR/TRS Combo |
| Audio Outputs |
2 x XLR Main Out 6 x XLR Assignable Out 1 x 1/4" Headphone Out |
| Effects | 4 × FX Processors with a massive library of reverbs, delays, choruses, flangers and more. Alignment Delay and RTA on all Outputs |
| Aux/Effect Sends | 6 |
| Channel Inserts | Gate + Comp Built-In |
| Phantom Power | +48V Per Channel |
| Main EQ | 31-Band GEQ, 4-Band PEQ + HPF/LPF |
| Channel EQ | 4-Band PEQ + HPF |
| Rackmountable | Yes |
| Width | 14.1" |
| Depth | 5.8" |
| Height | 5.6" |
| Product Weight | 6.1lbs |
1-Year Mackie Limited Warranty
The Limited Product Warranty provided by LOUD Audio, LLC. applies to products purchased in the United States through a LOUD-authorized reseller or dealer. This warranty, along with the documentation, invoice, receipt, and terms and conditions available at Mackie's website, constitutes the entire agreement and supersedes any warranty terms contained in the operator manual. Please note that the Product Warranty extends for a period of one year from the date of purchase and is valid only for the original purchaser of the product.
