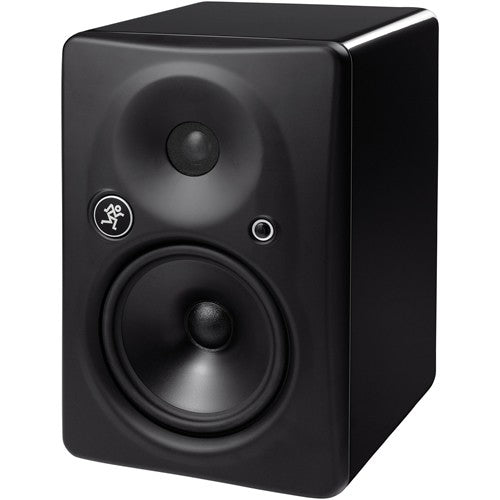

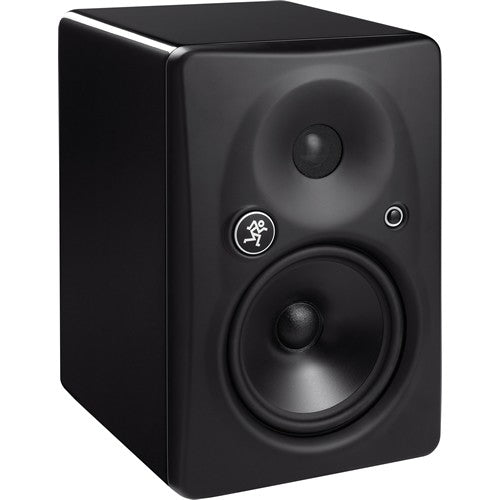

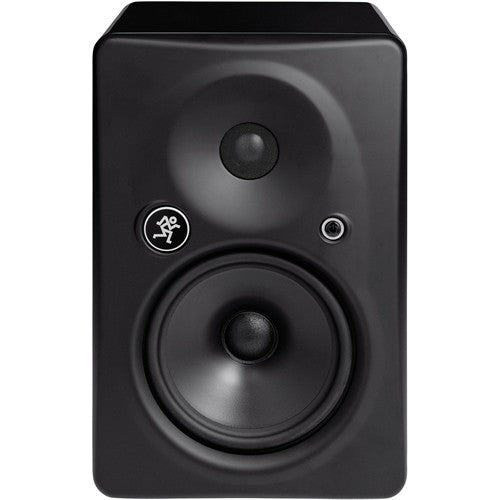

Mackie HR624mk2 Studio Monitor Speaker
With the same design as the HR824mk2 in a smaller package, the HR624mk2 high-resolution Active studio reference monitor is the perfect alternative when space is limited.
The new Zero Edge Baffle minimizes diffraction for a crystal clear image of your mix, and controls sound waves for wide, even dispersion. Acoustic Space, LF roll-off and HF controls let you easily tailor the sound to suit your space and taste. And thanks to remarkably linear frequency response, you always get accurate mix translation. Combine all this with superior bass extension, and your studio's sweet spot becomes a full-on sweet zone.
- High-resolution Active studio reference monitor
- Ultra-linear frequency response for accurate mix translation
- 6.7-inch high-precision, low-distortion LF transducer
- 1-inch titanium dome, ferrofluid cooled tweeter
- Optimized Waveguide for wide, even sweet zone
- Twin FR Series amps -100W for LF / 40W for HF
- Cast aluminum Zero Edge Baffle minimizes diffraction
- Full internal damping eliminates midrange artifacts
- Onboard passive radiator extends bass response to 45Hz

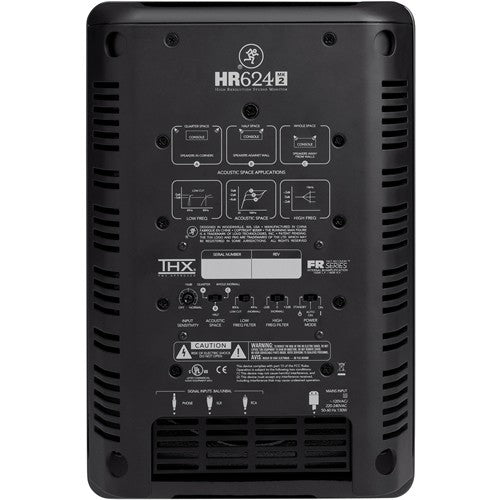

- Acoustic Space, LF roll-off, and HF controls
- Balanced XLR, TRS, and unbalanced RCA inputs
- OmniMount ready for easy wall/ceiling placement
- THX pm3 certified for surround sound applications
- Perfect for High-Definition audio, cinema and gaming systems
| Specification | Value |
|---|---|
| SKU | MAC-HR624MK2 |
| Vendor | Mackie |
| Active Passive | Active |
| Included From Manufacturer |
Power Cable Waveform OEM DAW Essentials Collection |
| MPN | 2034161-00 |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 6 |
| Connectors | Balanced Differential (XLR and 1/4" TRS) Unbalanced (RCA), |
| Covering Material | Piano-black gloss finish |
| Enclosure Material | 3_4-inch (19 mm) thick MDF cabinet |
| Equalization (EQ) | Low Frequency Filter, HF Equalization |
| Flyable | No |
| Frequency Range | 45 Hz to 6 kHz |
| Frequency Response | 1.5 dB, 49 Hz to 20 kHz |
| Nominal Impedance | 4 ohms |
| Power | 100W for LF / 40W for HF |
| Product Weight | 23.4 lb/10.6 kg |
| Protection Circuit | Yes |
| Tweeter/Horn | 1-inch ferrofluid cooled titanium dome tweeter on the front, and a 6-inch x 9-inch elliptical flat piston passive radiator in the back. |
| Width | 8.6 in/21.9 cm |
| Depth | 12.6 in/31.9 cm |
| Height | 13.1 in/33.3 cm |
| Woofer/Low Frequency | 6.7-inch high-precision, low- distortion woofer |
This Limited Product Warranty is provided by Loud Technologies Inc. ('Loud') and is applicable to Products purchased in the United States or Canada through a Loud-authorized reseller or dealer. This product warranty together with the documentation, your invoice, receipt and the terms and conditions located at Mackie's website constitute the entire agreement, and supersedes any warranty terms contained in the operator manual. The Product Warranty will not extend to anyone other than the original purchaser of the product.
Please refer to the full warranty statement at Mackie's website or included with your product for all terms and conditions.
3-year inclusive of electronics, 2-year drivers (where applicable), nontransferable
All SRM, DLM, HD, iP and C Series Speakers, Reach, all PPM Mixers, all HRmk2 Studio Monitors
1-year all inclusive, nontransferable
Thump Series Speakers, FreePlay, all Onyx Mixers and Recording Interfaces, all DL, ProDX, VLZ4, ProFXv2 and Mix Mixers, all CR, MRmk3 and XR Studio Monitors, all Big Knobs, DC16, all MCU Pro Series Control Surfaces, SP260, all FRS Series Amplifiers, DL Series Expansion Cards, Mixer/ Loudspeaker / Reach/ FreePlay Bags / Covers / Hardware
90-day all inclusive, nontransferable
FreePlay Lithium Ion Battery
