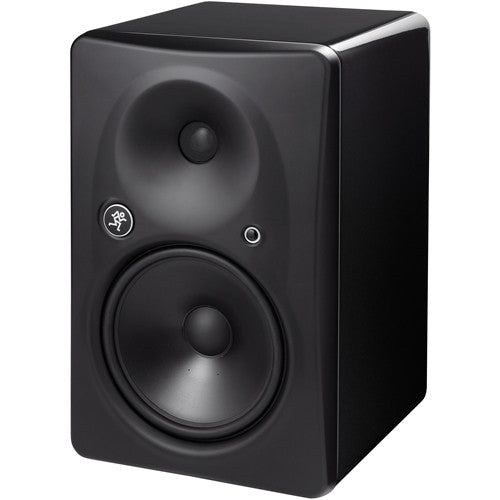

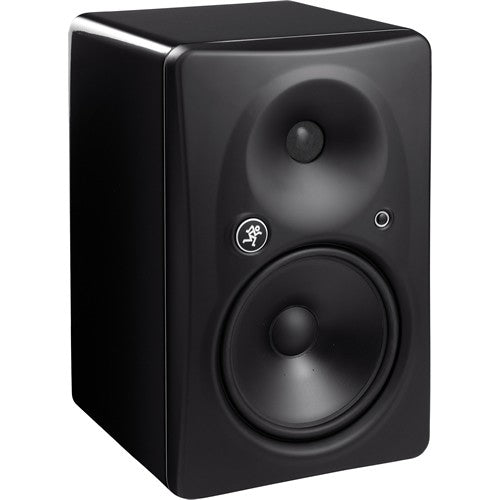

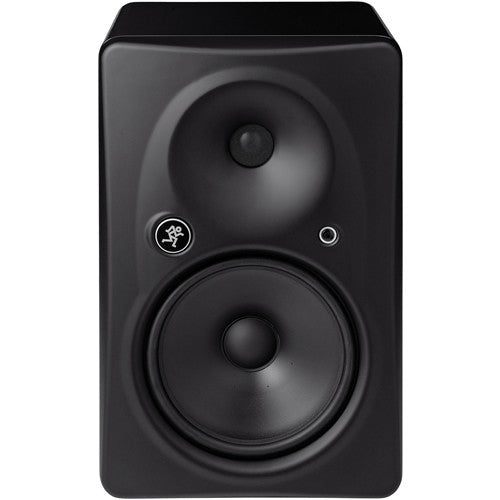

The high-resolution HR824mk2 Active studio reference monitor sounds as smooth as it looks.
The new Zero Edge Baffle minimizes diffraction for a crystal clear image of your mix, and controls sound waves for wide, even dispersion. The rear-firing, mass-loaded passive radiator ensures tight, detailed bass extension, down to 35Hz. And thanks to remarkably linear frequency response, you always get accurate mix translation. Acoustic Space, LF roll-off and HF controls let you tailor the sound to suit your space-and your taste.
With all this and more, the HR824mk2 turns your studio's sweet spot into a full-on sweet zone.
- High-resolution Active studio reference monitor
- Ultra-linear frequency response for accurate mix translation
- 8.75-inch high-precision, low-distortion LF transducer
- 1-inch titanium dome, ferrofluid cooled tweeter
- Optimized Waveguide for wide, even sweet zone
- Twin FR Series amps - 150W for LF / 100W for HF
- Cast aluminum Zero Edge Baffle minimizes diffraction
- Full internal damping eliminates midrange artifacts
- Onboard passive radiator extends bass response to 35Hz

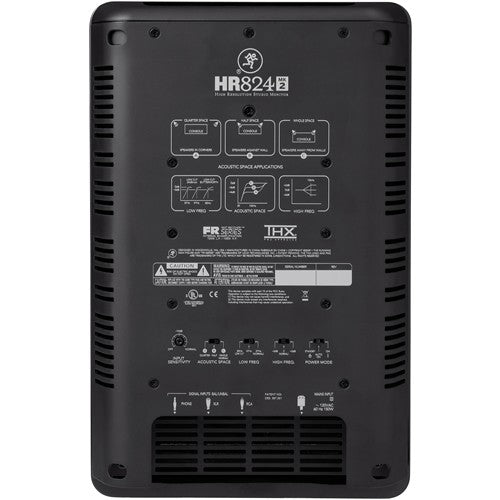

- Acoustic Space, LF roll-off, and HF controls
- Balanced XLR, TRS, and unbalanced RCA inputs
- OmniMount ready for easy wall/ceiling placement
- THX pm3 certified for surround sound applications
- Perfect for High Definition audio, cinema and gaming systems
| SKU | MAC-HR824MK2 |
| Vendor | Mackie |
| Active Passive | Active |
| Included From Manufacturer |
Power Cable Waveform OEM DAW Essentials Collection |
| Mpn | 2034159-00 |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 8 |
| Connectors | Balanced Differential (XLR and 1/4" TRS) Unbalanced (RCA) |
| Covering Material | Piano-black gloss finish |
| Enclosure Material | 3_4-inch (19 mm) thick MDF cabinet |
| Equalization (EQ) | Low Frequency Filter, HF Equalization |
| Flyable | No |
| Frequency Range | 1.6 kHz to 22 kHz |
| Frequency Response | 35 Hz to 20 kHz |
| Nominal Impedance | 4 ohms |
| Power | 150W for LF / 100W for HF |
| Product Weight | 34.6 lb/15.7 kg |
| Protection Circuit | Yes |
| Sensitivity | 7.5 dBu=100 dB SPL at one meter |
| Tweeter/Horn | 1-inch ferrofluid cooled titanium dome tweeter |
| Width | 10.8 in/27.3 cm |
| Depth | 13.8 in/35.1 cm |
| Height | 16.8 in/42.5 cm |
| Woofer/Low Frequency | 8.75-inch high-precision, low- distortion woofer |
Mackie Limited Product Warranty
This Limited Product Warranty is provided by Loud Technologies Inc. ('Loud') and is applicable to Products purchased in the United States or Canada through a Loud-authorized reseller or dealer. This product warranty together with the documentation, your invoice, receipt and the terms and conditions located at Mackie's website constitute the entire agreement, and supersedes any warranty terms contained in the operator manual. The Product Warranty will not extend to anyone other than the original purchaser of the product.
Please refer to the full warranty statement at Mackie's website or included with your product for all terms and conditions.
Warranty Periods
3-year inclusive of electronics, 2-year drivers (where applicable), nontransferable
All SRM, DLM, HD, iP and C Series Speakers, Reach, all PPM Mixers, all HRmk2 Studio Monitors
1-year all inclusive, nontransferable
Thump Series Speakers, FreePlay, all Onyx Mixers and Recording Interfaces, all DL, ProDX, VLZ4, ProFXv2 and Mix Mixers, all CR, MRmk3 and XR Studio Monitors, all Big Knobs, DC16, all MCU Pro Series Control Surfaces, SP260, all FRS Series Amplifiers, DL Series Expansion Cards, Mixer/ Loudspeaker / Reach/ FreePlay Bags / Covers / Hardware
90-day all inclusive, nontransferable
FreePlay Lithium Ion Battery
Loud warrants to Customer that the Product will be free from defects in materials and workmanship under normal use during the Warranty Period.
If the Product fails to conform to the warranty, then Loud or its authorized service representative will, at its option, either repair or replace any such nonconforming Product, provided that Customer gives notice of the noncompliance within the Warranty Period. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service.
