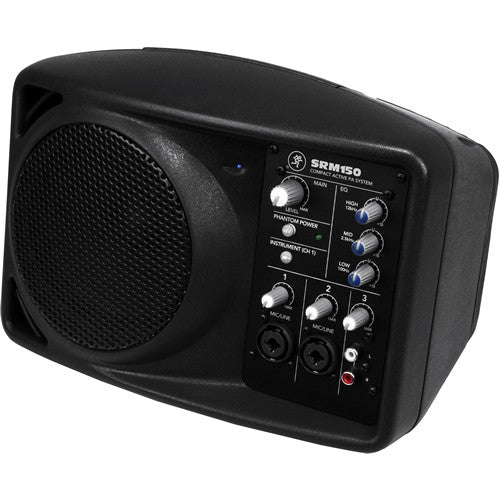

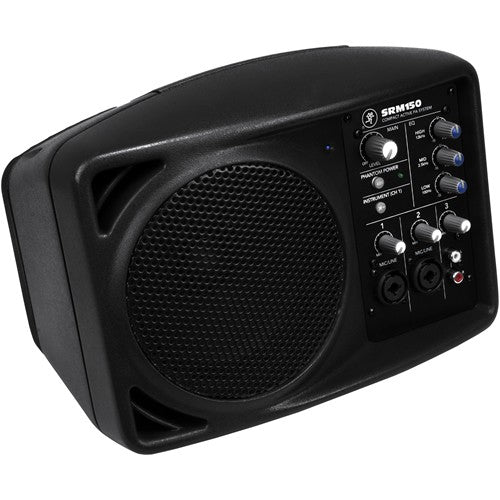

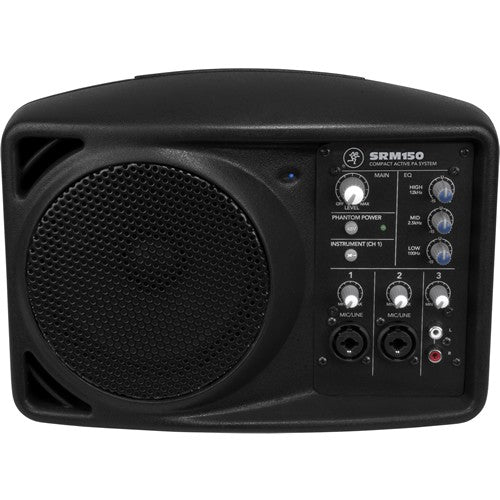

The Mackie SRM150 Compact Active PA System is ideally suited for applications ranging from A/V to live music performance and can be mic stand mounted, placed on a tabletop, or used in traditional stage monitor position.
The built-in three-channel mixer accepts mic/line inputs via combo connector (with switchable phantom power), and offers CD and MP3 inputs with a dedicated level control for added versatility. Tone-shaping/feedback control duties are handled by Mackie 3-band active EQ, and a built-in limiter protects the powerful 150 watt Class-D amplifier and its exceptionally loud 5.25" full-range speaker. The cabinet is robustly made of the same composite material as the legendary Mackie SRM450. The SRM150's lightweight, durable finish makes it ideal for portable sound system use.
- Extremely portable active loudspeaker system
- Built-in Mackie mixer for superior sound quality with:
- 3-channel mixer with 3-band active EQ
- Two high-headroom Mackie Mic/Line preamps with 48V phantom power
- Instrument-ready input (no DI required)
- Dedicated stereo channel for keyboards, CD, MP3, iPods, etc.
- Combo "line in" for linking or adding inputs
- XLR "thru" with mic/line switch for linking more SRM150s or direct send to main PA
- 150 watts of high output, Class-D power
- 5.25" premium-quality, full-range neodymium driver
- Frequency Response: 100Hz to 17.5kHz
- Complete system protection with built-in limiter
- 120 dB Maximum SPL@1meter
- Built-in top carry handle
- Integral aluminum heat sink

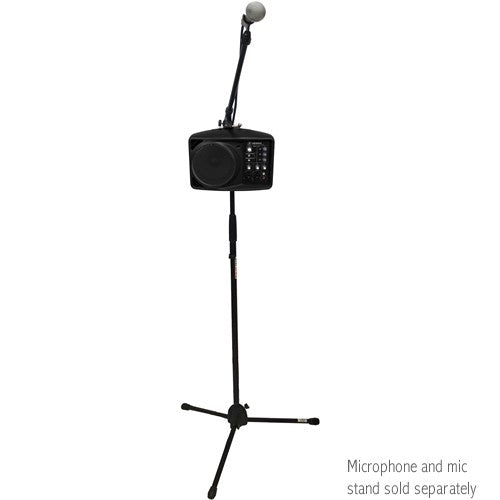

- Mic stand integration system for use with stand and boom
- Tough, impact-resistant, polypropylene enclosure
|Battery Powered||No Battery Power|
|Mixer Channel Filterable||3|
|Speaker Size Filterable||5|
|System Power||150 Watts|
(2) XLR / 1/4" Combo Jacks - Mic/Line
(1) RCA Stereo - L, R

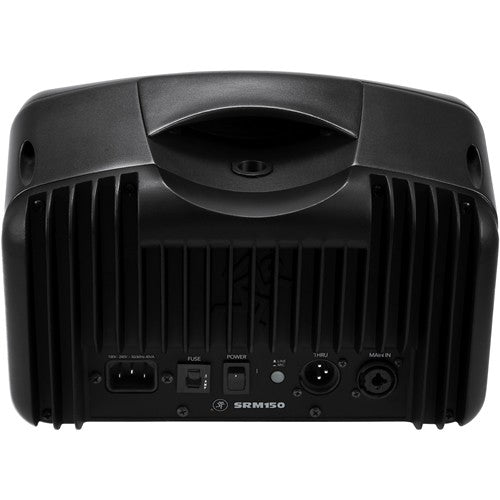

(1) XLR / 1/4" Combo Jack - Main In
|Audio Outputs||(1) XLR - Thru|
|Phantom Power||48V (Channel 1-2)|

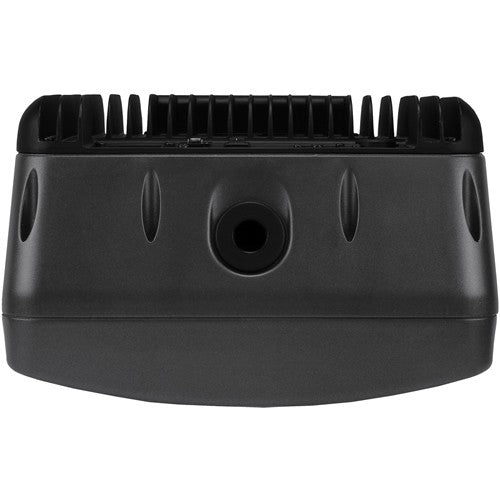

|Pole Mount||5/8-Inch Threaded|
|Product Weight||7.6 lb / 3.4 kg|
|Width||11.2 in / 284 mm|
|Depth||6.8 in / 173 mm|
|Height||8.0 in / 203 mm|
|Woofer/Low Frequency||5.25" premium quality, full-range neodymium driver|
Mackie Limited Product Warranty
This Limited Product Warranty is provided by Loud Technologies Inc. ('Loud') and is applicable to Products purchased in the United States or Canada through a Loud-authorized reseller or dealer. This product warranty together with the documentation, your invoice, receipt and the terms and conditions located at Mackie's website constitute the entire agreement, and supersedes any warranty terms contained in the operator manual. The Product Warranty will not extend to anyone other than the original purchaser of the product.
Please refer to the full warranty statement at Mackie's website or included with your product for all terms and conditions.
3-year inclusive of electronics, 2-year drivers (where applicable), nontransferable
All SRM, DLM, HD, iP and C Series Speakers, Reach, all PPM Mixers, all HRmk2 Studio Monitors
1-year all inclusive, nontransferable
Thump Series Speakers, FreePlay, all Onyx Mixers and Recording Interfaces, all DL, ProDX, VLZ4, ProFXv2 and Mix Mixers, all CR, MRmk3 and XR Studio Monitors, all Big Knobs, DC16, all MCU Pro Series Control Surfaces, SP260, all FRS Series Amplifiers, DL Series Expansion Cards, Mixer/ Loudspeaker / Reach/ FreePlay Bags / Covers / Hardware
90-day all inclusive, nontransferable
FreePlay Lithium Ion Battery
Loud warrants to Customer that the Product will be free from defects in materials and workmanship under normal use during the Warranty Period.
If the Product fails to conform to the warranty, then Loud or its authorized service representative will, at its option, either repair or replace any such nonconforming Product, provided that Customer gives notice of the noncompliance within the Warranty Period. Please retain the original dated sales receipt as evidence of the date of purchase. You will need it to obtain any warranty service.
