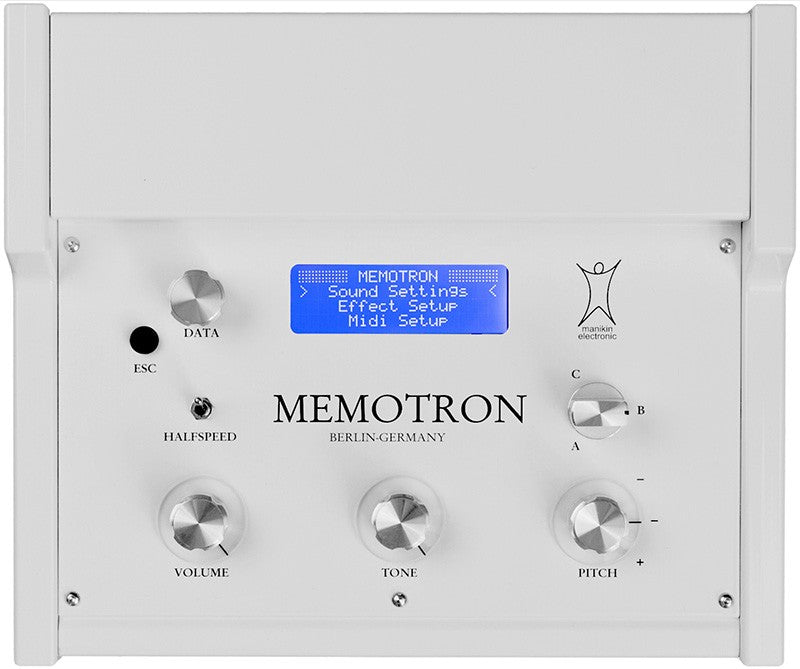

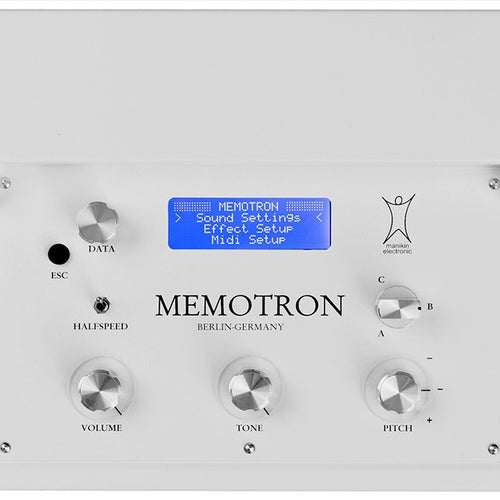

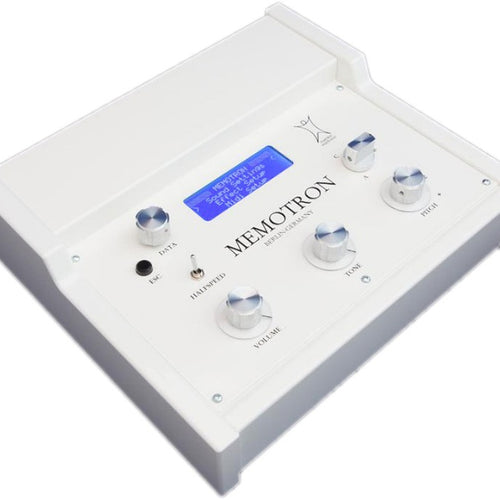

Manikin Electronic Memotron M2D is the youngest member of the Memotron family. A robust metal case houses all the control elements of the classic M400 control panel. The sounds are pulled directly from internal memory without requiring a loading process. SD card support allows new sounds to be imported and settings - stereo panning, volume, effects, envelope attack and release times, etc. - can be saved conveniently in the form of user-defined ‘frames.'
Included with Memotron M2D are 100 sounds: the complete Studio and Vintage 1 Collection, a selection of single sounds from all other available collections and 57 new sounds. All other available Memotron sounds can be used as well. The integrated effects section offers numerous adjustable effects like distortion, phaser, flanger, chorus, tremolo, echo and delay.
- Fully polyphonic (111 voices)
- Load up to three sounds simultaneously
- Controls: Volume, Tone, Pitch, Frame, Half-Speed, as well as Data/ESC to navigate menus
- Adjustable effects processor

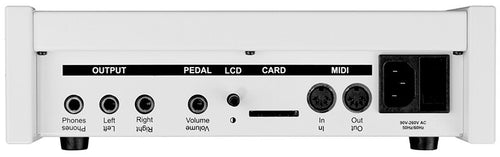

- Headphone output
- Volume pedal input
- Stereo line output
- MIDI in/out
- Internal sound memory (700 sounds)
- SD card slot (rear)
- High quality metal case
- Internal power supply (90-240V~ AC/ 50-60Hz)

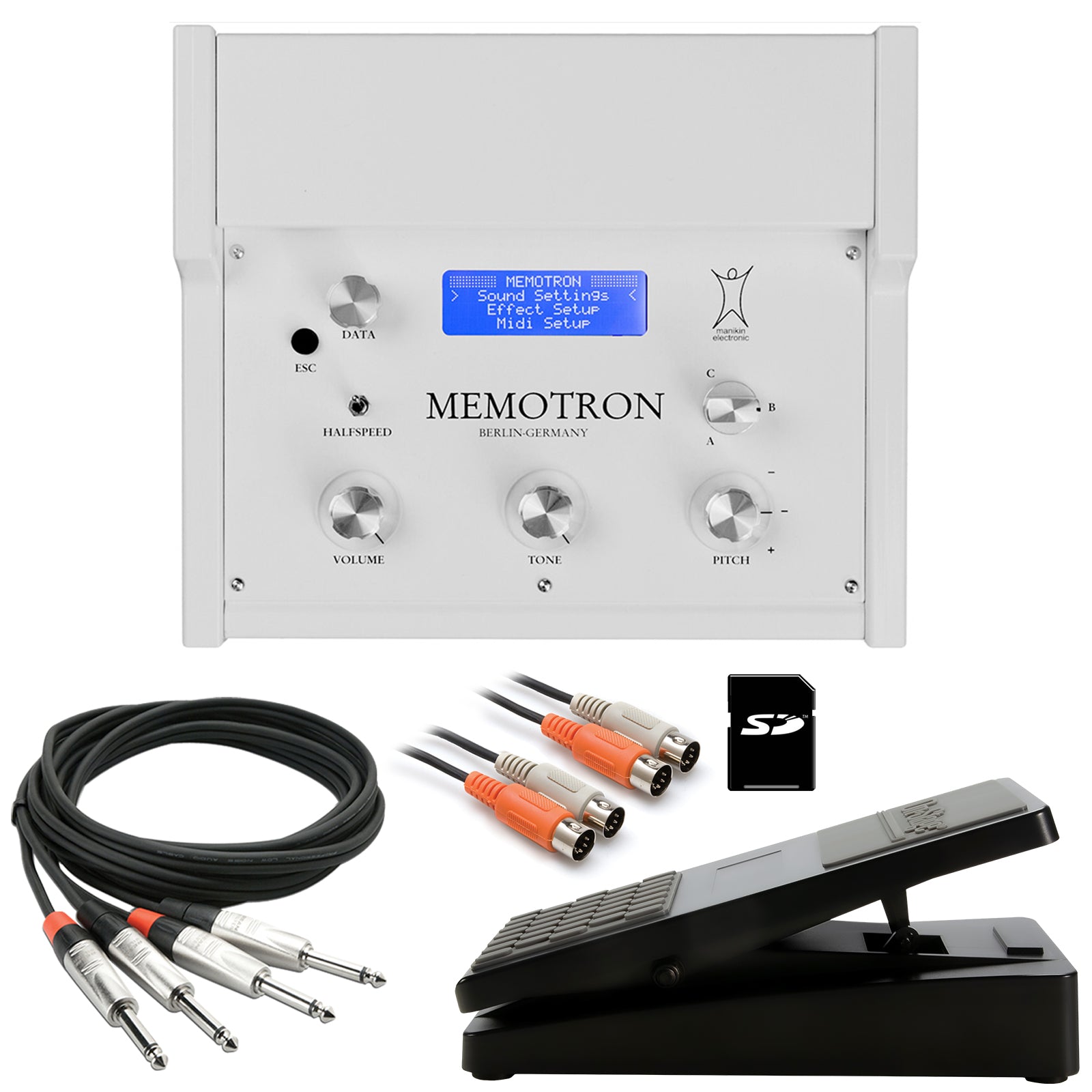

SKU | MAN-MEMOTRONM2DCK |
Vendor | Manikin Electronic |
Analog Digital | Digital |
Built In Speakers | No |
Number of Keys | None |
Midi | In, Out, and Thru |
Mono Poly | Polyphonic |
MPN | MEMOTRONM2D |
Arpeggiator | No |
Audio File Playback | No |
Control Connections | Volume Pedal |
Onboard Controllers | Volume, Tone, Pitch, Blend |
Effects | 3 Effect Blocks: Amplifier Modeling, Modulation / Delay, and Reverb / Echo |
Audio Inputs | N/A |
Audio Outputs | 1/4" Headphones 1/4" L+R Stereo Out |
Internal Storage Capacity | Internal / Expandable with SD Card |
Key Action | N/A |
Oscillators per Voice | 3 |
Product Weight | 7.1lbs |
Programs/Presets | 100 |
Sampling | N/A |
Sequencer | N/A |
Speakers | No |
Voices of Polyphony | Fully polyphonic (111 voices) |
Width | 10.7" |
Depth | 9.45" |
Height | 3.15" |
One year Parts and Labor on all Manikin Electronic products. Warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual; damage resulting from unauthorized repairs; or damage caused by improper installation; or damage caused by AC power overvoltage conditions.
Manikin Electronic Ltd.'s liability is limited to the repair or replacement, at our option, of any defective product and shall not include incidental or consequential damages. Manikin Electronic Ltd. reserves the right to replace a discontinued model with a comparable model.
