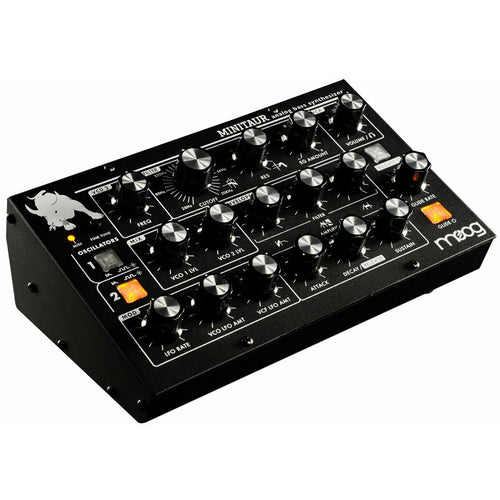

Moog Minitaur an inconspicuously compact two-oscillator subharmonic bass machine designed to integrate seamlessly into any performance or computer-based music workflow. The solid steel enclosure of Minitaur is deceptively simple, offering immediate access to critical sound design and performance controls only. This makes Minitaur extremely fast and easy to use, but just under the surface lies a vast expanse of dynamic and inspirational power that is instantly accessible from almost any laptop or MIDI controller.
The free Minitaur Editor software truly unlocks Minitaur's power and flexibility by making DAW integration and control completely seamless on both Mac and Windows machines. Load and save up to 128 presets onto your Minitaur, select from 6 different modulation waveshapes, engage hard sync, access full ADSR envelopes, MIDI sync the LFO, reset oscillator waveform cycles, polychain with other Moog synthesizers and more. Every feature can be manipulated, automated and recalled instantly.
- Presets: 128 preset storage locations
- External controller response: keyboard, pitch bend, mod wheel, after pressure and velocity
- Sound sources: 2 waveshape oscillators with square and sawtooth waveshapes
- Oscillator calibration range: 22Hz-6.8KHz, note range at 8' = 18 - 116
- Filter: 20Hz-20KHz Moog transistor ladder filter
- Glide: linear constant rate, linear constant time or exponential modes
- LFO waveshapes: triangle, square, saw, ramp, sample-and-hold
- Modulation destinations: oscillator pitch, oscillator 2 pitch only, filter cutoff
- Envelopes: 2 ADSR envelopes with legato on/off and EG reset
- External audio input: 1/4" TS
- Assignable CV/gate inputs: filter CV, pitch CV, volume CV, KB gate

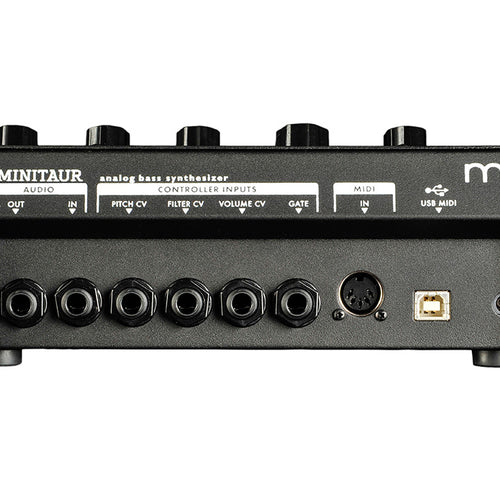

|Included From Manufacturer||Power supply|
|Midi||In and USB|
|Control Connections|| 1/4" pitch CV input
1/4" filter CV input
1/4" volume CV input
1/4" gate input
|Audio Inputs||1/4" mono external audio input|
|Audio Outputs|| 1/4" mono main output
1/8" headphone output
|Oscillators per Voice||2|
|Product Weight||2.5 lb|
|USB Port (to Host)||MIDI;System Updates;Editor/Librarian/Patch Manager|
|Voices of Polyphony||Monophonic|
Moog Music Inc. Limited Warranty
Moog warrants its products to be free of defects in materials or workmanship and conforming to specifications at the time of shipment. The Warranty Period is one year from the date of purchase.
If, in Moog's determination, it has been more than one year since the product shipped from its factory, Moog will determine whether or not to honor the warranty without regard to the date of the purchase.
Your new product warranty is transferrable to a new user with a proof of purchase dated less than one year prior to the current date. To initiate a warranty transfer, email Moog with a copy of the original proof of purchase, the serial number, and your personal information and Moog will update the warranty status.
During the Warranty Period, any defective products will be repaired or replaced, at Moog's option, on a return-to-factory basis. This warranty covers defects that Moog determines are no fault of the user.
The Moog Limited Warranty applies to USA purchasers only. Outside the USA the warranty policy and associated service is determined by the laws of the country of purchase and supported by the local authorized distributor. If you purchase outside of your country, you can expect to be charged for warranty as well as non-warranty service by the service center in your country.
You must obtain prior approval in the form of an RMA (Return Material Authorization) number from Moog before returning any product. Click 'Customer Service' at the Moog website to request the RMA # via email or call Moog.
All products must be packed carefully and shipped with the Moog supplied power adapter. The Voyager and Little Phatty must be returned in the original inner packing including the foam inserts. The warranty will not be honored if the product is not properly packed. Once you have received the RMA# and carefully packed your Moog, ship the product to Moog Music Inc. with transportation and insurance charges paid, and include your return shipping address.
Once received, Moog will examine the product for any obvious signs of user abuse or damage as a result of transport. If the product is abused, damaged in transit, or is out of warranty, Moog will contact you with an estimate of the repair cost. Warranty work will be performed and Moog will ship and insure your product to your United States address free of charge.
Please initiate your warranty online at the Moog Music Website by clicking 'Product Registration.' If you do not have web access, fill out all the information on the card included with your shipment and mail it to Moog.
