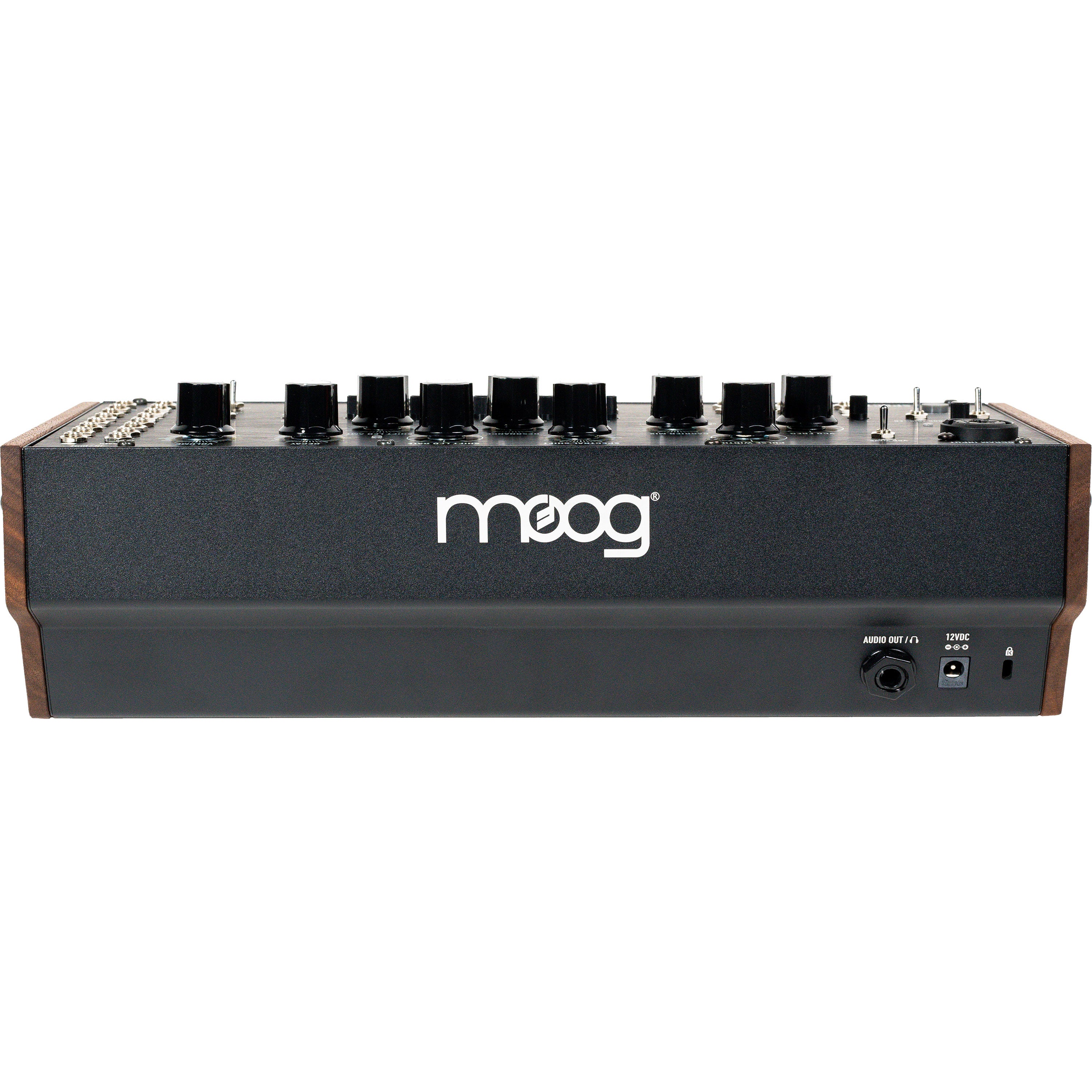

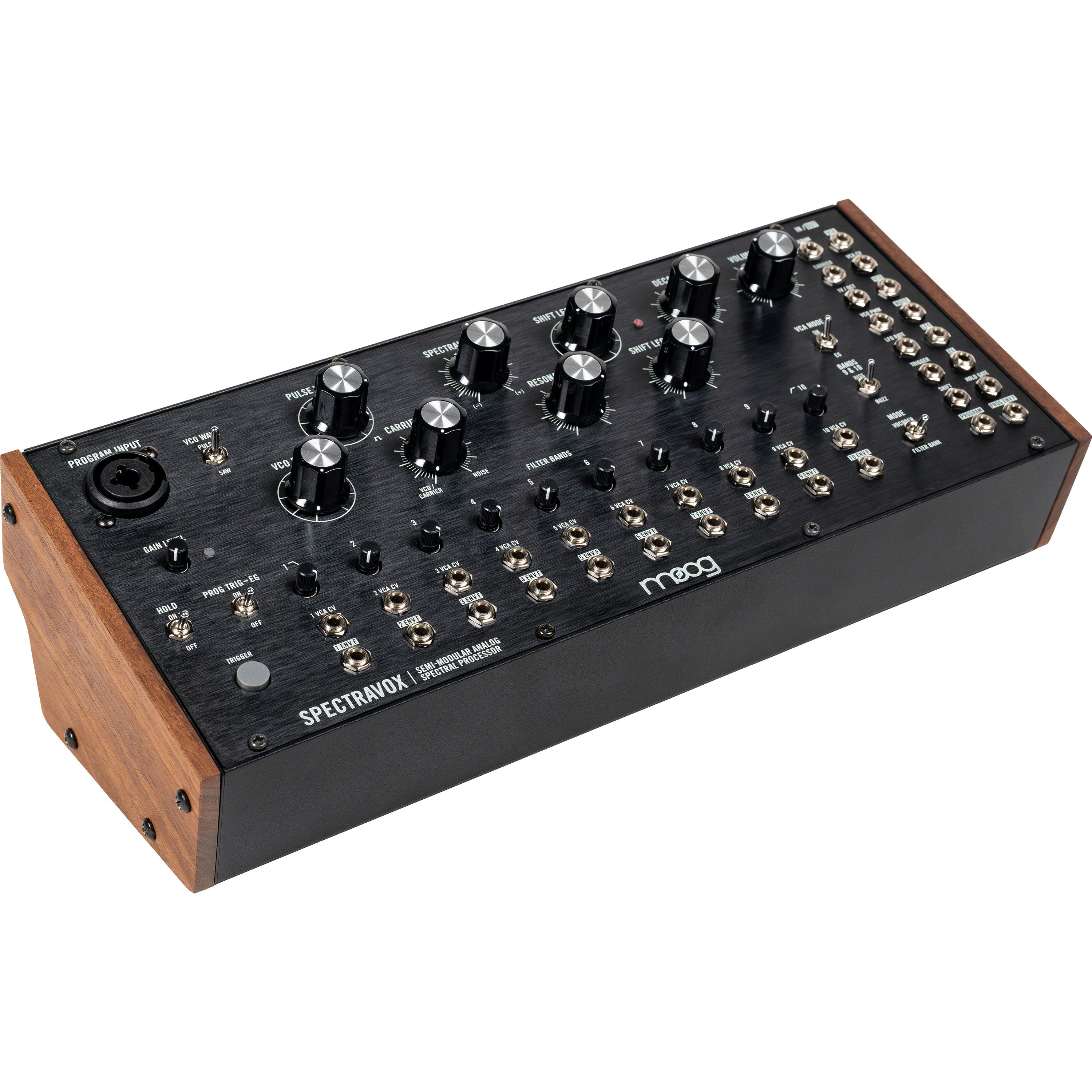

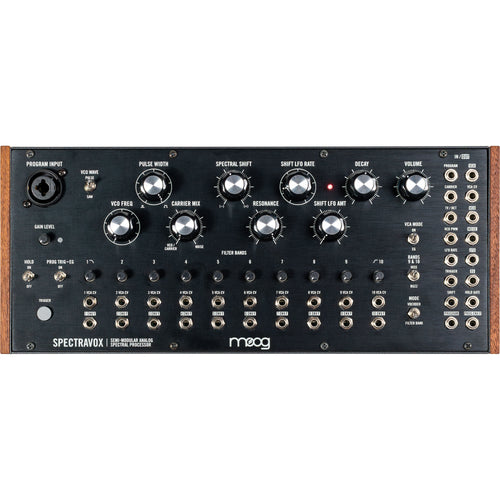

Moog Spectravox Semi-Modular Analog Spectral Processor
Moog Spectravox, the newest member of the Moog semi-modular family, is a groundbreaking tool for sculpting sound. An analog spectral processor based around a 10-band filter bank, Spectravox creates lively drones and colorful tonal sweeps on its own and adds resonant depth and psychedelic spectral movement to any external sound. Hook up a microphone and Spectravox becomes a 10-band analog vocoder with innovative integrated modulation of all of its filters. An exploration and expansion of the topology of the vocoder and filter bank, Spectravox is a highly flexible instrument and signal processor with a comprehensive patch bay for integration into studios of all sizes.
- An updated version of the limited edition Moogfest version of Spectravox
- Multi-use instrument that can function as a synth voice, CV filter bank and vocoder
- Transform any audio source with multiband filtering, spectral shifts and carrier/program relationships
- Use standalone power supply or remove the front panel to install into any eurorack system
- 36 patch points to unlock deeper sonic exploration and possibilities
Synthesists have delighted in playing with the spectrum of sound since the Moog 907 Fixed Filter Bank appeared in the 1960s, creating lush vowel tones and multicolored timbral animation with hands-on level control of each frequency band of a sound. Unlike earlier fixed filter banks, however, the unique filters of Spectravox are no longer fixed in place and will jointly shift around the frequency space, allowing for the creation of otherworldly voltage-controlled spectral animation and vibrant phaser-like sweeps. With 10 filters whose variable resonance can morph from soft precision to shimmering choral effects, Spectravox reshapes the sounds you love into surprising new forms and brings a new world of sonic possibilities to your studio.
Spectravox is a fascinating standalone sculptable synthesizer voice thanks to its built-in carrier sound source of a thick analog Moog oscillator and white noise generator. With its combo XLR/jack program input, Spectravox becomes a fully featured 10-band vocoder with a secondary filter bank for analyzing the spectral makeup of incoming sounds. In Vocoder mode its 10 analysis filters map the timbral characteristics of any external sound onto any other sound you can imagine. Shape the warm analog oscillator of Spectravox with the dynamics of your voice, or use a drum machine to animate guitar chords in a mesmerizing broadband percussive space.
Spectravox uses the pioneering vocoding work of Bob Moog and Wendy Carlos in the late 1960s as its inspiration, work which was based on Homer Dudley's original designs from the 1930s and which was used to prominent effect in Stanley Kubrick's 1972 film A Clockwork Orange. Innovating further from these early designs, Spectravox uses 10 state-variable filters for its filter bank, all 10 of which are capable of being shifted with its internal triangle wave LFO or external control voltage. With the ability to emphasize vowel sounds via the Hiss and Buzz functionality of the Moog 16 Channel Vocoder, Spectravox is both a major step forward for analog filter banks and a loving exploration of early music technology history.
Scramble the frequency spectrum and create wonderfully unpredictable textures with patch points for each filter in the filter bank and included patch cables. Add analog warmth and subtle phasing to digital synthesizers and sound sources. Integrate Spectravox with other Moog semi-modular instruments or eurorack modules with an extensive patch bay providing control over almost all of its parameters. Spectravox is a boundary-pushing instrument that invites you to explore creative new ways of shaping and sculpting sound.
SKU | MOO-SPECTRAVOX |
Model Name | Spectravox |
Vendor | Moog |
Included From Manufacturer |
5 × 12" patch cables Patch sheet panel overlays Power supply |
Number of Keys | None |
Module Type | Synth Voice |
Module Width | 60hp |
Mono Poly | Monophonic |
MPN | SPECTRAVOX |
Product Unique Features | Spectravox may be removed from included chassis and mounted in, powered by eurorack system |
Arpeggiator | No |
Control Connections | 36-point modular patch bay with 17 outputs and 19 inputs |
Onboard Controllers | TRIGGER button for auditioning sound |
Audio Outputs | 1/4" main/headphone output 1/8" VCA output on patch panel |
Oscillators per Voice | 1 VCO plus white noise generator |
Width | 12.57" |
Depth | 5.24" |
Height | 4.21" |
Product Weight | 3.5 lb |
Moog warrants its products to be free of defects in materials or workmanship and conforming to specifications at the time of shipment. Inside the USA, the Warranty Period is one year from the date of purchase. If, in Moog’s determination, it has been more than five years since the product shipped from our factory, it will be at Moog’s discretion whether or not to honor the warranty without regard to the date of the purchase. During the Warranty Period, any defective products will be repaired or replaced, at Moog’s option, on a return-to-factory basis. This warranty covers defects that Moog determines are no fault of the user. If you have questions regarding your domestic warranty, please contact techsupport@moogmusic.com
