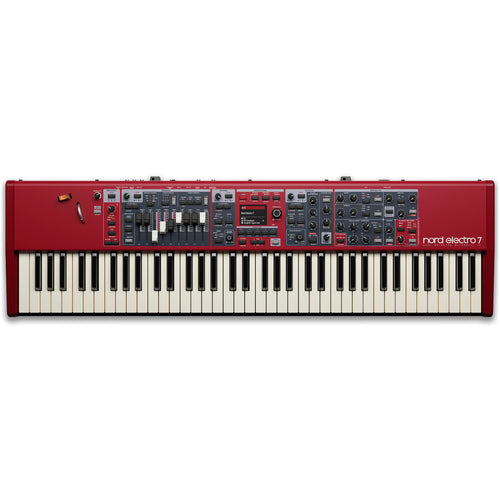

Nord Electro 7 73 extends the Electro series with a 73-note semi-weighted waterfall keyboard, providing a wider playing range while maintaining the fast, responsive action preferred for organ techniques. The additional keys support more flexible splits and layers while remaining well suited to piano and synth parts in live performance.
Features
- 73-note semi-weighted waterfall keybed
- Pitch Stick and Modulation Wheel
- Refined panel design with high-resolution color display
- Physical drawbars with LED indicators on all models
- Organ engine and rotary speaker from the Nord Organ 3
- B3, B3 Bass, Vox, Farfisa, Soft B3, and Pipe organ models
- Expanded synth section with sample, analog, and FM synthesis
- Dedicated effects per section
- Assignable expression pedal control
- Global reverb with per-layer send
- Lightweight, stage-ready design
Organ Section
The organ section is powered by the engine from the Nord Organ 3 and includes B3, B3 Bass, Vox, Farfisa, Soft B3, and Pipe organ models. The rotary speaker emulation features three selectable microphone positions along with Slow, Fast, and Stop modes. Physical drawbars with LED feedback, Drawbar Live Mode, and dedicated presets for upper and lower manuals support expressive, hands-on control.
Piano Section
The piano section is compatible with the Nord Piano Library and adds Dynamic Compression, Unison, and Timbre controls for increased depth and articulation. The weighted HP action pairs naturally with these features, supporting expressive dynamics and detailed control. A low-pass filter with resonance, FM partials, and dual envelopes for amp and filter/FM allow further shaping without slowing down workflow.
Synth Section
The expanded synth section combines sample playback with analog waveforms and FM synthesis. Mono and legato modes, glide, unison, and vibrato with adjustable rate, amount, and delay provide flexible sound design and performance options. Push encoders enable fast category and sound selection across sections.
Effects and Performance Control
Dedicated effects are available per section, with modulation effects offering rate and amount control, along with ring modulation, vibe, and a new spring reverb. New amp models, including Brit and Suitcase, expand tonal options. An assignable expression pedal allows real-time control of synth filter and effect parameters, while a global reverb with per-layer send completes a streamlined, performance-ready instrument.
Frequently Asked Questions: Nord Electro 7 73
What type of key action does the Nord Electro 7 73 have?
It features a 73-key semi-weighted waterfall keyboard spanning E–E (six octaves), providing fast, tactile response suitable for organ and piano performance.
Does the Electro 7 include a pitch stick and modulation wheel?
The 73 and 73 HP models include a pitch stick and modulation wheel for real-time performance control. The 61-key model does not.
What is new about the Electro 7?
Redesigned front panel with high-resolution color display, expanded Synth Section (Analog & FM synthesis), dedicated effects per section, updated amp and reverb types, improved Rotary Speaker emulation, and physical drawbars with LED indicators. The 73 and 73 HP models now include a pitch stick and modulation wheel; the 61 does not.
What sound engines are included?
Organ (from Nord Organ 3), Piano (compatible with Nord Piano Library), and Synth engine supporting samples, analog waveforms, and FM synthesis.
Do all models include physical drawbars?
Yes. All Electro 7 models feature physical drawbars with LED indicators for tactile and visual feedback.
Which organ models are included?
B3, B3 Bass, Soft B3, Vox, Farfisa, and Pipe organs, all fully polyphonic.
How does the Rotary Speaker simulation differ?
Uses the latest Nord Organ 3 emulation with improved realism, multiple mic positions, and enhanced drive control.
Is it compatible with Nord Piano or Sample Libraries?
Yes. Piano Section works with Nord Piano Library; Synth Section works with Nord Sample Library.
What synthesis methods are available in the Synth Section?
Sample playback, Analog waveforms, and FM synthesis with mono, legato, glide, low-pass filter with resonance, FM controls, and dual envelopes for amp and filter/FM shaping.
What effects are available?
Modulation, delay, compressor, amp simulations, rotary speaker, spring/room/stage/hall/cathedral reverbs, plus Brit and Suitcase amp models.
Are effects dedicated per section?
Yes. Organ, Piano, and Synth layers each have independent effects; global reverb is also available.
Can an expression pedal control synth or effect parameters?
Yes. An expression pedal can control synth filter cutoff and most effect parameters in real time.
How does layering and splitting work?
Organ, Piano, and Synth sounds can be layered or split. Split points have LED indication and allow smooth crossfades between zones.
Does it support seamless sound transitions?
Yes. Sounds and effects continue naturally when switching programs, ensuring smooth transitions during live performance.
| Specification | Value |
|---|---|
| SKU | NOR-NELECTRO773 |
| Vendor | Nord |
| Built In Speakers | No |
| Keys Weighted | Semi-Weighted |
| Number of Keys | 73 |
| Midi | In and Out |
| MPN | AMS-NELECTRO7-73 |
| Key Action | 73-key semi-weighted waterfall (E–E) |
| Programs/Presets | 500 programs (20 banks × 25 programs); 5 Live Mode programs |
| Voices of Polyphony | Organ: full polyphony; Piano: 120 voices; Synth: 30+ voices |
| Transpose Feature | Global ±6 semitones; Program ±6 semitones; Fine tune ±50 cents |
| Split Feature | Yes, selectable split points with LED indication and crossfades |
| Duet Mode | No |
| Layer Feature | Yes (Organ / Piano / Synth) |
| Number of MIDI Control Zones | 1 internal; 1 external (Aux KB) |
| Metronome | Yes |
| Rhythm Patterns | No |
| Accompaniments | No |
| Effects | Dedicated Organ/Piano/Synth effects; Rotary Speaker; Mod FX 1 & 2; EQ/Amp Sim; Delay; Compressor; Global Reverb |
| Onboard Controllers | Physical drawbars; knobs; buttons; pitch stick |
| Half-Damper Support | Yes (with compatible continuous pedals) |
| Audio Inputs | 1 × 1/8" stereo monitor input (3.5 mm) |
| Audio Outputs | 2 × 1/4" unbalanced line outputs (6.35 mm) L/R; 1 × 1/4" headphone output (6.35 mm) |
| USB Port (to Host) | Yes (USB-B) |
| USB Flash Drive Port (to Device) | No |
| Song Recorder | No |
| Expansion Options | Nord Piano Library; Nord Sample Library |
| Internal Storage Capacity | Piano Library 1 GB; Sample Library 512 MB |
| Organ Models | B3; B3 Bass; Soft B3; Vox; Farfisa; Pipe |
| Drawbar Style | Physical drawbars |
| Pedal Drawbars | Supported via MIDI CC |
| Leslie Output | No |
| Rotary Simulation | Nord Organ 3 rotary speaker |
| Reverse Key Presets | No |
| Half Moon Switch Input | Yes |
| Pedal Board Input | MIDI |
| Finish | Red |
| Width | 42" (1066 mm) |
| Depth | 11.6" (294 mm) |
| Height | 4.1" (104 mm) |
| Product Weight | 20.9 lbs (9.5 kg) |
This product has been manufactured by Nord and is warranted free from defects in materials or workmanship for the period of one year from the date of purchase by the original owner.
