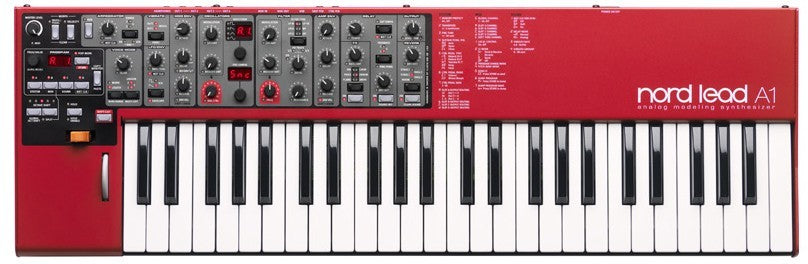

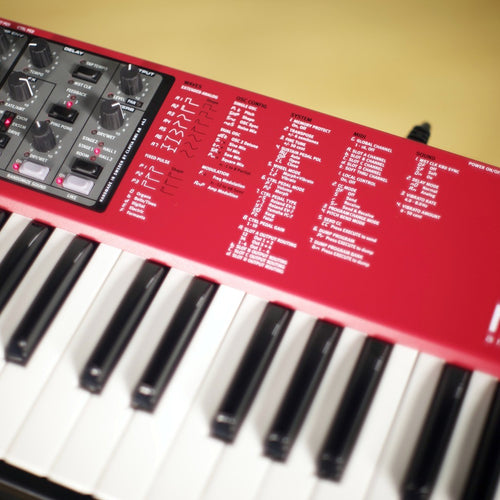

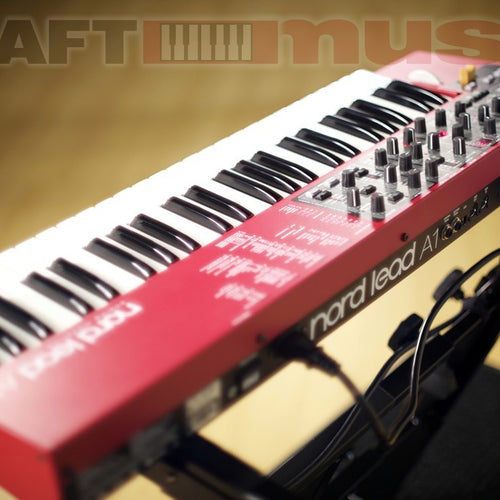

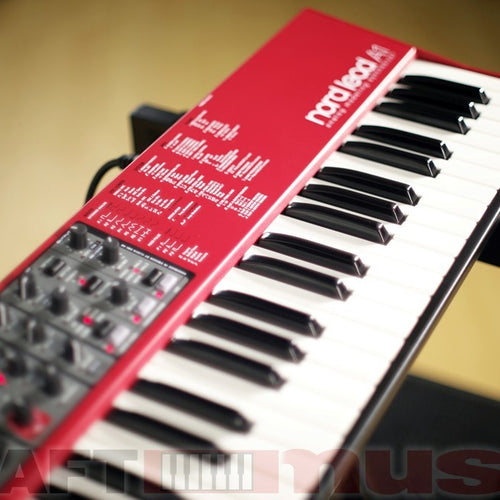

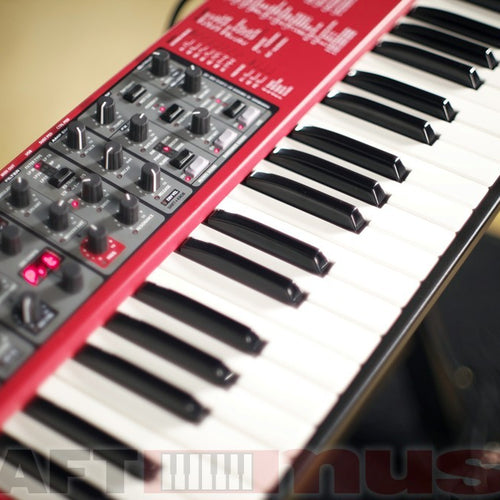

Nord Lead A1 Analog Modeling Synthesizer
The lead for speed
Producing stand-out sounds for live or for the studio, Nord Lead A1 is ideal for all musical genres. Thanks to its carefully thought-out user interface, Lead A1 encourages experimentation, allows for far speedier programming than would otherwise be possible and ultimately delivers sensational sonic results.
Nord's best-ever analog modeling
At the heart of Lead A1 is Nord's new analog modeling engine. Taking Nord's virtual analog synthesis to a new level, this modeling recreates a total analog signal path with uncanny realism, and is capable of immense sonic variety. With 24-voice polyphony and Nord's simultaneous synthesizer parts, Lead A1 is a true synthesizer powerhouse that goes far beyond the current trend for limited capability analog reissues.

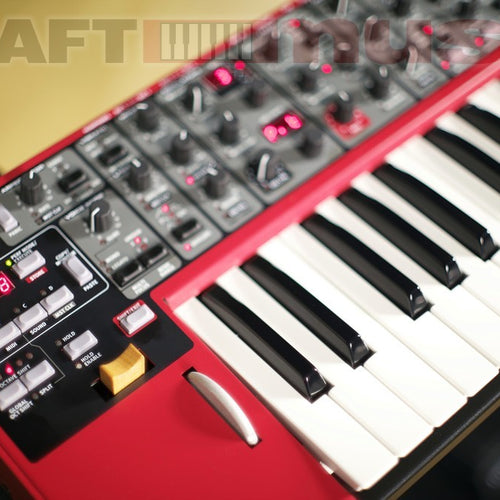

A most intuitive interface

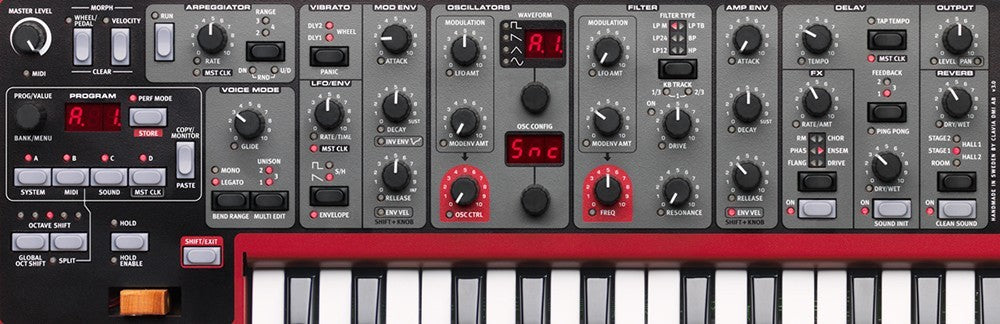

Fundamental to the design of Lead A1 is a brand new simple yet sophisticated front panel interface. The design is in fact the result of requests from professional players — even the most experienced programmers — who need to create the perfect sound as quickly as possible for today's live or studio time demands. Lead A1 allows easy patch creation and experimentation thanks to a new and unique oscillator section, pre-programmed modulation matrix, and simplified ADR envelopes. Dive in and create incredible patches far quicker than would normally be possible with a synthesizer of such power.

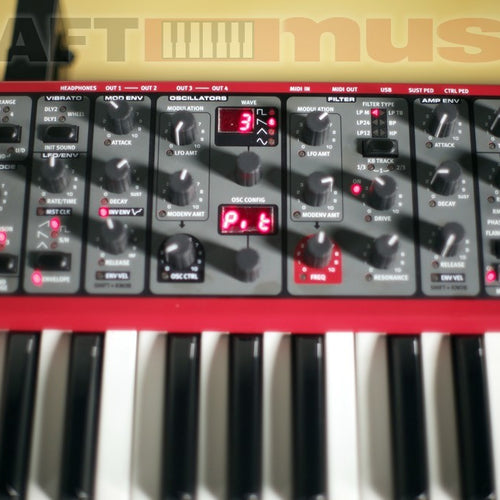

The oscillator section

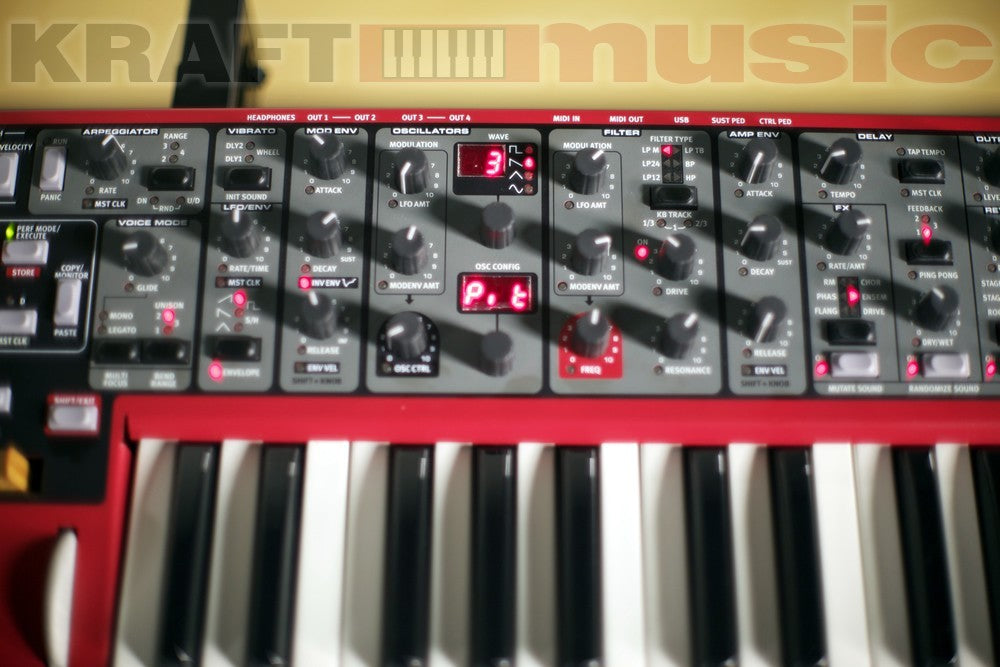

Lead A1 features Nord's Wave Engine with unique Oscillator Configuration Shortcuts utilizing two oscillators. Start with a single oscillator waveform (a choice of multiple analog and digital waveforms), select an Oscillator Configuration Shortcut — Pitch, Detune, Shape, Sync, FM, AM, Dual Osc or Noise — and use the OSC Control knob to adjust the settings of the configuration.
The end result is high-speed programming without the need for the usual complexity of routing and patching, and with the opportunity for ready experimentation, a fast track to stunning sound design for both advanced and less experienced programmers.

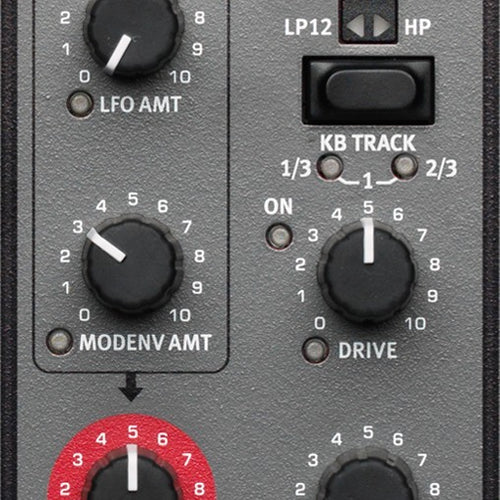

The filter section
Lead A1's filter section features classic 12 and 24 dB low pass, a high pass and a band pass filter, together with stunning emulations of the diode and ladder filters from the legendary Mini and the TB-303 synthesizers. Lead A1's modeling of these filters capture the true character and response of the originals, allowing supremely flexible and precise sound design. The filters are super-smooth with a warm analog character.
Modulation envelope

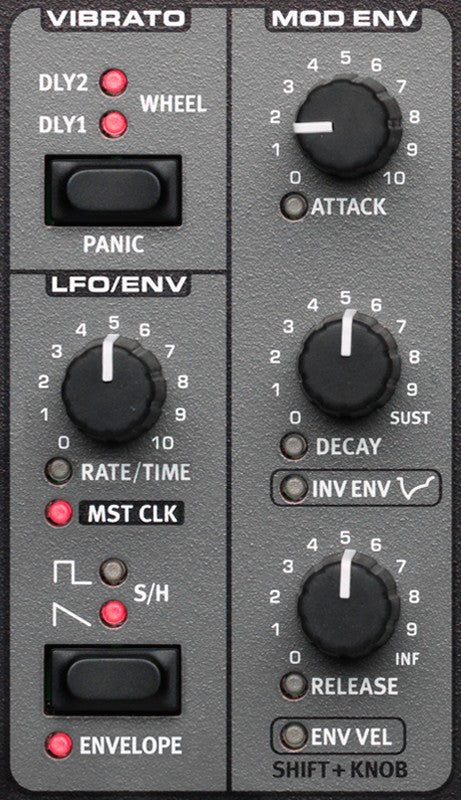

The three-stage ADR modulation envelope is trigged from the keyboard and the envelope can be inverted and controlled by velocity. Thanks to the intuitive design of the front panel it is very easy to see what modulations have been applied and to design incredible sounding patches.
LFO
Lead A1 features an LFO with a choice of waveforms. The LFO rate can be synced to Lead A1's master clock. The LFO can also be used as an additional modulation envelope.
Vibrato
A dedicated LFO for vibrato is always available for use.

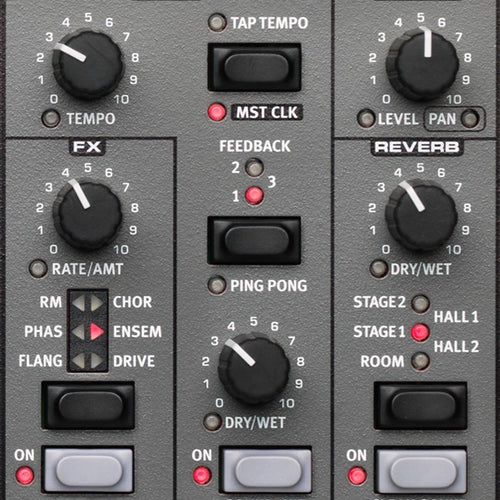

Effects
Lead A1's effects section features two stunning brand new analog models of an ensemble and chorus, modeled on specific vintage synths and adding classic warmth and analog feel. Alongside these, choose from great-sounding ring modulation, phaser, flanger or drive per slot and in addition a separate delay and reverb for each slot.
Mod wheel and Velocity Morph
A classic Nord feature, the Morph function via mod wheel, velocity or pedal, allows you to control multiple parameters of Lead A1 simultaneously. Morph is exceptionally easy to set up and use: just hold the Morph button and adjust any desired knob.
Master clock
The master clock function of Lead A1 allows the LFO, arpeggiator and delay to be synchronized, either internally or slaved to external MIDI clock. A tap tempo button allows you to easily tap to the tempo of a drummer or to playback tracks.
Arpeggiator
Lead A1 features four separate arpeggiators with up/down and random modes and a 4-octave range. Any or all can be synced to Lead A1's master clock.
Splits and layers
Having four identical, equally powerful synthesizers at once opens breathtaking layering possibilities. Split mode gives you two 2 slots on each side of the split. A flexible hold functionality lets you latch and hold slots independently in the background while playing something else on top.

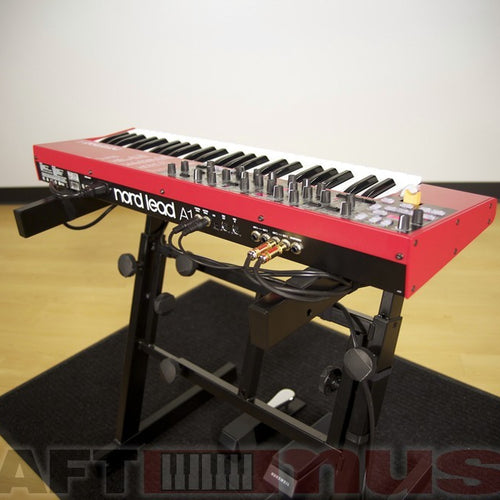

Four outputs

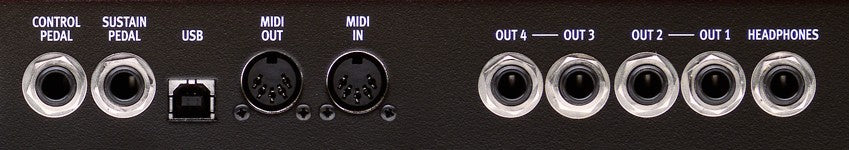

Lead A1 features four independent audio outputs with the ability to route each slot to a different output. Control of panning is also possible via a front panel knob.
Sound manager
Lead A1 includes the Nord Sound Manager software for OS X and Windows. Sound Manager is a dedicated librarian app which allows easy reorganizing, backup and transfer of programs.
MIDI control
Lead A1 features the convenience of MIDI over USB for use with a sequencer. All of Lead A1's knobs transmit MIDI control data.

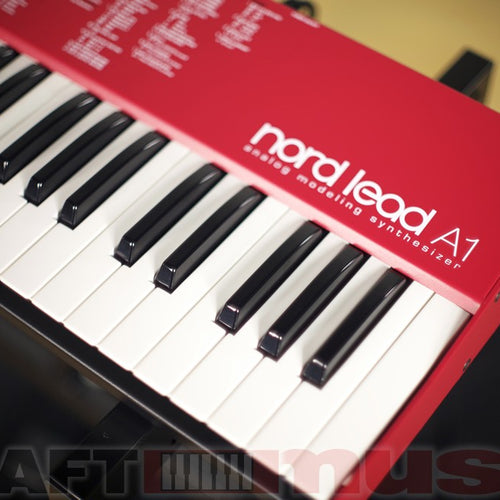

Hardware
Like all Nord keyboards, Lead A1 is handmade in Nord's Stockholm factory with incredible attention to detail and quality control. The Fatar 49-key keybed, all-metal chassis, tactile knobs, and unfaltering emphasis on quality complete a synthesizer designed to last a lifetime.
| Specification | Value |
|---|---|
| SKU | AMS-NLA1 |
| Vendor | Nord |
| Aftertouch | No |
| Analog Digital | Digital |
| Built In Speakers | No |
| Included From Manufacturer | Power Cable with IEC C14 connector |
| Keys Weighted | No |
| Number of Keys | 49 |
| Key Size | Full Size Keys |
| Midi | In, Out, and USB |
| Mono Poly | Polyphonic |
| MPN | Lead A1 |
| Product Unique Features |
8 Oscillator Configurations Transistor and diode ladder filter simulations of Mini and TB-303 4-part multi-timbral |
| Arpeggiator | Yes |
| Audio File Playback | No |
| Control Connections |
Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g., Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Yamaha FC-7, Roland EV-7, Roland EV-5, Korg EXP2 or Korg XVP10 |
| Onboard Controllers |
Velocity and Mod Wheel Morph Pitch Stick (with no dead zone at zero crossing) |
| Effects | Ensemble, Chorus, Ring Modulator, Phaser, Flanger, Drive, Delay, Reverb |
| Audio Inputs | None |
| Audio Outputs |
4 Line Level Audio Outputs - ¼", 6,35 mm jacks, unbalanced Stereo Headphone Output - ¼", 6,35 mm stereo jack |
| Internal Storage Capacity |
Programs (single sounds): 8 x 50 (400) locations Performances (multi sounds): 4 x 50 (200) locations |
| Key Action | velocity sensitive |
| Multitimbral Capability | 4 parts |
| Oscillators per Voice | 2 |
| Product Weight | 10.7 lbs |
| Programs/Presets |
Voice modes: Poly, Legato with portamento, Mono, True Unison 1, 2 & 3 Four program slots for layering possibilities |
| Sampling | None |
| Sequencer | None |
| Speakers | None |
| USB Port (to Host) | MIDI;System Updates;File Transfer;Editor/Librarian/Patch Manager |
| Voices of Polyphony | 24 |
| Width | 34.0" |
| Depth | 10.7" |
| Height | 3.7" |
This product has been manufactured by Nord and is warranted free from defects in materials or workmanship for the period of one year from the date of purchase by the original owner.
