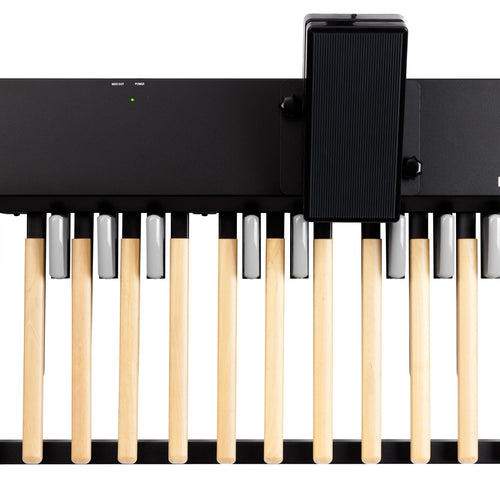

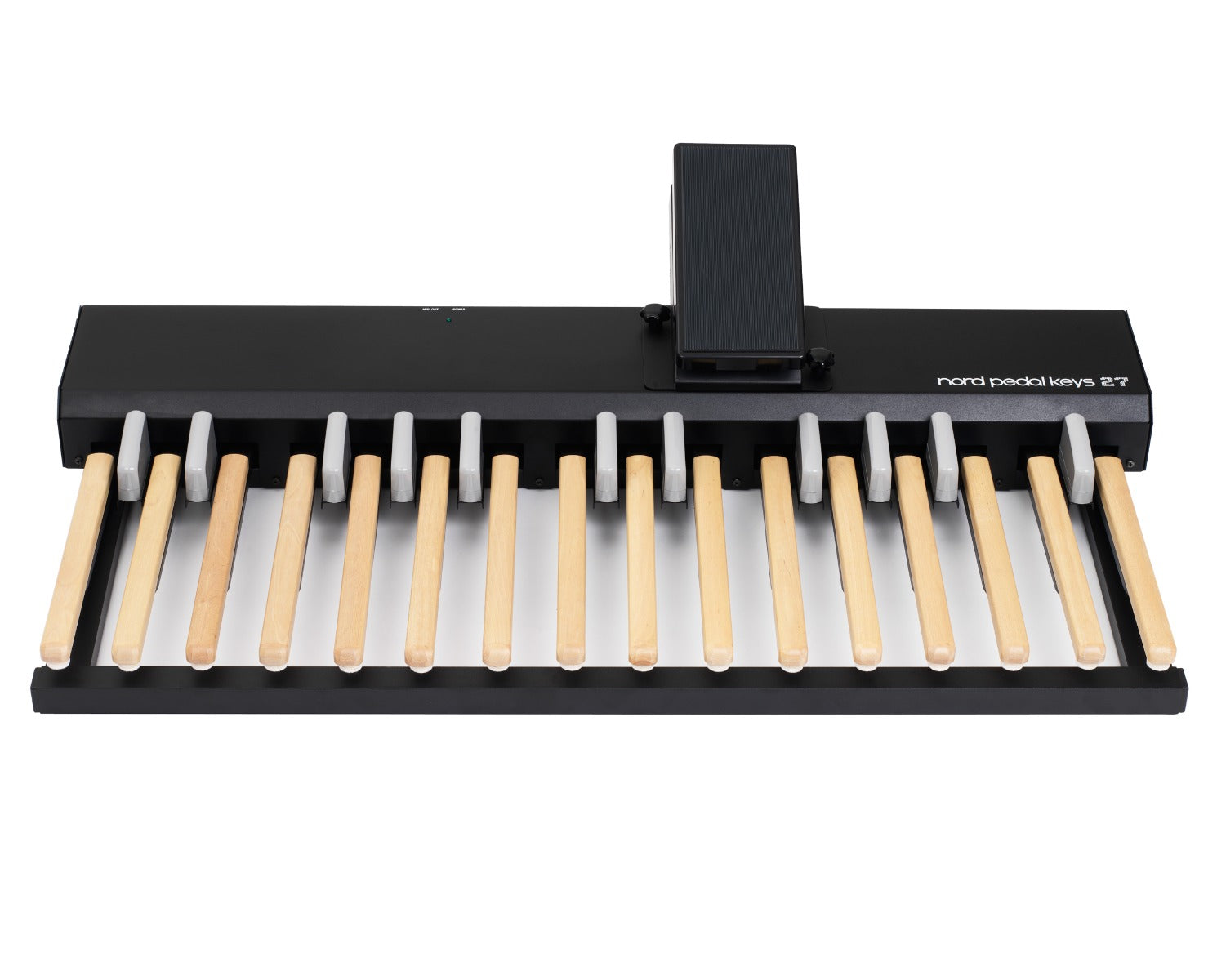

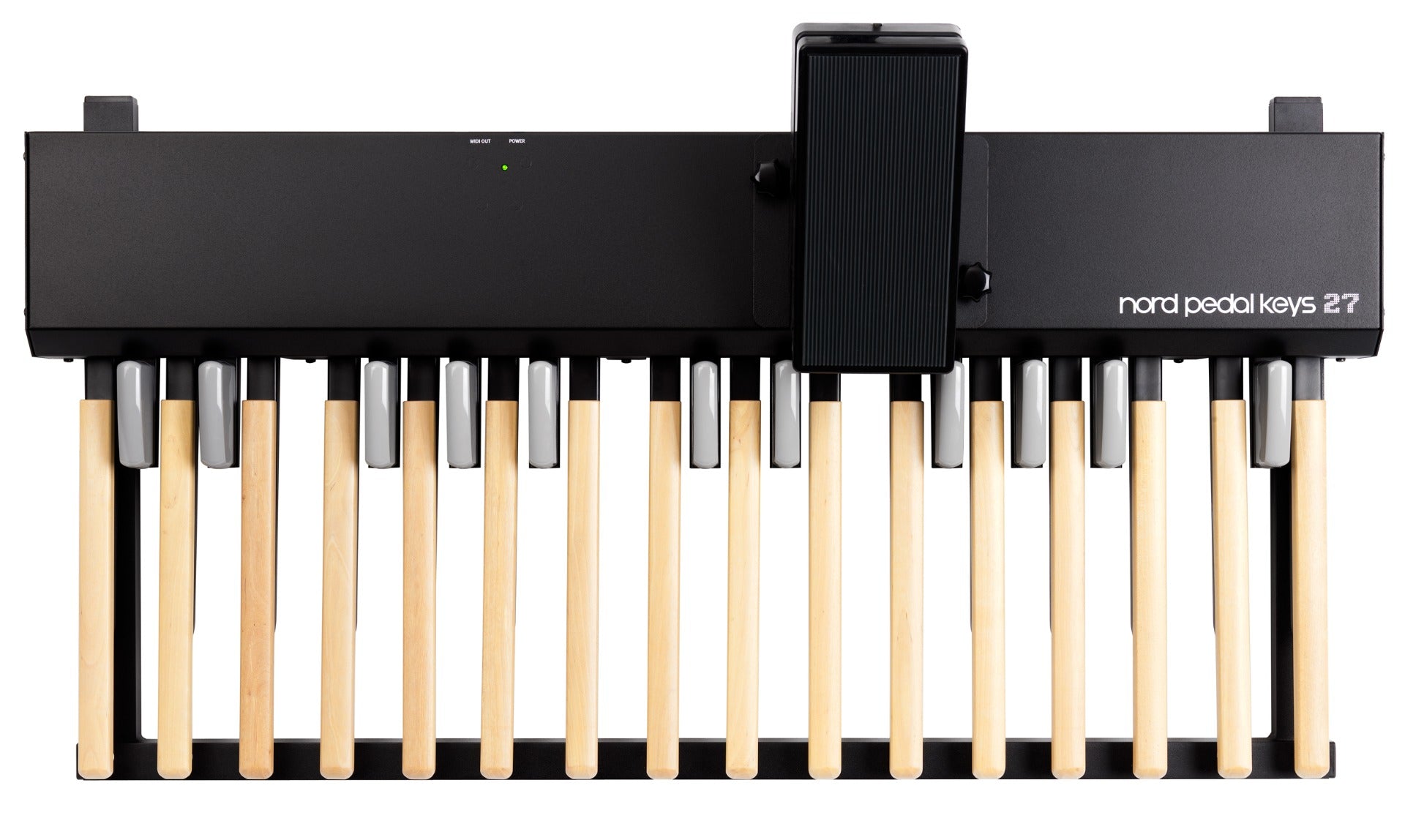

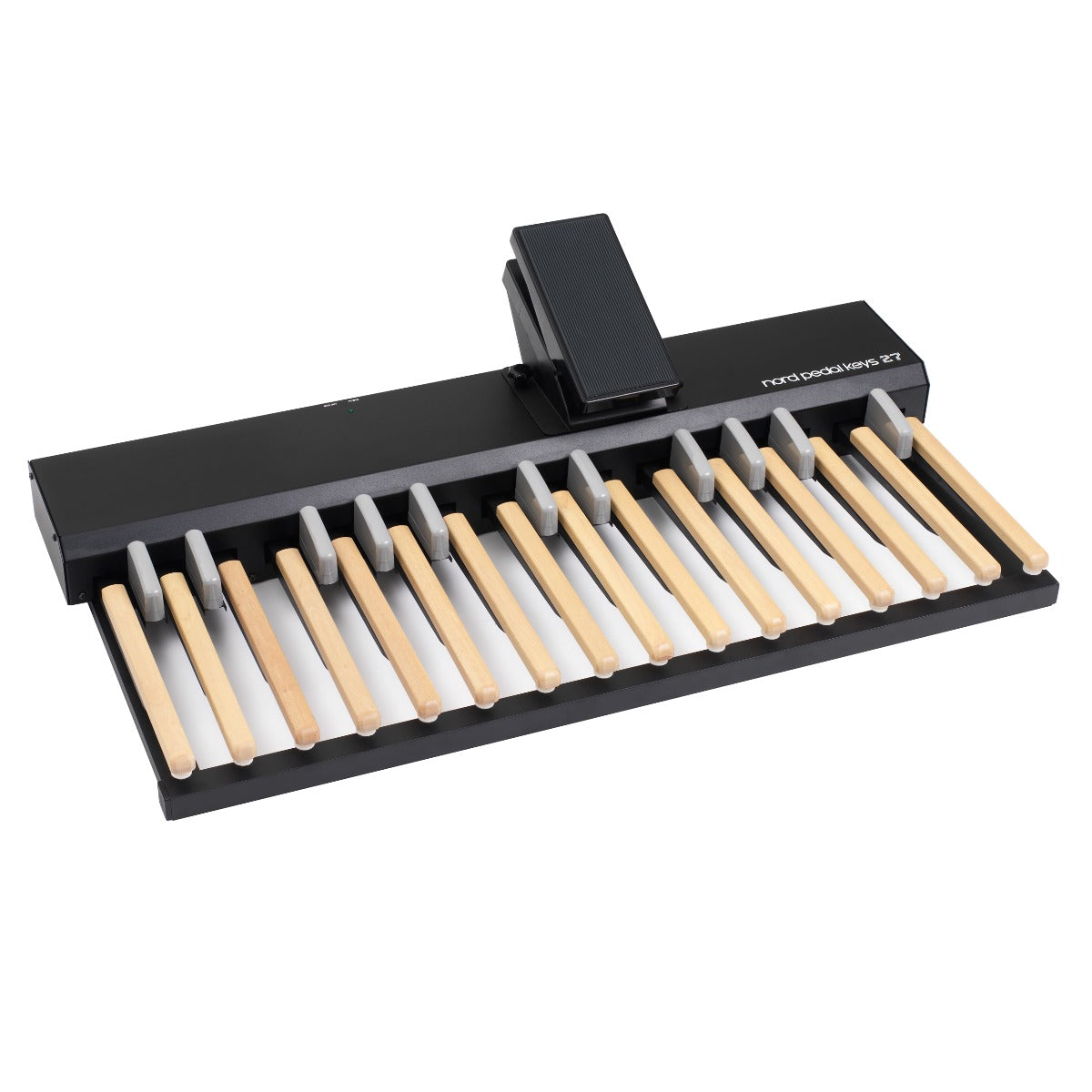

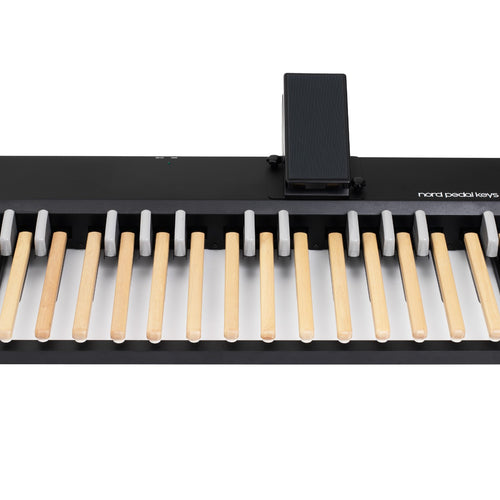

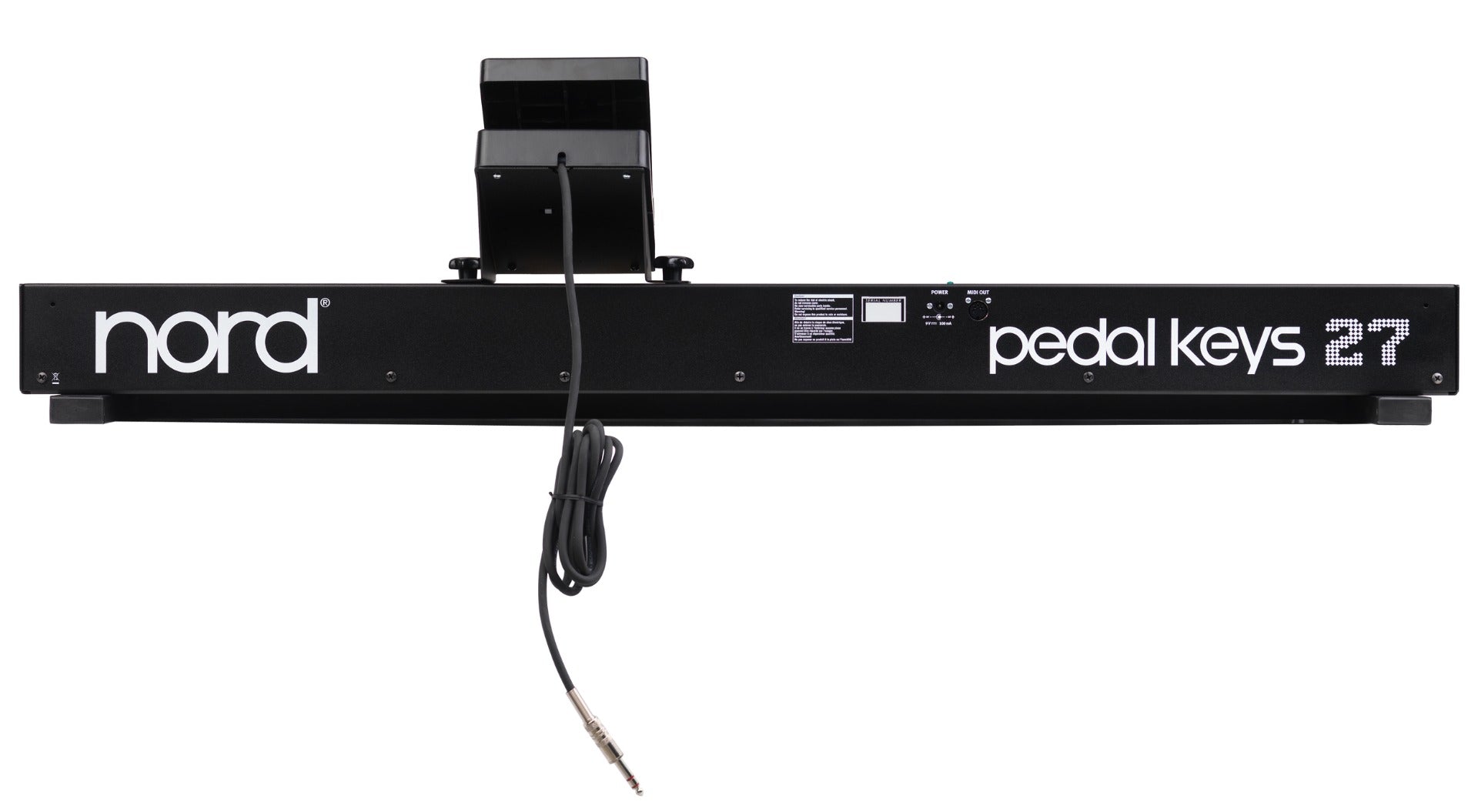

Nord Pedal Keys 27 is a MIDI pedal board with 27 keys that is also equipped with an integrated swell pedal. The entire unit is housed in a sturdy aluminum chassis that makes it both lightweight and rugged. It communicates via MIDI and can be used with other MIDI compatible equipment.
To use it with a Nord C2 organ, just connect the MIDI on the Pedal Keys 27 to the Bass Pedal MIDI input on the C2 and activate the Bass section on the C2.
The long keys have a wooden finish and a length of 13.8" to facilitate the use of proper toe-heel technique when playing. The short keys are colored gray in order to provide better visibility even in a very dark environment.

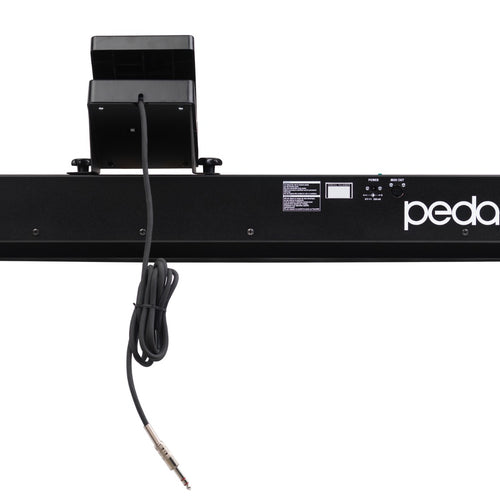

Pedal Keys 27's range is from C2 to D4 (MIDI notes 36 to 62) and transmits on MIDI channel 3. The swell pedal is easily mounted on the top panel, providing you with comfortable and direct access to this important functionality. The resistance of the pivotal travel of the pedal can be set by using two internal adjustment screws inside the pedal housing.
SKU | AMS-PK27PP |
Vendor | Nord |
Bus Power | No |
Controller Type | Foot Controller |
Included From Manufacturer |
MIDI Cable Power Supply |
Number of Keys | 27 |
Midi | Out |
MPN | PK27 |
Product Unique Features |
Range: C2 to D4 Adjustable swell pedal resistance |
Onboard Controllers | Top-mounted Swell pedal |
Five-Pin MIDI Support | Yes |
Key Action | Long keys: 13.8" long with wood finish Short keys: gray finish for better visibility in dark environments |
Number of MIDI Control Zones | 1 |
Product Weight | 34 lbs |
Software Editor | No |
Width | 41.5" |
Depth | 24.4" |
Height | 12.6" |
This product has been manufactured by Nord and is warranted free from defects in materials or workmanship for the period of one year from the date of purchase by the original owner.
