The Nord Stage 4 features a brand new panel design with dedicated LED faders for each Layer, providing exceptional overview and flexibility when creating sounds and performing live. The new Preset Library is packed with inspiring ready-to-use Piano, Synth and Organ sounds for quick and smooth patch creation.
- 73-note fully weighted Triple Sensor keybed (E-E) with aftertouch
- Physical Drawbars with LED indicators.
- 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
- Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
- 8 Live Programs
- 2 Individual Layer Scene Setups
- 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
- Stereo and Mono output routing options
- Programmable Transpose +/- 6 semitones
- Master Clock functionality with manual, external and tap-tempo rate control
- Internal and MIDI clock source
- MIDI over USB functionality
- Level control
- Aftertouch
- Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
- 3 Split Point width (crossfade) options: Lrg, Sml or Off

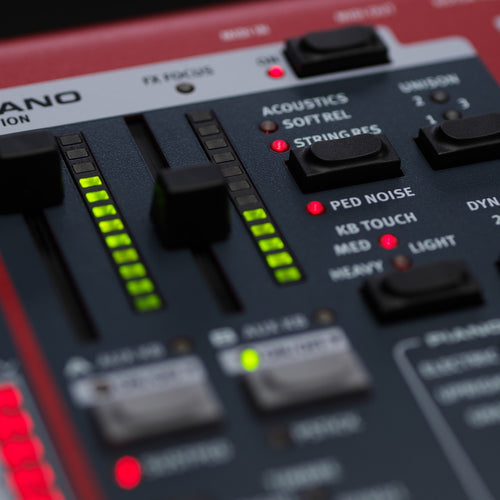

The Piano
The Nord Stage 4 comes with a new enhanced collection of Grands, Uprights and Electric Pianos from our exclusive Nord Piano Library combined with new features such as Dynamic compression and Unison. Nord’s state-of-the-art sampling techniques capture the extraordinary nuances and real character of the source instruments. Our unique ‘Advanced String Resonance’ and Dynamic Pedal Noise features deliver breathtaking realism and an unsurpassed level of expressiveness.
- Enhanced collection of Uprights, Grands, EPs and more
- Dynamic Compression
- Unison feature
- Creative Timbre presets
- Advanced String Resonance
- Dynamic Pedal Noise
The Synth
The Synth section with its three independent Layers is based on the powerful Nord Wave 2 Synth Engine, including Virtual Analog synthesis, Samples, FM and Wavetable. An extensive new collection of samples from the Nord Sample Library offers a broad sonic palette of Strings, Bass, Choirs, Guitars and much more. The advanced Arpeggiator features new Polyphonic, Gate and Pattern modes and can be used for a huge variety of rhythmic applications with customizable patterns.
- Nord Wave 2 Synth Engine
- 3 independent Synth Layers
- Doubled sample memory
- Enhanced samples with Tru-Vibrato, Unison and Round Robin
- Extensive real time controls
- Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
- Extern mode for advanced MIDI control
The Organ
The Organ section features our award-winning simulations of B3 Tonewheel, B3 Bass, classic Vox and Farfisa as well as two Pipe Organ models. All Stage 4 models are equipped with Nord's new Physical drawbars with LED indicators for optimal hands-on experience and overview.
- Award-winning organ simulations of B3, Vox/Farfisa and Pipe Organ models
- Physical drawbars with LED indicators
- Drawbar Live mode
- New B3 Bass mode
- Model 122 Vintage Rotary Speaker with normal or close mic positions
The Effects
The Nord Stage 4 has a powerful new Effect section offering a complete setup of Effects for each Layer. The extensive range of Effects includes a new Pump effect for side chain simulation, a new Spin effect and brand new variations of Reverb, Delay, Amps and Modulation effects.
- Dedicated Effect section per Layer
- New Variations for Modulation, Amp, Delay and Reverb Effects
- New Spring, Booth and Cathedral Reverb
- New Spin effect
- New Pump effect
- New Flam and Space Delay

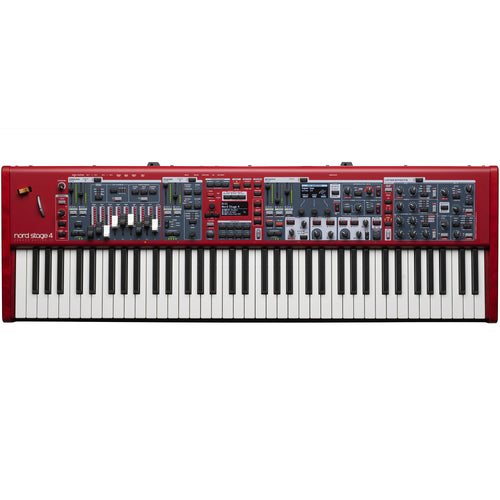

New Panel Design
Dedicated LED fader for each Layer, providing exceptional overview and flexibility

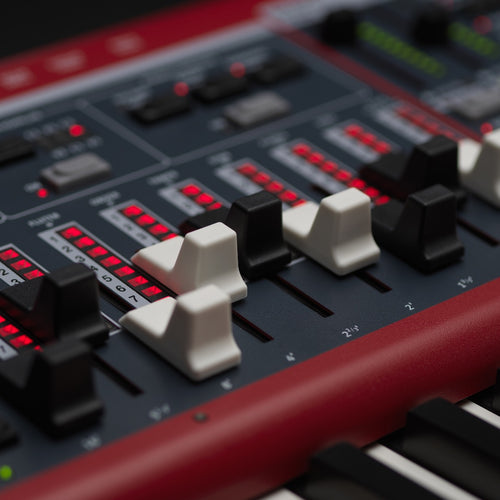

Physical Drawbars
New physical drawbars with LED indicators for optimal hands-on experience and overview

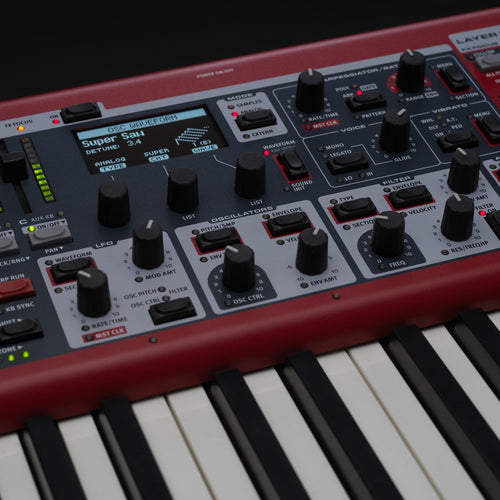

The Synth Section
The Synth features three independent Layers and is based on the powerful Nord Wave 2 Synth Engine
Dedicated Effect Section
Each layer has a complete setup of effects with brand new pump and spin effects and variations of reverb, delay, amps, and modulation effects
| Specification | Value |
|---|---|
| SKU | NOR-NS4HA73 |
| Vendor | Nord |
| Built In Speakers | No |
| Drawbar Sets | 1 Set |
| Drawbar Style | Physical |
| Included From Manufacturer |
User Manual Power cord USB cord Nord Sustain Pedal 1 |
| Keys Weighted | Hammer Weighted |
| Number of Keys | 73 |
| Midi | In, Out, and USB |
| MPN | AMS-NSTAGE4-HA73 |
| Accompaniments | No |
| Control Connections |
1/4" Sustain Pedal Dedicated 5-Pin MIDI for Triple Pedal 1/4" Rotor Pedal (Momentary Footswitch) 1/4" Organ Swell Pedal 1/4" Control Pedal 1/4" Foot Switch |
| Onboard Controllers |
Pitch Stick Modulation Wheel 9 Physical Drawbars |
| Finish | Red |
| Half-Damper Support | Yes (With Optional Pedal Unit) |
| Audio Inputs | 1/8" Monitor In |
| Audio Outputs |
4 Assignable Audio Outputs - 1/4" Unbalanced 1/4" Stereo Headphone output |
| Key Action | Triple Sensor Hammer Action keyboard with Aftertouch |
| Layer Feature | Yes |
| Leslie Output | None |
| Metronome | Yes |
| Organ Models | Tonewheel;Transistor;Pipe |
| Pedal Board Input | Dedicated 5-Pin MIDI |
| Pedal Drawbars | No |
| Product Weight | 36.8 lbs |
| Programs/Presets | 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations |
| Reverse Key Presets | No |
| Rotary Simulation | Yes |
| Split Feature | Yes |
| Transpose Feature | Yes |
| USB Port (to Host) | MIDI;System Updates;File Transfer;Editor/Librarian/Patch Manager |
| Voices of Polyphony | Up to 120 Voices |
| Width | 42" |
| Depth | 13.7" |
| Height | 4.7" |
