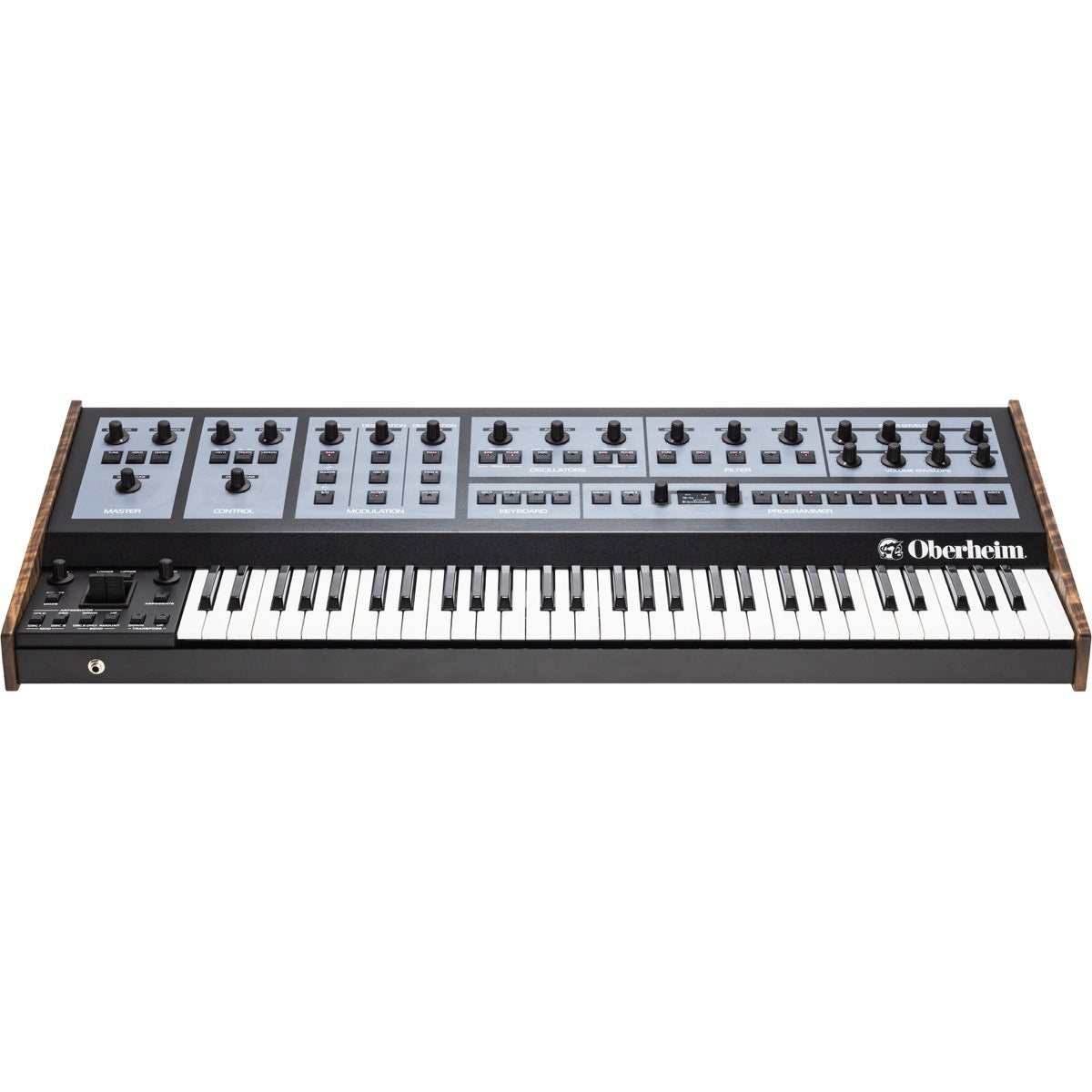

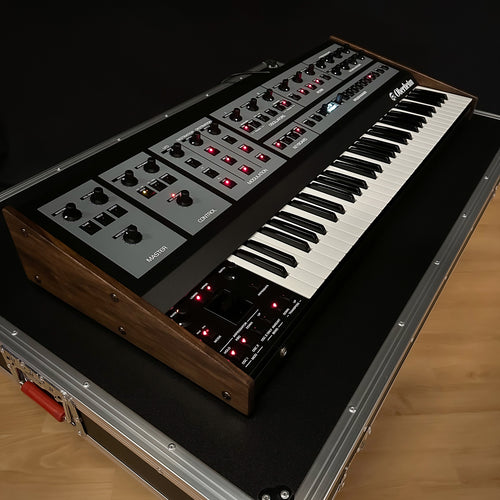

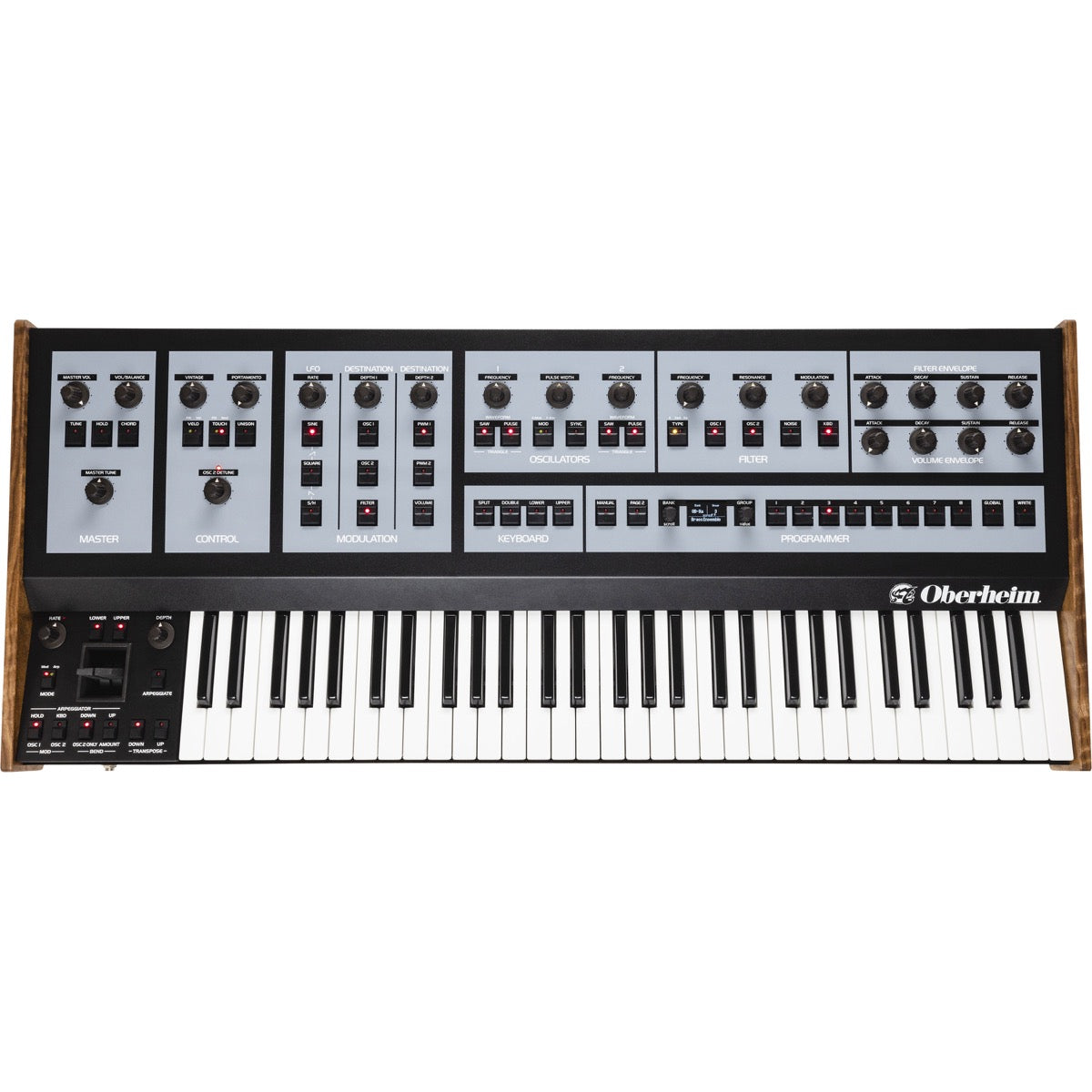

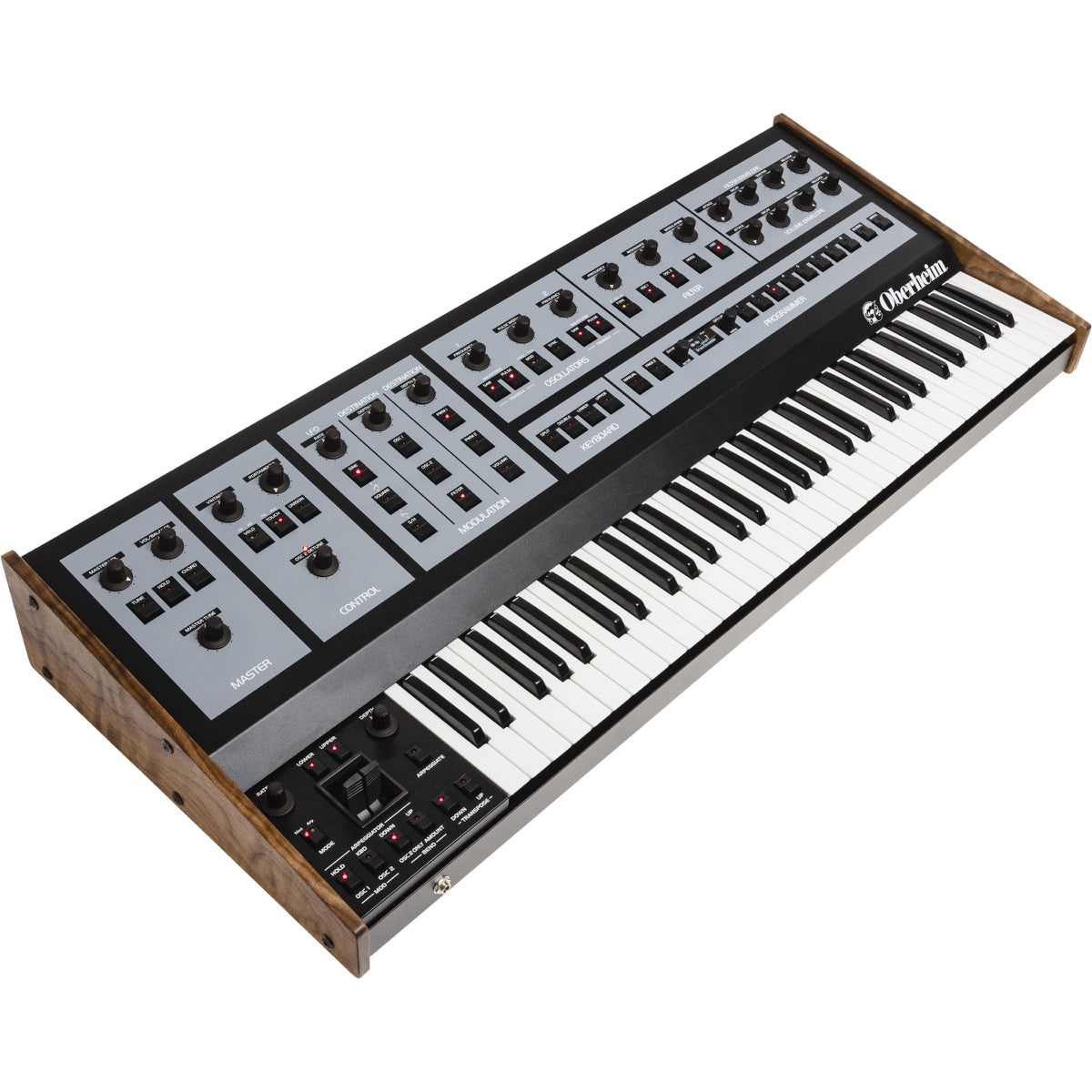

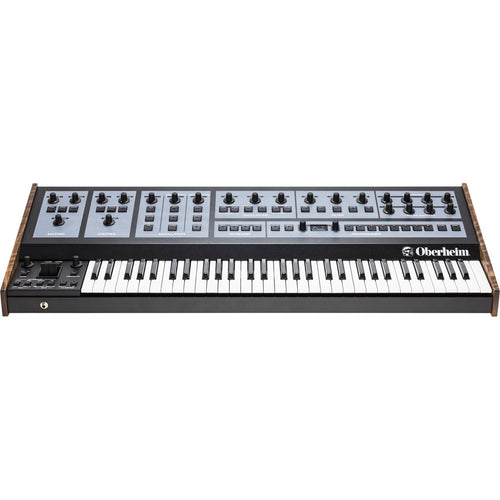

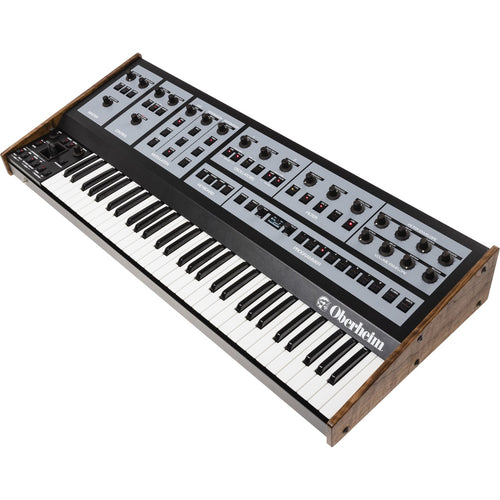

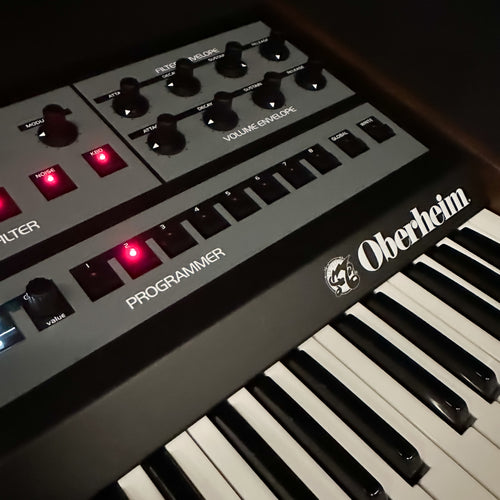

For the first time in more than 40 years, a legendary analog synth sound returns. Oberheim OB-X8 sounds like a classic Oberheim because it is a classic Oberheim. Its 100% analog audio path cuts through a mix like no other synth. OB-X8 is more than just a new OB-series Oberheim – it's engineered to be the best modern OB ever created.
- 8-voice pure-analog polyphony

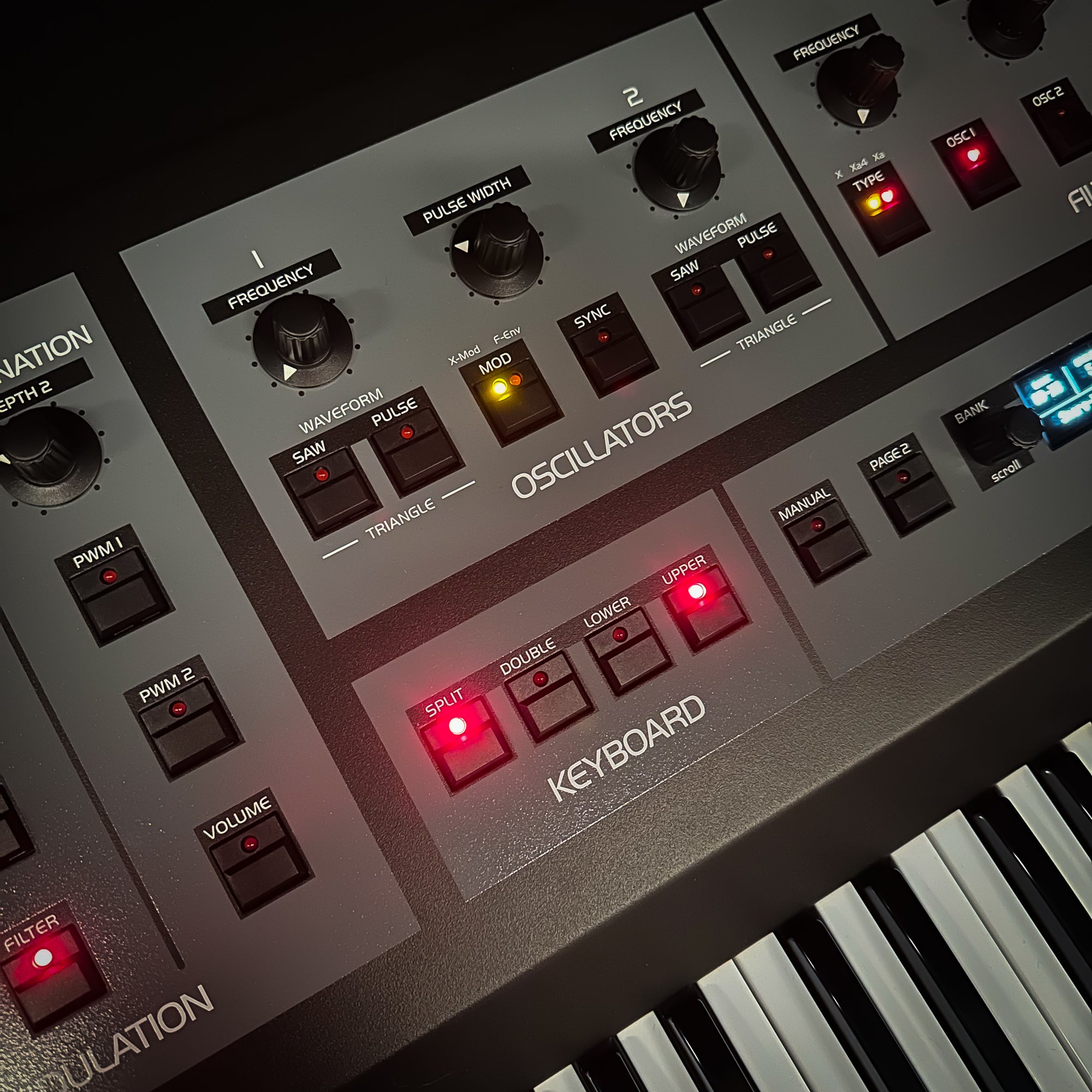

- Two discrete OB-X/SEM-lineage VCOs per voice deliver classic punchy Oberheim tone
- Enhanced unison allows variable voice stacking from 1-8 voices
- Discrete SEM-lineage VCFs deliver authentic OB-X-style tone and presence
- Genuine Curtis filters add bold OB-Xa/OB-8 character
- Additional SEM filter modes add high-pass, band-pass, and notch functions to the classic OB-X filter
- Meticulously modeled envelope responses match each OB model: OB-X, Ob-Xa, and OB-8
- Vintage knob allows variable amounts of voice-to-voice variability to emulate the behavior of vintage instruments
- Programmable per-voice pan allows wider stereo presence
- Bi-timbral capability allows two presets simultaneously for splits and doubles
- 400-plus factory programs, including the full set of factory sounds from OB-X, OB-SX, Ob-Xa and OB-8
- Over 600 user-programmable preset locations
- 61-key Fatar velocity- and touch-sensitive keyboard with channel aftertouch allows unparalleled expression and responsiveness
- Classic Oberheim Pitch and Mod levers allow expressive note bending, vibrato, and access to arpeggiator functions

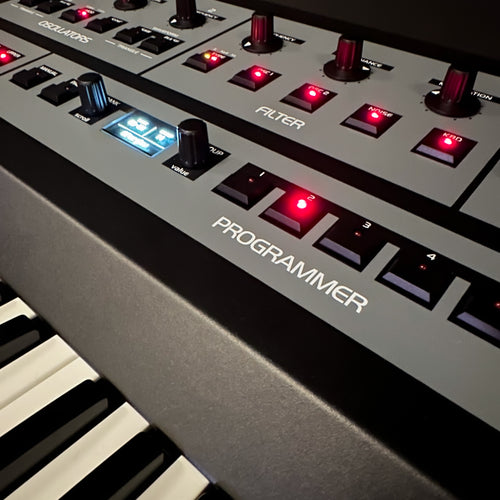

- High-resolution OLED display enables patch management and easy access to advanced features
- Integral fanless, heatsink-free power supply
- Real walnut end cheeks
Pure analog
The audio signal path of OB-X8 is all analog, filled with warmth and punch. It's the same trademark Oberheim sound that made iconic tracks like '1999' by Prince, 'Jump' by Van Halen and 'Tom Sawyer' by Rush so unforgettable, and now it's yours to enhance your own music.
Old sounds and new sounds
The classic OB-series factory sounds that you know from countless recordings are all here, but that's just the start: Oberheim's network of world-class sound designers has created jaw-dropping new sounds just for OB-X8. And because OB-X8 has a clear and easy-to-grasp set of controls, creating your own sounds is as easy as turning a few knobs and saving what you like.
Three in one
OB-X8 combines the three different voice architectures of OB-X, OB-Xa and OB-8 into a single instrument. The individual filter types and other unique characteristics of each model have been faithfully reproduced, giving you the most authentic OB experience possible. You can even mix elements of different models to create sounds never possible with the originals. There's never been an OB-series synth as powerful and versatile.
Meticulously matched
Creating the classic OB sound required more than just replicating vintage oscillators, filters and envelopes. The Oberheim design team exhaustively analyzed and recreated the complex interactions between the various components of each OB-series synth to capture their nuances and character. The result is the most faithful, authoritative renewal of an analog classic possible — with all of the warmth, subtlety and presence of the originals.
Page 2022
OB insiders know about the myriad 'Page 2' functions that unlocked the hidden power of the original OB-8. For OB-X8, Oberheim has included all of the classic Page 2 parameters and created new ones for 2022, giving you direct access to 40+ nuanced controls such as additional SEM filter modes, per-voice panning, LFO keyboard tracking, mod delay time and envelope inversion, independent pulse width control and much more.
A tactile triumph
The unique design of the expression levers was integral to bringing out performances that made the OB-series synths famous. And for even greater expressiveness than the originals, OB-X8 features a premium-quality Fatar keyboard with velocity and aftertouch sensitivity. Dig in with both hands for sizzling filter sweeps, intense vibrato and more.
| SKU | SEQ-OBX8CBK |
| MPN | OB-X8 |
| Vendor | Oberheim |
| Aftertouch | Yes |
| Analog Digital | Analog |
| Built In Speakers | No |
| Included From Manufacturer | Power cable |
| Key Num | 61 |
| Key Size | Full Size Keys |
| Midi | In, Out, Thru, and USB |
| Mono Poly | Polyphonic |
| Mpn | OB-3600 |
| Product Unique Features |
|
| Arpeggiator | Yes |

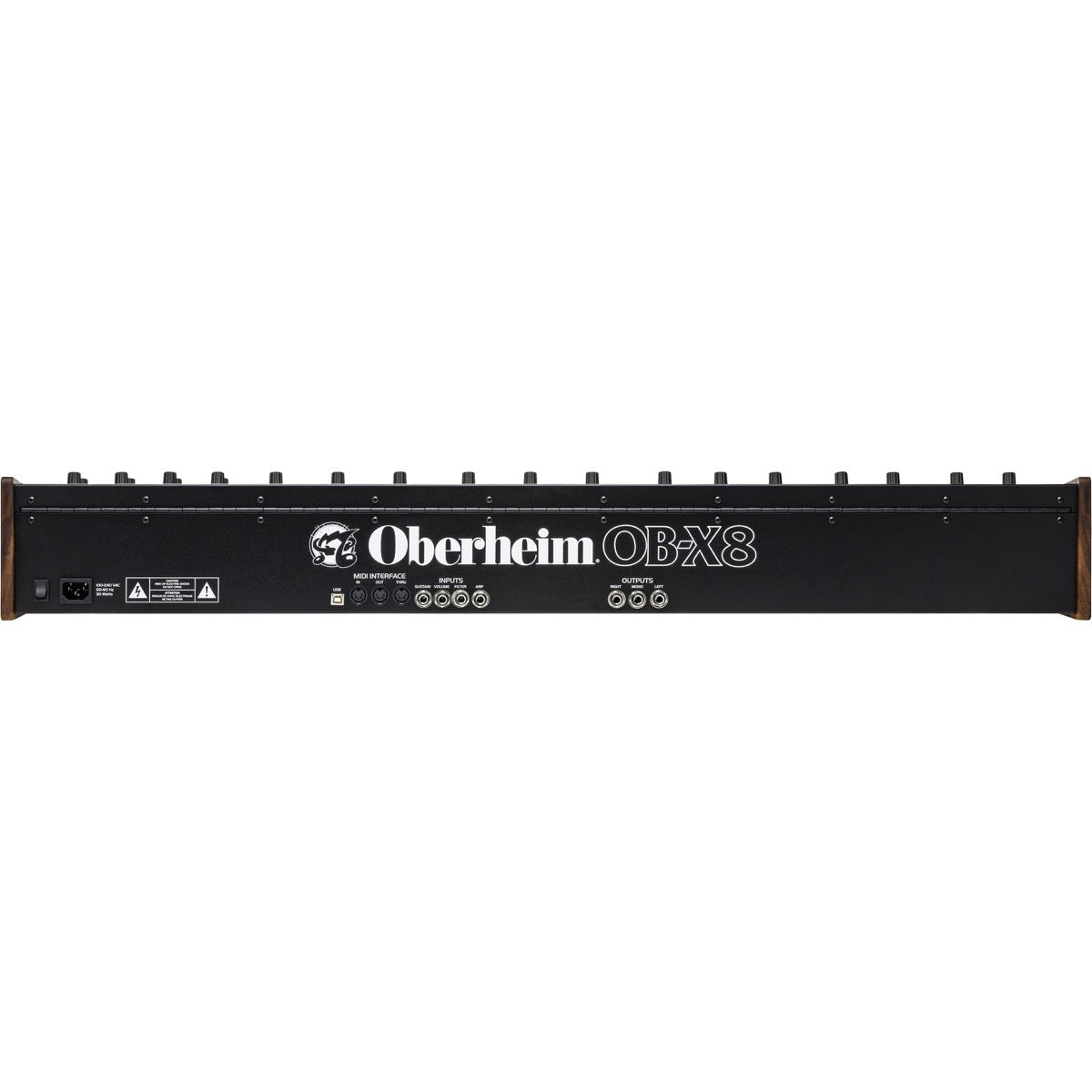

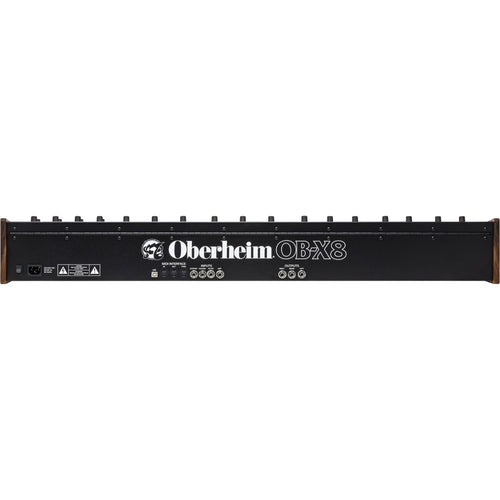

| Control Connections |
1/4" sustain pedal input 1/4" volume expression pedal input 1/4" filter expression pedal input 1/4" arpeggiator clock input |
| Onboard Controllers | Classic Oberheim pitch and mod levers |
| Audio Outputs |
Dual 1/4" stereo main output Separate 1/4" mono main output |
| Key Action | Fatar velocity- and touch-sensitive keybed with channel aftertouch |
| Multitimbral Capability | 2 parts with split, layer and individual volume and pan settings |
| Oscillators per Voice | 2 |
| Product Weight | 32.5 lb |
| Programs/Presets |
600+ user-programmable preset locations 400+ factory programs including sounds from OB-X, OB-SX, Ob-Xa and OB-8 |
| USB Port (to Host) | MIDI |
| Voices of Polyphony | 8 |
| Width | 40.5" |
| Depth | 16.67" |
| Height | 5.87" |
