Roland Fantom 8 EX is the most potent creative keyboard on the planet. The latest chapter in the Fantom legacy supercharges Roland's premier synth platform with next-level capabilities, offering multiple advanced sound engines, enhanced composition and performance tools and superior playability.
Equipped with 88 hammer-action keys, Fantom 8 EX includes every feature from its acclaimed predecessor and so much more. Updated with Roland's most sophisticated technologies, this robust platform brings you a complete creative ecosystem for professional sound design, sequencing and performance.
- Roland's premier synthesizer series, updated and enhanced with the latest technologies
- Powerful and intuitive user interface designed for free-flowing creativity
- Compose and perform with Roland's most advanced sound engines: ACB, Zen-Core, V-Piano, SuperNatural, Virtual ToneWheel and more
- Over 7,000 onboard sounds from the historic Roland library
- Jupiter-8, SH-101 and JX-3P ACB Expansions
- N/zyme, JD-800, Juno-106, Jupiter-8, JX-8P and SH-101 Model Expansions
- V-Piano engine with updated UI and preinstalled German Concert V-Piano Expansion 01
- SuperNatural piano engines and preinstalled SuperNATURAL Acoustic Piano 3 Expansion
- Virtual ToneWheel organs derived from the Roland VK series
- Massive effects library, including studio-grade Shimmer Reverb and Modulation Reverb
- Master FX processor enhanced with ready-to-use presets and updated UI for Mastering Comp and Mastering EQ
- Stereo vocoder with 32 bands
- Professional sequencing tools with clip-based workflow, TR-REC step sequencer, piano-roll editing and more
- Advanced sampling with one-shot playback, pitched keyboard assignment and multisample support
- Large color touchscreen and ergonomic panel layout loaded with knobs, buttons and sliders

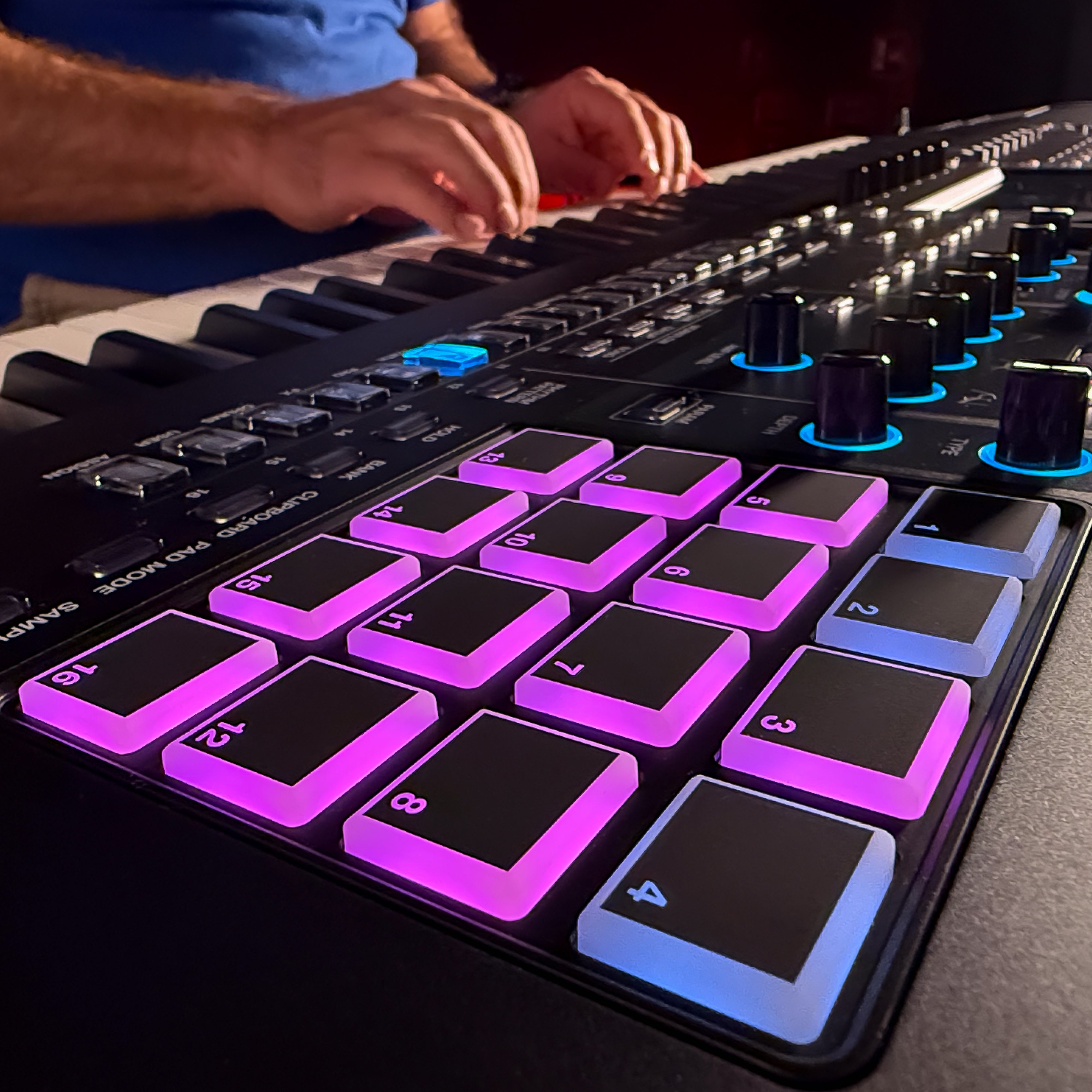

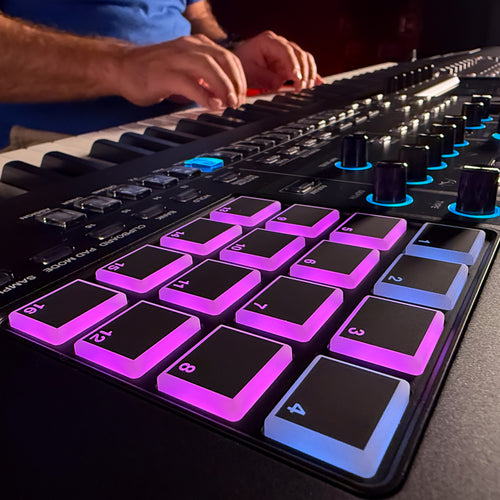

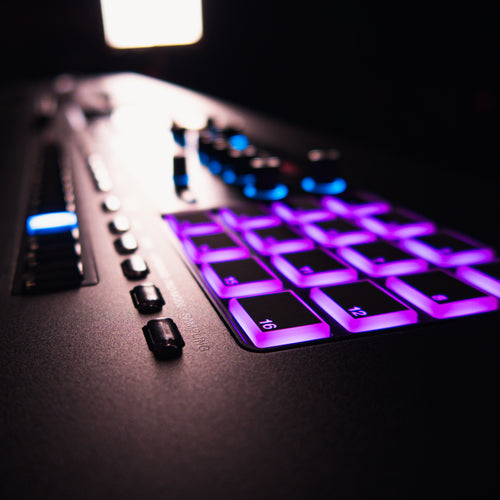

- 16 RGB pads for trigging sounds, samples and clips
- Comprehensive connectivity with multi-channel audio I/O, MIDI I/O, dual CV/gate outputs, USB and more
- 16×3 audio/MIDI USB interface
- Dedicated software control modes for Ableton Live, Logic Pro, MainStage, Cubase and Studio One
- Expand your creative range with Zen-Core Sound Packs and Wave Expansions on Roland Cloud
- Premium 88-note weighted keyboard with hammer action and channel aftertouch
Start your engines
Fantom 8 EX includes the most expansive collection of premium sound engines available in a hardware instrument. ACB, Zen-Core, V-Piano, SuperNatural and other Roland technologies spark inspiration at every turn, providing expressive and inspiring sounds for every musical style.
Create without limits
Fantom 8 EX is designed for non-stop creation, with a highly flexible architecture that lets you bring musical ideas alive in seconds. Freely combine the internal engines to create classic sounds, unique voices and complex sonic textures. Explore fluid composition tools and recall complete creative environments with a touch. Extend your range with integrated control modes for leading music production software. And go even further with a vast selection of premium sound content on Roland Cloud.
Everything at once
Fantom 8 EX delivers the power you need on demand, so you'll never have to compromise your musical vision. Core custom processors provide smooth and precise operation with plenty of overhead, enabling loads of polyphony and full patch remain for seamless transitions. There are dozens of simultaneous effects, including studio-grade reverbs and updated Master FX for shaping the overall sound. A characterful analog filter is also available, perfect for infusing tones with extra warmth and grit.
Complete control

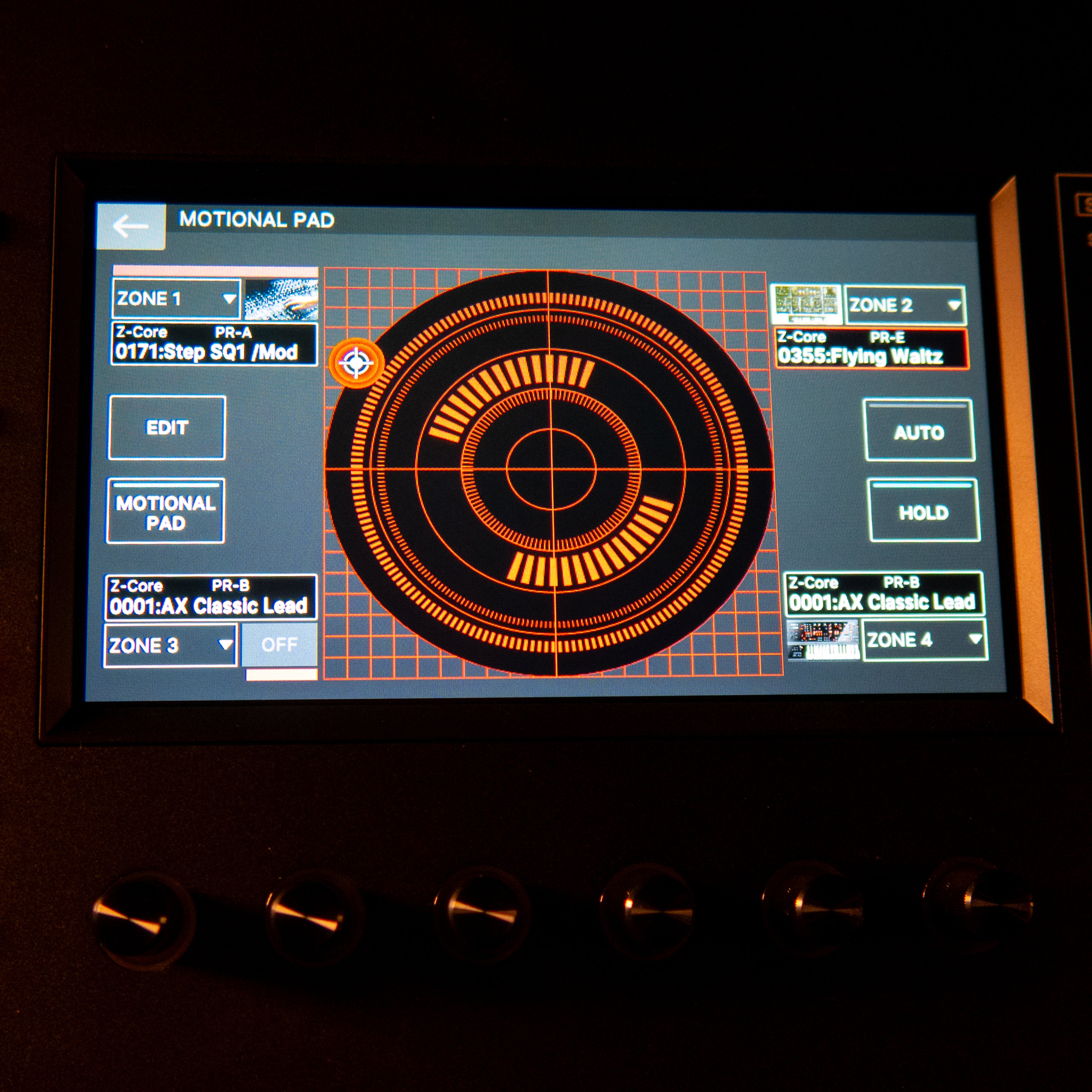

Shape sounds instantly and compose effortlessly with the friendly, ergonomic panel filled with buttons, knobs and sliders. Immerse yourself in a gorgeous color touchscreen that dynamically changes to support the task at hand. And personalize the look by importing custom images for the screensaver and startup view.
Advanced Analog Circuit Behavior
Roland's Analog Circuit Behavior (ACB) technology brings an authentic analog sound experience to life in the digital realm, faithfully recreating analog circuitry and all their interactive behaviors at a component level. Fantom 8 EX features three ACB instruments with the latest advancements, including Circuit Mod and Condition functions for dialing in varying degrees of vintage character.
Jupiter-8 ACB Expansion (preinstalled)
Released in 1981, Jupiter-8 is one of the most revered and sought-after polysynths of all time. The Jupiter-8 ACB Expansion puts a complete circuit-level recreation of this vintage icon inside Fantom 8 EX.
SH-101 ACB Expansion (preinstalled)
The SH-101 ACB Expansion for Fantom 8 EX is an ultra-detailed sonic replica of the famous Roland SH-101 from 1982, an influential monosynth that continues to shape and inspire electronic music styles the world over.
JX-3P ACB Expansion (free download from Roland Cloud)
In 1983, the landmark JX-3P ushered in an era of sleek looks, easy preset recall and stable tuning via analog oscillators under digital control. Indistinguishable from the sound of the original, the JX-3P ACB Expansion brings this underground classic to your Fantom 8 EX workflow.
The Power of Zen-Core
The flexible and expandable Zen-Core Synthesis System leverages decades of Roland R&D to deliver a diverse array of electronic, acoustic and hybrid sounds. Develop nuanced and expressive tones with up to four partials, each with an independent oscillator, filter, amplifier, dual LFOs and effects. And use up to 16 tones in a Scene to build complex splits, layers and sequenced parts.
Model Expansions
From rare and sought-after classics to the designs of tomorrow, Model Expansions provide unprecedented access to the historic and ever-evolving world of Roland synthesizers. Fantom 8 EX comes with six preloaded Model Expansions driven by the versatile Zen-Core system.
N/zyme Model Expansion
N/zyme is a thoroughly modern instrument with an all-new synth engine developed for the Fantom environment. Combining wavetable oscillator layers, phase and shape modulation, resonant filters and two insanely powerful Step LFOs, N/zyme is a highly interactive music tool that sparks endless creative explorations.
Vintage Model Expansions
The vintage-inspired JD-800, Juno-106, Jupiter-8, JX-8P and SH-101 Model Expansions capture the essence of legendary Roland instruments, enhanced with more polyphony and other modern features for today's creators.
World-class pianos
Acoustic piano is the foundational instrument for many keyboardists. The V-Piano and SuperNatural technologies in Fantom 8 EX bring you deeply expressive pianos that sound and feel like the real thing. The V-Piano interface has been refreshed for a smoother workflow, and the German Concert V-Piano Expansion 01 developed for Roland RD-2000 comes preinstalled. Core SuperNatural acoustic and electric pianos are also included, along with the SuperNatural Acoustic Piano 3 Expansion.
Essential organs
Roland's Virtual ToneWheel engine faithfully emulates the sound-generating process of vintage organs, with several tone wheel types, adjustable percussion, key click, leakage and more. There's also a lush rotary effect with variable speed, brake control and tube distortion characteristics. The touchscreen, sliders, knobs and keyboard action are automatically configured to complete the authentic organ experience, providing hands-on control and classic quick-fire playability.
Endless inspiration
On Roland Cloud, you can find an ever-expanding selection of Zen-Core Sound Packs and Wave Expansions to explore. There's a diverse range of styles and new titles added each month, so you'll always keep your music sounding fresh.
Deep DAW integration
Fantom 8 EX flows effortlessly into any computer-based production setup. You have custom touchscreen control and dedicated modes for popular software platforms, including Ableton Live, Logic Pro, MainStage, Cubase and Studio One. With the built-in 16×3 audio/MIDI USB interface, you can mix and layer soft synths with hardware sounds, send sequencer parts to computer tracks, route DAW sources through Fantom 8 EX effects and much more.
Massive connectivity

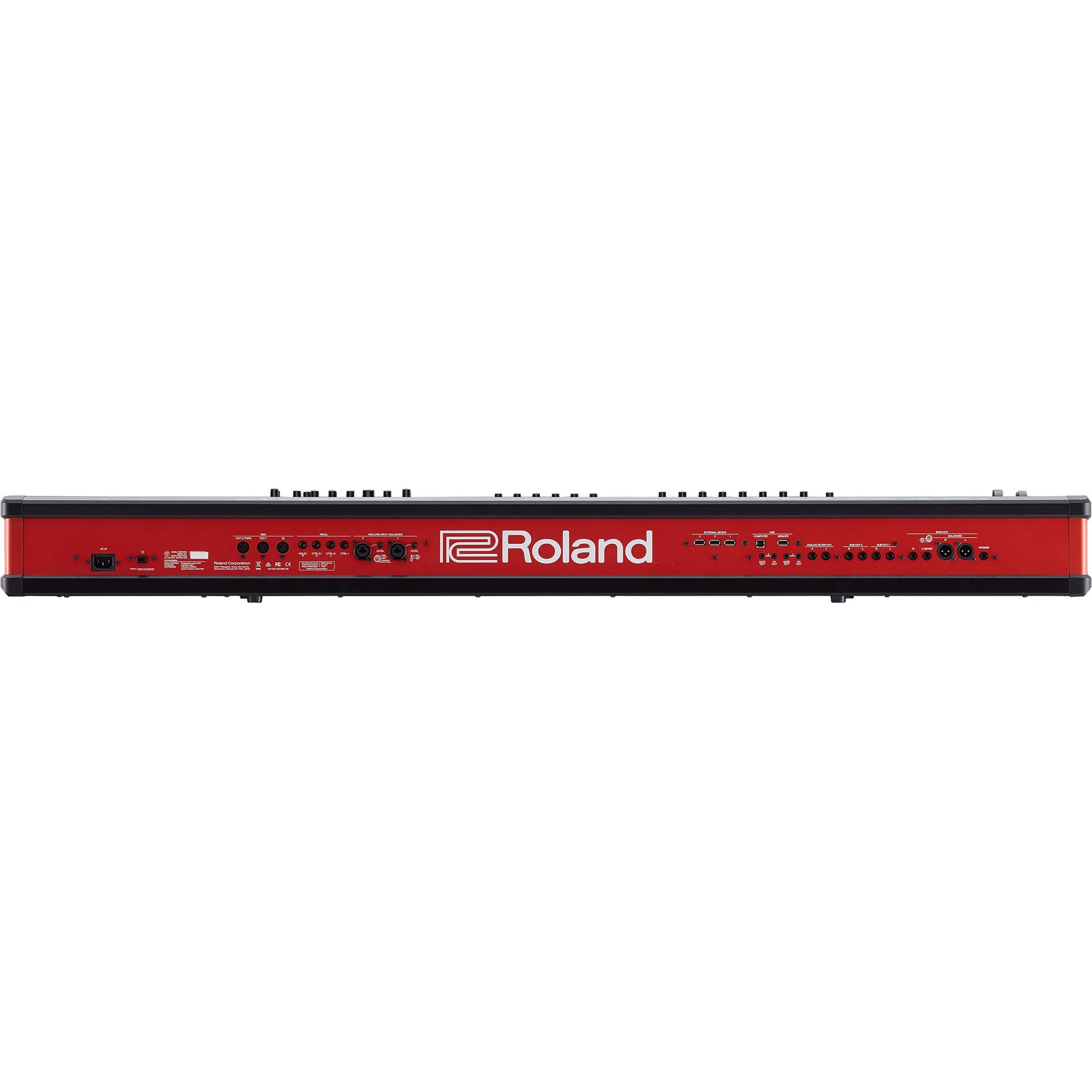

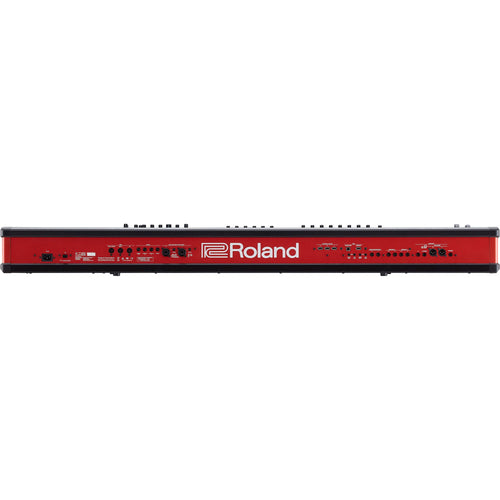

The loaded Fantom 8 EX rear panel lets you interface with nearly anything. Connect mics and instruments via the XLR combo connectors and route sounds to external destinations with eight individual 1/4" outputs. Work with MIDI gear and control software synthesizers directly from the touchscreen. And drive modular and analog synths from the dual CV/gate outputs.
Sampling workstation
With Fantom 8 EX, you can sample internal and external sources – or both at once. Sample directly to the onboard pads for quick triggering or to the keyboard for instant pitched sounds. Or create detailed multisamples with up to 352 samples per tone. You can even use samples as the basis of a Zen-Core tone, taking custom sound design to a new level.
Composition powerhouse
Fantom 8 EX is a versatile musical composition platform that excels at speedy creation. Build arrangements in a flash with the clip-based workflow. Trigger sounds, clips and patterns with the 16 RGB pads. Compose with the classic TR-REC style step sequencer or capture sounds in real time. And fine-tune tracks with the large touchscreen and intuitive piano-roll editing.
A universe of Roland effects
High-quality effect processing is essential to professional sound design and music production. Fantom 8 EX is packed with on-demand effects from the vast Roland library, ready to infuse your parts with color, space and depth. Shimmer Reverb and Modulation Reverb algorithms offer sonic quality that rivals the finest standalone processors. There's also a dedicated Master FX processor with preset templates for fast results and refreshed graphical interfaces for the Mastering Comp and Mastering EQ sections.
Premium keyboard action
Each Fantom EX model comes equipped with a premium keyboard and aftertouch support. Fantom 8 EX offers the ultimate weighted experience with 88 hammer-action keys. Precision-crafted with decades of Roland development knowledge, this inspiring keyboard delivers the most expressive playability available.
Unmatched creative command

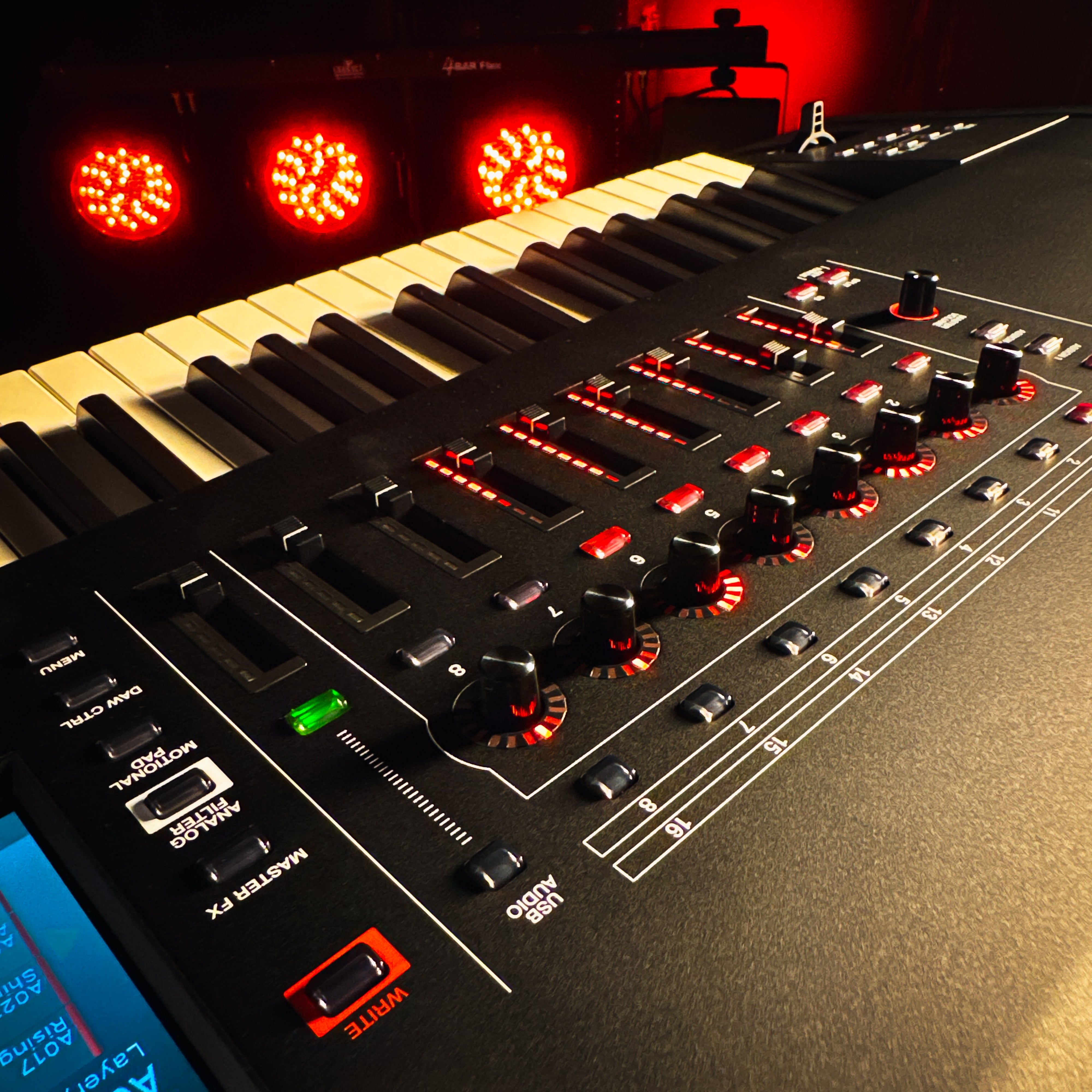

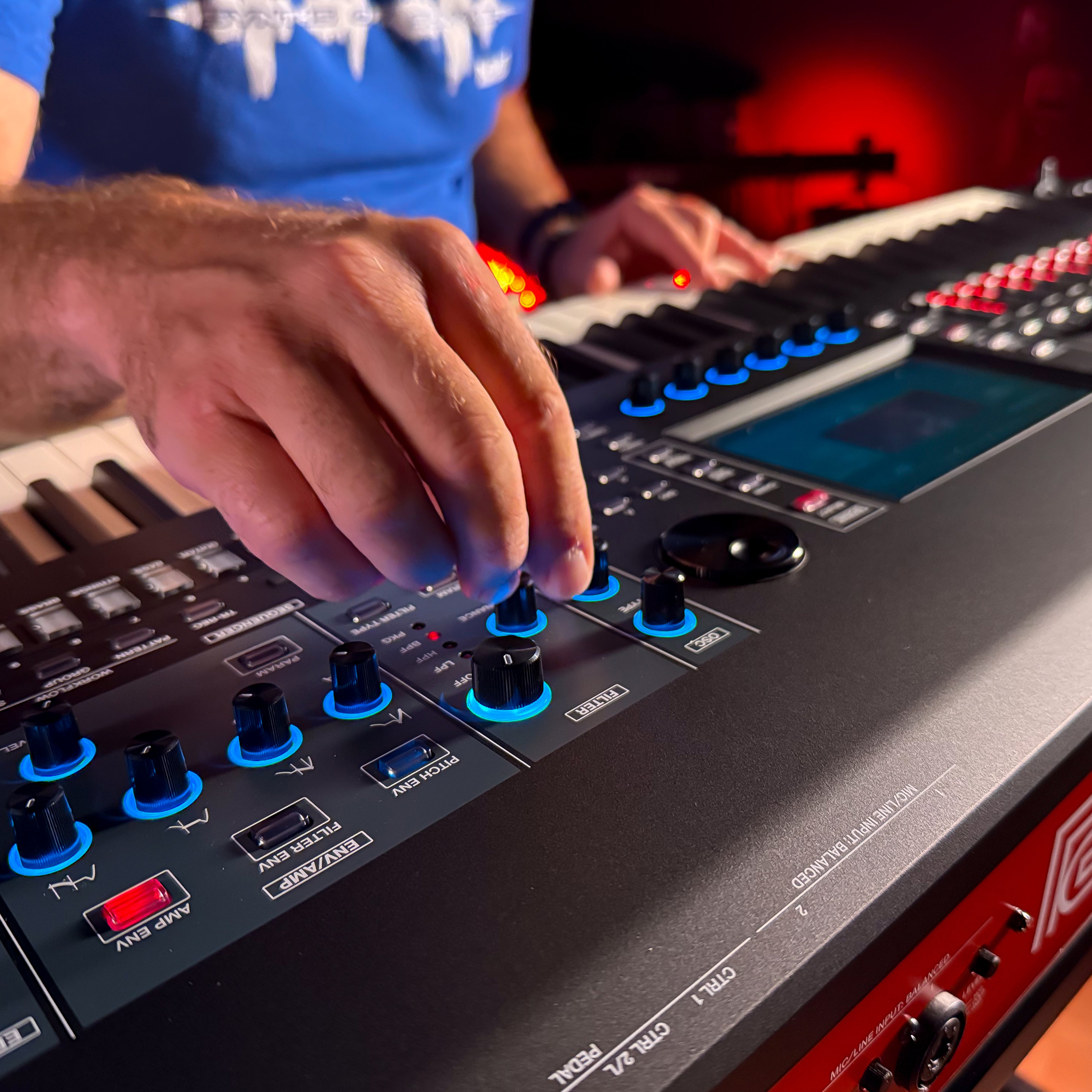

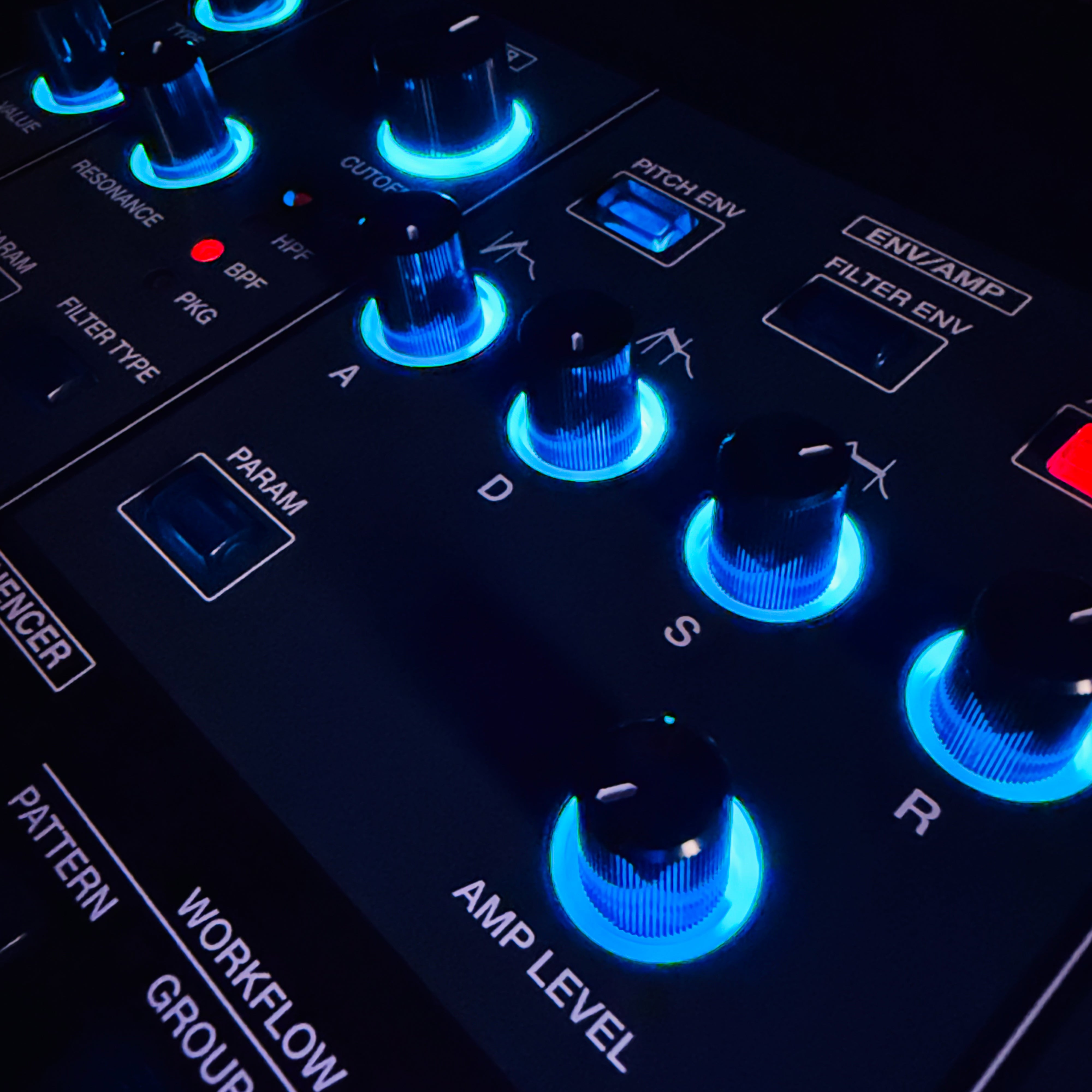

There's an ample selection of knobs and sliders for intuitive and immediate control, with high-resolution data entry for detailed tweaks and ultra-smooth sweeps. The dedicated synthesizer section features oscillator, filter and envelope controls, and there are numerous buttons and pads for triggering and sequencing. It's even possible to connect up to three class-compliant USB MIDI controllers to expand your workflow.
Robust and rugged
Fantom 8 EX is built using the high construction standards you expect with a flagship Roland instrument. From the sturdy metal chassis to the top-grade components and connectors, this synth is ready to withstand the rigors of nightly gigging and global touring.
SKU | ROL-FANTOM8EXCK |
Model Name | Fantom 8 EX |
Vendor | Roland |
Aftertouch | Yes |
Analog Digital | Digital |
Built In Speakers | No |
Included From Manufacturer | Power cable |
Keys Weighted | Hammer Weighted |
Number of Keys | 88 |
Key Size | Full Size Keys |
Midi | In, Out, Thru, and USB |
Mono Poly | Polyphonic |
MPN | FANTOM-8EX |
Product Unique Features |
16×3 stereo audio interface Fully routable analog filter Dual CV/gate outputs for integration with analog synthesizers and eurorack modular systems Full patch-remain for seamless transitions Extensive computer integration with Apple Logic, Mainstage and Garage Band Clip-based sequencing for quick arrangements USB device ports support USB controllers for enhanced expression |
Arpeggiator | Yes |
Control Connections | (4) 1/4" pedal inputs: HOLD, CTRL1, CTRL2, CTRL3 |

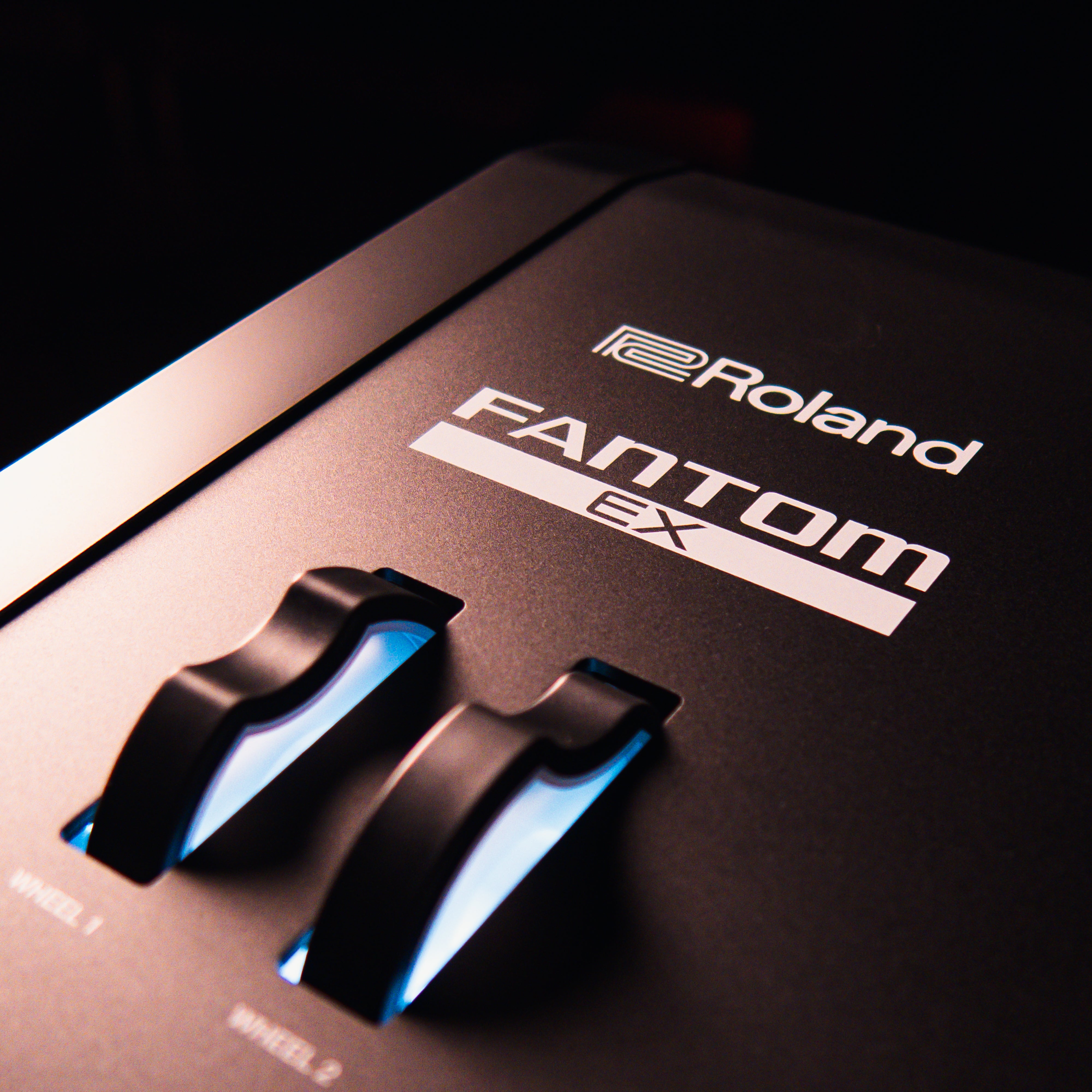

Onboard Controllers | 7" 800×400 backlit LCD color touchscreen Pitch bend / modulation lever (2) assignable buttons (S1/S2) (8) control knobs (8) control sliders (2) assignable wheels (6) function knobs (16) velocity-sensitive pads |
Effects | Chorus: 8 types Reverb: 6 types Multi-effects: 16 systems, 90 types Insert effects: 2 systems, 90 types Part EQ: 16 systems Drum part comp: 6 systems Master compressor Master EQ Mic input reverb: 6 types |
Expansion Options | (2) 1/8" CV outputs usable with keyboard and/or sequencer (2) 1/8" gate outputs usable with keyboard and/or sequencer |
Audio Inputs | (2) mic/line 1/4" / XLR combo inputs |
Audio Outputs | Dual stereo XLR balanced main output Dual stereo 1/4" output Dual stereo 1/4" SUB OUT 1 outputs Dual stereo 1/4" SUB OUT 2 outputs (2) 1/4" analog filter outputs |
Key Action | PHA-50 wood and plastic hybrid structure with escapement and ebony/ivory feel, channel aftertouch |
Multitimbral Capability | 16 parts |
Product Weight | 61 lb 2 oz. |
Programs/Presets | Over 3,500 tones Over 90 drum kits |
Sampling | Format: 16-bit linear, 44.1/48kHz, WAV/AIFF import supported Maximum polyphony: 8 Number of samples: 16 pads × 4 banks |
Sequencer | MIDI tracks: 16 (internal/external) Group: 16 Pattern: 8 per track Pattern length: 32 measures Recording methods: realtime, step recording, TR-REC |
USB Flash Drive Port (to Device) | Program/Preset Storage |
USB Port (to Host) | MIDI;Audio;System Updates;File Transfer |
Width | 56.4375" |
Depth | 17.875" |
Height | 6.0625" |
Roland Limited Warranty
This product is warranted to be free from defects in material and workmanship under normal use for a period of one (1) year for parts and and ninety (90) days for labor from the date of purchase.
