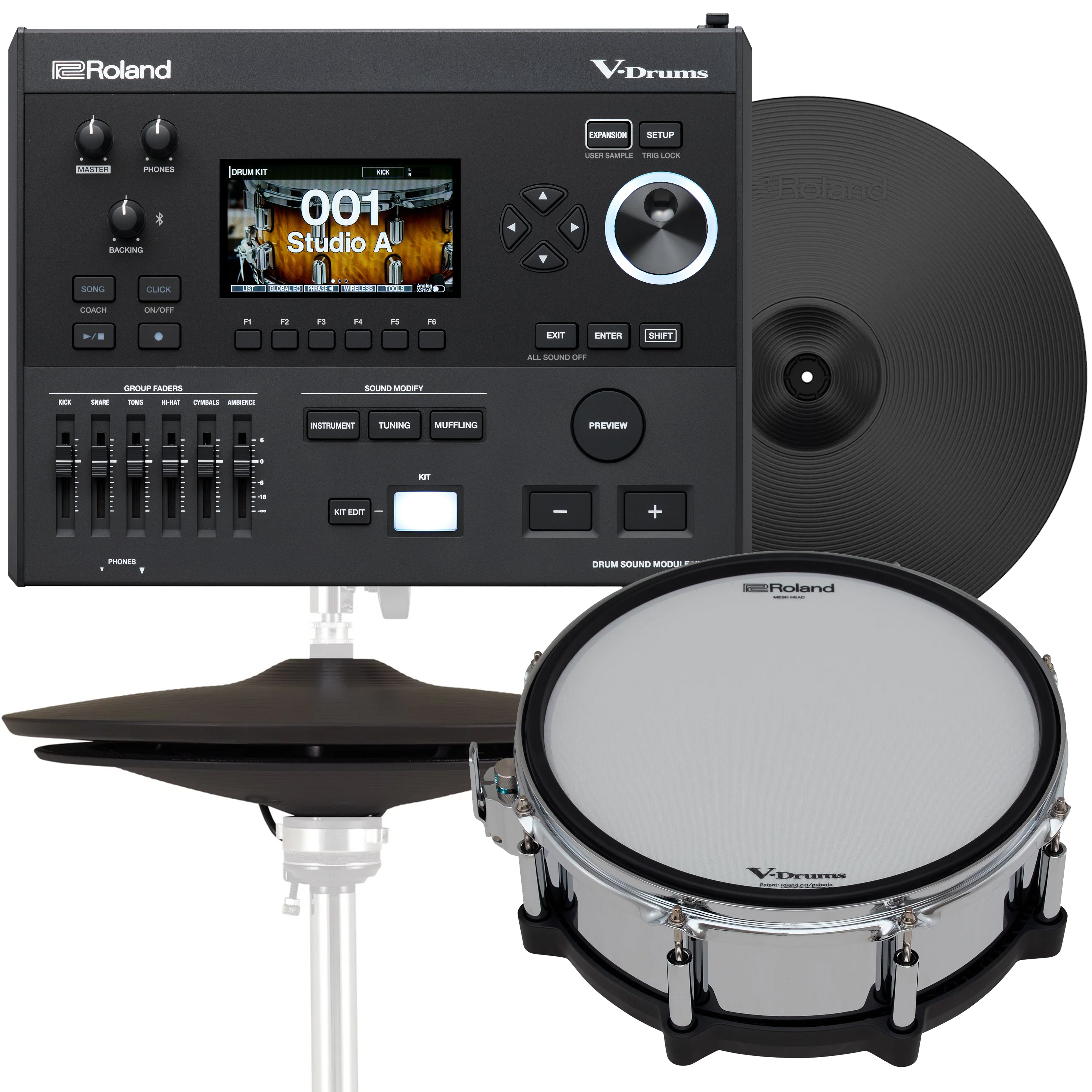

Roland V51 V-Drums Electronic Drum Sound Module UPGRADE KIT

About the V51 Module

The Roland V51 sound module is the centerpiece of the V-Drums 5 Series, delivering the advanced engine of the flagship V71 in a compact, mid-range module. With multi-layered DW drum samples, intuitive controls, and powerful practice and performance tools, it offers drummers a versatile, professional-grade experience. Integrated Bluetooth audio, Wi-Fi, and smartphone app support allow you to play, stream, and expand your kit with ease, while Roland Cloud keeps your sound options growing alongside your skills.

Key Features

• Expandable V-Drums sound module powered by the same advanced drum engine as the top-tier V71
• Multi-sampled onboard sound library created in collaboration with DW
• Full cross-compatibility with V-Drums Instrument Expansions and Kit Packs (V71 & V31 ecosystem)
• High-resolution 4.3-inch color screen, panel faders, and intuitive interface for fast navigation
• Three dedicated pad inputs for Roland digital snare, ride, and hi-hat pads
• Quick Sound Modify section for tuning, muffling, and kit adjustments
• Stereo master output and two assignable mono outputs for versatile routing
• Integrated coach mode, phrase trainer, stroke monitor, and exclusive Melodics content
• USB-C multi-channel audio and MIDI connectivity for DAW and software integration
• Bluetooth audio for streaming music and backing tracks
• Audio recorder with SD card slot for fast recording and playback
• Analog mix input for music playback or Roland percussion pads
• Wireless support and smartphone app integration for module management and expansion control
• Access to Roland Cloud for multi-layered V-Drums Instrument Expansions based on premium DW drum sets

Module Specs

• Number of Instrument Sounds: More than 1,000
• Number of Drum Kits: 200 (70+ presets)
• Trigger Inputs: DB-25 connector (Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control), 4 x 1/4" TRS, 3 x USB A DIGITAL TRIGGER IN
• Metronome: Yes
• Sequencer/Recording: Realtime recording; approx. 40,000 notes (SMF export), up to 60 min audio (WAV 44.1 kHz/16-bit)
• Sampling: User sample import (max. 500 samples); 24 min mono / 12 min stereo total; WAV 44.1 kHz, 16/24-bit
• Audio Inputs: MIX IN (stereo 1/4")
• Audio Outputs: MASTER OUT (L/MONO, R 1/4" unbalanced), DIRECT OUT x2 (1/4" TRS unbalanced), PHONES x2 (1/4" stereo, mini stereo)
• Storage Type: SD/SDHC card
• Dimensions: 12-1/2" W x 9-11/16" D x 4-1/16" H (316 x 246 x 103 mm)
• Product Weight: 5 lbs 5 oz (2.4 kg)

Next-Level Drum Sounds with DW Engineering

Developed alongside Drum Workshop (DW), the V51 brings record-ready, multi-layered drum and cymbal sounds directly to your kit. Each tone is crafted from hand-selected premium drum sets, delivering unmatched detail, punch, and realism. With the same internal engine as the V71, the V51 ensures the same high-end sound quality and expansion path in a compact design.

Intuitive Module Controls & Studio-Ready Outputs

Featuring dedicated knobs, faders, and a high-resolution color display, the V51 allows real-time adjustments to tuning, muffling, and instrument levels. Stereo master outputs and assignable mono outputs provide flexible routing for studio or stage, while three dedicated trigger inputs support Roland’s high-resolution digital pads for precise and responsive play.

Built-In Training Tools for Precision and Timing

Onboard coach mode keeps your playing sharp with advanced metronome functions, Time Check, Quiet Count, Phrase Trainer for rhythmic exercises, Stroke Monitor for stick control, and Blast Beast for accuracy and endurance. V-Drums 5 Series kits also include Drum Pass, a curated set of 100 Melodics™ interactive lessons designed specifically for V-Drums players.

Expand Your Sound Library Anytime with Roland Cloud

The V51 gives you instant access to a growing collection of V-Drums Instrument Expansions via the Roland Cloud Connect app. Browse, download, and apply new sounds directly to the module wirelessly, keeping your kit fresh and inspiring for every performance.

Ultra-Realistic Playability and Dynamic Response

Featuring multi-layer sample playback, round-robin randomization, and proprietary behavior modeling, the V51 delivers natural articulation and over 16,000 dynamic variations with compatible digital pads. Each stroke feels fluid and expressive, making the experience feel just like an acoustic kit.

Free Roland Cloud Ultimate Access for V-Drums

Every V-Drums 5 Series kit includes six months of Roland Cloud Ultimate membership. Access V-Drums Instrument Expansions, Kit Packs, DW Soundworks, and more. Continue your membership or purchase Lifetime Keys to keep your favorite expansions forever.

Seamless DAW Integration and Multi-Channel Recording

With integrated USB-C audio and MIDI, the V51 communicates with DW Soundworks, the V31 Editor, and your favorite DAWs. Capture up to 30 audio channels over a single connection for professional multi-track recording, while maintaining low-latency, high-fidelity sound for both live and studio use.
