Create instant retrofuture atmosphere with evocative vintage delay tones. Activate your imagination with evolving ambient echoes and warm, organic feedback with just the right amount of grit. Sculpt your soundscape in real time as Volante becomes an extension and expansion of your musical instrument. Infuse your pedalboard with stunning vintage vibes that resonate and inspire.
Delivering truly exceptional sound quality and intuitive playability, Volante is designed to radically enhance the sonic expressiveness of your pedalboard. Featuring magnetic drum echo, tape echo, and reel-to-reel studio echo, Volante is a stereo multi-head delay that also offers a Sound on Sound mode and a vintage spring reverb algorithm. Volante’s powerful sound-sculpting controls provide limitless sonic possibilities.
- Multi-head magnetic media delay machine providing four playback heads with individual feedback, panning, and level controls
- Processor-intense algorithms deliver meticulously nuanced recreations of vintage magnetic echo systems (drum echo, tape echo, studio reel-to-reel echo)
- Dedicated control over echo machine tone and media: Low Cut, Mechanics, Wear
- Input Record Level for clean reproduction to warm, fat saturation
- Independent Spring Reverb
- Sound on Sound looping mode (mono) with reverse, pause, splice, and infinite repeat functions
Individual head control
Each head’s playback level can be set for full volume, half volume, or off. You can switch each head in or out of the feedback circuit, or even even switch heads into the feedback circuit that are not activated for playback.
Not only does Volante deliver the warm, luscious delay signals that magnetic echo machines are known for, it is also capable of a high degree of saturation from its analog class! JFET input preamp circuit.
Dedicated spring reverb
Some of the classic tape echo machines included small integrated spring reverb tanks tuned to limited bandwidth. Volante captures this vibe with a gorgeous spring reverb algorithm.
Instant access to eight presets
The playback/feedback buttons represent preset locations, and you can use the FAVORITE footswitch to recall from or save to any of Volante's eight locations.
Variable head spacing
Volante gives you a SPACING control that is adjustable between Even, Triplet, Golden Ratio (for dense, non-overlapping echoes) and Silver Ratio (for non-overlapping repeats biased toward the quarter note).
Panning for each head
Volante allows you to set the pan of each head left or right individually for spacious multi-head stereo delays.
Playable echo feedback
Volante really sings when pushed to extremes! When you turn up Volante’s REPEATS knob, you get all the richly evolving, super-spacey sonic textures you could dream of.
Three speed options
Volante’s SPEED switch selects the speed of the recording media and allows you to run any of Volante’s three magnetic echo machines at half, normal, or double speed. Fidelity is higher at higher speeds, while lower speeds result in warmer repeats and more pronounced effects.
While performing in Echo mode, press and hold the ON footswitch to activate Infinite Repeats, and regardless of your current REPEATS setting, Volante will crank up the echo regenerations for quickly-building delay feedback.
In Sound on Sound mode, press the ON footswitch, and the entire loop length will play in reverse. You can continue recording new audio to layer with the reversed audio.
Tape stop/start effect
The PAUSE footswitch is part of Volante’s faithful recreation of a variable speed magnetic echo unit, with mechanical slowdown when pausing and mechanical speedup when coming out of pause.
With full MIDI control of every parameter plus 300 preset locations, Volante is designed to be the center of sonic expressiveness for your MIDI pedal board. Volante transmits and receives MIDI over 5-pin DIN, USB, and even the Expression jack.
Connect an expression pedal and enjoy a whole new level of instantaneous, continuous control. Set as many knobs as you like for the heel position and toe position of your expression pedal, and all settings will simultaneously morph throughout the full range of the expression pedal.
Line level switch
Volante offers an input level switch to work perfectly with a variety of input sources. Set to LINE when using Volante in the effects loop of a guitar amp, or when driving Volante with a hot output from a synth or mixer insert.
Connect MultiSwitch Plus to Volante’s Expression Pedal jack for additional footswitchable control. Use MultiSwitch Plus to select between three presets, remote control of the SPEED switch, remote transport control, or for additional foot control while in Sound on Sound mode.
|Included From Manufacturer
|9V DC power supply included

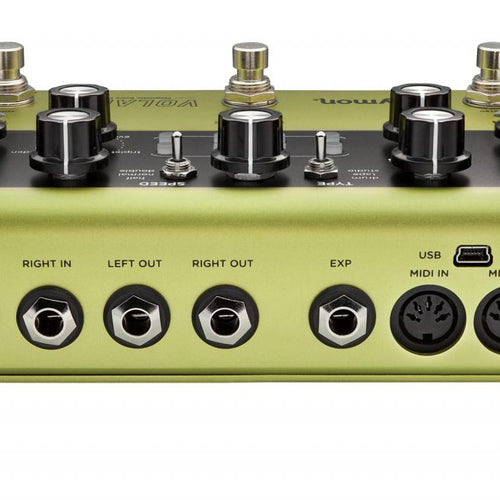

|Expression pedal input allows the connection of an expression pedal, MultiSwitch Plus, or 1/4” to MIDI cable
|1/4" high impedance ultra low-noise discrete Class A JFET preamp stereo inputs
|1/4" low impedance stereo outputs
|Number of Patches/Programs
| 8 Presets
300 MIDI preset locations
|Number of Pedal Switches
|9V DC power supply included
Strymon Non-Transferrable Limited Warranty
Strymon warranties its products and their varying components to be free from defects in material and workmanship for the following periods of time from the original date of purchase when purchased from an authorized Strymon dealer:
- 2 years – Compadre, Iridium, NightSky, Riverside, Sunset, Volante, Zelzah
- 1 year – BigSky, blueSky, Brigadier, Deco, DIG, El Capistan, Flint, Lex, Mobius, OB.1, Ola, Orbit, TimeLine
- 2 years – AA.1, Magneto, StarLab
- 5 years – Zuma, Zuma R300, Ojai, Ojai R30
- 1 year – Factory power supplies for pedals
- 2 years – Conduit
- 1 year – MiniSwitch, MultiSwitch Plus, original MultiSwitch, MIDI EXP Cables, DC Power Cables, EIAJ-05 Link Cables, 24V Power Adapter for Ojai/Ojai R30, Polarity Reversal Adapters, Voltage Doubler Adapters, Daisy-Chain Power Cables
If the product fails within the warranty period, Strymon will repair or, at its discretion, replace the product at no cost to the original purchaser.
This warranty covers defects in manufacturing discovered while using this product as recommended by Strymon. This warranty does not cover loss or theft, nor does the coverage extend to damage caused by misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters. Damage caused by any of the above circumstances may result in a non-warranty repair fee.
Products that were purchased from an unauthorized dealer are not covered under warranty. The warranty is non-transferrable and does not cover used or second-hand products.
Limits of liability
In the case of malfunction, the purchaser's sole recourse shall be repair or replacement, as described in the preceding paragraphs. Strymon will not be held liable to any party for damages that result from the failure of this product. Damages excluded include, but are not limited to, the following: lost profits, lost savings, damage to other equipment, and incidental or consequential damages arising from the use, or inability to use this product. In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
How to obtain service under this warranty
Contact Strymon through its website for return authorization and information. Proof of original ownership may be required in the form of a purchase receipt.
