Studio Electronics Tonestar 2600 is an ARP 2600-inspired synth voice 31 years in the shaping, pre-patched like Pearlman's prodigy, and fully 'outs to outs' modular. Connect CV/gate and twist 'n' switch, or pull its tones and voltages apart one patch cord at a time. 26 knobs, 7 switches, and 21 jacks make for complex and satisfying signal flow, color and collisions. If it gets reedy, just route the triangle wave 'round the VCF!
- Premium quality analog pre-patched and fully modular all-hardware synth voice
- 26 knobs, 7 switches, 21 patch points in a daring yet ergonomic 32hp module
- Eight octave tracking ARP-, Oberheim- and Moog-styled oscillator with sub-oscillator, octave control, waveform mixing, triangle direct to VCA, and LFO/ADSR modulation of pulse width with dedicated triangle wave for warming/chorusing effects
- 24dB/octave cascaded transconductance lowpass filter employing six pairs of hand-matched transistors (think 'orange and black' ARP 2600) with input drive control, variable tracking and voltage-controlled resonance - four-pole ARP 4072 magic without the 12kHz cutoff flaw
- Classic ADSR/AR envelope with original 2600 'sustain sink' behavior to keep it movin'
- Ultra wide-ranging voltage-controlled LFO with input speed control
- Drone mode: instant infinite sustain
- Master mode: ADSR controls both filter and amplifier envelopes (a la JUNO-106)
- Feedback! Harmonic-generating/multiplying oscillator/filter feedback loop manipulation
- White noise generator and external audio input patching with native tonal bleeding
- Legendary Studio Electronics 31-year-perfected through-hole build quality and supreme sound

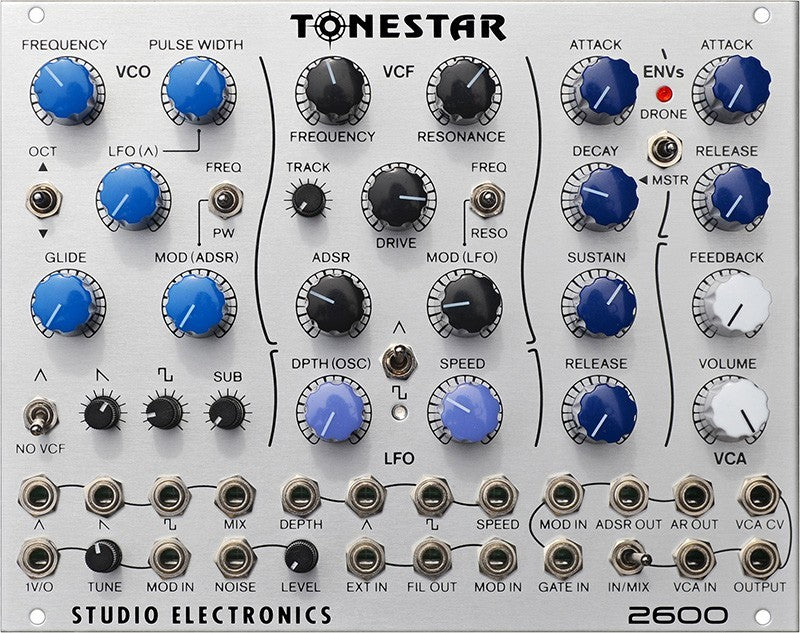

- Module controls
- FREQUENCY knob: oscillator frequency attenuator.
- PULSE WIDTH knob: variable pulse wave width control.
- OCT switch: +1/-1 octave switch.
- LFO (^) knob: triangle wave low frequency oscillation to pulse width control.
- FREQ/PW switch: oscillator frequency, or Pulse (square wave) width to ADSR modulation routing switch. Center off.
- GLIDE knob: slew generator control.
- TRIANGLE (symbol) / NO VCF switch: triangle to VCA switch-bypasses VCF.
- MOD (ADSR) knob: oscillation modulation via ADSR control.
- SAWTOOTH (symbol) knob: sawtooth wave attenuator.
- SQUARE (symbol) knob: square wave attenuator.
- SUB knob: square wave sub-oscillator attenuator.
- LEVEL knob: Noise attenuator.
- FREQUENCY knob: frequency, or cut-off attenuator
- RESONANCE knob: resonance, or Q attenuator.
- TRACK knob: keyboard/voltage tracking attenuator.
- DRIVE knob: oscillator output to filter input attenuator.
- FREQ/RESO switch: filter frequency, or resonance to LFO modulation routing switch. Center off position.
- ADSR knob: filter to ADSR envelope attenuator.
- MOD (LFO) knob: filter to LFO attenuator.
- TRIANGLE/SQUARE (symbols) switch: waveform select switch (triangle core).
- DPTH (OSC) knob: LFO to oscillator control.
- SPEED knob: Speed or rate attenuator.
- ATTACK knob: attack stage control.
- DECAY knob: decay stage control.
- SUSTAIN knob: sustain stage control.
- RELEASE knob: release stage control.
- DRONE/MSTR switch: indefinite/instant sustain, and master mode for ADSR routing switch. Center off.
- ATTACK knob: attack stage control
- RELEASE knob: release stage control.
- FEEDBACK knob: oscillator/filter feedback loop control.
- VOLUME knob: master volume control.
- Patch points
- TRIANGLE (symbol) output: waveform output.
- SAWTOOTH (symbol) output: waveform output.
- SQUARE (symbol) output: waveform output.
- MIX output: composite waveform output.
- 1V/O input: one volt per octave control voltage input.
- TUNE input: master fine tune (approx. -5/+ 5 semitones).
- MOD IN input: modulation CV input. Normalled to ADSR; ADSR is replaced when alt. source connected.
- NOISE output: white noise generator output.
- EXT IN input: external audio input.
- FIL OUT output: filter audio output.
- MOD IN input: frequency or resonance modulation CV input.
- DEPTH input: LFO depth control voltage input.
- TRIANGLE (symbol) output: triangle wave output.
- SQUARE (symbol) output: square wave output.
- SPEED input: speed or rate CV input.
- MOD IN input: modulation input.
- ADSR OUT output: ADSR output.
- AR OUT output: AR output.
- VCA/CV output: amplifier control voltage output.
- IN/MIX input: VCA mix input switch (normalled jack). When set to IN, external audio replaces filter output to VCA; when set to mix MIX, filter output is fed along with the filter audio to VCA.
- VCA IN input: audio input.
- OUTPUT: main output.
- Physical specifications
- Size: 32hp
- Module depth: 35mm (including connectors)
- Power usage: 130mA @ +12V, 80mA @ -12V
|Module Type||Synth Voice|
|Module Power Usage|| 130mA @ +12V
80mA @ -12V
|Depth||35mm (including connectors)|
