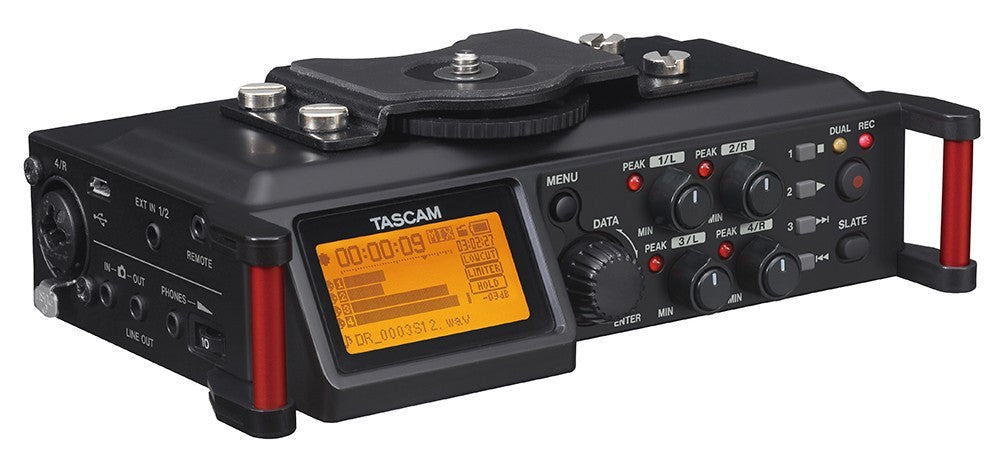

TASCAM DR-70D Linear PCM Recorder for DSLR

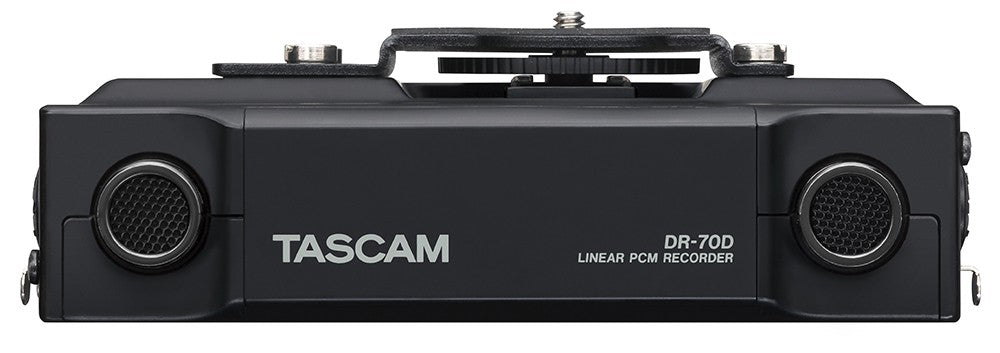

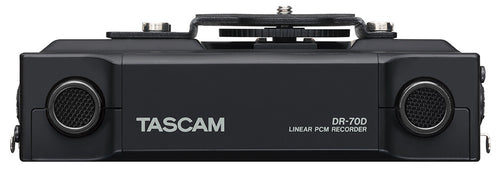

The DR-70D from TASCAM is the ultimate audio recording solution for filmmakers. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.

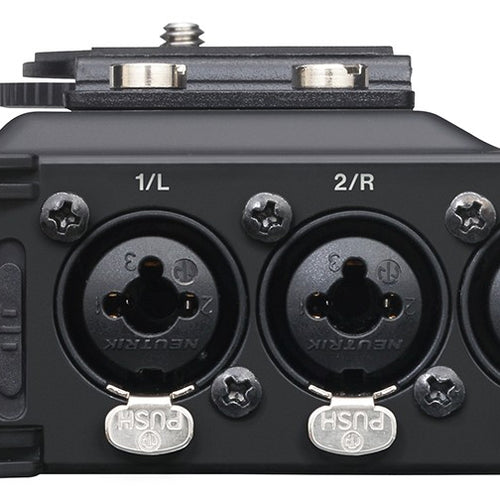

Four XLR mic inputs with phantom power are included on the DR-70D, enough to cover busy scenes. The High-Quality HDDA(High Definition Discrete Architecture) Mic Preamps include 64dB of gain for quiet performances, and all four inputs have individual gain controls. Each input has a limiter and low cut filter available for controlling volume. Also included is Dual Recording mode, which records a safety copy of your audio at a lower level to prevent distorted takes. Quality components like 5532 op amps are used throughout for the clearest audio possible.
Tracks on the DR-70D are captured to SD card, SDHC or SDXC media – up to 128GB cards are supported. The recorder has tripod mounts on the top and bottom of the unit, allowing it to be mounted on a camera, a follow-focus cage, or used standalone. Other production friendly features include a slate tone, low-noise buttons, a powerful headphone output, and standard AA battery power. Uniquely designed for the needs of filmmakers, television producers, advertisers, and documentarians, the DR-70D packs multitrack recording into a package compact enough to use with any camera.
- Supports SD/SDHC/SDXC cards
- Maximum number of tracks recorded simultaneously: (4)
- Recording modes: MONO, STEREO, 2MIX, DUAL MONO, DUAL ST, DUAL 2MIX
- Recording formats: 16/24-bit, 44.1k/48k/96k Hz (WAV/BWF)
- TASCAM HDDA microphone preamps provide legendary audio performance
- Input levels can be adjusted independently
- XLR/TRS inputs support +4dBu line level and phantom power (24V/48V)
- Supports mics requiring plug-in power, and mics with high output (1-2)

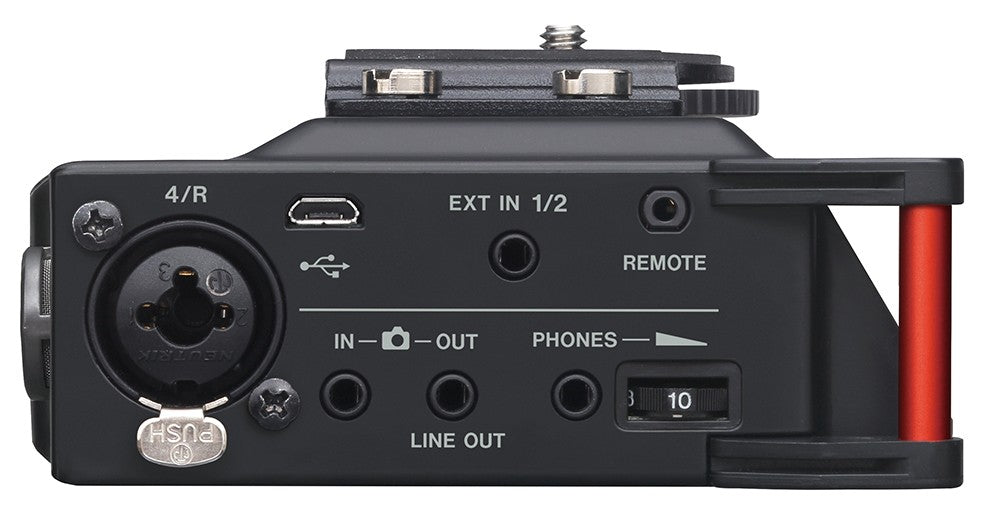

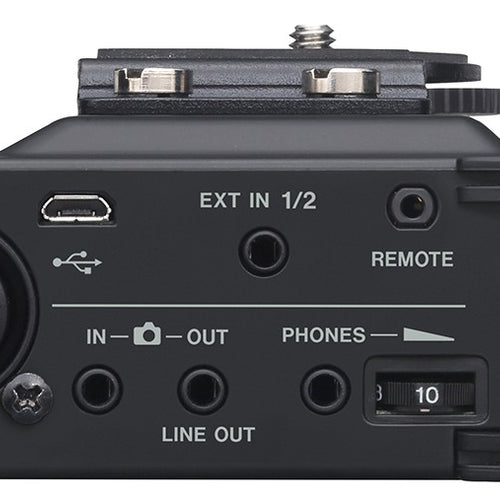

- CAMERA OUT jack enables audio mixed on the DR-70D to be output to the camera
- CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
- High-quality audio output through the line output jack that is independent of the headphones jack
- Headphone jack with 20mW+20mW maximum output
- Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)
- Handles on the front left and right sides protect the screen and can be used to attach a shoulder strap
- Transport and SLATE buttons are made of rubber to prevent handling noise during use
- HOLD switch prevents accidental operation

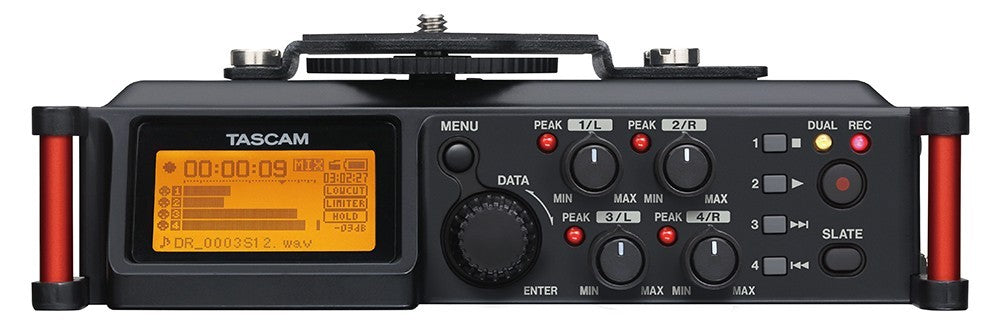

- 128x64-pixel graphic LCD with backlight
- High-speed transfer of files to a computer using USB 2.0
- Micro-B USB cable included
- Operates on (4) AA batteries, with an optional AC adapter (TASCAM PS-P515U) or USB cable provided with the unit (USB bus power).
- BP-6AA external battery pack (sold separately) makes operation for even longer times possible
- RC-3F footswitch or RC-10 wired remote control (both sold separately) for remote control
- Built-in mixer can be used to adjust Pan and Level to mix output of (4) channels
- Low-cut filter with five settings (40/80/120/180/220 Hz) to be used to reduce unwanted air-conditioning noise and other low-frequency sounds
- Limiter function can automatically adjust excessive input levels (stereo-linking possible for 1/L and 2/R)
- Delay function to adjust for distances between mics (+/−150 ms)
- Mid-side decoding function enables the use of mid-side stereo mics
- Slate tone functions (automatic/manual)
- Selectable slate tone insertion points (recording start or recording start and finish when using the automatic slate function)
- Playback can be skipped to the slate tone insert position using the DATA dial
- File name format can be set to use a user-defined word or date
- Dual recording function allows two files to be recorded simultaneously at different levels (second file at between −1 dB and −12 dB)
- Can start a new file automatically when a maximum file size is reached to continue recording
- Track incrementing function allows a file to be split by creating a new file during recording when desired
- Resume function remembers the playback position when the unit is turned off
SKU | TAS-DR70D |
Vendor | TASCAM |
Max Sample Bit | 96 kHz / 24-bit |
MPN | DR-70D |
Batteries | 4 AA |
File Formats Supported | WAV;BWF |
Audio Inputs | 4 x XLR/TRS Combo 1 x 1/8" TRS |
Audio Outputs | 2 x 1/8" TRS 1 x 1/8" TRS Headphone |
Maximum Storage Capacity | 128 GB |
Microphones | 2 x Omnidirectional |
Power Adaptor | TASCAM PS-P515U, sold separately |
Product Weight | 1.16 lbs (without batteries) |
Recording Format Details | WAV: 44.1k / 48k / 96k Hz, 16bit / 24bit BWF: 44.1k / 48k / 96k Hz, 16bit / 24bit |
Reference Speaker | No |
Stand Mountable | Yes |
Storage Format Details | SDHC card(4GB to 32GB), SDXC card(48GB to 128GB) High speed cards required |
Storage Format | SD Card |
Number of Tracks | 4 |
USB Functionality | Power;File Transfer/Storage |
Width | 6.65" |
Depth | 4.2" |
Height | 2.2" |
TASCAM/TEAC Limited Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased.
Except as specified below, this warranty covers all defects in material and workmanship in this product. The following are not covered by the warranty:
- Damage to or deterioration of the external cabinet.
- Damage resulting from accident, misuse, abuse, or neglect.
- Damage resulting from failure to perform basic daily maintenance and/or calibration, or otherwise resulting from failure to follow instructions contained in your owner's manual.
- Damage occurring during shipment of the product (claims must be presented by the carrier).
- Damage resulting from repair or attempted repair by anyone other than TEAC or an authorized TASCAM service station.
- Damage resulting from causes other than product defects, including lack of technical skill, competence, or experience of the user.
- Damage to any unit which has been altered or on which the serial number has been defaced, modified, or removed.
This warranty may be enforced only by the original purchaser.
All parts except heads and disk drives are warranted for one (1) year from the date of original purchase for products not used for commercial purposes. For products used commercially, the warranty is ninety (90) days for magnetic heads & optical pickups, one (1) year for other parts, & ninety (90) days for labor.
TASCAM will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.
Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact TASCAM. TASCAM either will refer you to an authorized service station or instruct you to return the unit to the factory.
Whenever warranty service is required, you must present both the original dated sales receipt and this warranty statement as proof of warranty coverage.
You must pay any shipping charges if it is necessary top ship the product for service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.
Any implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the length of this warranty.
TEAC's liability for any defective product is limited to repair or replacement of the product, at TEAC's option. TEAC shall not be liable for:
- Damages bases upon inconvenience, loss of use of the product, loss of time, interrupted operation or commercial loss
- Any other damages, whether incidental, consequential or otherwise
Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitations of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
