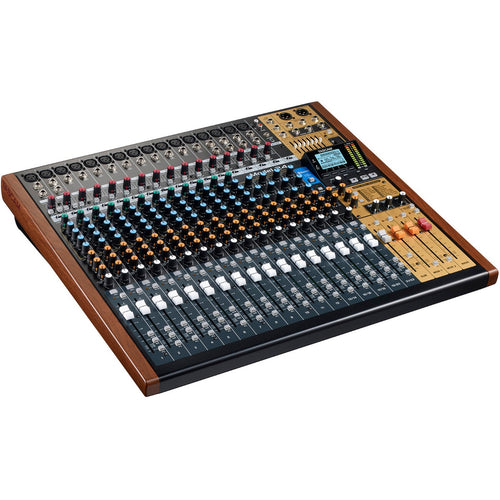

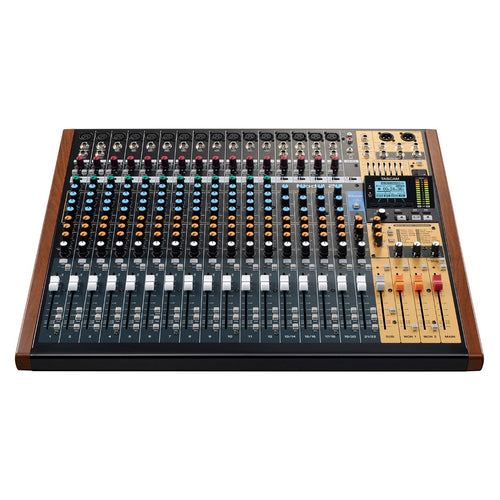

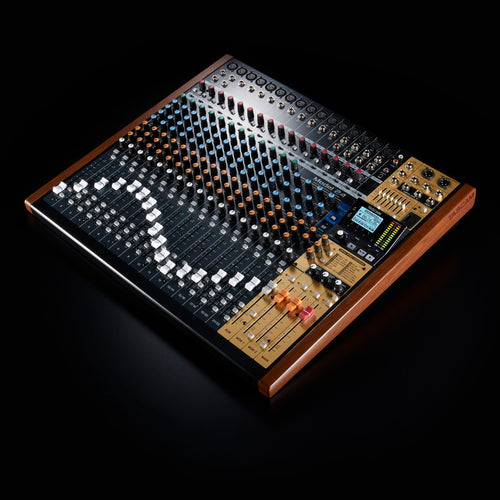

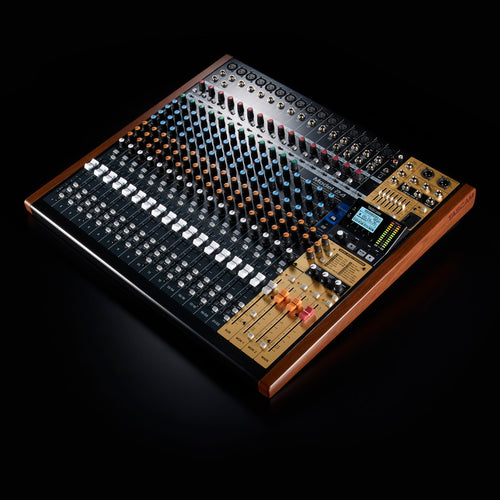

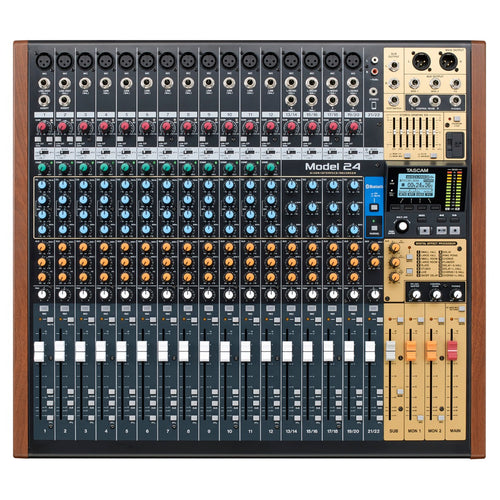

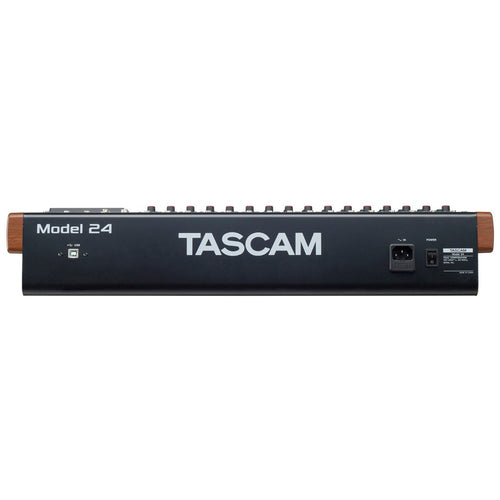

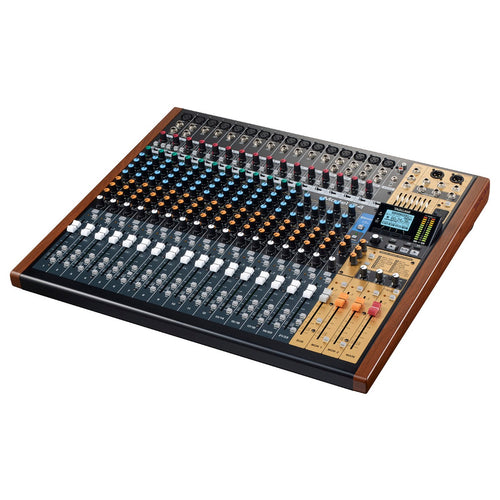

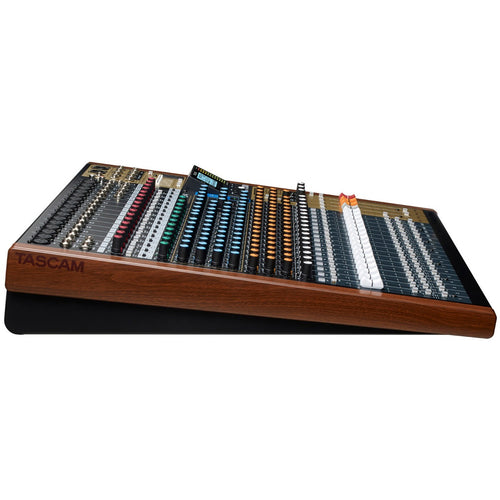

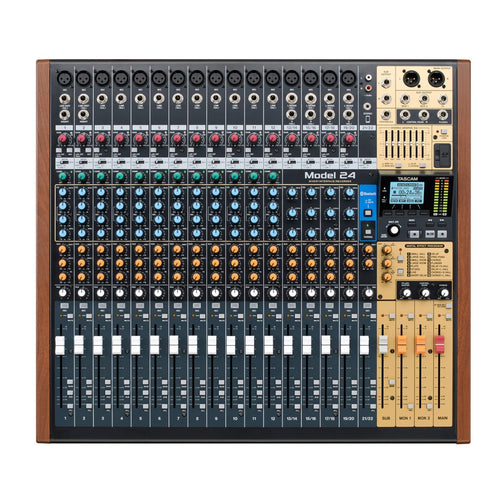

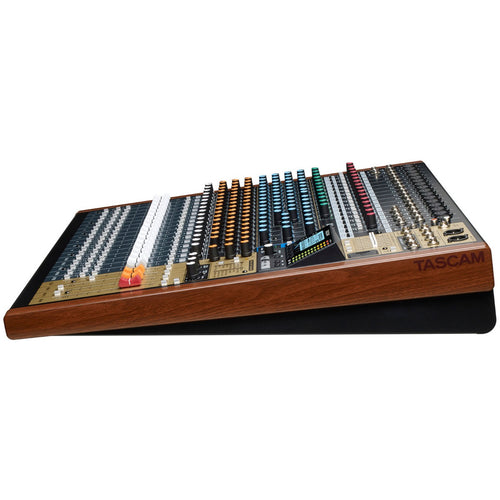

The best of both worlds, the TASCAM Model 24 is a full featured 24 Track Digital Multitrack Recorder and 24 Channel USB Audio Interface with integrated Analog Mixdown capabilities. From stage to studio, the Model 24 helps you bring your music together in one easy-to-use device.
- All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
- WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
- Built-in USB Audio Interface to send/receive audio data to/from DAW
- 22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
- 16 TASCAM Microphone Preamps
- Input Mode switch on every input channel
- TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
- Preamp Gain Controller with Overload indicator (Channels 1 to 12)
- 3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)
- 100kHz Low-cut Filter (Channels 1 to 12)
- 7-band Graphic EQ
- 16 Pre-set Effects
- 100mm Long-throw Faders for precise adjustment
- Mute, Main/Sub, PLF switches on every input channel
- Bluetooth input supporting both AAC and SBC codecs
- SUB Outputs via XLR Balanced and RCA Unbalanced connectors
- LINE Inputs via RCA Pin and ⅛" Stereo Mini jacks
- 3 AUX Outputs (Monitor 1, Monitor 2, FX)
- 1 Stereo Output for Control Room
- Phantom Power (+48V)
- ¼" Stereo Headphone Output
- Backlit buttons for key operations such as REC and Play
- Multi Jog-dial for quick menu operation
- 12-segment LED Output Level Meters
Record
At the heart of the Model 24 is the legendary TASCAM Portastudio multi-track recording engine. Delivering quality and reliability as only TASCAM can, the Model 24 enables you to record and play back any combination of 24 tracks of digital audio as well as perform overdubs and punch-ins quickly and easily.
Record every live gig you play, build your songs track by track, or play along to pre-recorded backing tracks and record the final performance.
Connect
Equally at home in a project studio as on the road the Model 24 is the ideal analog counterpart to your Digital Audio Workstation (DAW). With enough inputs to capture an entire band in a single take, the Model 24 provides quick and easy signal routing to and from your computer without having to stop to re-patch and re-set levels. Inspiration won’t wait, and TASCAM won’t slow you down.
Mix
Featuring 12 Mono input channels and 4 Mono/Stereo channels, the TASCAM Model 24 is flexible enough to support most groups on stage but compact enough to carry to the gig. Low noise, high gain preamps, one-knob compressors (on selected channels), flexible routing, powerful EQ and silky smooth 100mm faders combine to deliver a truly dynamic, real-time mixing experience. Combine this with a 7 band EQ, dual monitor sends, and on-board effects making the Model 24 a truly powerful portable mixing solution, ready to take the stage (or studio). No confusing sub menus, no lost presets, just immediate hands-on control and incredible analog sound quality.
| Specification | Value |
|---|---|
| SKU | TAS-MODEL24 |
| Vendor | TASCAM |
| Audio Recording | Multitrack to SD Card and Multitrack over USB |
| Bluetooth | Audio Receiving |
| Connectivity | USB |
| Mic Preamps | 16 |
| Mixer Channel Filterable | 24 |
| Mixer Type | Analog |
| MPN | MODEL 24 |
| Simultaneous Inputs | 17 |
| Busses/Groups | 17 |
| Channel EQ | 3-band |
| Effects | 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL |
| Number of Faders | 21 |
| Audio Inputs |
16 x XLR 6 x Stereo 1/4" (L/Mono+R) 10 x 1/4" Line 1 x RCA 1 x 1/8" Aux 1 x Bluetooth |
| Audio Outputs |
Stereo XLR Main Out Stereo 1/4" Control Room Out 2 x 1/4" Monitor Out 1/4" FX 1/4" Phones 1/4" L+R Sub Outs |
| Main EQ | 7-band Graphic Eq |
| Phantom Power | +48V |
| Power | AC 100 to 240V, 50/60Hz |
| Product Weight | 22.04 lbs. |
| Rackmountable | No |
| Storage Type | SD Card |
| Width | 22.67" |
| Depth | 20.20" |
| Height | 4.43" |
