Tiptop Audio ZVERB is a collection of all new reverb algorithms developed by Tiptop ranging from typical reverbs to more complex effects that combine delay and pitch shifting with reverb.
The effects are grouped by decades based on either the era when an algorithm was introduced or the time when the effect was most popular. This variety of reverbs covers small to epic size spaces with the addition of shimmering, feedback tunneled pitch shifting, tape delay drivers, gated reverbs and much more.
Analog clocking of the DSP chip and CV control over parameters enables even more experimentation. This is a collection inspired by the best from the past right at your fingertips.

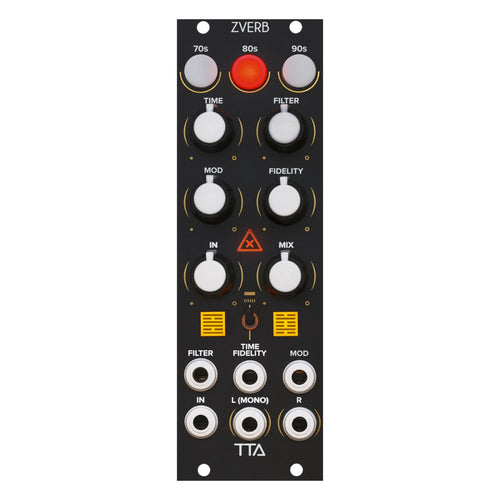

- Module controls
- 70s/80s/90s buttons: scroll through and select from banks of effect programs
- TIME knob: controls decay time of reverbs
- FILTER knob: sets cutoff frequency of filters in the effect program
- MOD knob: controls depth/rate of LFOs in the effect program
- FIDELITY knob: controls frequency of internal VCO that clocks the DSP chip
- IN knob: controls input gain
- MIX knob: controls dry/wet mix
- TIME/FIDELITY switch: switches between CV control over TIME or FIDELITY parameters
- Patch points
- FILTER input: CV control over cutoff frequency of filters in effect program
- TIME/FIDELITY input: switchable CV control over TIME or FIDELITY parameters
- MOD input: CV control over depth/rate of LFOs in the effect program
- IN input: audio input
- L (MONO) and R outputs: effected audio output
- Physical specifications
- Size: 8hp
- Module depth: 40mm
- Power usage: 130mA @ +12V, 20mA @ -12V
| SKU | TIP-ZVERBB |
| Vendor | Tiptop Audio |
| Module Type | Effect |
| Module Width | 8hp |
| MPN | ZVERB Black |
| Module Power Usage | 130mA @ +12V 20mA @ -12V |
| 1U Module | No |
| +5V Required | No |
| Depth | 40mm |
