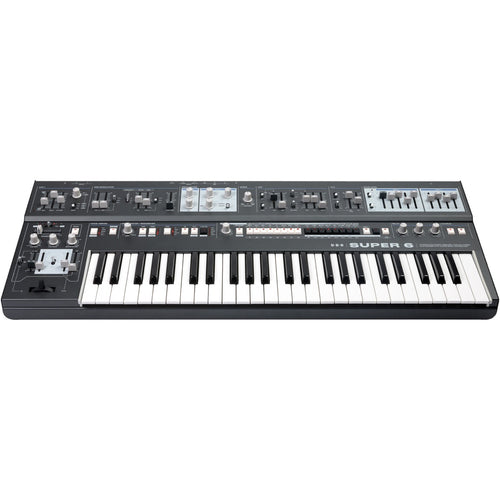

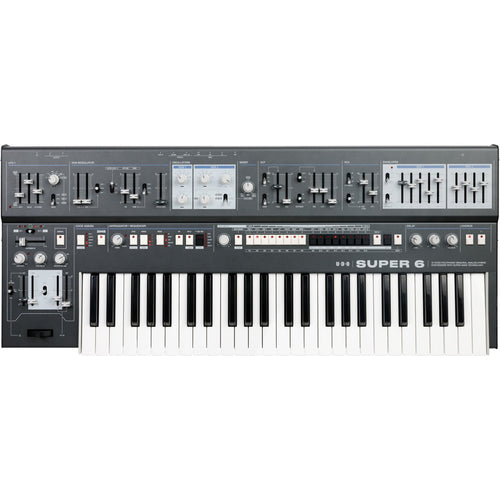

UDO Super 6 is a 12-voice polyphonic analog-hybrid synthesizer. A harmonious marriage of state-of-the-art FPGA digital hardware oscillators and voltage-controlled analog technology, Super 6 is flexible, immediate, powerful and refined with a gorgeous analog tone. Rich and evolving textures are easily teased from the unique Super-wave core and can be shaped and manipulated with the binaural analog signal path and flexible modulation capabilities. Robust, compact and versatile with solid and responsive controls: Super 6 is a truly vibrant and inviting instrument that cries out to be played.
UDO Audio continues to improve Super 6 via a steady stream of firmware updates. Notable enhancements and additions include an improved velocity curve for a more natural playing experience, a pedal-powered freeze effect for the built-in delay, binaural pulse width modulation, support for MPE and polyphonic aftertouch, extra LFO modulation options, improved MIDI sync, additional modulation destinations and additional transport controls for the sequencer.
Binaural refers to the twin synthesizer signal paths. In Binaural mode, each channel 'ear' has a complete synthesizer voice. You can detune and de-phase the left and right oscillators, amplitude and filter (and other parameters) relative to each other. Ranging from subtle to extreme, this unique feature allows for experimenting with the 'width' of the sound and creates an improved sense of 3D positioning relative to conventional mono signal chains panned at the output. It has in this sense six 'super voices' that each use two 'conventional' voices, hence Super 6!
Super 6's main filter is an analog 4-pole, 24 dB per octave, resonant low pass filter using a classic polysynth filter design from Sound Semiconductor. It is preceded in the signal chain by a voltage-controlled high pass filter that can optionally track the low pass filter cutoff frequency for band pass operation. Super 6 also contains an analog amplifier section to further shape your sound.
Super 6 puts enormous flexibility at the player's fingertips through simple controls and a carefully designed front panel. Going deeper, there is an intuitive and immediate modulation system based around the performance area switches. For those who want to go further, every panel control can be targeted for modulation, all simultaneously and all with unique amounts.
Super 6 is an instrument borne of a long-held passion for synthesizers. In designing Super 6, UDO Audio sought to create an instrument that feels familiar at first glance but offers new and inspiring opportunities when delving deeper. The layout and aesthetic is an homage to some of the classic synthesizers that have inspired the designers for many years; Super 6's features and capabilities bring these ideas firmly into the 21st century.
An instrument is cherished not just for the way it sounds but for the way it feels to play and the connection it creates with the player. With this in mind, UDO Audio worked tirelessly on the physical design of the instrument to create an immediate connection with the player. There has also been no expense spared on the build quality, with a rugged metal housing and solid control elements throughout.
| SKU | UDO-SUPER6KBBKSR |
| Vendor | UDO Audio |
| Aftertouch | Yes |
| Analog Digital | Hybrid |
| Built In Speakers | No |
| Included From Manufacturer | Power cord |
| Keys Weighted | No |
| Number of Keys | 49 |
| Key Size | Full Size Keys |
| Midi | In, Out, Thru, and USB |
| Mono Poly | Polyphonic |
| MPN | SUPER6KBBK |
| Product Unique Features |
Binaural analog signal path for stereo movement and spatial effects Flexible, hybrid FPGA and analog voice architecture SSI2144 resonant low pass analog filter based on Solid State Micro SSM2044 MPE controllable |
| Arpeggiator | Yes |
| Control Connections | 1/4" expression pedal input 1/4" sustain pedal input |
| Onboard Controllers | Two-axis bender with LFO trigger Playable spring-lever keyboard octave selector |
| Effects | Dual-mode stereo chorus using 24-bit / 192 kHz processing Syncable and modulatable stereo delay with 24-bit / 192 kHz processing |
| Audio Inputs | 1/4" stereo external audio input with threshold-based envelope and LFO triggering |
| Audio Outputs | Dual 1/4" stereo output 1/4" headphone output |
| Key Action | Fatar mechanism with velocity and aftertouch |
| Oscillators per Voice | 2 |
| Product Weight | 20.28 lb |
| Programs/Presets | 128 rewriteable patch memories 64 factory patches 64 empty slots for user patches |
| Sequencer | MIDI-syncable 64-step sequencer with programmable note, rest, slide, accent and length tracks 16 rewritable memory locations for storing sequences |
| USB Port (to Host) | MIDI;System Updates |
| Voices of Polyphony | 12 |
| Width | 33.26" |
| Depth | 14.17" |
| Height | 4.13" |
UDO offers a one-year warranty from the date of purchase, covering defects in materials and workmanship. Registering your product on the UDO website can speed up warranty service but is not required. If your product needs repair, contact UDO's technical support for assistance before returning it. If a repair is approved under warranty, the dealer will arrange collection, and it's recommended to use the original packaging to avoid damage during shipping, as the warranty does not cover damage due to inadequate packaging.
