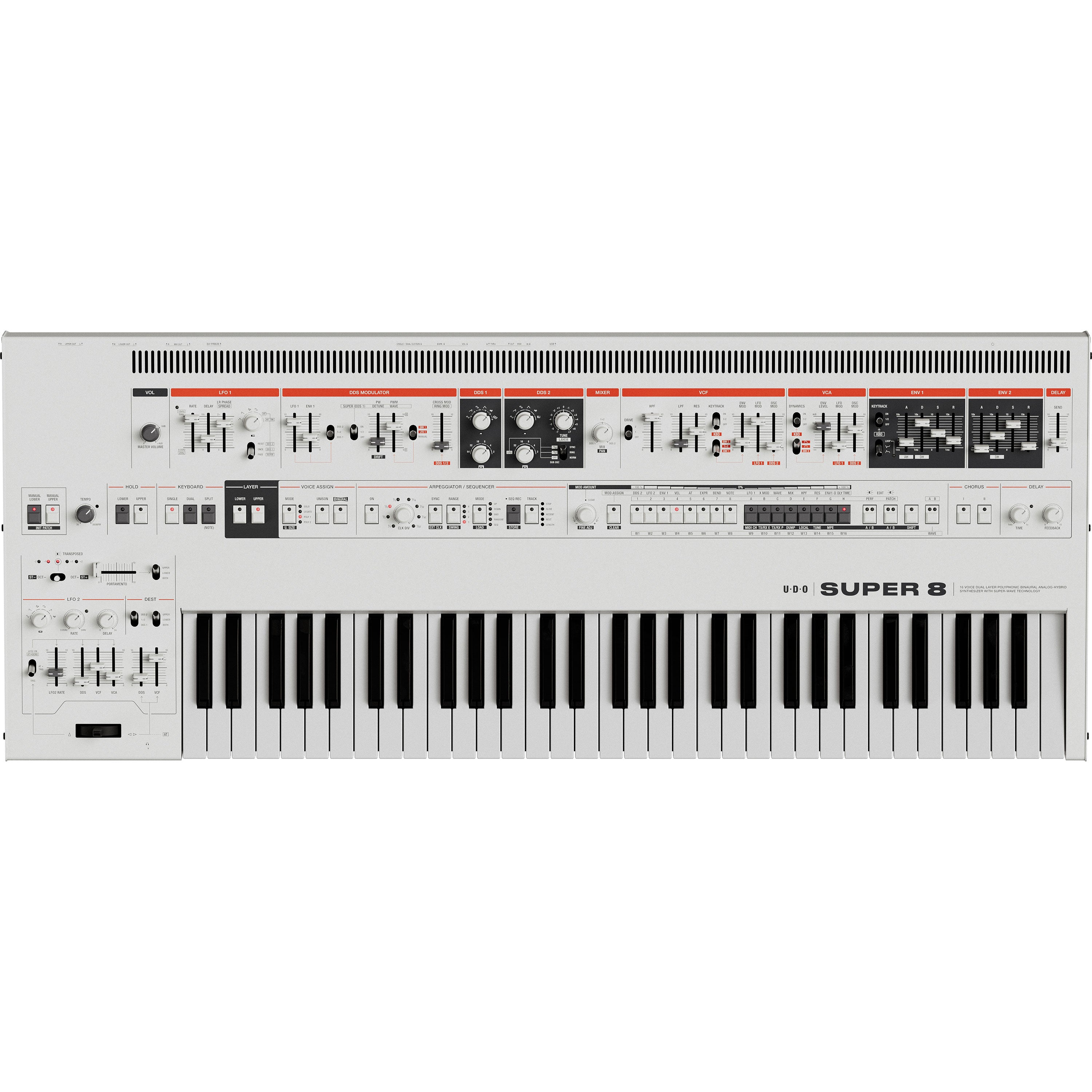

UDO Audio Super 8 is a 16-voice polyphonic, bi-timbral analog-hybrid performance synthesizer with superior hands-on controls, an expressive 61-note semi-weighted keyboard with polyphonic aftertouch and all the powerful, flexible and addictive sound of the UDO Audio family.
At the core of the Super 8 are two independent binaural analog-hybrid synthesizer signal chains using UDO's proprietary and proven synthesizer technology. With up to 16 voices of polyphony and two unique timbres each with their own independent effect chain, this instrument is analog reimagined. Like its larger sibling Super Gemini, voices and timbral layers can be split, dualled, sequenced all at the touch of a single control.
Powered by complex FPGA digital oscillators, Super 8 is decorated with expansive tonal features such as wave morphing, cross and ring modulation, bi-directional sync and an all-analog signal path to the output, inspired by the analog poysynth heavyweights of lore. Equipped with a 61-note semi-weighted keybed with polyphonic aftertouch, left hand performance controls and 256 performance and patch slots, 32 interchangeable waveforms and 16 sequences, Super 8 balances power, playability and performance.
Sitting in between Super 6 and Super Gemini in size and power, Super 8 puts the player first using high quality tactile control elements with UDO Audio's user-centric intuitive design philosophy that inspires exploration and sonic play. Adopting a similar true-stereo binaural signal path with dual FPGAs and twin effects processors like Super Gemini, and yet retaining the portability and road-friendly personality of Super 6, Super 8 will be a long time friend and partner in your adventures in sound.
As the next evolution in the Super family, the 16-voice Super 8 sits confidently between Super 6 and Super Gemini. This synth is the distillation of the UDO philosophy of the power of play: with the dual cores and playability features of it's bigger cousin, all in a more compact and simplified presentation, it's the best of both worlds.
Super 8 allows you to effortlessly transition between two independent synth layers, inspiring textural, deep and rich soundscapes at a touch. With UDO's championed powerful, flexible and immediate sound, this synthesizer is designed to take you on a sonic journey.
Using the tried and tested UDO framework of state-of-the-art FPGA digital architecture with archetypal voltage-controlled synthesizer technology, Super 8 is a harmonious meeting of old and new in ideas and techniques, all contained within a no-expense-spared build with the highest quality components. Super 8 is an instrument for life.
Binaural refers to the twin synthesizer signal paths. In binaural mode, each channel (ear) has a complete synthesizer voice. You can detune and de-phase the left and right oscillators, amplitude and filter (and indeed other parameters) relative to each other. Ranging from subtle to extreme, this unique feature allows for experimenting with the 'width' of the sound and creates an improved sense of 3D positioning. It has in this sense one 'super voice' for every two 'conventional' voices.
| Specification | Value |
|---|---|
| SKU | UDO-SUPER8KBWHCK |
| Model Name | Super 8 Keyboard |
| Vendor | UDO Audio |
| Aftertouch | Yes |
| Analog Digital | Hybrid |
| Included From Manufacturer | Power cord |
| Keys Weighted | Semi-Weighted |
| Number of Keys | 61 |
| Key Size | Full Size Keys |
| Midi | In, Out, Thru, and USB |
| Mono Poly | Polyphonic |
| MPN | SUPER8KBWH |
| Product Unique Features |
Binaural analog signal path for stereo movement and spatial effects Flexible, hybrid FPGA and analog voice architecture 4-pole, 24 dB per octave analog resonant low pass filter by Sound Semiconductor (SSI) 1-pole, 6 dB per octave analog high pass filter preceding the low pass filter Selectable keyboard filter tracking modes and two filter overdrive settings Analog VCA with selectable velocity sensitivity Multipurpose, flexible LFOs, envelopes and intuitive 8×8 modulation matrix Up to 25 additional mod matrix destinations can be modulated |
| Arpeggiator | MIDI-syncable multi-mode arpeggiator with smart hold option |
| Control Connections |
1/4" expression pedal input 1/4" volume pedal input 1/4" sustain footswitch input 1/4" single- or dual-footswitch input for sustain 1/4" single- or dual-footswitch input for delay freeze |
| Onboard Controllers |
Two-axis bender with LFO trigger and dedicated controls for pitch/filter modulation Playable spring-lever keyboard octave selector |
| Effects |
24-bit dual-mode stereo chorus per layer with three settings Clock-syncable and modulatable 24-bit stereo delay per layer Delay freeze function for sound-on-sound loops |
| Audio Outputs |
Dual 1/4" stereo output for summed layer signal Individual dual 1/4" stereo outputs for upper and lower layers Easy-to-reach front side headphone output with both 1/4" and 1/8" connectors |
| Key Action | Semi-weighted, velocity-sensitive keyboard with polyphonic aftertouch |
| Multitimbral Capability | Bi-timbral with dual and split modes |
| Oscillators per Voice | 2 |
| Programs/Presets |
256 performance and patch slots 32 alternative waveform slots 16 sequences |
| Sequencer |
MIDI-syncable 64-step sequencer with programmable step, slide, accent, rest and sequence length tracks 16 rewritable memory locations for storing sequences |
| USB Port (to Host) |
MIDI System updates Library duties |
| Voices of Polyphony | 16 |
| Width | 40.95" |
| Depth | 15.75" |
| Height | 3.74" |
| Product weight | 29.54 lb |
UDO offers a one-year warranty from the date of purchase, covering defects in materials and workmanship. Registering your product on the UDO website can speed up warranty service but is not required. If your product needs repair, contact UDO's technical support for assistance before returning it. If a repair is approved under warranty, the dealer will arrange collection, and it's recommended to use the original packaging to avoid damage during shipping, as the warranty does not cover damage due to inadequate packaging.
