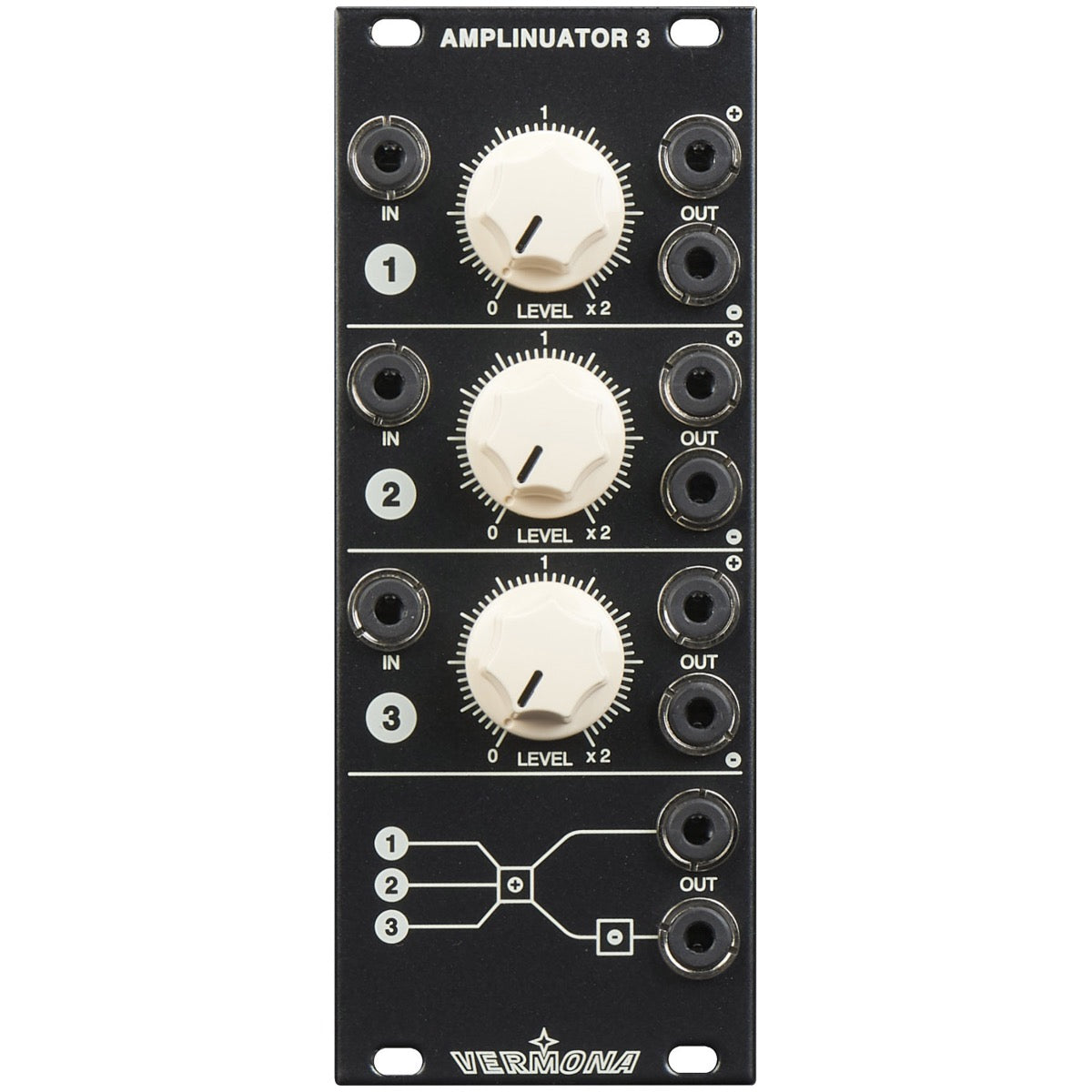

Vermona Amplinuator 3 Eurorack Amplifier/Attenuator Module
Regardless of your modular system's size, the number of installed modules or its purpose, it's basically only about one thing: level adjustments. Often, the full level of a signal is too much and has to be attenuated. Also, the opposite – levels must be amplified – happens more often than you might think.
Vermona Amplinuator 3 connects both functions in a unique and smart way. With only one level control per channel, you can attenuate incoming signals to zero (full left position) or amplify them by a factor of two (full right position). In its center position, levels are left untouched. To get the best experience when adjusting levels around the center position, Vermona did not use potentiometers with center click. Instead, they established a 'dead zone' for quickly and reliably finding the 12 o'clock spot. Each channel has outputs with normal and inverted polarity.
There is a summing section, too! Thus, Amplinuator 3 works as 3-in-1 mixer as well. The module processes audio signals and control voltages.
Amplinuator 3 is a sophisticated helper in best Vermona quality.
- Size: 10hp
- Module depth: ±30mm including ribbon cable connector
- Power usage: 50mA @ +12V, 50mA @ -12V
| Specification | Value |
|---|---|
| SKU | VER-AMPLINUATOR3 |
| Vendor | Vermona |
| Included From Manufacturer |
Ribbon cable Mounting screws |
| Module Type | Amplifier |
| Module Width | 10hp |
| MPN | 805015 |
| Module Power Usage |
50mA @ +12V 50mA @ -12V |
| 1U Module | No |
| +5V Required | No |
| Depth | ±30mm including ribbon cable connector |
The manufacturer provides a one-year warranty from the date of purchase, covering defects in material and workmanship. The warranty does not cover damage caused by improper handling, accidents, negligence, or unauthorized alterations. It excludes all other warranties, expressed or implied, and the manufacturer is not liable for any incidental or consequential damages, such as property damage, loss of profits, or inconvenience resulting from defects or the use of the product.
