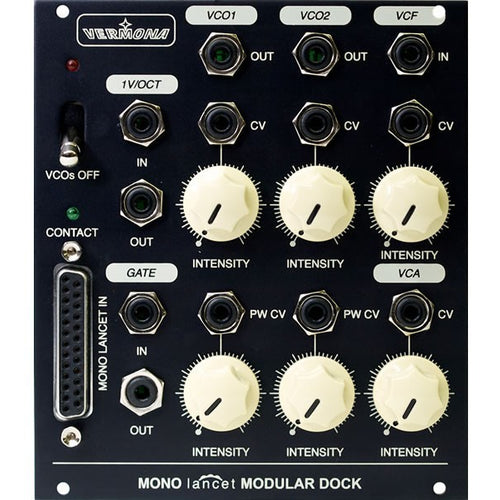

Vermona Mono Lancet Modular Dock Eurorack Module
Vermona Mono Lancet Modular Dock brings the sound of the Vermona Mono Lancet (sold separately) to your modular system. Discover new soundscapes through extended modulation possibilities and use the fantastic Mono Lancet filter to refine external sound sources.
- Module controls
- VCO1 FM intensity
- VCO1 PWM intensity
- VCO2 FM intensity
- VCO2 PWM intensity
- VCF FM intensity
- VCA CV intensity
- VCOs OFF switch (switches off Mono Lancet oscillators)
- Patch points
- 1V/OCT frequency CV in
- GATE (VCO1 & VCO2) in
- GATE out
- VCO1 FM
- VCO1 PWM
- VCO1 audio output
- VCO1 1V/OCT frequency CV out
- VCO2 FM
- VCO2 PWM
- VCO2 audio output
- VCO2 1V/OCT frequency CV out
- VCF audio input
- VCF FM in
- Physical specifications
- MONO LANCET IN sub-D connector
- Size: 22hp
- Power usage: 25mA @ +12V
- Included
- sub-D cable to connect to Mono Lancet
- Mounting screws
SKU | VER-MONOLANCETDOCK |
Vendor | Vermona |
Included From Manufacturer |
SUB-D Cable Mounting Screws |
Module Type | Misc/Other |
Module Width | 22hp |
MPN | 800003 |
Product Unique Features | Extends and integrates Vermona Mono Lancet (sold separately) into your eurorack system |
Module Power Usage | 25mA @ +12V |
1U Module | No |
+5V Required | No |
Depth | 25mm |
Vermona Limited Warranty
The manufacturer warrants this product to be free of defects in material and/or workmanship for a period of one (1) year from the date of purchase.
The manufacturer's warranty does not apply to products that have been damaged due to and/or subjected to improper handling by shipping companies (forwarders), negligence, accidents, improper use or alteration not authorized by the manufacturer.
This warranty is in lieu of and excludes all other warranties, expressed or implied. The manufacturer will not be liable for incidental or consequential loss or damage whatsoever, whether based upon allegations or negligence, breach of warranty, or otherwise. This disclaimer of incidental or consequential damages includes, but is not limited to, property damages, loss of profits, loss of time or other losses or inconvenient resulting from any defect in the material or workmanship of this product or any other connection with the purchase, operation or use of this product.
