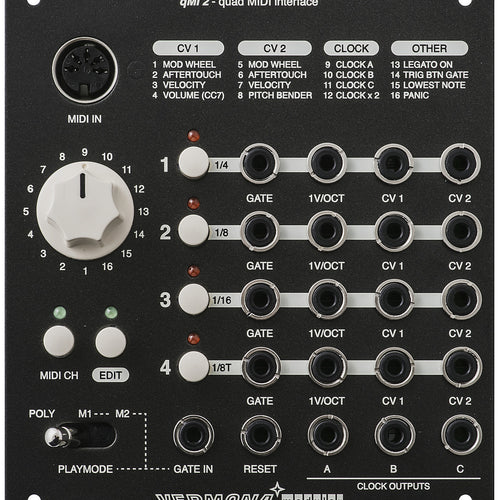

Vermona qMI 2 Quad MIDI Interface Eurorack Module
Vermona qMI 2 quad MIDI interface adopts the flexible voice assignment of Vermona PERfourMER MKII to provide a four-way MIDI-to-CV/gate converter for eurorack modular systems. This way, you can play your modular synthesizer in different monophonic modes or even polyphonically using MIDI.
More than just pitch
Each of the four output channels offers a 1V/octave CV output, a gate output and two additional control voltage outputs. These can easily be addressed by MIDI controllers such as the modulation wheel or pitch bender.
The output channels can be freely combined or be used with independent MIDI channels. Combined output channels can be used in unison, monophonically with rotating voice assignment or even polyphonically.
qMI 2 also offers four clock divider outputs. These convert incoming MIDI clock signals into analog gate voltages. A reset output allows sequencers with a reset input to run in sync with MIDI start/stop commands.
qMI 2 can switch between its monophonic voice assignment modes via a dedicated gate input.
Easy access to functionality
An important part of the modular concept is easy access to every parameter without using displays or complicated menu structures. Vermona qMI 2 will help you integrate your modular system with your MIDI setup straightforwardly!
- Physical specifications
- Size: 24hp
- Module depth: 25mm
- Power usage: 60mA @ +12V, 2mA @ -12V
SKU | VER-QMI2 |
Vendor | Vermona |
Module Type | MIDI |
Module Width | 24hp |
MPN | 805005 |
Module Power Usage | 60mA @ +12V 2mA @ -12V |
1U Module | No |
+5V Required | No |
Depth | 25mm |
The manufacturer provides a one-year warranty from the date of purchase, covering defects in material and workmanship. The warranty does not cover damage caused by improper handling, accidents, negligence, or unauthorized alterations. It excludes all other warranties, expressed or implied, and the manufacturer is not liable for any incidental or consequential damages, such as property damage, loss of profits, or inconvenience resulting from defects or the use of the product.
