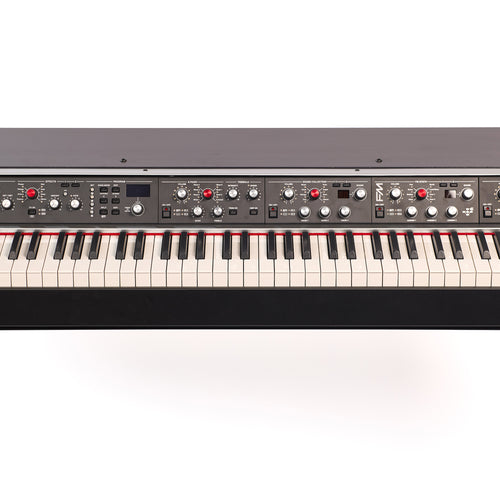

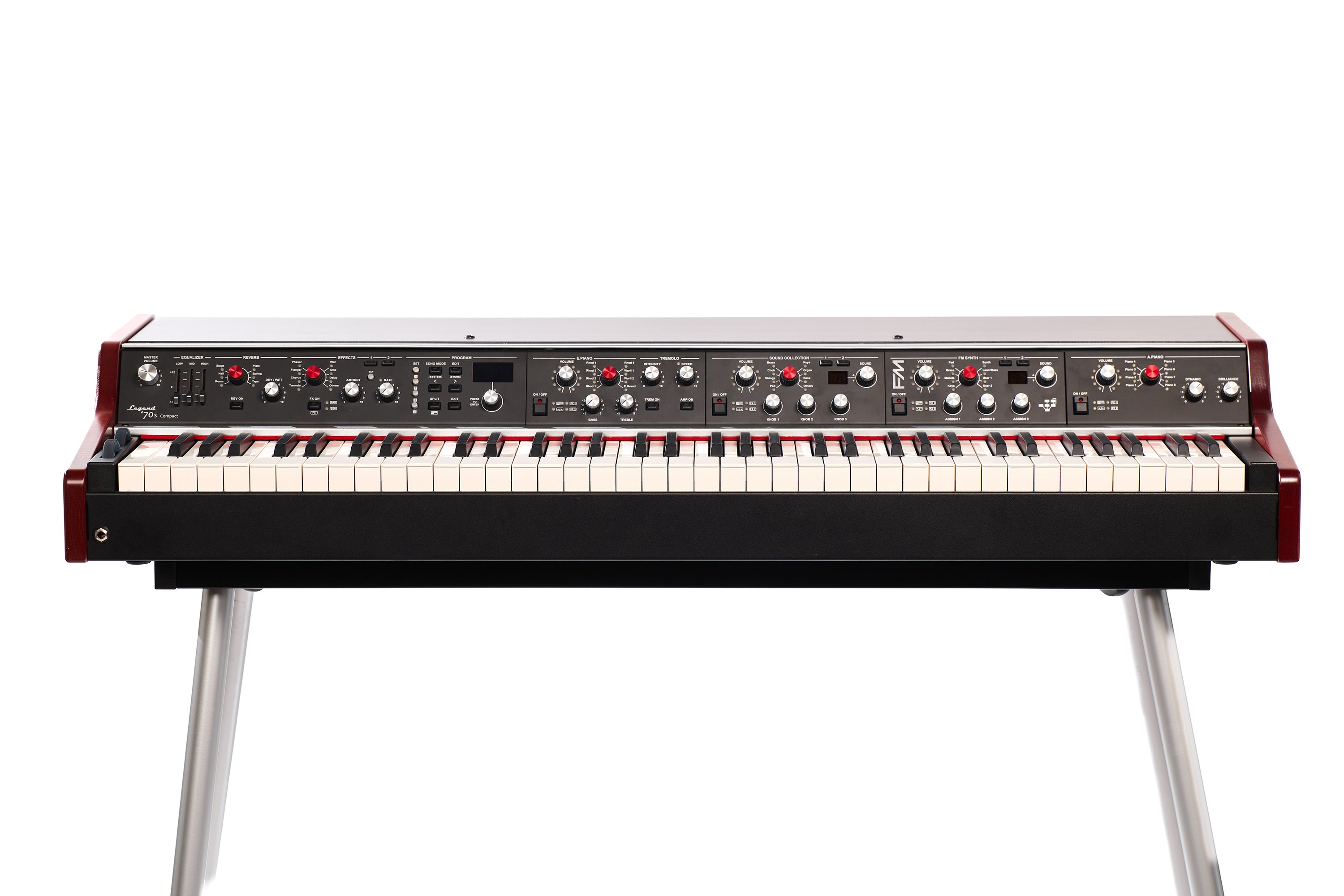

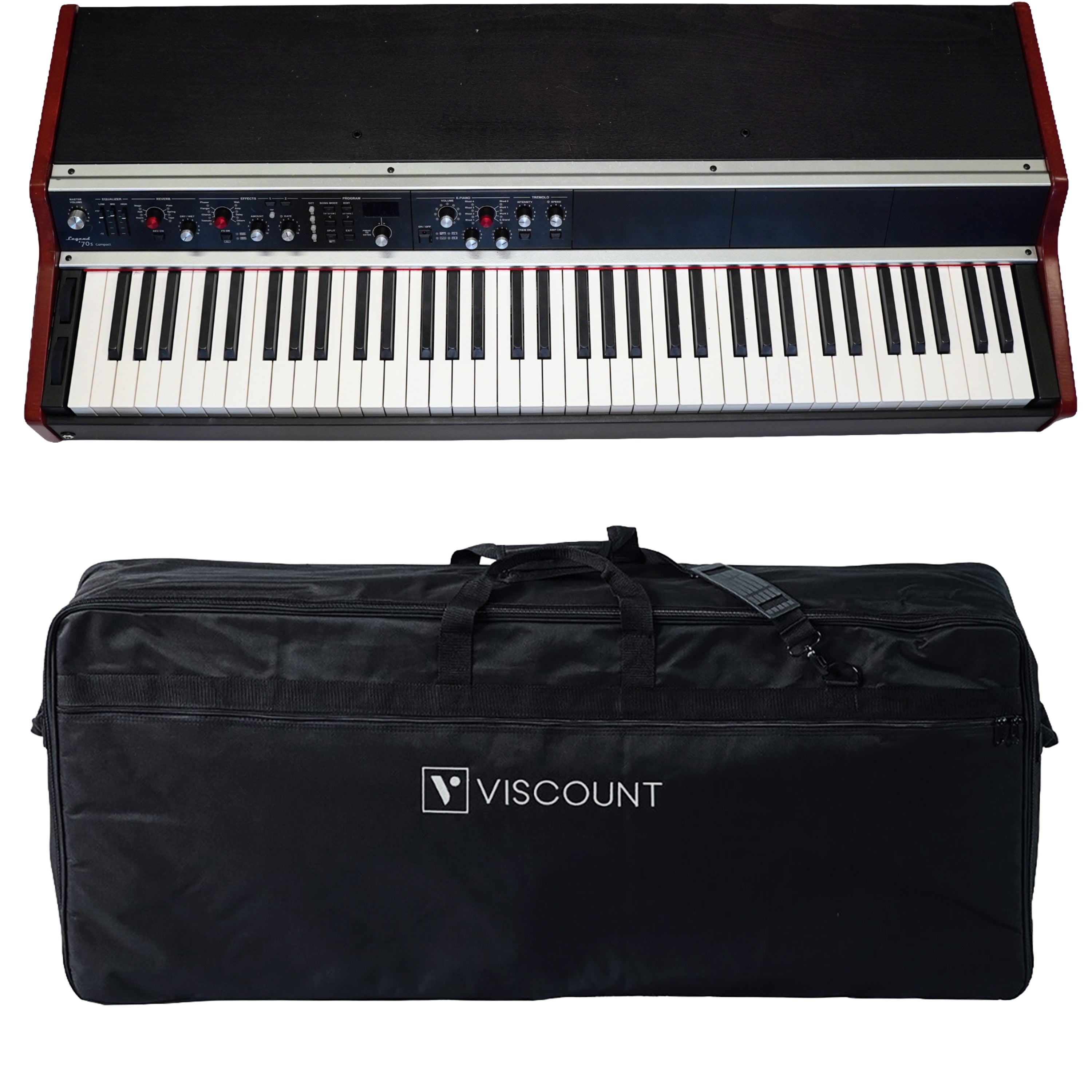

The Viscount Legend '70s MKII Compact is a 73-key modular stage piano built for keyboardists whose focus is electric pianos, synths, and vintage keyboards. Where the Artist-W is aimed at pianists who want a grand piano-style action, the Compact uses the Fatar TP/110 keybed and a lighter overall form factor that suits players who move between instruments on stage and want something fast and familiar. Designed and built in Italy, it ships with the Electric Piano module installed and three empty slots ready for expansion. It has a robust effects section independent of your modules, and the new dual-DSP main circuit doubles the processing power of the original Legend '70s to give every installed module more headroom.
- 73-key hammer action keyboard (Fatar TP/110)
- Triple-sensor key detection for precise velocity and touch response
- New dual-DSP main circuit doubles processing power over the original Legend '70s
- Modular front panel design with 4 total slots: 1 included module, 3 empty slots
- Comes with Electric Piano module installed (Other modules available separately)
- Electric Piano module (available separately): 5 Rhodes models, 2 Wurlitzer models, 1 Electric Grand, full polyphony via physical modeling
- Acoustic Piano 2G module (available separately): 2GB sample memory, 128 voices of polyphony
- Clavi module (available separately): physical modeling with original button controls, full polyphony

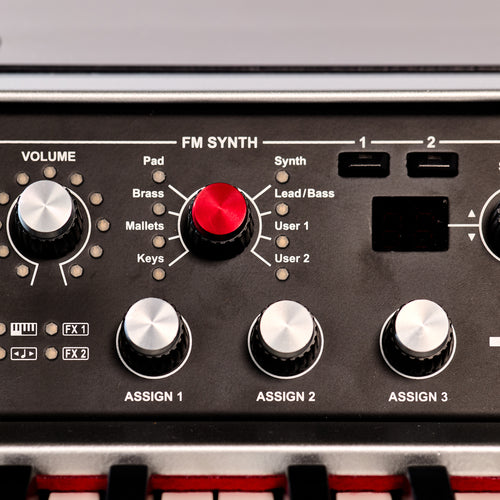

- FM Synth module (available separately): two stereo layers, 6 operators each, 16+16 voices, compatible with Yamaha DX/TX series sound libraries
- Synth-8 module (available separately): two-oscillator virtual analog with multimode filter, 8 voices
- Sound Collection module (available separately): high-definition sampling covering pads, strings, choirs, keys, bass, guitars, and more
- 384 presets across 24 banks of 16 programs each
- 9 setlist banks of 40 songs, with 4 sets per song
- Effects: room, hall, stage, plate, spring, and tape reverb; tremolo, vibrato, chorus, flanger, phaser, wah-wah, rotary, amp simulations, delay, EQ, and compressor
- Dual 1/4-inch stereo main outputs and dual 1/4-inch stereo aux outputs
- 3.5mm stereo audio input
- MIDI in, out, and USB to host for MIDI and audio
- USB flash drive port for preset storage
- (2) 1/4-inch foot controller inputs, (2) 1/4-inch footswitch inputs, dedicated sustain and program change inputs
- Pitch bend and modulation wheels
- Split and transpose features
- Weight: 38.6 lbs / 17.5 kg
- Free Legend '70s Editor software for deep parameter editing on macOS and Windows
Eight Electric Piano Models
The included Electric Piano module draws on Viscount's physical modeling technology, which generates the sounds rather than playing back recordings. The result is a more consistent, natural response across the full keyboard range, with no tonal gaps between registers or dynamic levels. The module covers five Rhodes models, two Wurlitzers, and an electric grand, spanning the classic electric piano tones that shaped the sound of 1970s popular music. And because the module is fully polyphonic, every note you play is always heard, even in dense chords or sustained left-hand voicings.

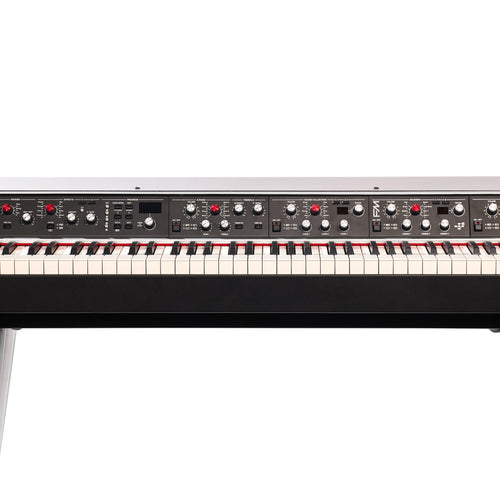

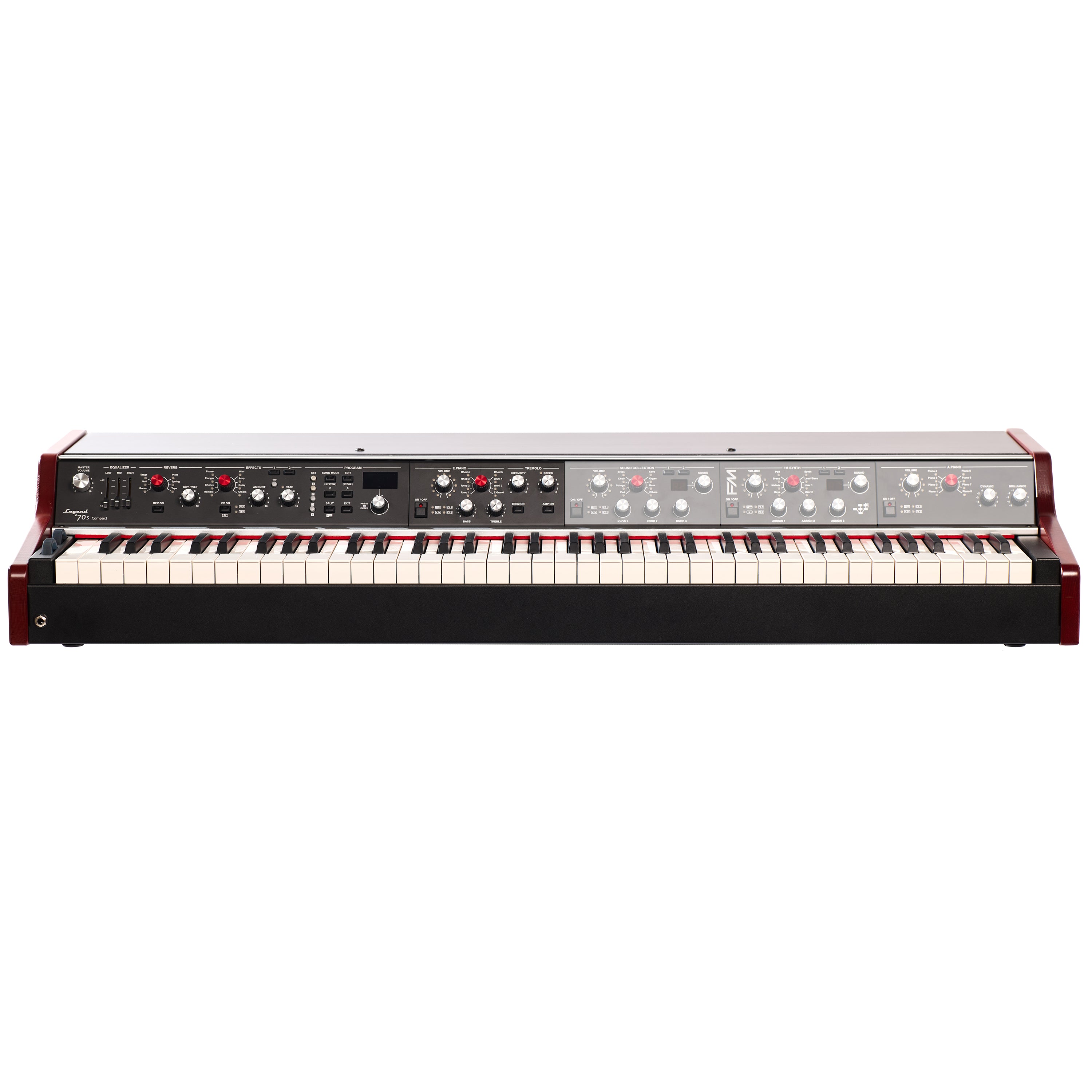

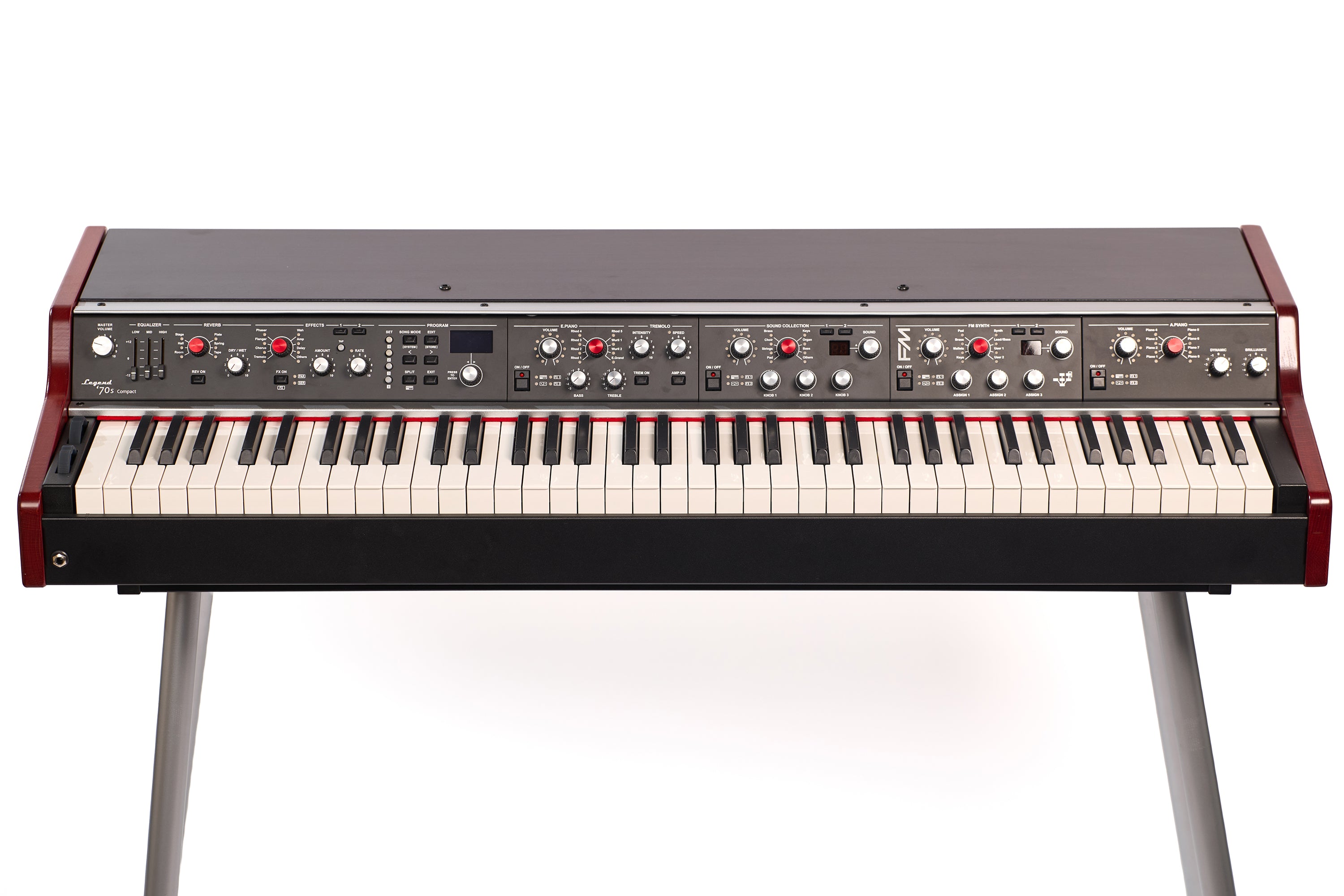

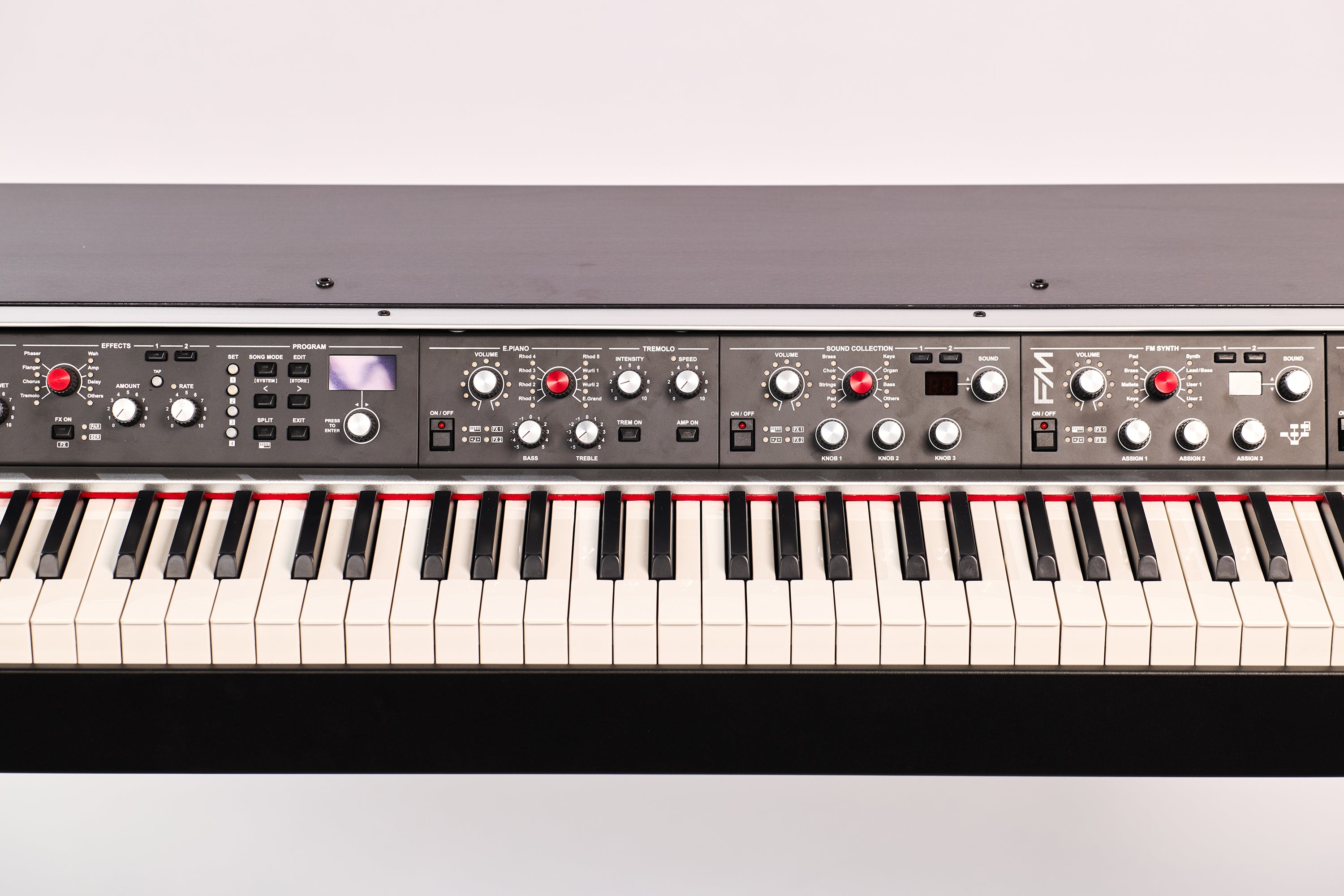

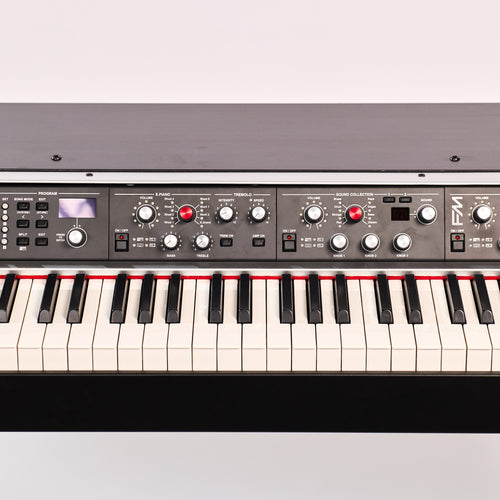

The Modular Concept
The Legend 70s MKII Compact accepts up to four modules total, with three slots open from the start for whatever direction your playing takes you. Rather than outgrowing your instrument as your needs change, the modular design lets you add clavi, FM synthesis, virtual analog, or an expanded sound collection on your own timeline without replacing anything. Each module runs its own dedicated sound generator with independent polyphony, so adding new voices never comes at the expense of what is already installed.
Twice the Power of the Original
The MKII's new dual-DSP main circuit provides double the computing power of the first-generation Legend '70s, giving each installed module more processing headroom for richer sound generation and more complex effects. This also positions the platform well for more demanding modules as Viscount expands the catalog over time. The updated EPROM brings 384 presets across 24 banks, with 9 setlist banks holding 40 songs each for organized live performance recall.

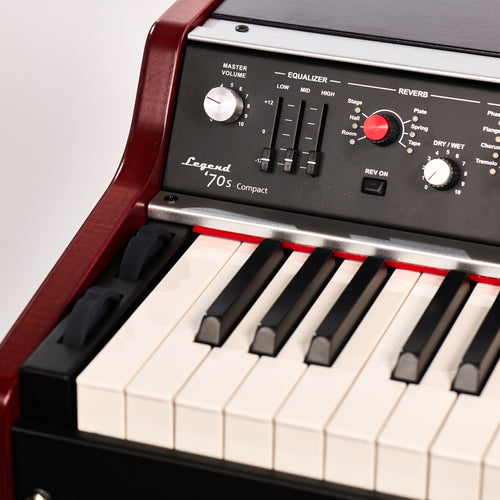

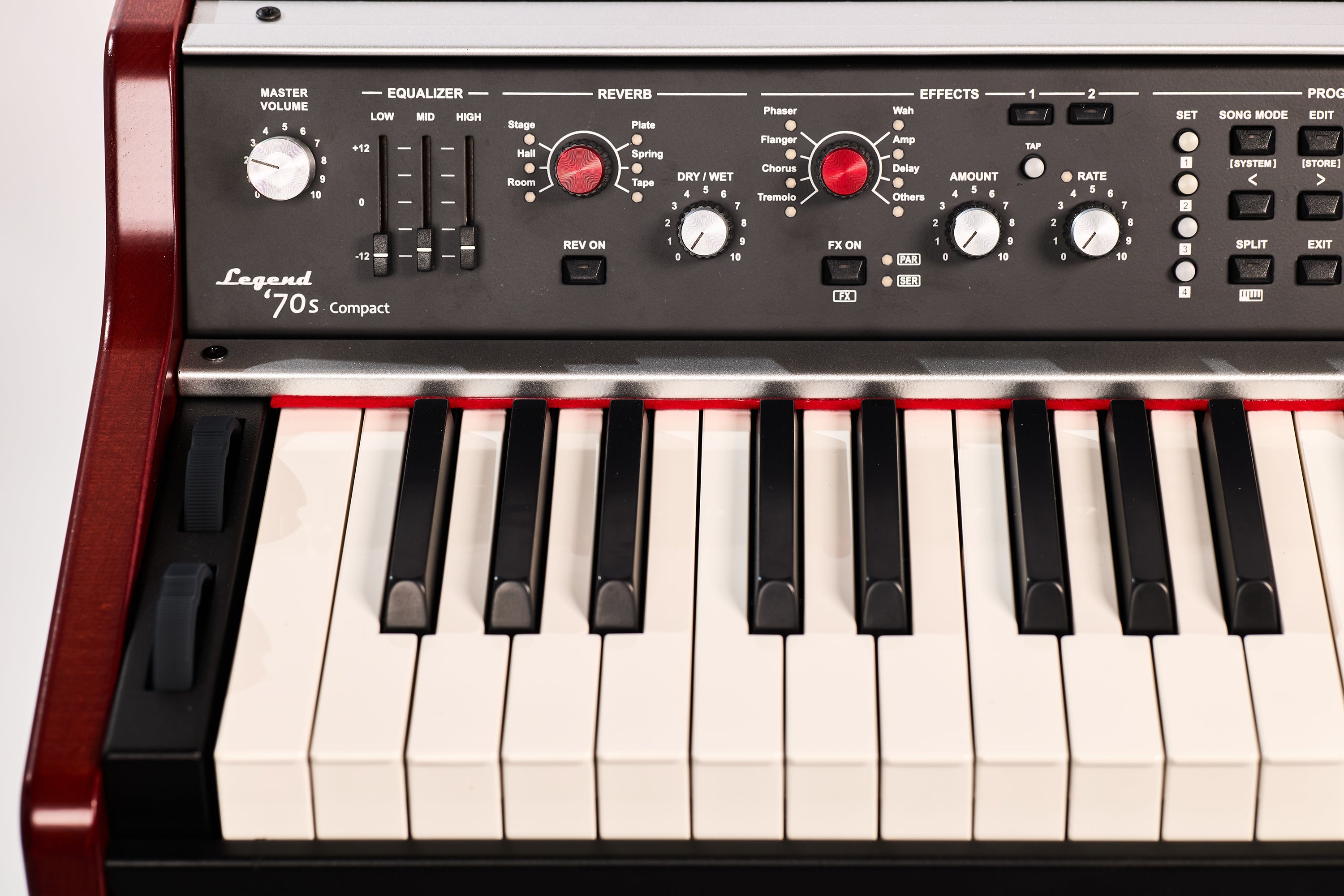

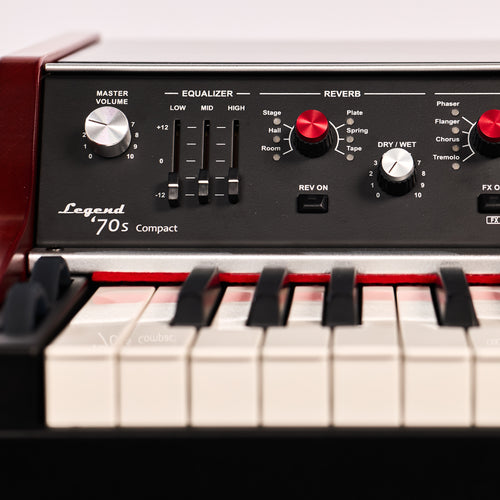

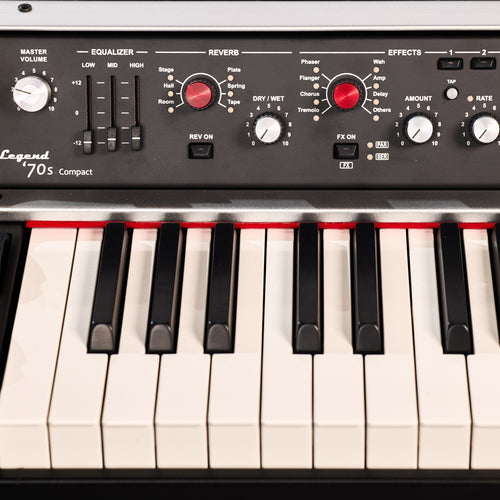

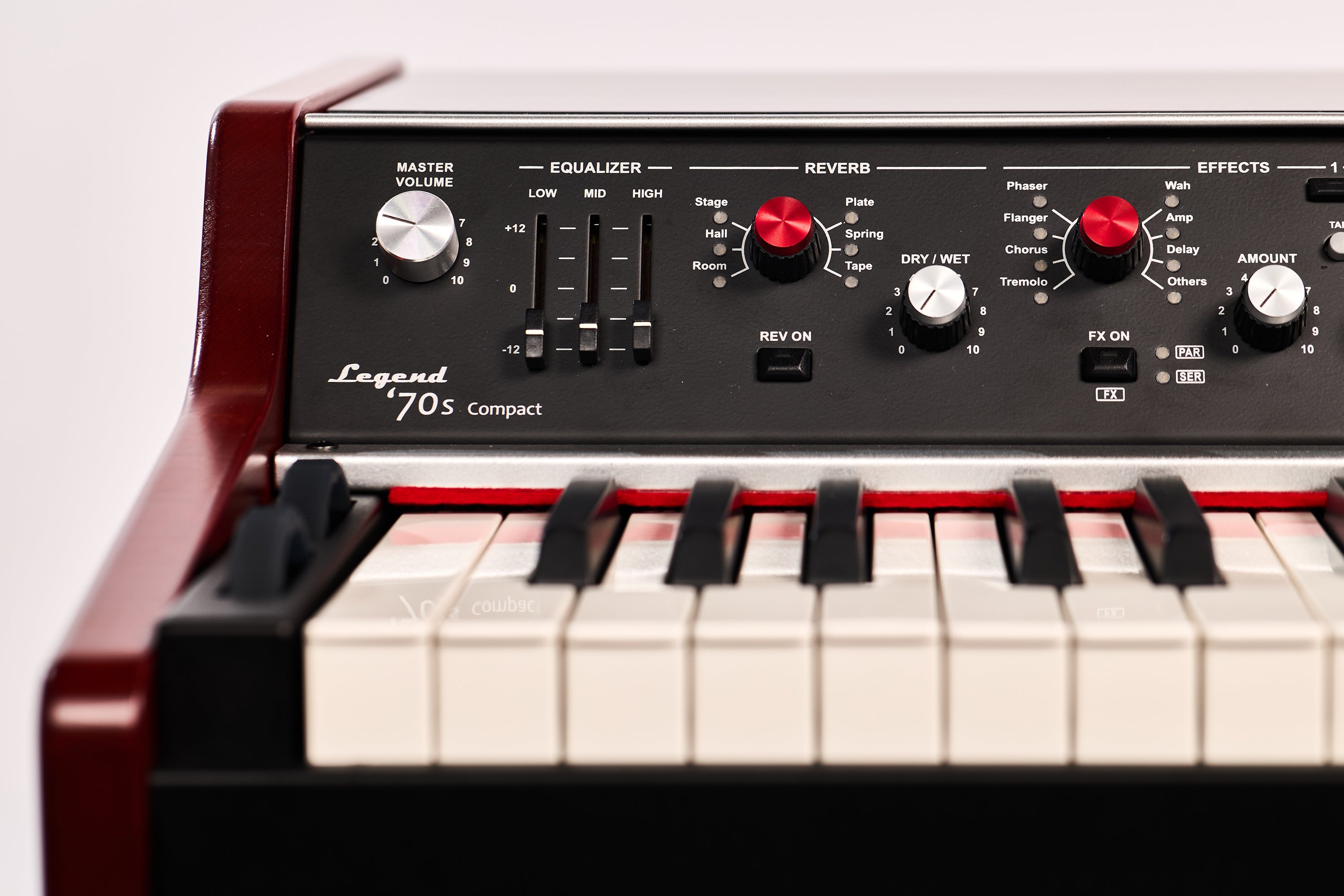

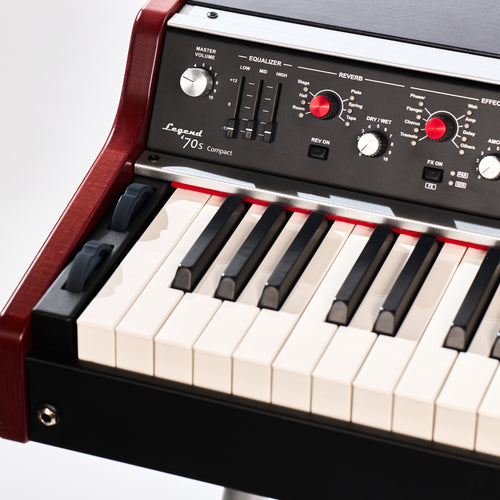

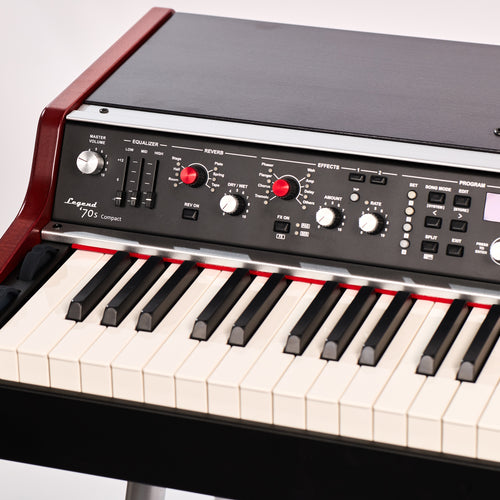

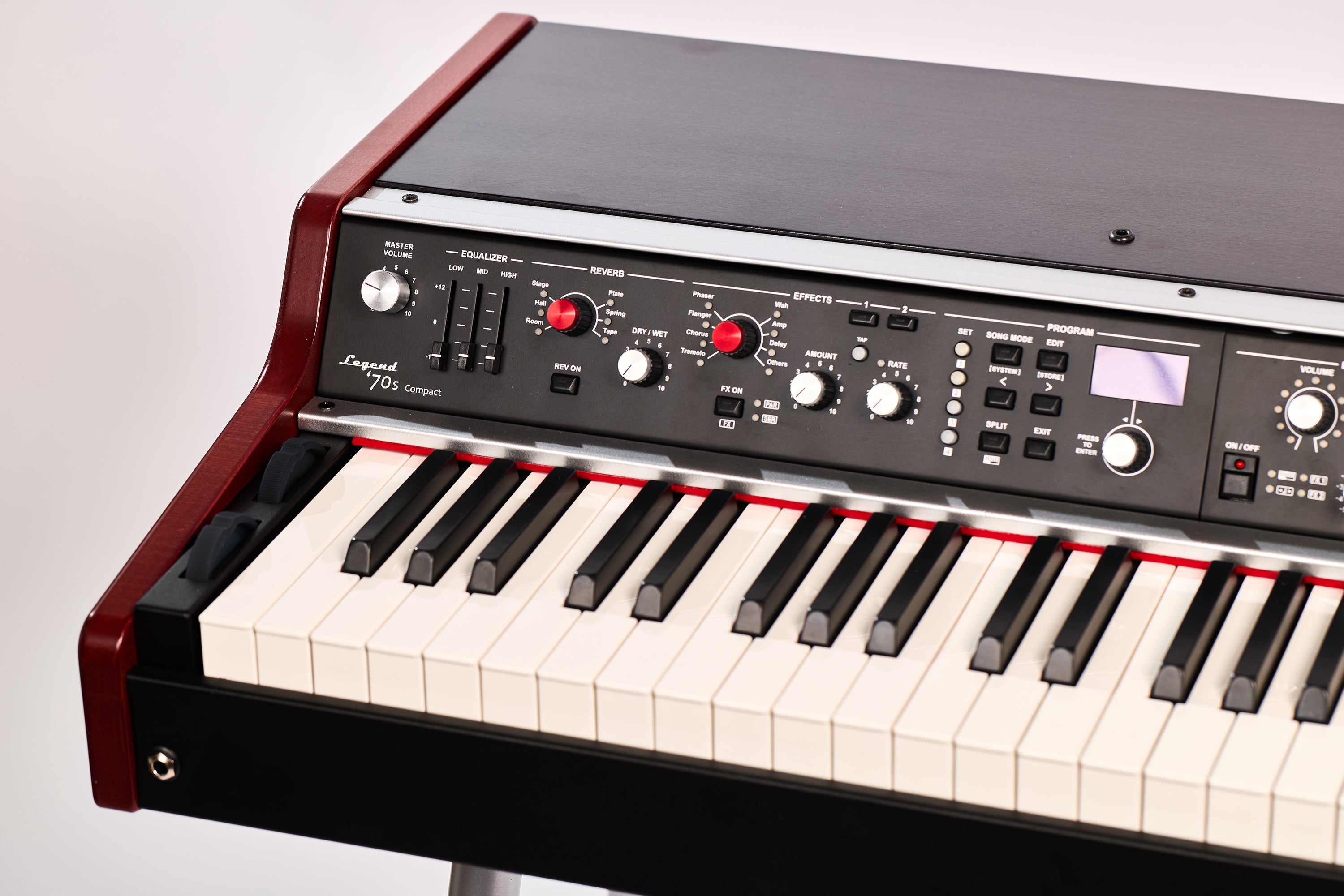

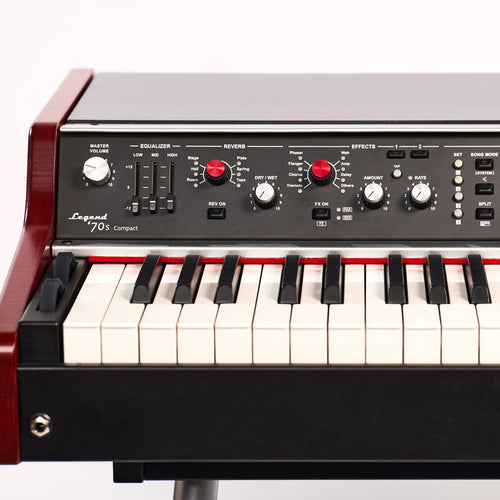

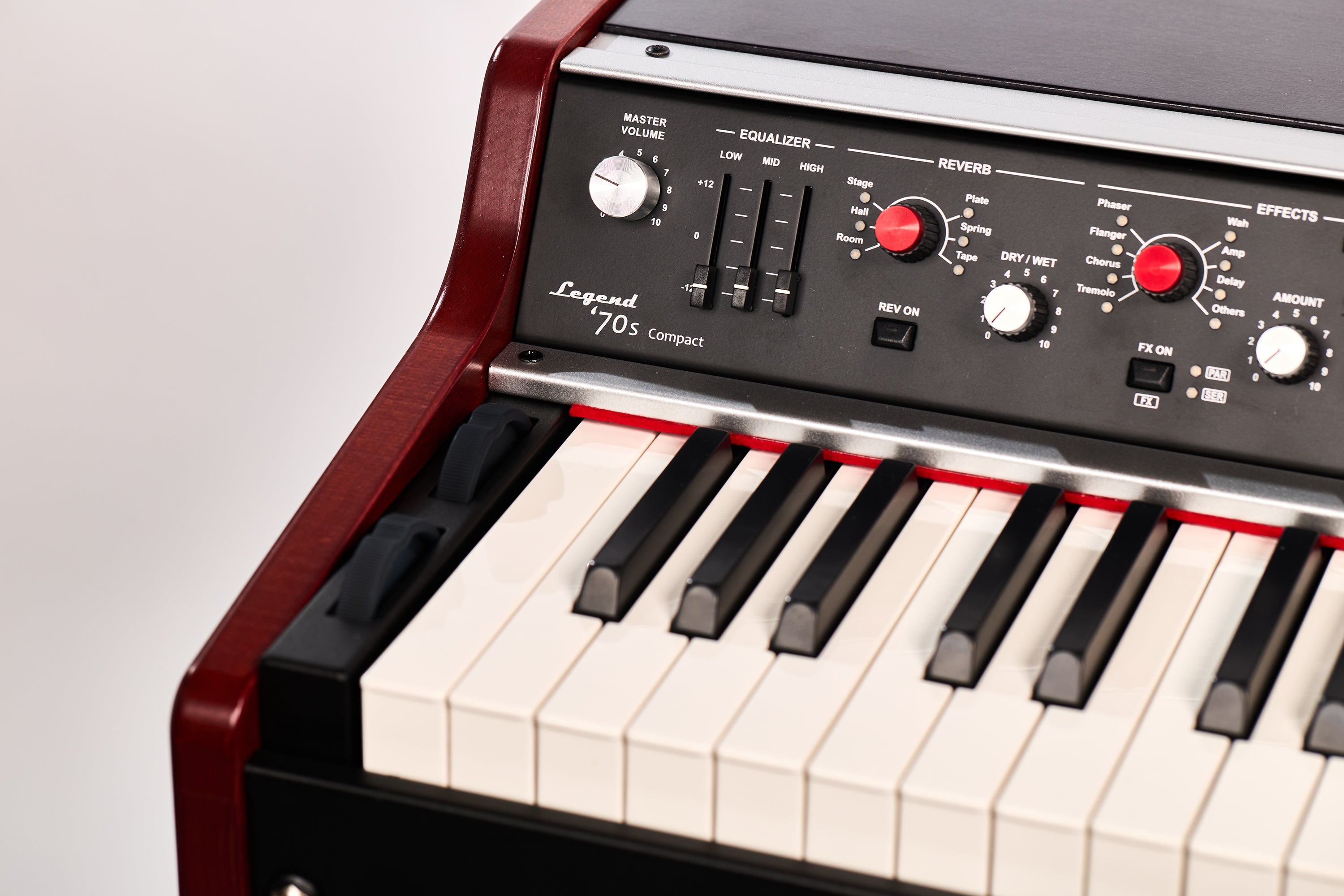

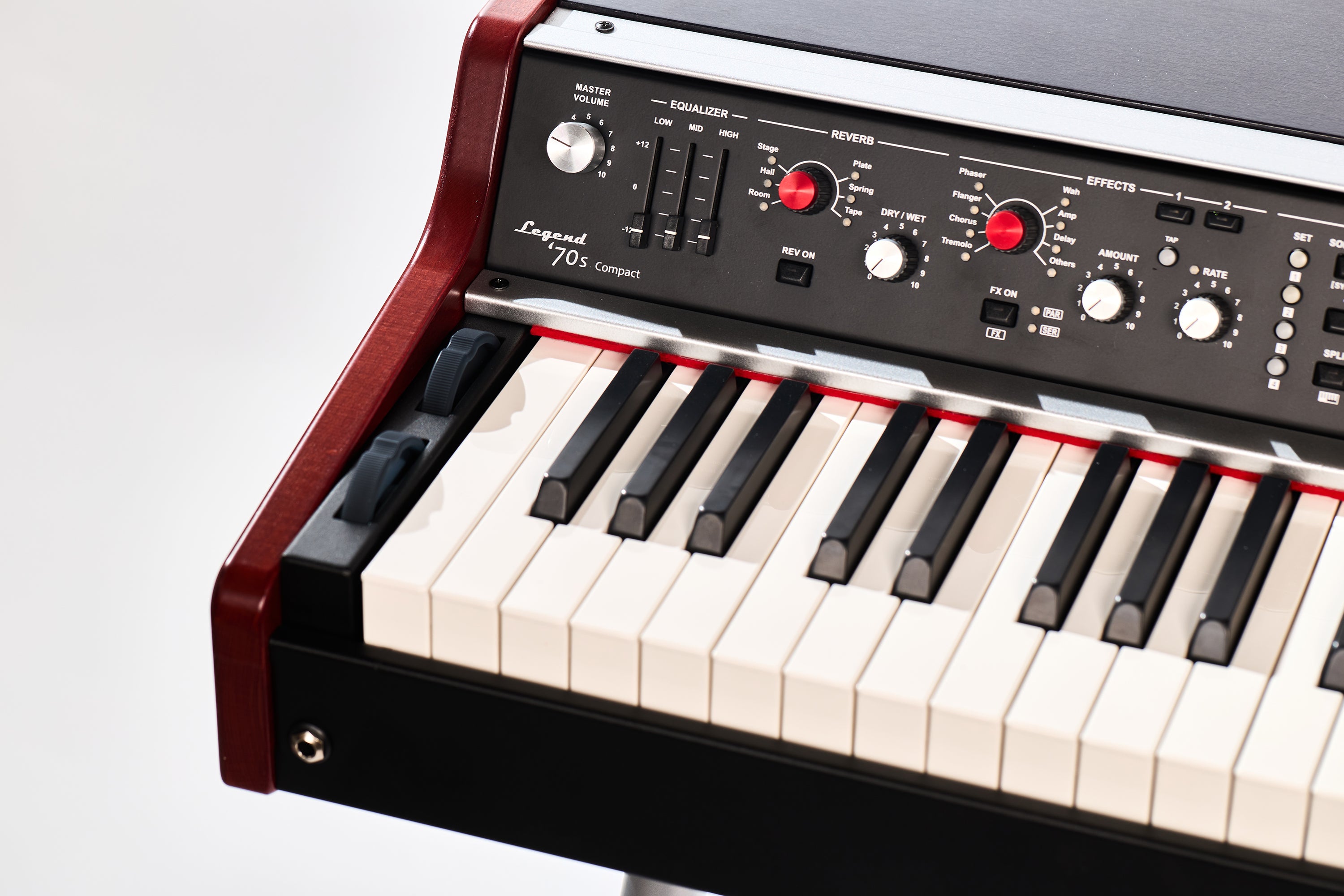

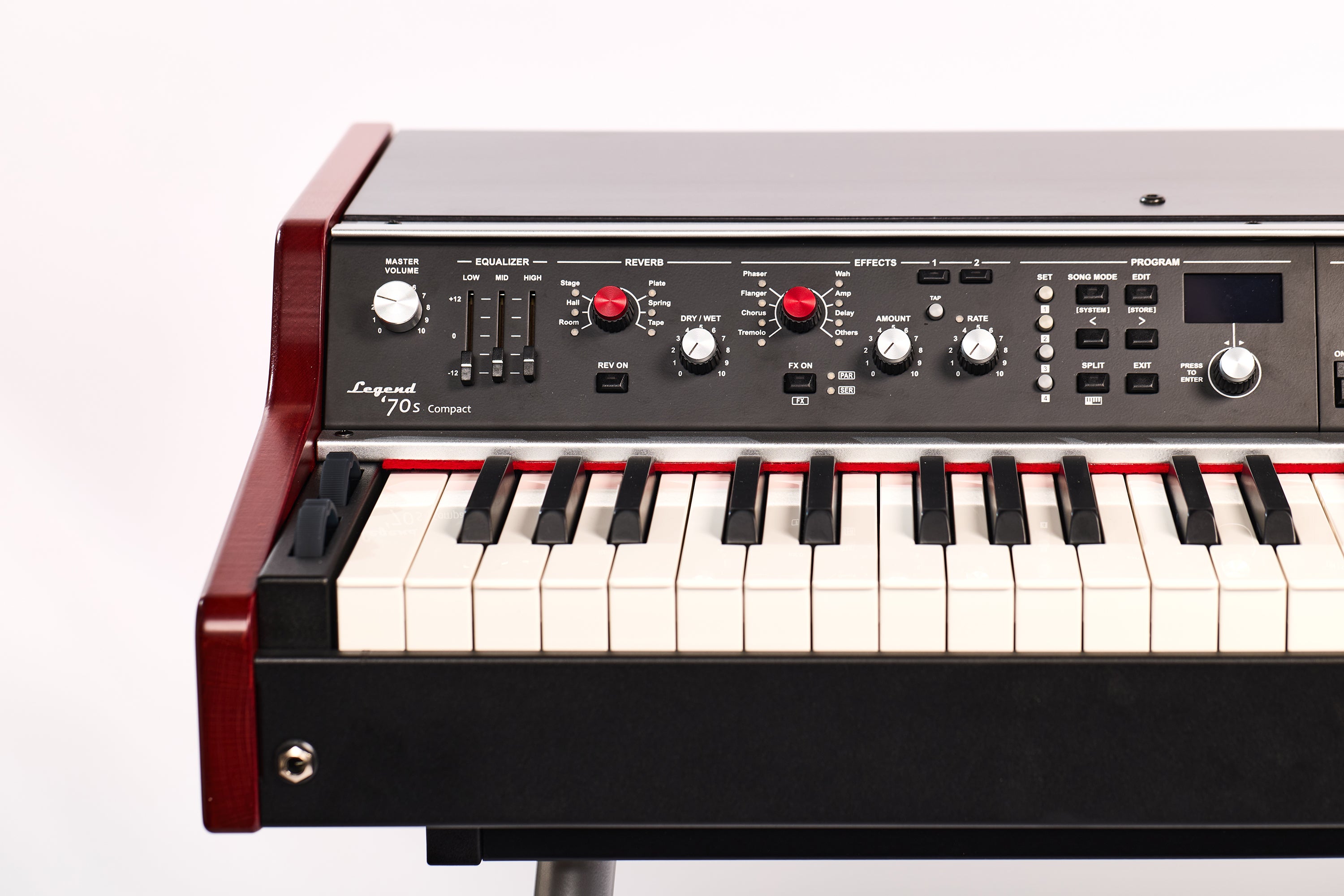

A Complete Effects Engine
The effects section lives in the keyboard chassis itself rather than in individual modules, so the full processing suite is available regardless of which sound engines are installed. Six reverb types cover rooms, halls, plates, and spring and tape simulations, while the modulation section includes tremolo, vibrato, chorus, flanger, phaser, wah-wah, rotary, and delay. A master EQ and compressor complete the signal chain, giving players a self-contained live rig without relying on external processing.
Ready for the Stage

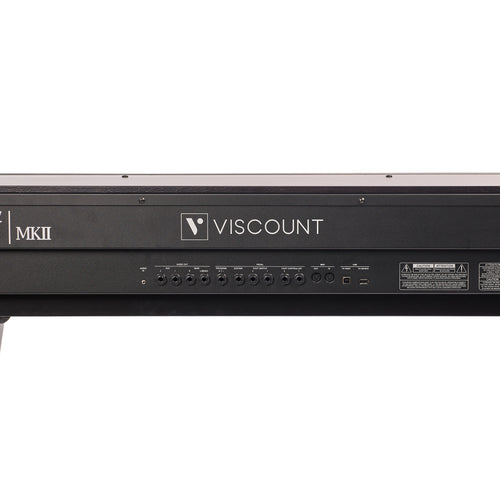

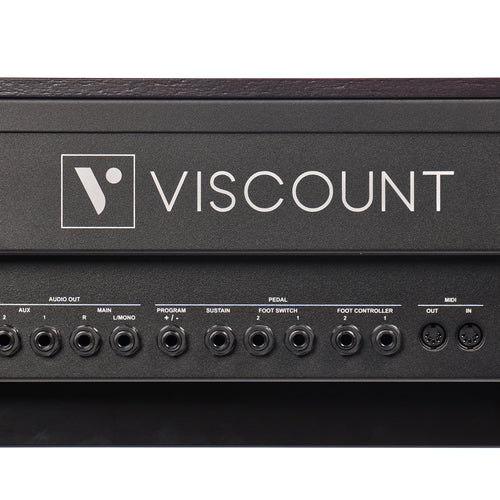

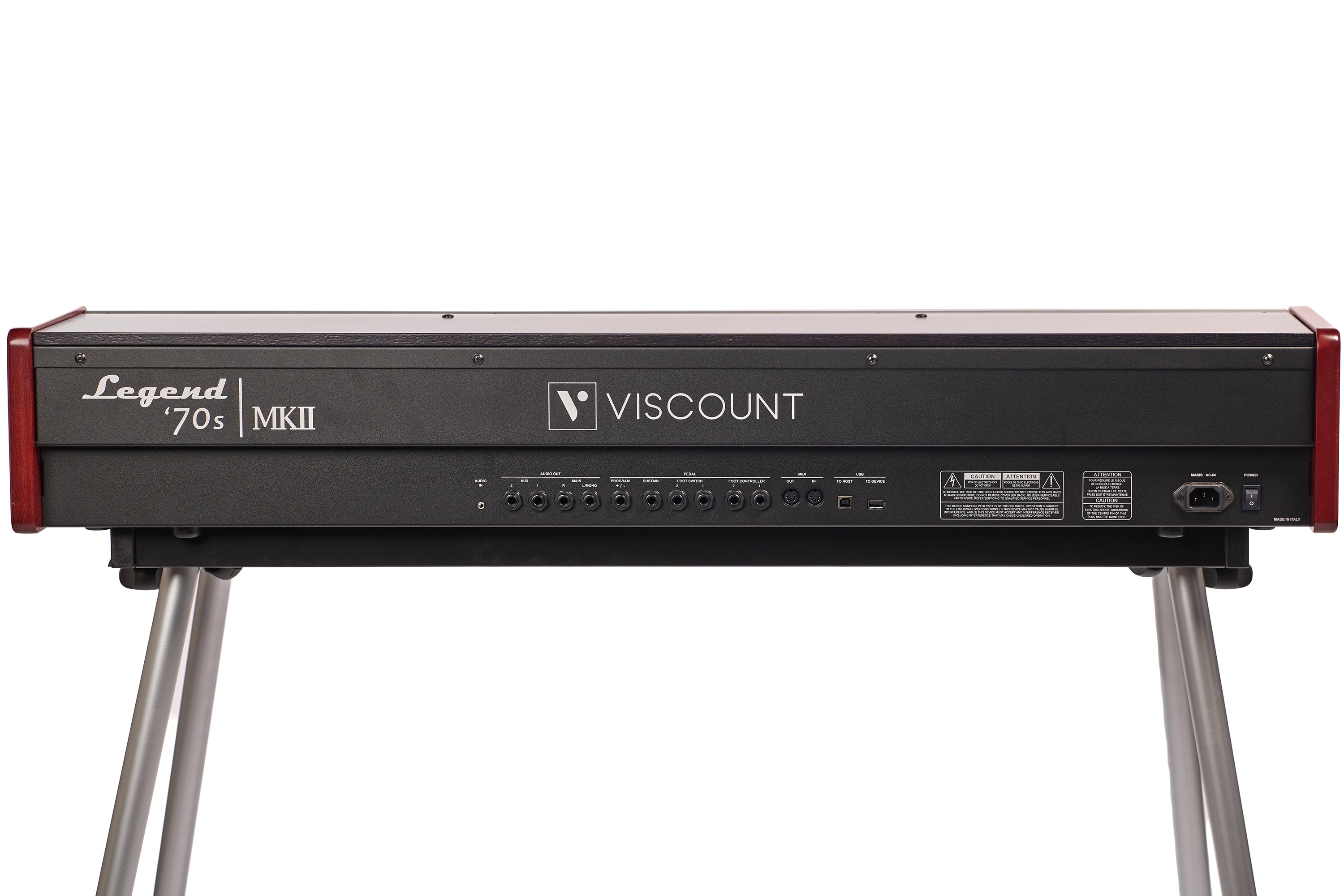

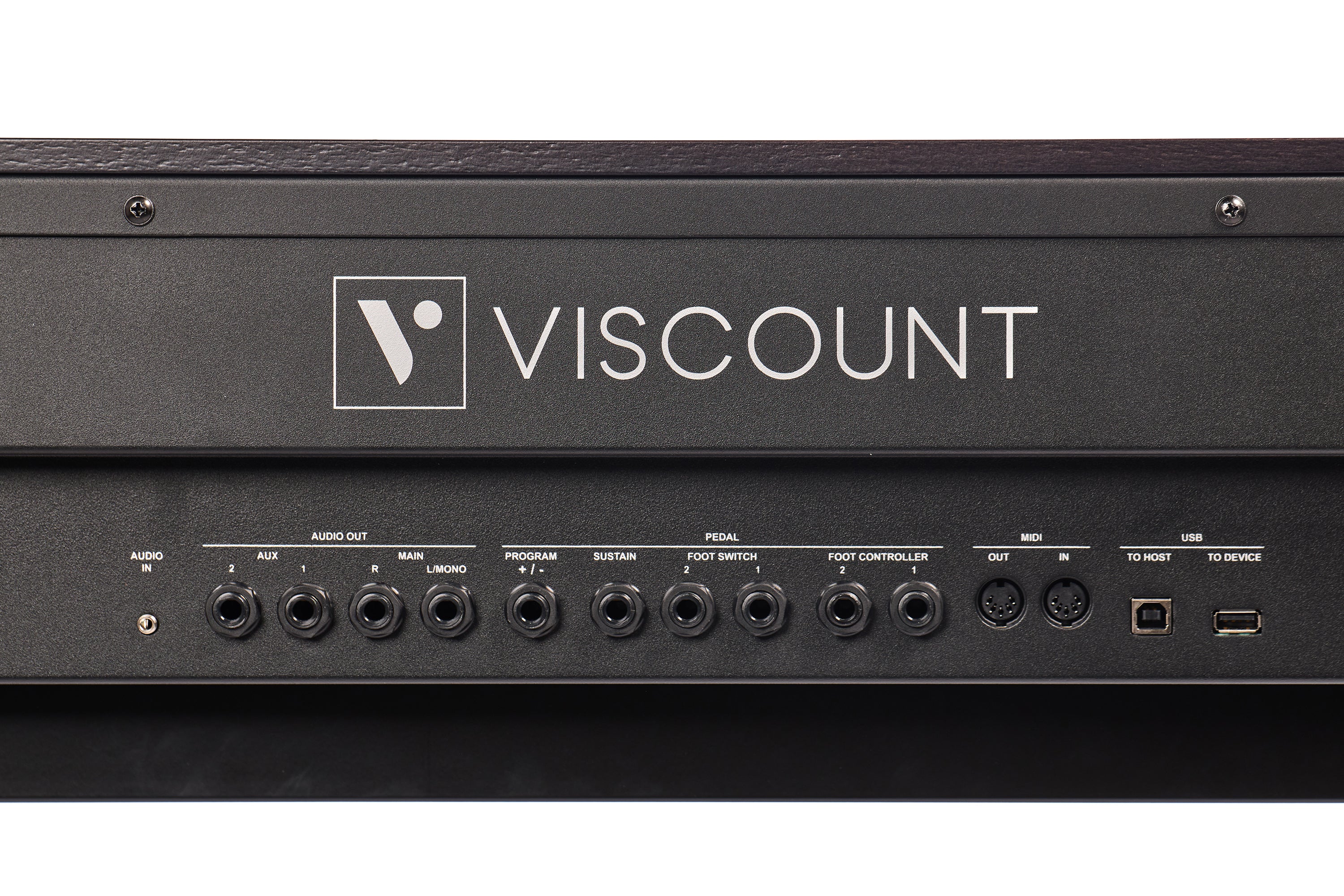

At 38.6 pounds, the Compact is an easy instrument to move, and its dual stereo main and aux outputs let players feed a front-of-house system and a stage monitor or amp simultaneously. Four footswitch and foot controller inputs handle sustain, program changes, and continuous expression independently, and USB to host carries both MIDI and audio to a connected computer. A USB flash drive port handles preset storage and recall, and the free Legend '70s Editor software provides access to deep parameters on both macOS and Windows.
Frequently Asked Questions: Viscount Legend '70s MKII Compact
What makes the Viscount Legend '70s MKII Compact different from other 73-key stage pianos?
The Legend '70s MKII Compact is the only 73-key stage piano with a modular front panel that lets you physically install and swap sound engine modules over time. It ships with the Electric Piano module installed and three open slots ready for expansion, so your instrument grows with your musical needs rather than locking you into a fixed sound set at purchase. Each module runs its own dedicated sound generator with independent polyphony, so adding new sounds never compromises what is already installed.
What modules are available for the Legend '70s MKII Compact, and which one comes included?
The Compact ships with the Electric Piano module installed in one of its four slots. Modules available separately include the Acoustic Piano 2G, Clavi, FM Synth, Synth-8, Sound Collection, and an External module. Viscount has committed to expanding the module catalog over time, so more modules may be available in the future.
Does the Viscount Legend '70s MKII Compact use samples or physical modeling for its electric piano sounds?
The included Electric Piano module uses Viscount's physical modeling technology, which calculates the behavior of each key and dynamic level mathematically rather than playing back recorded samples. This eliminates the tonal gaps and timbral inconsistencies common in sample-based instruments, where a single recording is stretched across multiple keys and velocity layers. The Clavi module also uses physical modeling, while the Acoustic Piano and Sound Collection modules use high-definition sampling optimized for those instruments.
What electric piano models are included, and how realistic do they sound?
The Electric Piano module covers five Rhodes models, two Wurlitzer models, and an electric grand, spanning the classic tones that defined 1970s popular music. Because the sounds are generated through physical modeling rather than samples, the response is consistent across the full keyboard range at every dynamic level, with no tonal gaps between registers. The module is fully polyphonic, so every note in a dense chord or sustained voicing is always heard.
What kind of keyboard action does the Compact have, and how does it compare to the Artist-W?
The Compact uses the Fatar TP/110 hammer action, a lighter keybed well suited to players who move between multiple instruments on stage and want a fast, familiar feel. The Artist-W, by contrast, uses a graded hammer action with real wood keys designed to replicate the feel of an acoustic grand piano. Three contact sensors under each key provide precise velocity detection on both instruments, but the Compact is the better fit for electric piano and synth-focused players rather than those primarily playing acoustic piano repertoire.
Is the Viscount Legend '70s MKII Compact a good stage piano for gigging musicians?
Yes, at 38.6 pounds it is straightforward to transport, and the dual stereo main and aux outputs let you feed a front-of-house system and a monitor or amp simultaneously. Four footswitch and foot controller inputs handle sustain, program changes, and continuous expression independently, and the setlist system stores 9 lists of 40 songs with 4 sets per song. A USB flash drive port makes loading different preset configurations for different gigs quick and convenient.
Does the Legend '70s MKII Compact work with a computer for recording and MIDI control?
Yes, the USB to host connection carries both MIDI and audio to a connected Mac or Windows computer. Traditional 5-pin MIDI in and out jacks are also included for connecting to hardware synthesizers, samplers, or other MIDI gear. The free Legend '70s Editor software provides access to deep editing parameters not available on the panel itself and runs on both macOS and Windows.

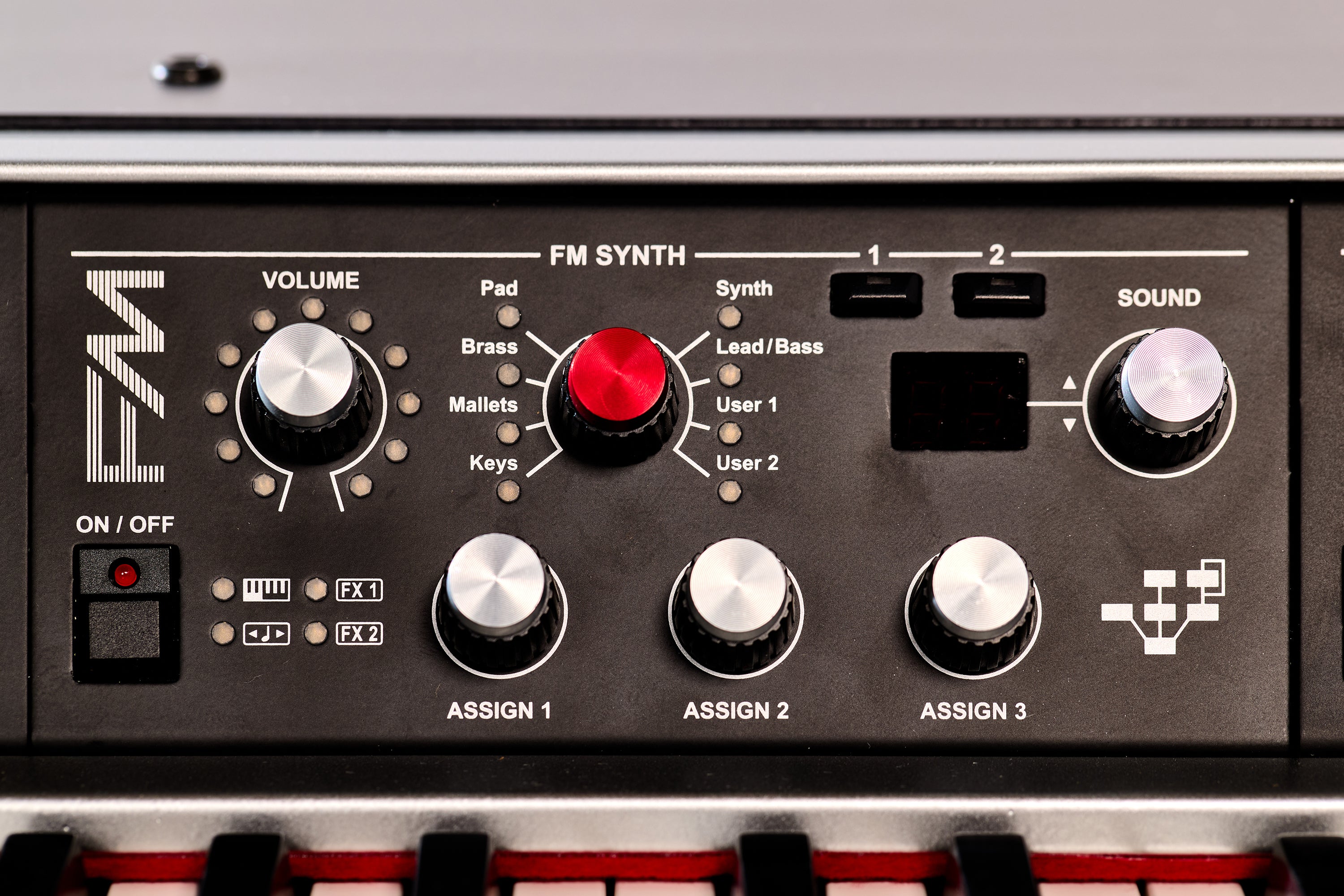

Is the FM Synth module on the Legend '70s MKII Compact compatible with Yamaha DX7 patches?
Yes, the FM Synth module (sold separately) is compatible with sound libraries from the Yamaha DX and TX series, giving you access to a large library of existing FM patches alongside its own two independent stereo layers with 6 operators each. This makes it a strong option for players who already have a collection of DX-format presets or want to add classic FM synthesis alongside the electric piano and clavi modules.
Does the Viscount Legend '70s MKII Compact have built-in effects, and are they available for all modules?
The full effects engine lives in the keyboard chassis itself, not within the individual modules, so every installed module has access to the complete suite regardless of which sounds you are using. Effects include six reverb types (room, hall, stage, plate, spring, and tape), plus tremolo, vibrato, chorus, flanger, phaser, wah-wah, rotary, amp simulations, delay, a master EQ, and a compressor. This gives players a complete, self-contained live signal path without any external processing required.
Who is the Viscount Legend '70s MKII Compact best suited for?
The Compact's lighter Fatar action, 73-key format, and Electric Piano module as the included starting point make it a natural fit for players whose focus is electric pianos, vintage keyboards and synths. While it's perfectly capable of acoustic piano tones, it has a more lightweight action, so those who primarily play acoustic piano repertoire and are looking for a graded action may be better served by the 88-key Artist-W.
| Specification | Value |
|---|---|
| SKU | VIS-LEGEND70CMKIICBK |
| Model Name | Legend 70s MKII Compact |
| Vendor | Viscount |
| Built In Speakers | No |
| Included From Manufacturer |
Electric Piano module Power Supply |
| Keys Weighted | Hammer Weighted |
| Number of Keys | 73 |
| Midi | In and Out |
| MPN | 9A13LEG70MK2T73 |
| Key Action | Fatar TP/110 Hammer Action |
| Programs/Presets | 384 (24 banks × 16 programs each) |
| Voices of Polyphony |
Electric Piano module (included): Full Acoustic Piano module (sold separately): 128 Clavi module (sold separately): Full Sound Collection module (sold separately): 128 |
| Transpose Feature | Yes |
| Split Feature | Yes |
| Effects |
Reverb: Room, Hall, Stage, Plate, Spring, Tape Tremolo, Vibrato, Chorus, Flanger, Phaser, Wah-Wah, Amp Simulations, Rotary, Delay, EQ, Compressor |
| Onboard Controllers |
Pitch Bend Wheel Modulation Wheel |
| Audio Inputs | (1) 1/8" (3.5mm) Stereo |
| Audio Outputs |
(2) 1/4" Stereo Main (2) 1/4" Stereo Aux |
| USB Port (to Host) | MIDI and Audio |
| USB Flash Drive Port (to Device) | Program/Preset Storage |
| Number of Songs | 9 setlists × 40 songs, 4 sets per song |
| Finish | Black |
| Product Weight | 38.6 lb (17.5 kg) |
