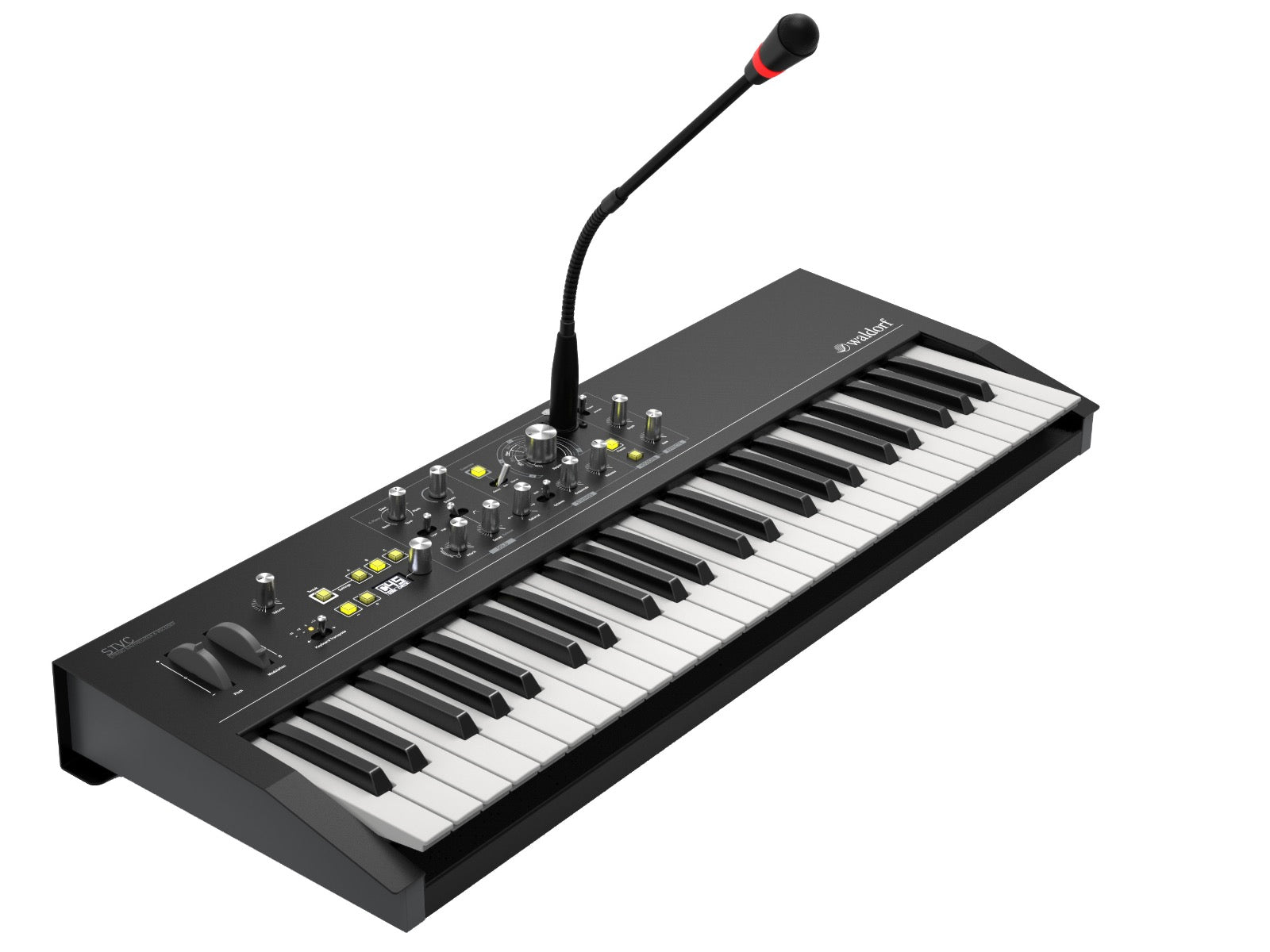

Based on Waldorf's popular Streichfett string synthesizer module, Waldorf STVC combines the sound engine of Streitchfett with a powerful vocoder, all inside a rugged Blofeld-style chassis with the same great keybed as Blofeld.
The String section starts with an oscillator bank using octave dividers, followed by a complex mixer, an equalizer and an ensemble effect, just like string machines from the 70s. A single Registration knob sweeps through mixer and EQ settings for violin, viola, cello, brass, organ, choir and more for creating rich and creamy sonic textures.
The Solo section is a 16-voice synthesizer that complements the string sounds. A single Tone knob sweeps through many useful settings. Solo is the sidekick to the strings, but it is powerful enough to be the lead character every now and then.
The Vocoder replaces the equalizer in the string section with a filter bank that models the vocal tract from speech input. This can produce quite intelligible speech or singing using the fully polyphonic oscillator bank. Formants can be modified, which can result in a perceived change of gender. Adjustable jitter of the string oscillators renders the voice hoarse, creaky or a complete whisper. Solo can pass through the Vocoder or play in parallel.
The Freeze button lets you freeze a short speech fragment, which is then repeated by the Vocoder whenever a key is pressed. Change of playback speed, like faster, backwards or a complete stop are possible and fun, as well as formant change.
A novel Tweak function allows for modification or modulation of details like the solo cutoff frequency or the Chorus LFO rate. It is similar to a modulation matrix, but it also allows to alter implicit settings with a fixed value or an offset.
Three effects operate simultaneously. Animate is a modulation of the string or vocoder registration, while a Phaser is a must for any decent string machine. A high quality Reverb with adjustable size can be mixed to the output.
STVC comes with a high quality gooseneck microphone that plugs right into the front panel where it belongs.
SKU | WAL-STVCCBK |
Vendor | Waldorf |
Aftertouch | Yes |
Analog Digital | Digital |
Built In Speakers | No |
Included From Manufacturer | Gooseneck vocoder microphone |
Keys Weighted | No |
Number of Keys | 49 |
Key Size | Full Size Keys |
Midi | In, Out, and USB |
Mono Poly | Polyphonic |
MPN | STVC |
Audio File Playback | No |
Control Connections | 1/4" expression pedal input 1/4" sustain footswitch input |
Onboard Controllers | Pitch/mod wheels |
Effects | Animate (modulates Strings Registration value) Ensemble/Chorus Phaser Reverb |
Audio Inputs | Vocoder microphone XLR input on top panel |
Audio Outputs | Dual 1/4" stereo output 1/8" stereo headphone output |
Key Action | Synth action with velocity and aftertouch |
Multitimbral Capability | 2 parts |
Oscillators per Voice | Varies by Sound Engine |
Product Weight | 18 lbs. |
Programs/Presets | 126 |
USB Flash Drive Port (to Device) | MIDI Recording |
USB Port (to Host) | MIDI;System Updates |
Voices of Polyphony | 128 |
Width | 29.13" |
Depth | 10.83" |
Height | 3.94" |
Waldorf Music provides a one-year warranty covering defects in material and workmanship from the original purchase date. During this period, the company will repair or replace faulty products at no cost, provided the defect is confirmed by Waldorf Music or an authorized service center. Customers must contact their dealer or distributor before sending the product, which should be shipped in its original packaging with insurance. The warranty excludes damage from abuse, improper conditions, or unauthorized repairs and covers only defects that occur under normal operating conditions. More information can be found on Waldorf's website.
