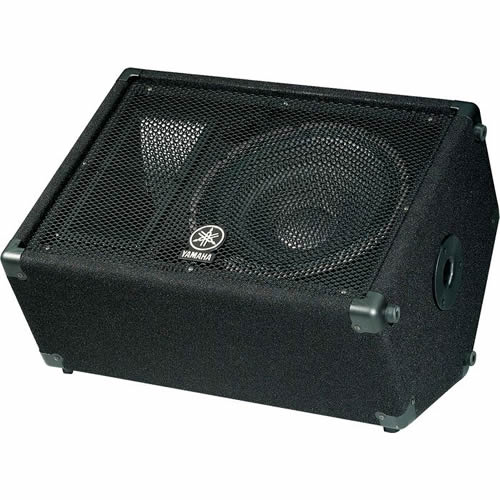

Yamaha BR12M 12" Two-Way Passive PA Monitor Speaker
Designed to fit the budgets of performing musicians, small churches, and schools, while delivering the full frequency response and high output of more costly systems.
Built Right
Combining their knowledge of acoustics and advanced computer controlled woodworking, Yamaha Music Manufacturing crafts the BR line of sound reinforcement loudspeakers to exacting tolerances. Each model's large steel handles, corner protectors, and built-in pole sockets, assure both durability and flexibility.
Designed to fit the budgets of performing musicians, small churches, and schools, while delivering the full frequency response and high output of more costly systems.
Better Response
BR cabinets are carefully designed for the best balance of small, easy to handle size and great low-frequency response, using Bass Reflex technology. High-frequency response is also enhanced with a new titanium HF driver and 90degree by 40 degree non-resonant horn.
Best Reliability
All BR-Series models are covered by a three-year warranty. With integral protection circuitry built into the passive crossover, you can expect a long life of high output and minimal distortion.
Horn
A large non-resonant, constant-directivity horn provides even 90 degree x 40 degree high-frequency dispersion.
Corners
Steel corner protectors keep your cabinets free from dings and damage associated with frequent transport.
Handles
Large metal handles mounted at each cabinet's center of gravity make them very easy to carry.
Pole Socket
All BR models, including the monitors, come with stand/pole sockets for flexibility of use.
| SKU | YAM-BR12M |
| Vendor | Yamaha |
| Active Passive | Passive |
| MPN | BR12M |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 12 |
| Connectors | (2) 1/4" Parallel |
| Covering Material | Carpet |
| Flyable | No |
| Frequency Response | 65Hz-20kHz |
| Nominal Impedance | 8 Ohms |
| Pole Mount | 1-3/8-Inch |
| Power | 150 Watts (Noise) 300 Watts (Program) 600 Watts (Peak) |
| Product Weight | 34.3 lbs |
| Protection Circuit | No |
| Sensitivity | 97 dB |
| Tweeter/Horn | 1" Titanium |
| Width | 22-1/2" |
| Depth | 13-1/4" |
| Height | 16" |
| Woofer/Low Frequency | 12" |
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
