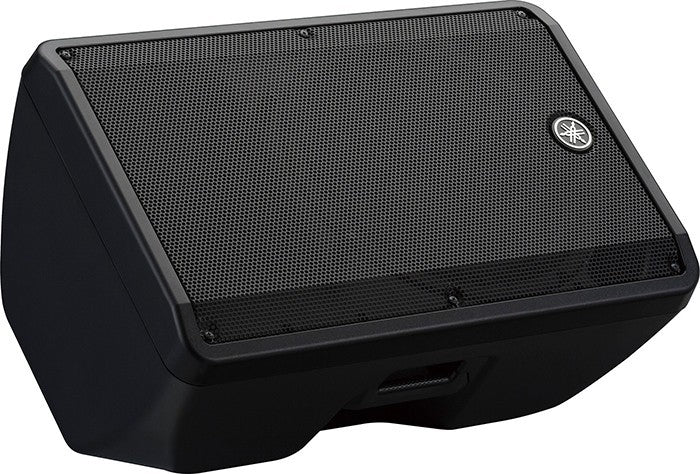

Yamaha DBR powered speaker system brings excellent sound quality, reliability, and portability. Using the latest DSP, engineers applied our proprietary FIR-X tuning, to optimize the sound, and protection algorithms to give the DBR series class-leading maximum output power. DBR models are bi-amped, using a separate power amplifier for the woofer and the high frequency driver to deliver accurate, controlled performance. All the acoustic components were specifically designed to take full advantage of the power amplifiers and DSP, resulting in a very natural sound even at very high levels. With a simple switch, a DBR can easily be configured for use as a high performance floor monitor or great sounding main speaker making setup a snap. Add to this Yamaha’s 7 Year warranty and you can be assured a long life with great sound. Yamaha DBR series gives you the Power to Play.

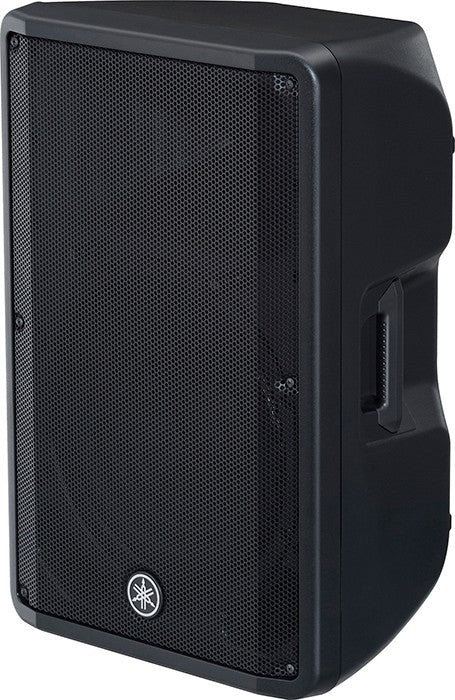

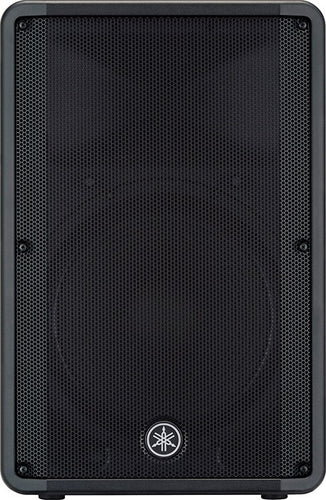

The largest member of the DBR series, the DBR15 offers a 15” woofer with a 2 ½” voice coil and a 1.4” compression driver to produce excellent full range sound. With 1000 watts of DSP controlled power, the DBR15 leads its class with output up to 132 dB of SPL (sound pressure level), while remaining musically accurate. Having great audio in an easy to set up package makes the DBR15 a perfect choice for musicians and DJs alike.
| SKU | YAM-DBR15 |
| Vendor | Yamaha |
| Active Passive | Active |
| MPN | DBR15 |
| Product Unique Features | DBR models are bi-amped, using a separate power amplifier for the woofer and the high frequency driver to deliver accurate, controlled performance. |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 15 |

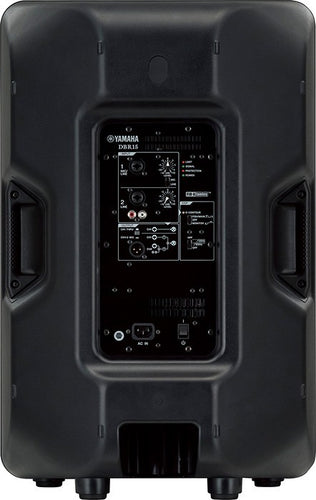

| Connectors | (2) XLR Mic/Line Input (1) Stereo RCA Input (1) XLR Thru/Link Out |
| Covering Material | Matte Black |
| Enclosure Material | ABS |
| Equalization (EQ) | Selectable DSP Presets |
| Flyable | Optional |
| Frequency Range | (-10dB) 49 Hz-20 |
| Pole Mount | 1-3/8-Inch |
| Power | Consumption: 74 W Dynamic: 1000 W (LF: 800 W, HF: 200 W) Continuous: 465 W (LF: 400 W, HF: 65 W) |
| Product Weight | 53lbs |
| Protection Circuit | Yes |
| Tweeter/Horn | HF: 1.4" Voice Coil, Compression Driver |
| Width | 22" |
| Depth | 19" |
| Height | 31" |
| Woofer/Low Frequency | 15" |
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
