Yamaha DHR10 powered loudspeaker has a versatile design with integral rigging of optional bracketry, offers a rotatable HF horn with 60° × 90° dispersion mated to a 1.4" HF compression driver and a high compliance 10" LF woofer for extremely clear voice reproduction and musicality. A flexible 2-channel mixer allows for multiple sources and connection types. Isn't it time you audition DHR quality and performance to improve your sound?
- 10" powered loudspeaker with 700W of Class D power
- Compact and portable yet capable of high SPL for a wide range of applications
- 1.4" HF compression driver mated to a rotatable 60° × 90° degree CD horn
- Maximum output of 128dB SPL and wide frequency response range of 52Hz-20kHz
- Ultra-precise 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- 35mm socket to allow placement on a stand or pole
High-efficiency 700W Class D amplifier
DHR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 128dB delivered with remarkable clarity and dynamic characteristics.

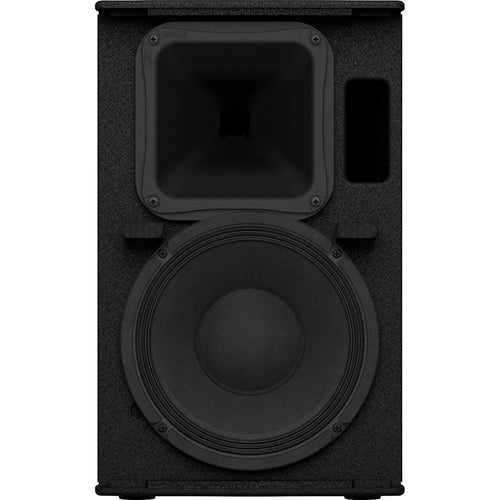

Custom-designed transducers
The high power output woofer delivers well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate midrange and high frequencies.

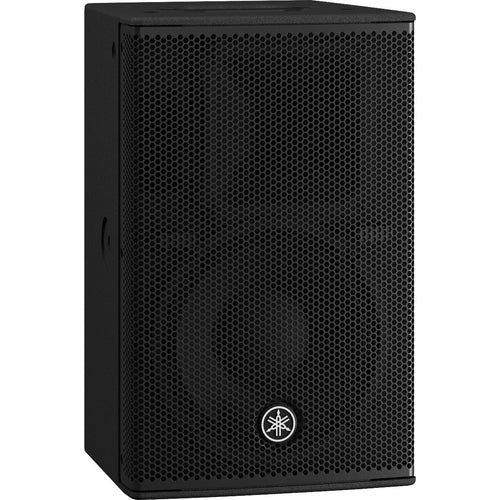

A rugged, highly portable cabinet
DHR10 features a plywood enclosure like Yamaha's acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.

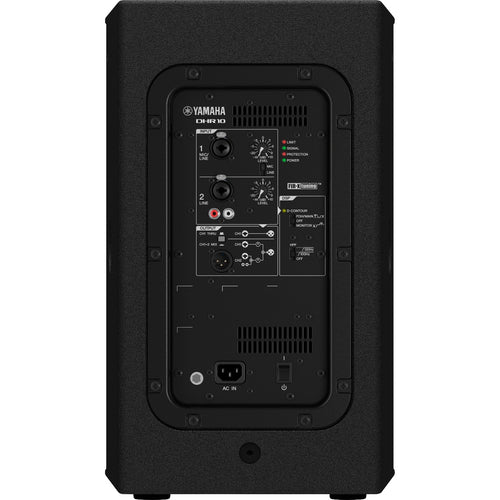

Easy-to-use onboard 2-channel mixer
DHR10 has two input channels. CH1 has a combo jack which accepts either XLR or 1/4" TRS at mic or line level. CH2 offers two input options: a combo jack that accepts XLR or 1/4" TRS, and a pair of RCA connectors for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
| Specification | Value |
|---|---|
| SKU | YAM-DHR10 |
| Vendor | Yamaha |
| Active Passive | Active |
| Included From Manufacturer | Power cord |
| MPN | DHR10 |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 10 |
| Connectors |
2 × XLR / 1/4" combo inputs Stereo RCA input XLR output |
| Covering Material | Polyurea |
| Enclosure Material | Plywood |
| Equalization (EQ) |
D-CONTOUR switch HPF switch |
| Frequency Range | 52 Hz - 20 kHz |
| Pole Mount | Yes |
| Power | 700 watts |
| Product Weight | 33.1 lb |
| Protection Circuit | Yes |
| Tweeter/Horn |
1.4" diaphragm 1" throat compression driver Ferrite magnet |
| Width | 12" |
| Depth | 11.8" |
| Height | 19.5" |
| Woofer/Low Frequency |
10" cone 2" voice coil Ferrite magnet |
