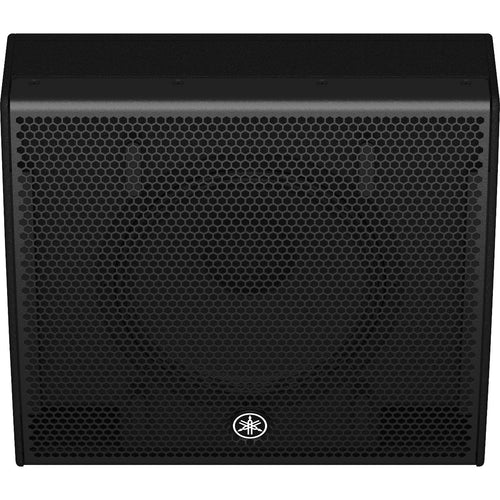

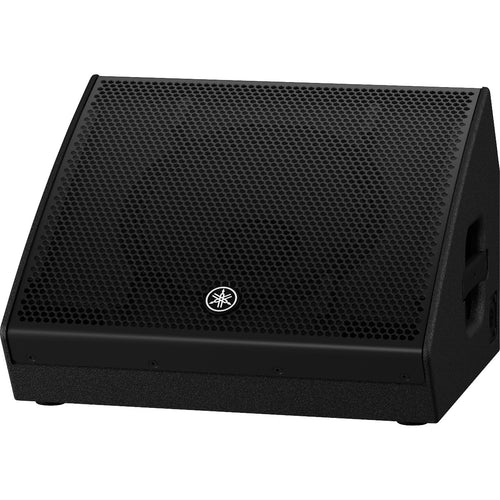

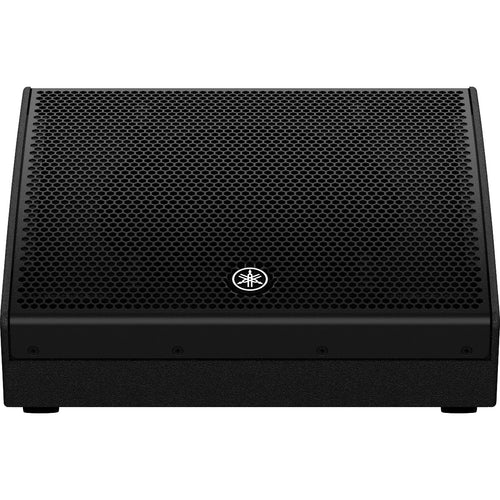

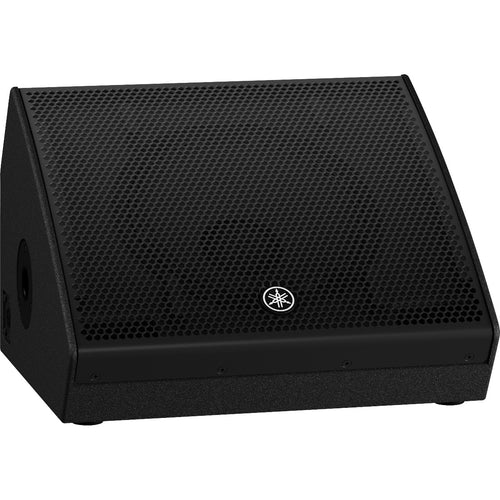

Yamaha DHR12M 12" Powered PA Monitor Speaker
Yamaha DHR12M powered loudspeaker features a custom coaxial driver design that provides near perfect phase response, making it one of the most accurate floor monitors in its class. With 1000 Watts of Class D power, up to 129dB SPL is possible. A strong steel grille and rugged plywood cabinet will stand up well to stage use. A flexible 2-channel mixer allows for multiple sources and connection types. Isn't it time you audition DHR quality and performance to improve your sound?
- 12" powered loudspeaker with 1000W of Class D power
- DHR12M delivers extremely high power from its compact, low profile enclosure
- Equipped with a 1.75" HF compression driver coaxially mounted to a high-output 12" LF unit
- Maximum 129dB SPL of power and wide frequency response range of 52Hz-20kHz
- Ultra-precise 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- 35mm socket to allow placement on a stand or pole
High-efficiency 1000W Class D amplifier
DHR12M's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 129dB delivered with remarkable clarity and dynamic characteristics.

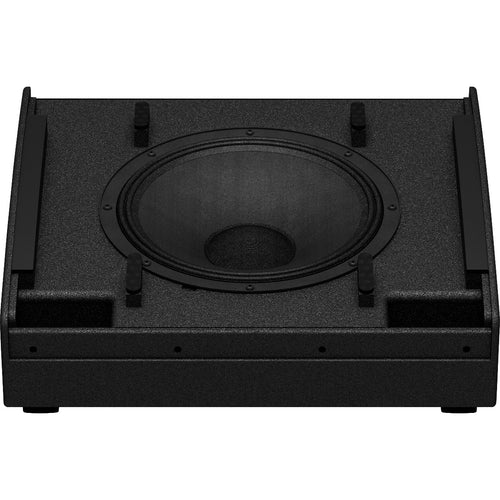

Custom-designed transducers
The high power output woofer delivers well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate midrange and high frequencies.
A rugged, highly portable cabinet
DHR12M features a plywood enclosure like Yamaha's acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.
Easy-to-use onboard 2-channel mixer
DHR12M has two input channels. CH1 has a combo jack which accepts either XLR or 1/4" TRS at mic or line level. CH2 offers two input options: a combo jack that accepts XLR or 1/4" TRS, and a pair of RCA connectors for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
SKU | YAM-DHR12M |
Model Name | DHR12M |
Vendor | Yamaha |
Active Passive | Active |
Included From Manufacturer | Power cord |
MPN | DHR12M |
Speaker Application | Full-Range |
Speaker Size Filterable | 12 |
Connectors | 2 × XLR / 1/4" combo inputs Stereo RCA input XLR output |
Covering Material | Polyurea |
Enclosure Material | Plywood |
Equalization (EQ) | D-CONTOUR switch HPF switch |
Frequency Range | 55 Hz - 20 kHz |
Pole Mount | Yes |
Power | 1,000 watts |
Product Weight | 36.4 lb |
Protection Circuit | Yes |
Tweeter/Horn | 1.75" diaphragm 1" throat compression driver Ferrite magnet |
Width | 19.7" |
Depth | 17.9" |
Height | 13.5" |
Woofer/Low Frequency | 12" cone 2.5" voice coil Ferrite magnet |

Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
