Yamaha DHR15 powered loudspeaker features a rugged wooden cabinet, 1000 watts of Class D power and DSP to produce up to 131dB SPL with remarkable clarity, offering an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy and performance. A premium plywood cabinet finished in a tough polyurea coating provides durability not found on other loudspeakers in this class.
DHR15 is optimized for FOH applications and features custom transducers driven by a DSP-equipped class-D power amplifier to deliver stunning sound quality and clarity. A flexible 2-channel mixer allows for multiple sources and connection types. Rigging points are also provided for suspended applications. Isn't it time you audition DHR quality and performance to improve your sound?
- 15" powered loudspeaker with 1000W of Class D power
- DHR15 achieves class-leading SPL with stunning clarity throughout its frequency response range
- Equipped with a 1.4" HF compression driver and high-output 15"" LF unit for accurate vocal reproduction and outstanding bass response
- Maximum 131dB SPL of power and wide frequency response range of 44Hz-20kHz
- Ultra-precise 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable plywood enclosure delivering outstanding acoustic performance
- Dual pole sockets to allow straight 0° placement or a 7° downtilt to cover your audience's needs
High-efficiency 1000W Class D amplifier
DHR15's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 131dB delivered with remarkable clarity and dynamic characteristics.
Custom-designed transducers

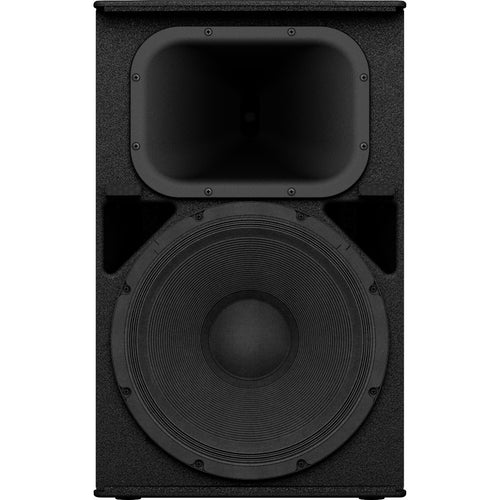

The high power output woofer delivers well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate midrange and high frequencies.
A rugged, highly portable cabinet
DHR15 features a plywood enclosure like Yamaha's acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.
Dual-angle pole mount socket
DHR15's pole mount socket offers two positions – 0° and 7° – to direct acoustic energy away from reflective surfaces in a room with low ceilings and onto your audience where it belongs.
Easy-to-use onboard 2-channel mixer

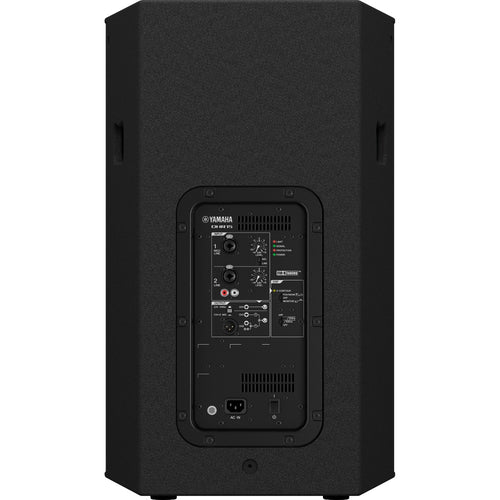

DHR15 has two input channels. CH1 has a combo jack which accepts either XLR or 1/4" TRS at mic or line level. CH2 offers two input options: a combo jack that accepts XLR or 1/4" TRS, and a pair of RCA connectors for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
| Specification | Value |
|---|---|
| SKU | YAM-DHR15 |
| Vendor | Yamaha |
| Active Passive | Active |
| Included From Manufacturer | Power cord |
| MPN | DHR15 |
| Product Unique Features | Dual pole sockets to allow straight 0° placement or a 7° downtilt |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 15 |
| Connectors |
2 × XLR / 1/4" combo inputs Stereo RCA input XLR output |
| Covering Material | Polyurea |
| Enclosure Material | Plywood |
| Equalization (EQ) |
D-CONTOUR switch HPF switch |
| Frequency Range | 44 Hz - 20 kHz |
| Pole Mount | Yes |
| Power | 1,000 watts |
| Product Weight | 52.9 lb |
| Protection Circuit | Yes |
| Tweeter/Horn |
1.4" diaphragm 1" throat compression driver Ferrite magnet |
| Width | 17" |
| Depth | 15.9" |
| Height | 27.2" |
| Woofer/Low Frequency |
15" cone 2.5" voice coil Ferrite magnet |
Yamaha products are designed and manufactured to provide a high level of defect-free performance. Yamaha Corporation of America ('Yamaha') is proud of the experience and craftsmanship that goes into each and every Yamaha product. Yamaha sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from Yamaha's authorized dealers in the fifty states of the USA and District of Columbia (the 'Warranted Area') and (2) used exclusively in the Warranted Area. Yamaha suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized Yamaha dealer or Yamaha Customer Service if you have any questions.
- DBR series powered loudspeakers: seven (7) years
- DSR series powered loudspeakers: seven (7) years
- DXR series powered loudspeakers: seven (7) years
- DXS series powered subwoofers: seven (7) years
- BR series passive loudspeakers: three (3) years
- CBR series passive loudspeakers: three (3) years
- Club series passive loudspeakers: three (3) years
- P series power amplifiers: three (3) years
- MSR series powered loudspeakers: three (3) years
- MG series mixers: one (1) year
- EMX series powered mixers: one (1) year
- STAGEPAS series PA system: one (1) year
- SPX/Q signal processors: one (1) year
- Loudspeaker accessories: one (1) year
- Other Yamaha live sound products: one (1) year
