Yamaha DHR15M 15" Powered PA Monitor Speaker
The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. The DHR15M is designed as a floor monitor, featuring custom transducers driven by a DSP-equipped class-D power amplifier to deliver stunning sound quality and clarity.
- 15" powered loudspeaker with 1000W of class-D power
- The DHR15M delivers extremely high power from its compact, low profile enclosure
- Equipped with a 1.75" HF compression driver coaxially mounted to a high-output 15" LF unit
- Maximum 131dB SPL of power and wide frequency response range of 50Hz-20kHz
- Ultra-Precise 48bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
- Durable polyurea coated compact plywood enclosure
- 35mm socket to allow placement on a stand or pole
High-Efficiency 1000W Class-D Amplifier
The DHR15M's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 131dB, delivered with remarkable clarity and dynamic characteristics.
Custom Designed Transducer
The high power output woofers deliver well- defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet
Like Yamaha's acclaimed DZR loudspeakers, the DHR Series feature plywood enclosures that deliver outstanding durability and acoustic performance.

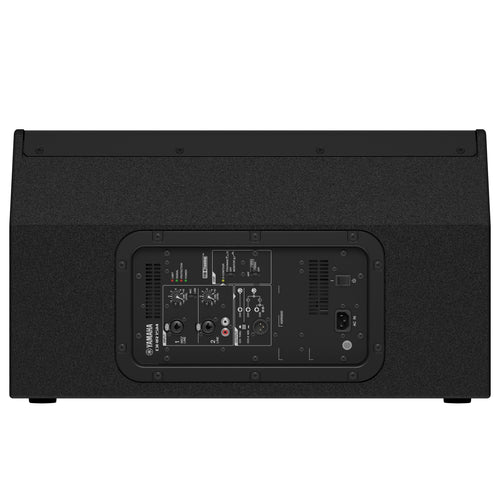

Easy-to-use Onboard 2-Channel Mixer
DHR15M has two input channels. CH1 has a combo jack which accepts either an XLR or TRS Phone, at mic or line level allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
| SKU | YAM-DHR15M |
| Vendor | Yamaha |
| Active Passive | Active |
| Battery Powered | No Battery Power |
| MPN | DHR15M |
| Speaker Application | Full-Range |
| Speaker Size Filterable | 15 |
| System Power | 1000 Watts |
| Enclosure Material | Premium plywood cabinet finished with tough polyurea coating |
| Woofer/Low Frequency | 15" Cone |
| Tweeter/Horn | 1.75" diaphragm, 1" throat |
| Frequency Range | 50Hz–20kHz |
| Power | 1000W |
| Sensitivity | INPUT1 : LINE= 0dBu / MIC= -32dBu, INPUT2= 0dBu |
| Connectors | INPUT1: Combo x1 INPUT2: Combo x1 + RCA-pin x2 (Unbalanced) OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Pole Mount | Yes (Φ35 mm x1) |
| Flyable | Yes |
| Height | 14.5" |
| Width | 25.3" |
| Depth | 18.9" |
| Product Weight | 50.7 lbs |
