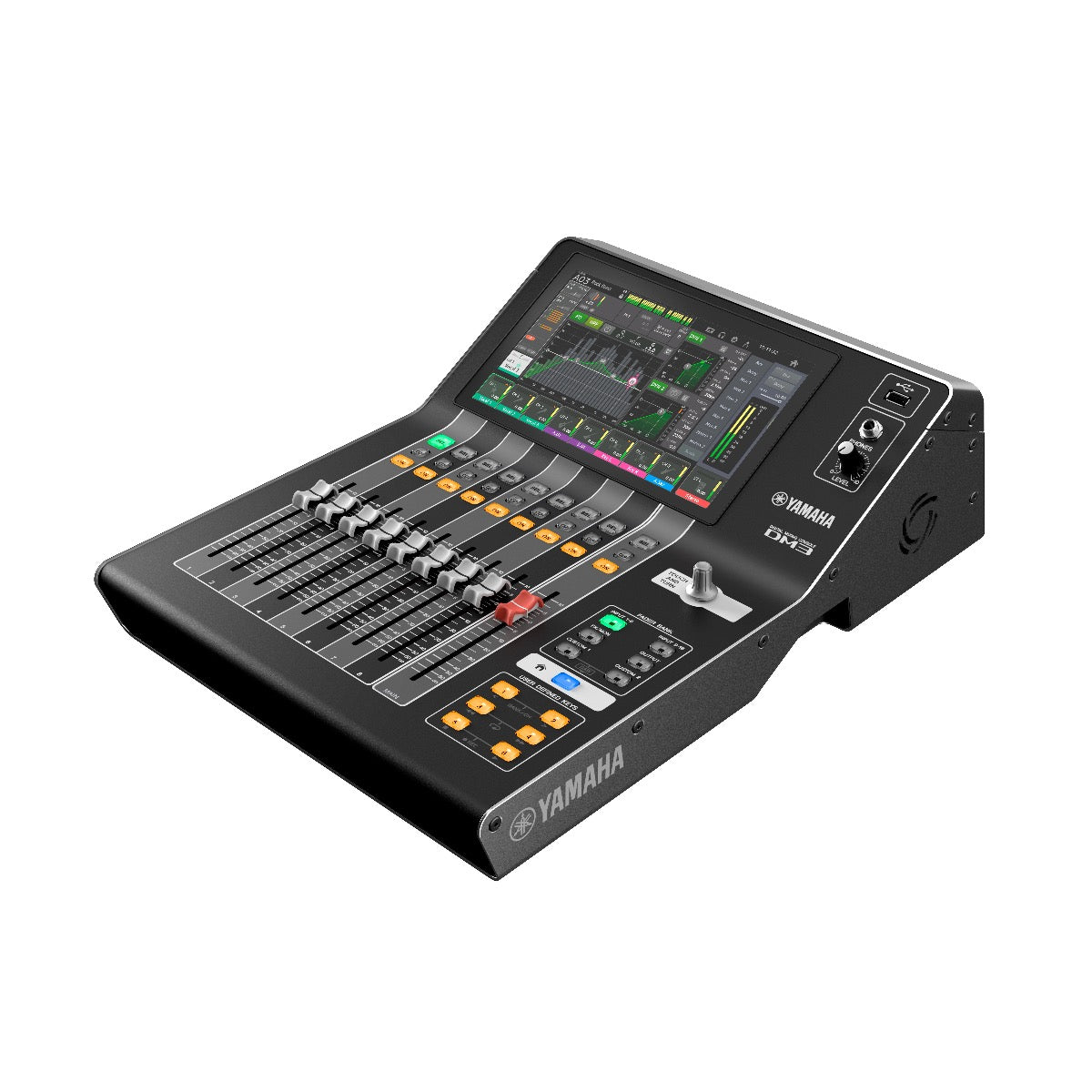

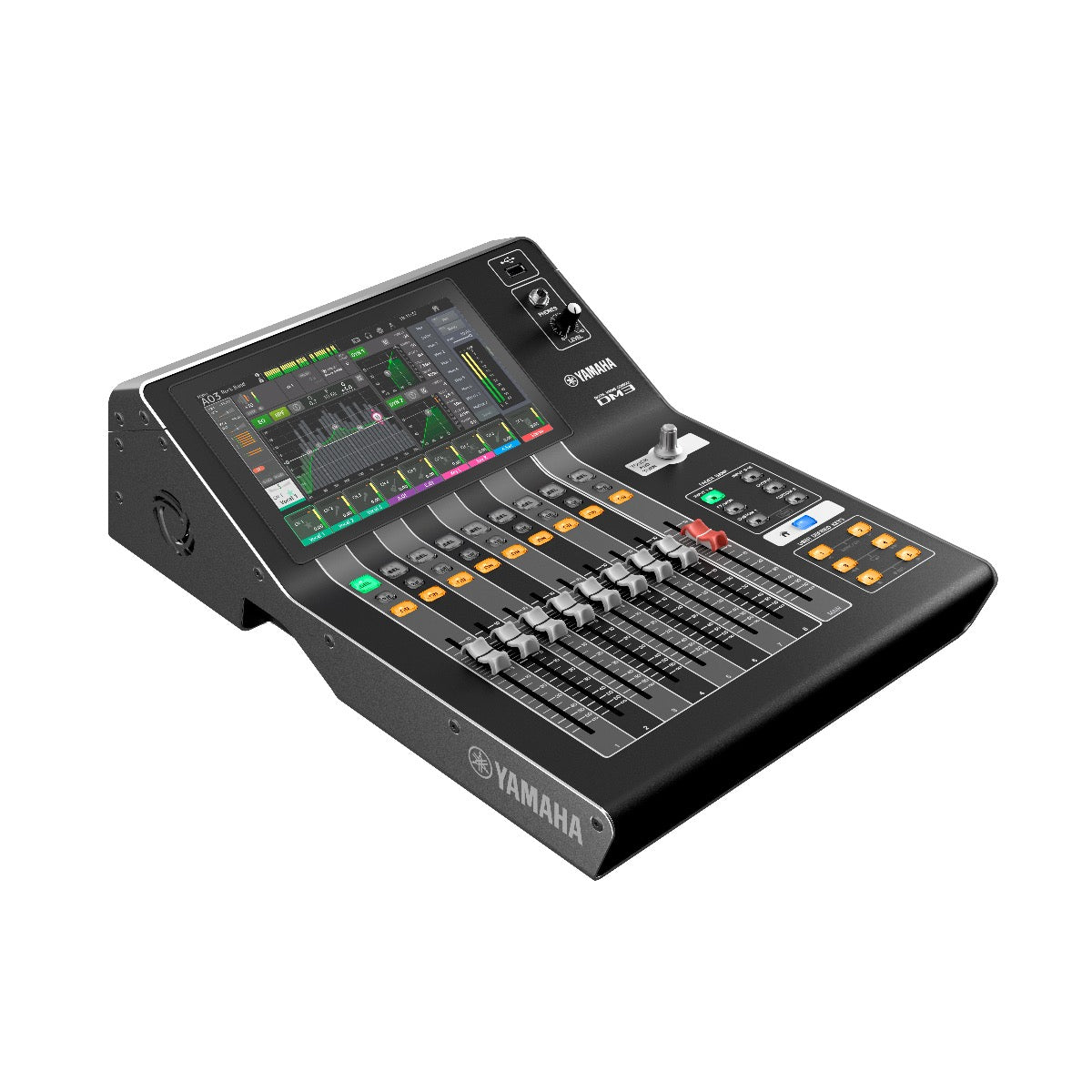

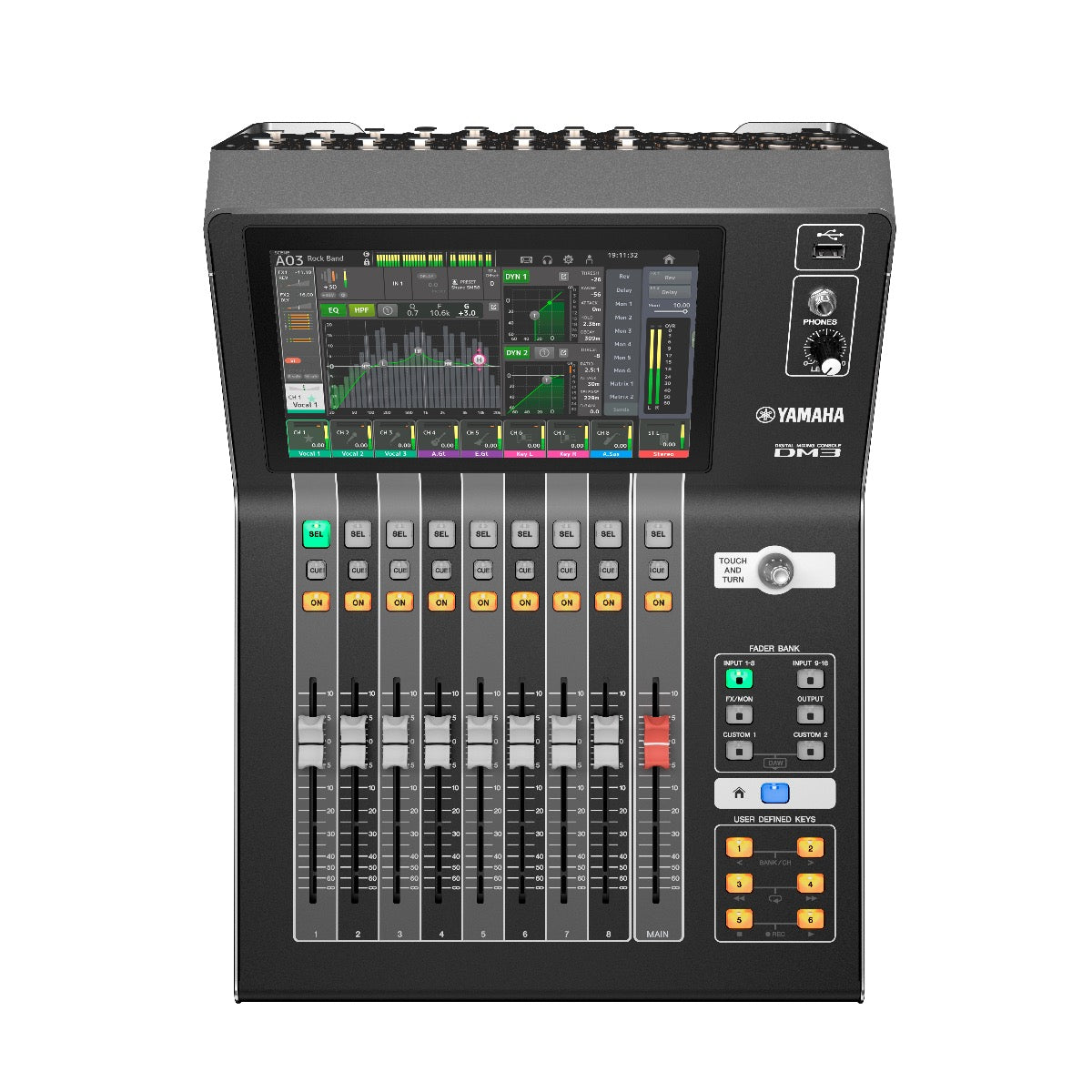

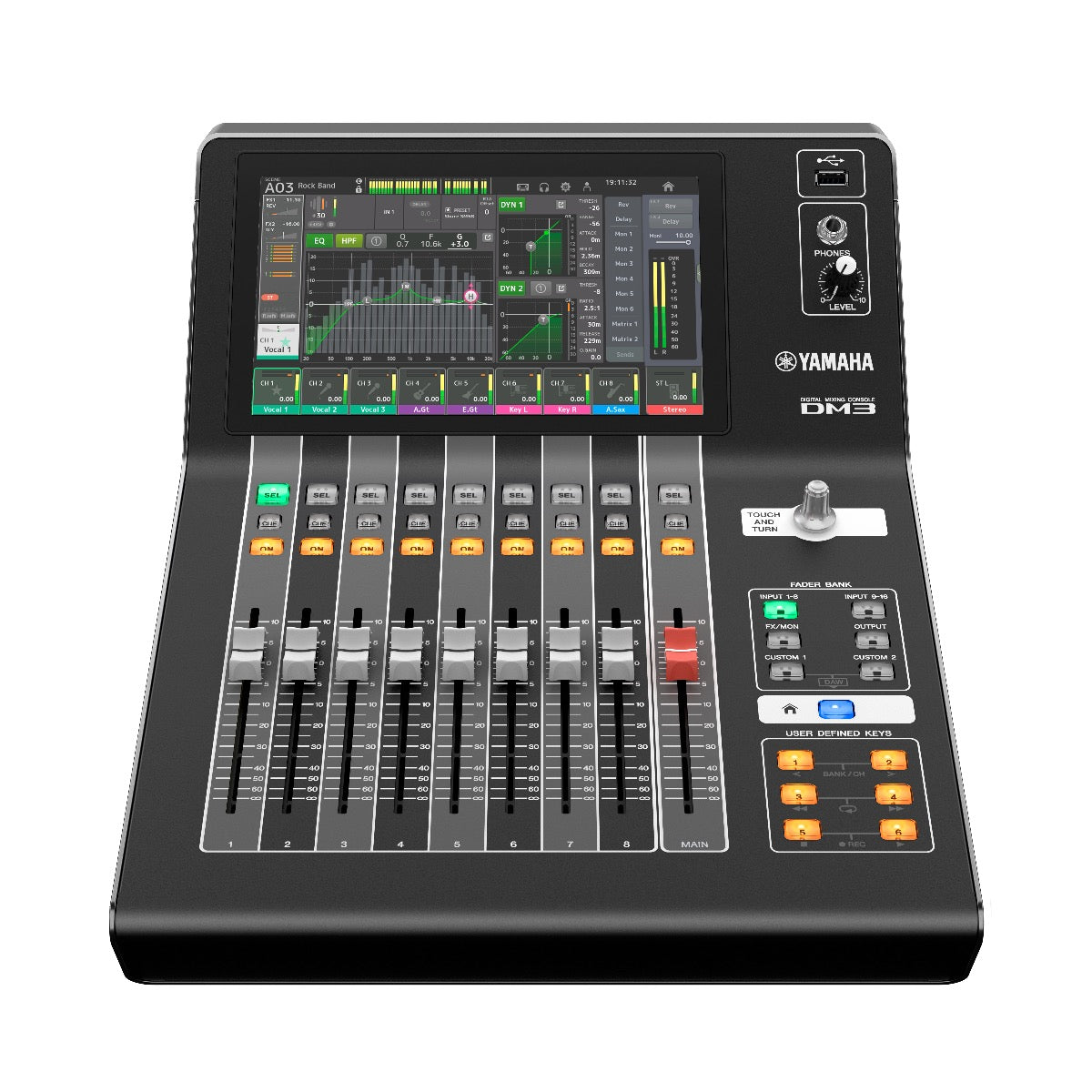

Yamaha DM3-D Ultracompact Digital mixer with Dante
The DM3-D is an ultra-compact 22 Channel digital mixer sure to get you your next gig. Capable of 96kHz sample rates and Dante connectivity, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3-D can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best in class, 9” touchscreen and a single Touch & Turn knob for managing most of the operation.
- A legacy of sonic purity: Capable of sampling rates as high as 96 kHz the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, live streaming, or even installed applications from a company that knows how to create music.
- Simple. Intuitive. Powerful: Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best in class, 9” touchscreen and a single Touch & Turn knob for managing most of the operation.
- The most compact Dante-compatible console: the DM3 delivers high-quality 96kHz sound using 16 analog pre-amps and eight outputs with low latency, and matches perfectly with the new Tio1608-D2 I/O Rack for simpler, faster system setup.
- Multiple ways to record & stream: 18x18 USB interface, 16x16 Dante Interface (DM3-D) and 2x2 recroding dirictly to a USB drive.
- DAW Remote for tactlie control of a variety of DAW software suites. DAW operations such as volume adjustment, play, and stop can be performed using the console’s faders and buttons as physical controllers for smooth operation.
- Renowned Yamaha sound quality with 96kHz sample rate
- 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
- 6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
- 16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
- 8 Analog Outpus (XLR)
- 16x16 Dante Interface
- 18x18 USB Audio Interface for playback and recording and 2x2 USB recorder
- Best in Class 9" Touch Screen
- DAW Remote Mode including transport control
- Custom control via OSC, USB-MIDI and Provisionaire
- Bundled with Cubase Al
| Specification | Value |
|---|---|
| SKU | YAM-DM3D |
| Model Name | DM3-D |
| Vendor | Yamaha |
| Connectivity | USB |
| Included From Manufacturer |
Power Adapter Owner's Manual CUBASE AI Download Information |
| Mic Preamps | 16 |
| Mixer Channel Filterable | 22 |
| Mixer Type | Digital |
| MPN | DM3-D |
| Simultaneous Inputs | 22 |
| Busses/Groups | 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported) |
| Channel Inserts | 16 mono, 1ST, 2 ST FX RTNs, 16x16 Dante Interface |
| Number of Faders | 9 motorized (8 channels, 1 master) |

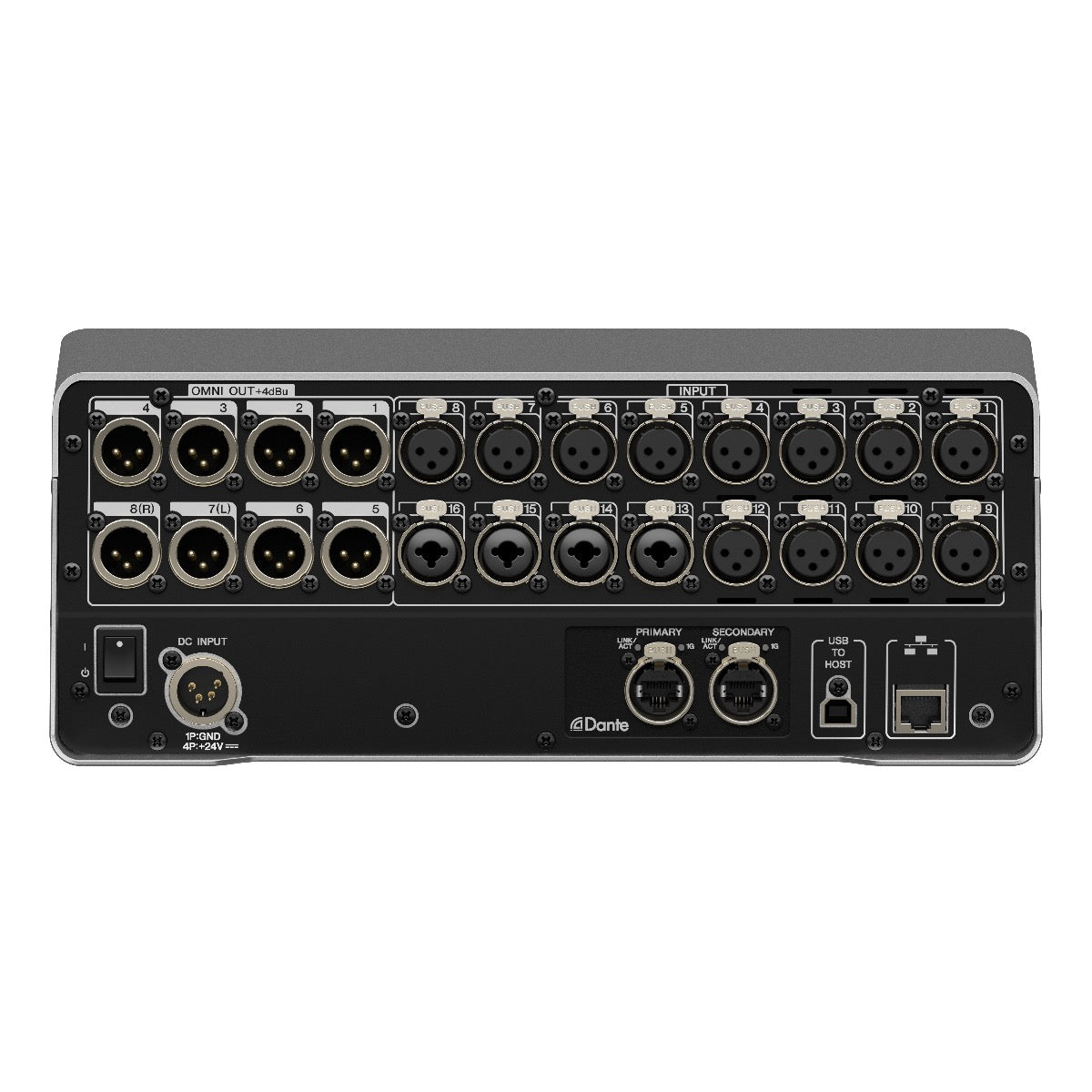

| Audio Inputs | 12 x XLR + 4 x XLR/TRS Phones Combo |
| Audio Outputs | 8 x XLR |
| Product Weight | 14.33 lbs |
| Rackmountable | Optional |
| Storage Type | USB Flash Drive |
| Width | 12.6" |
| Depth | 17.9" |
| Height | 5.5" |
